Connector Views

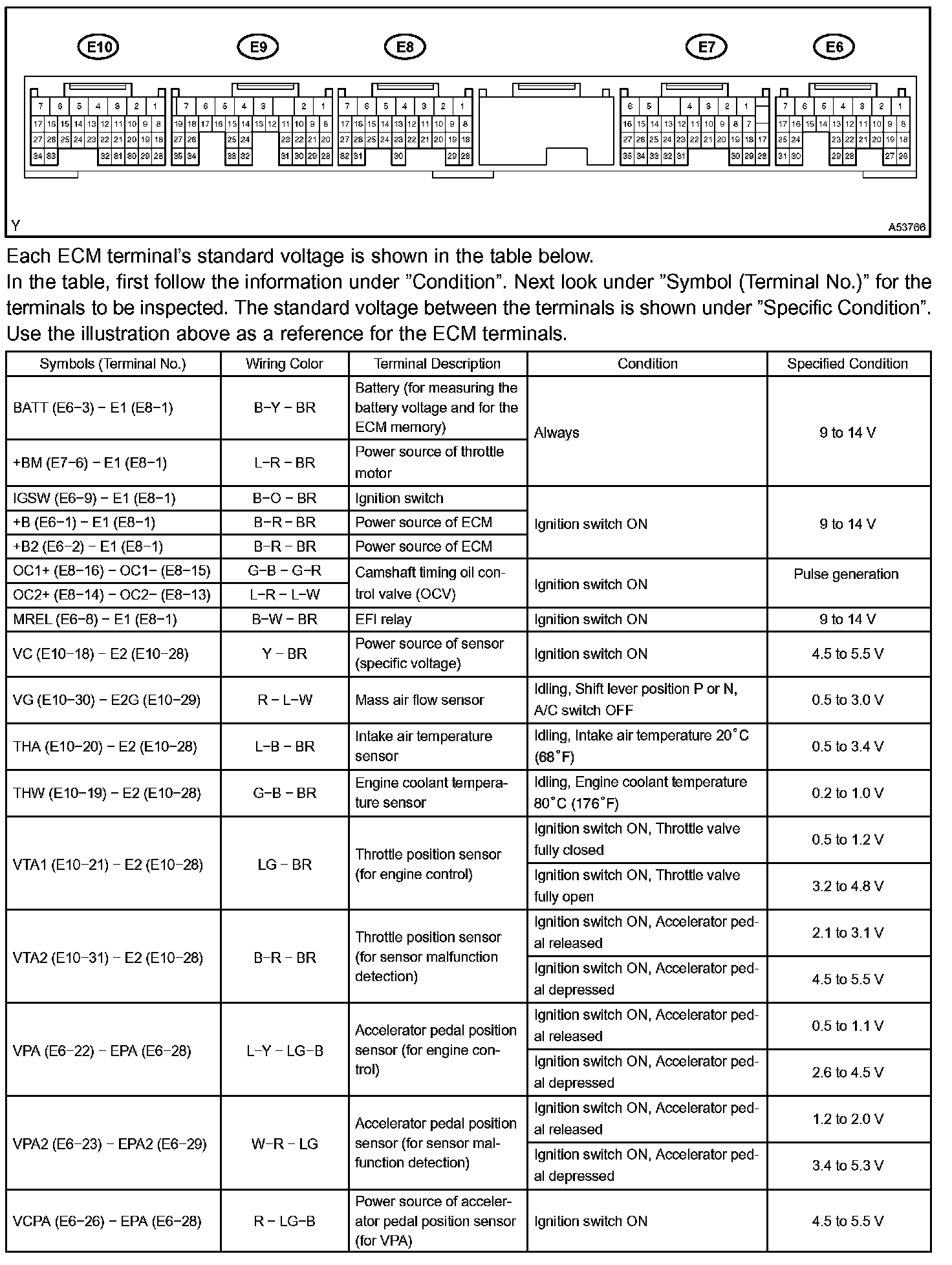

Terminals Of ECM/Pinouts (Part 1):

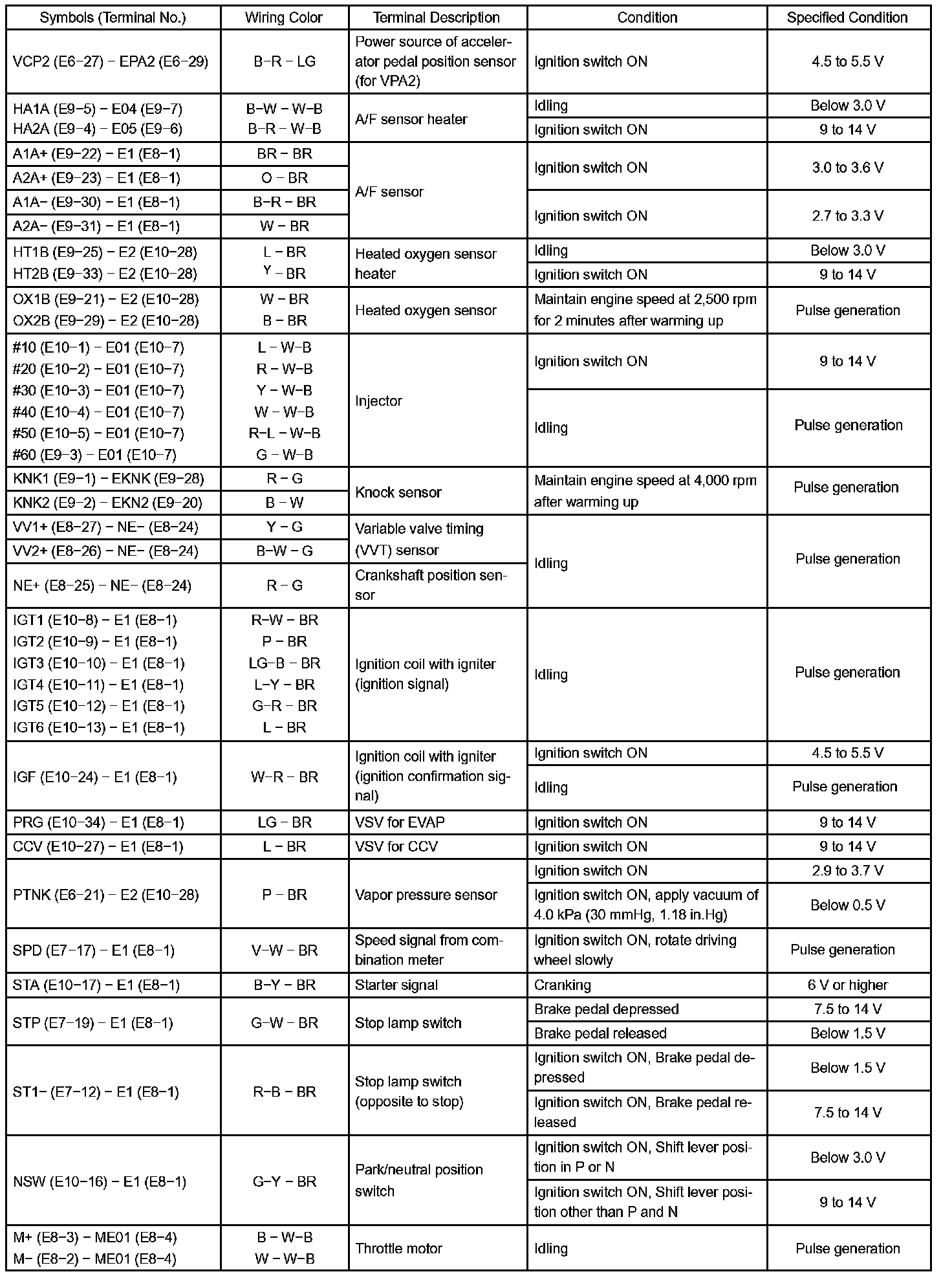

Terminals Of ECM/Pinouts (Part 2):

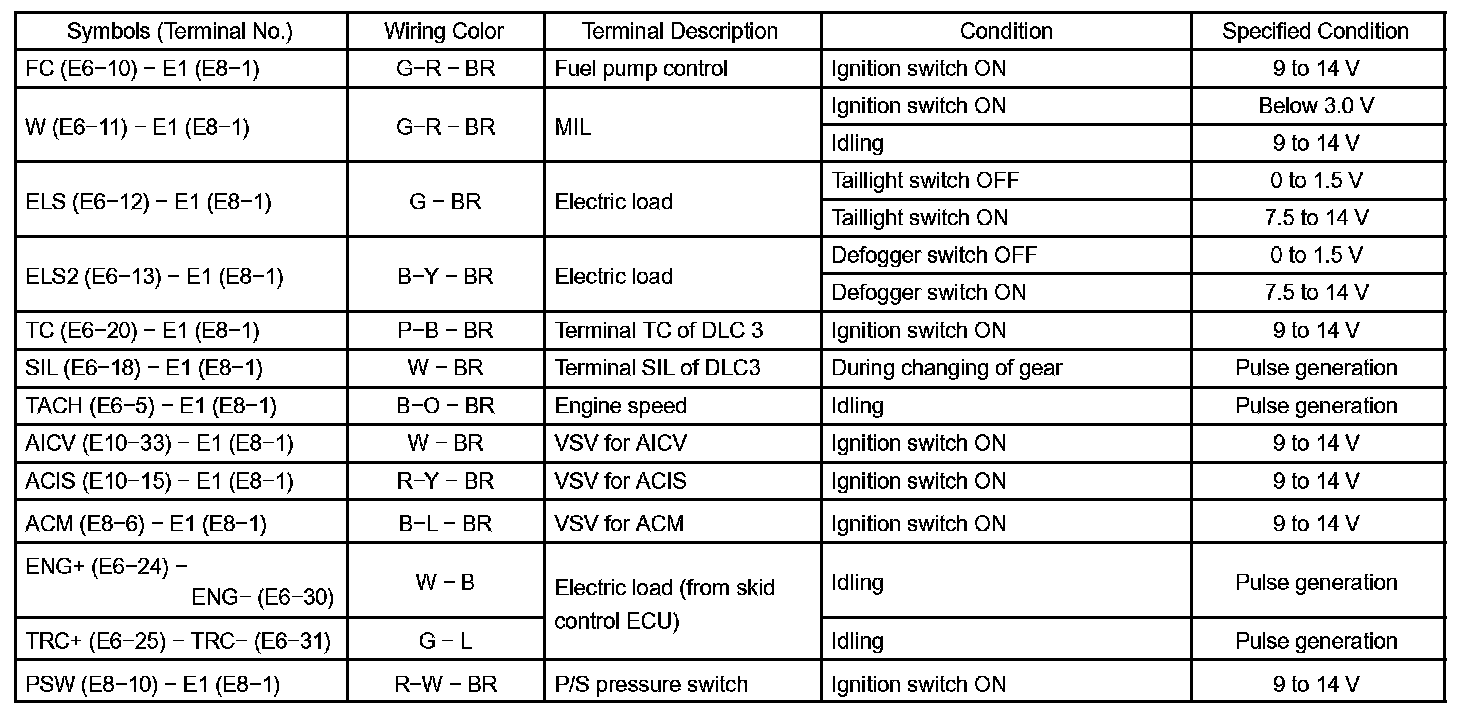

Terminals Of ECM/Pinouts (Part 3):
