Active Test

ACTIVE TEST

HINT: Performing the ACTIVE TEST using the hand-held tester or the OBD II scan tool allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one method to shorten diagnostic time. It is possible to display the DATA LIST during the ACTIVE TEST.

Part 1:

Part 2:

a. Warm up the engine.
b. Turn the ignition switch to OFF.
c. Connect the hand-held tester or the OBD II scan tool to the DLC3.
d. Turn the ignition switch to ON.
e. Turn the hand-held tester or the OBD II scan tool ON.

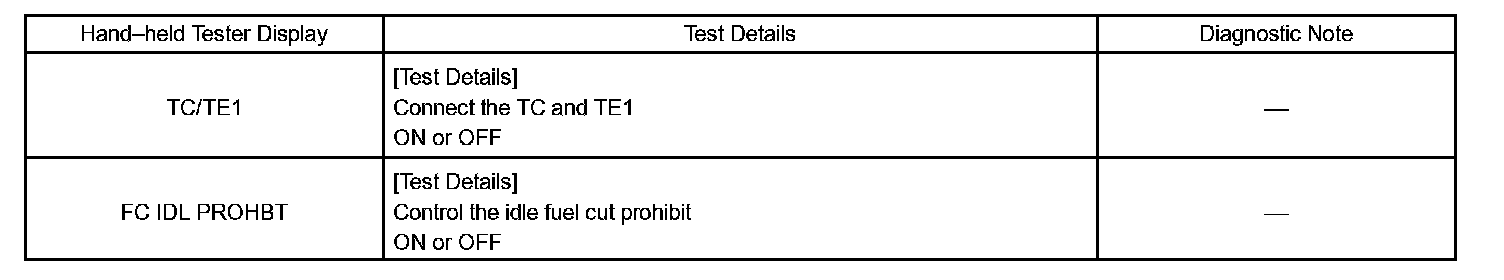

f. Enter the following menus DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST.

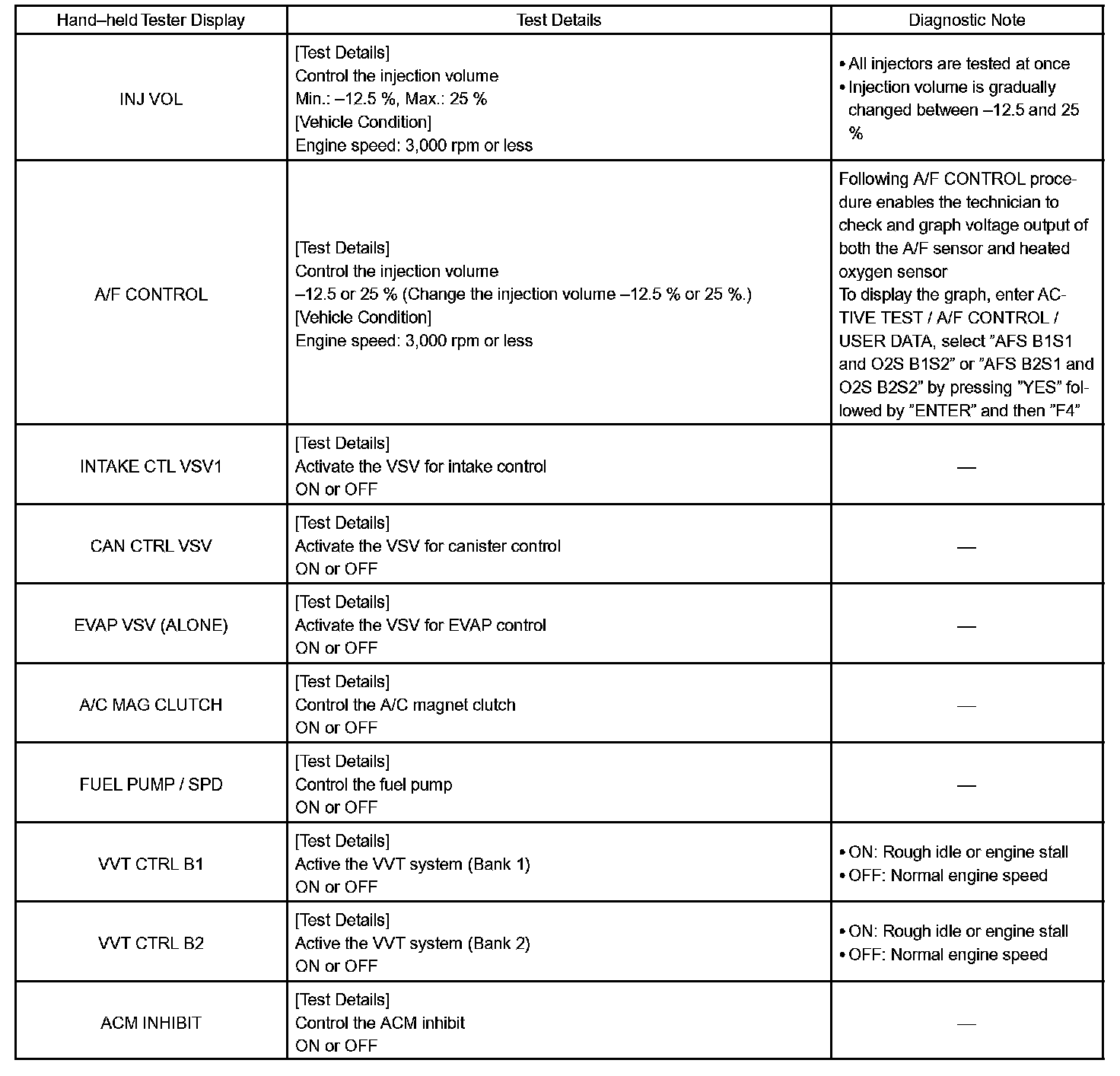

g. According to the display on the tester, perform the ACTIVE TEST.
