Oscilloscope Patterns and Waveforms

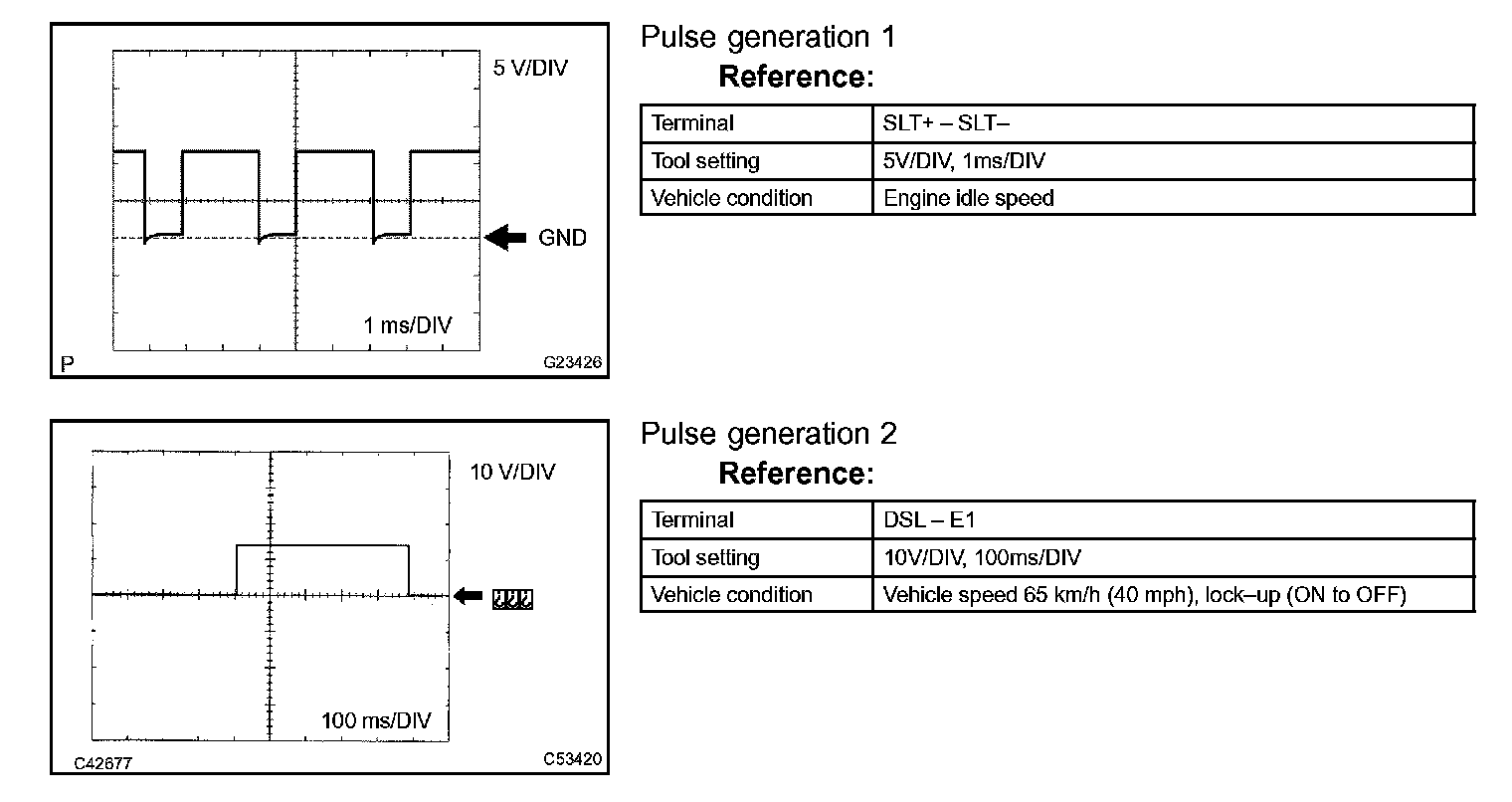

Oscilloscope Waveforms Part 1:

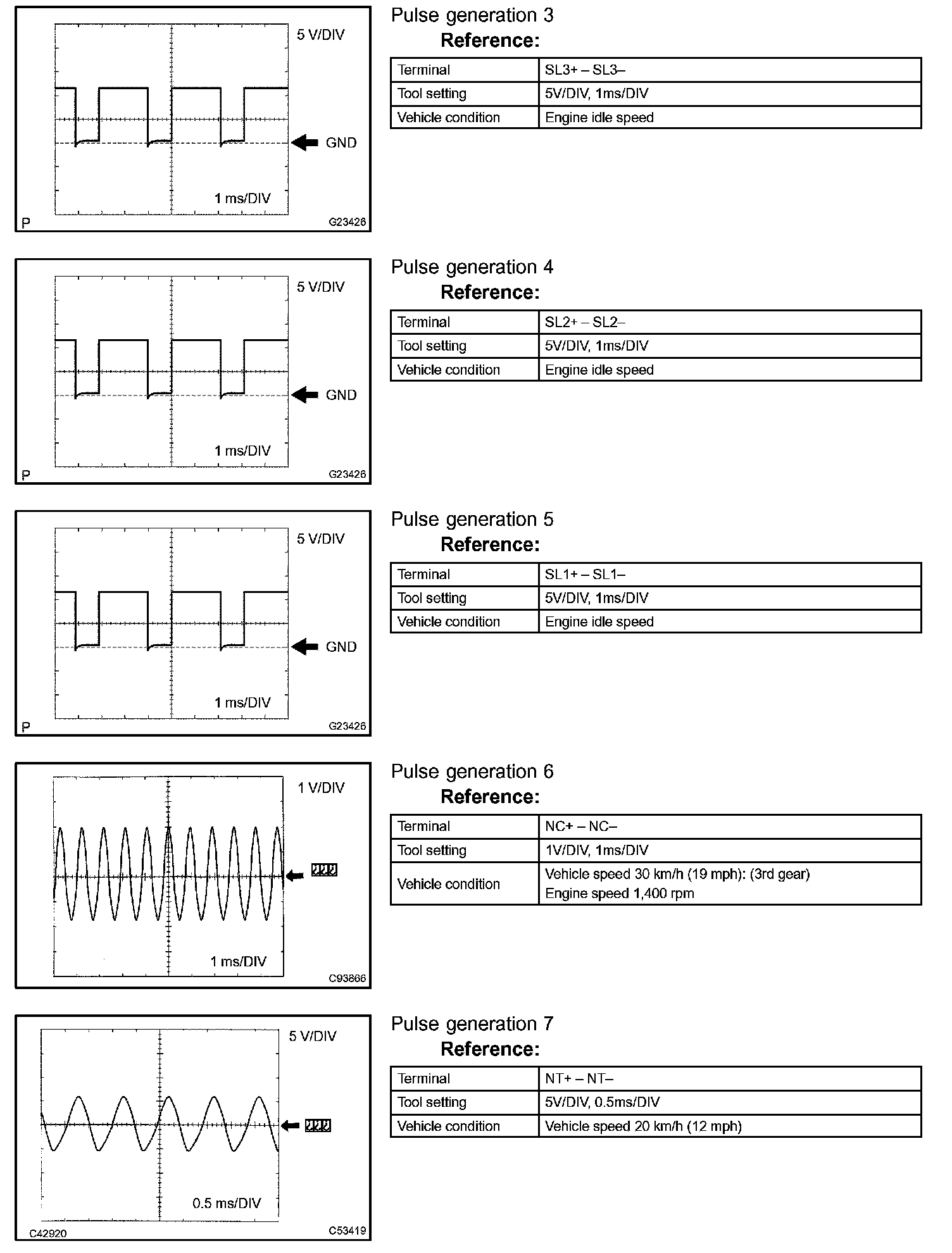

Oscilloscope Waveforms Part 2:

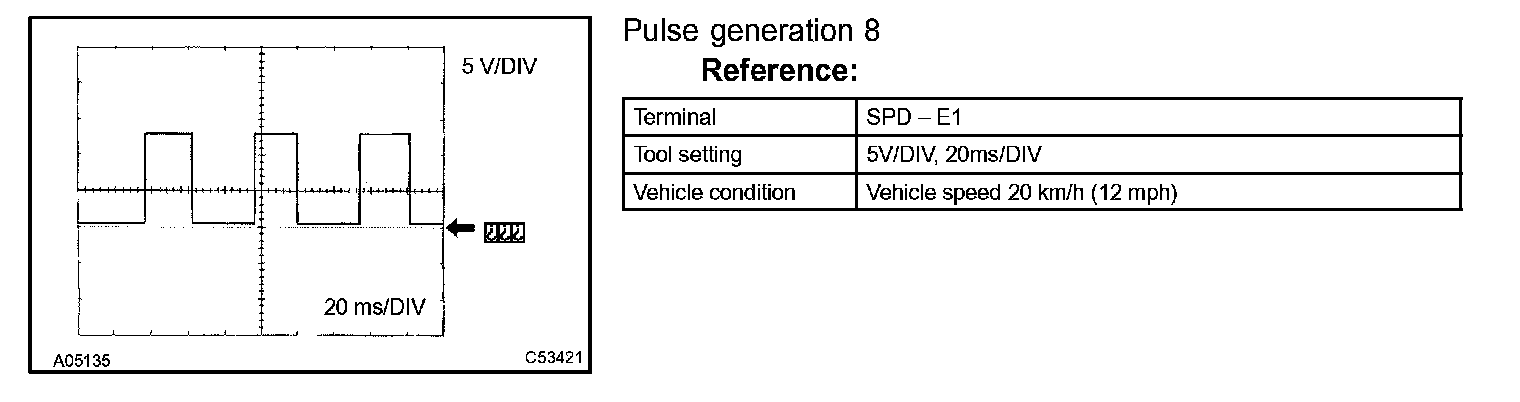

Oscilloscope Waveforms Part 3:
