Engine Performance: System: Preparation: Windshield/WINDOWGLASS/Mirror: Preparation

Recommended Tools

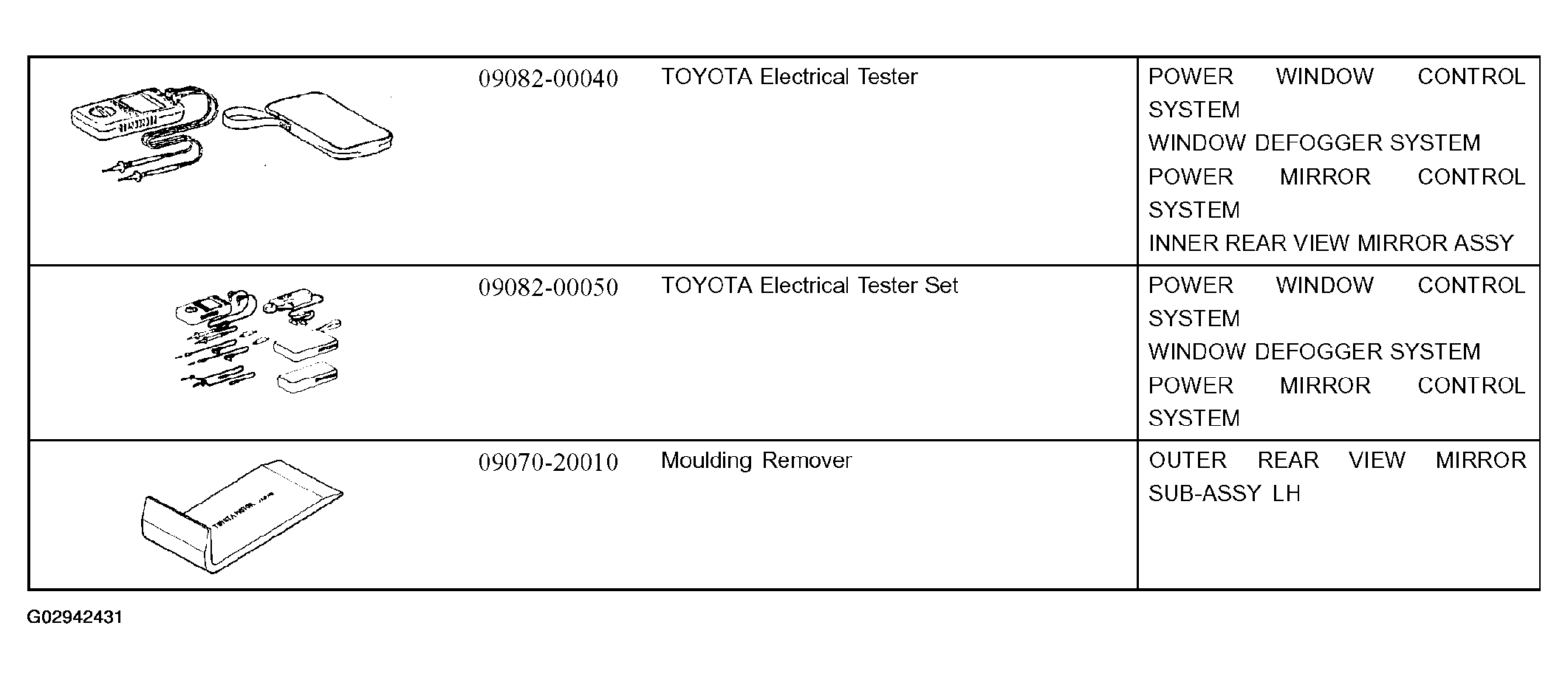

Fig 1: Windshield/Window Glass/Mirror Recommended Tools Chart
G02942431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

WINDSHIELD/WINDOW GLASS/MIRROR EQUIPMENT

Adhesive
Torque wrench
Knife
Sealer gun
Tape To avoid surface damage.
Piano wire Windshield
Plastic sheet To avoid surface damage.
Wooden block or similar object For tying both piano wire ends

SSM

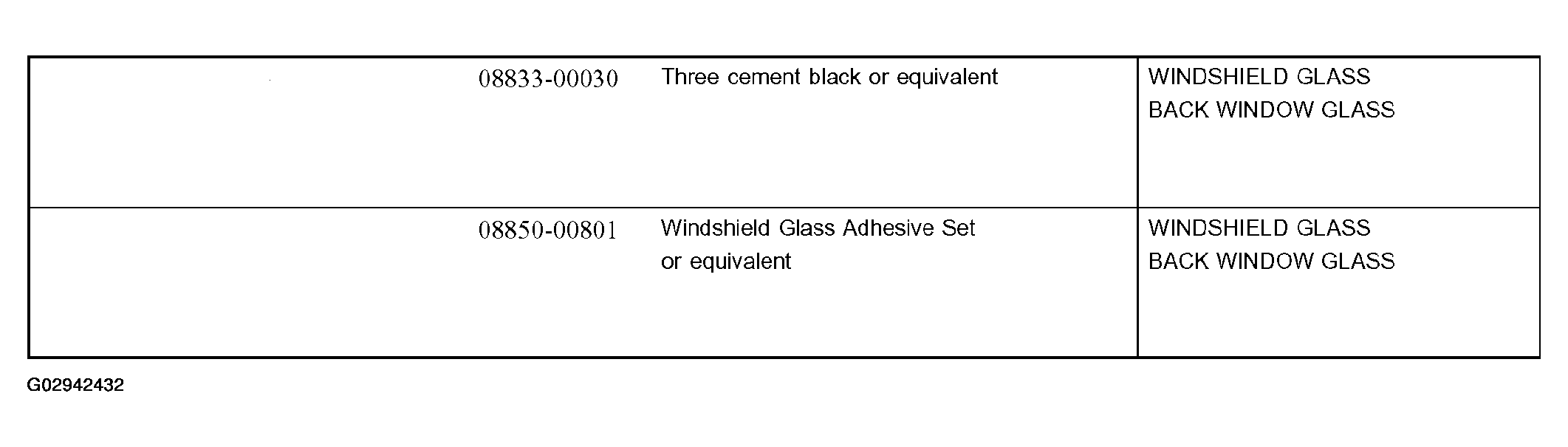

Fig 2: Windshield/Window Glass/Mirror SSM Table
G02942432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
