Power Steering: Preparation

SST

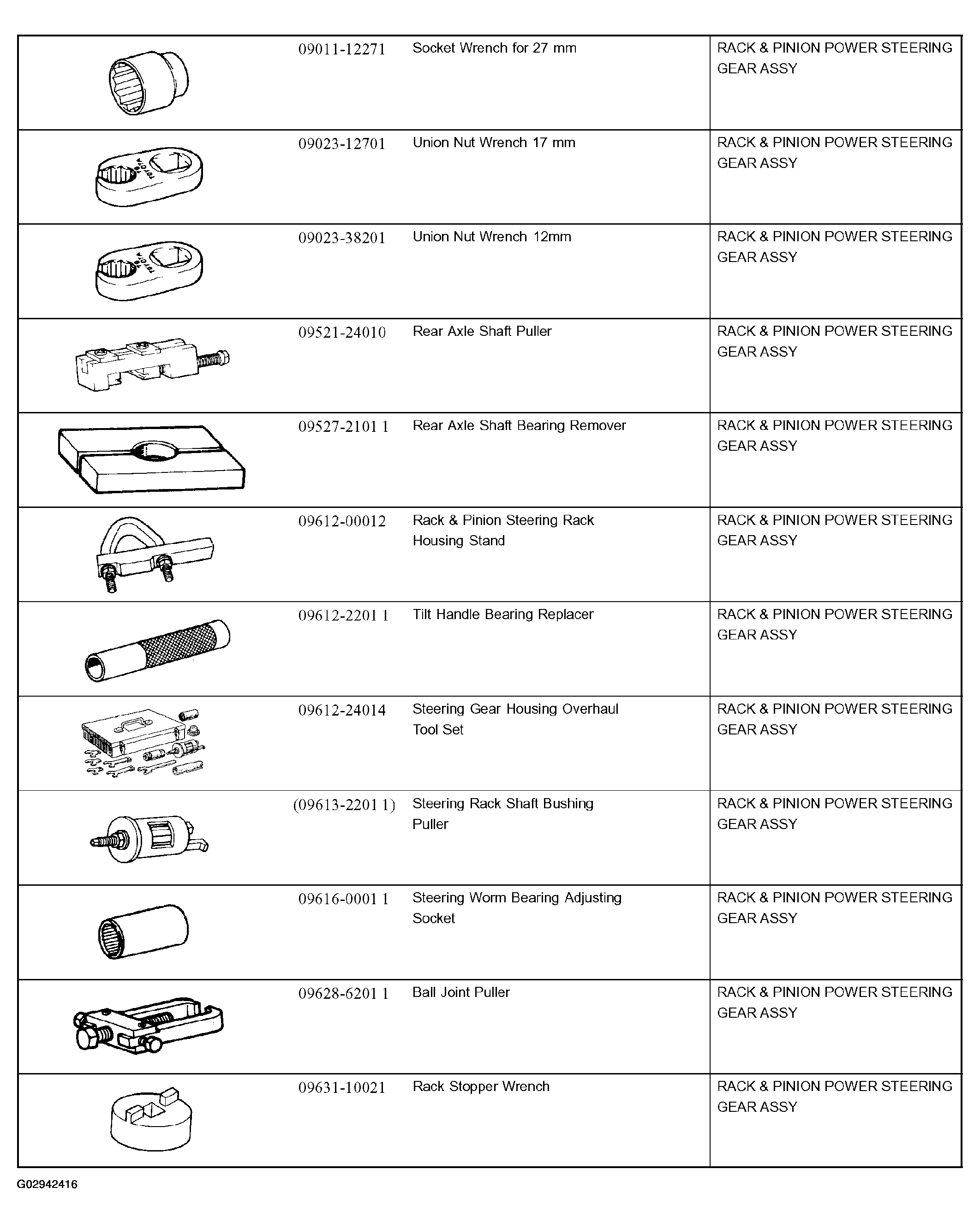

Fig 1: Power Steering System SST Chart (1 Of 3)
G02942416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

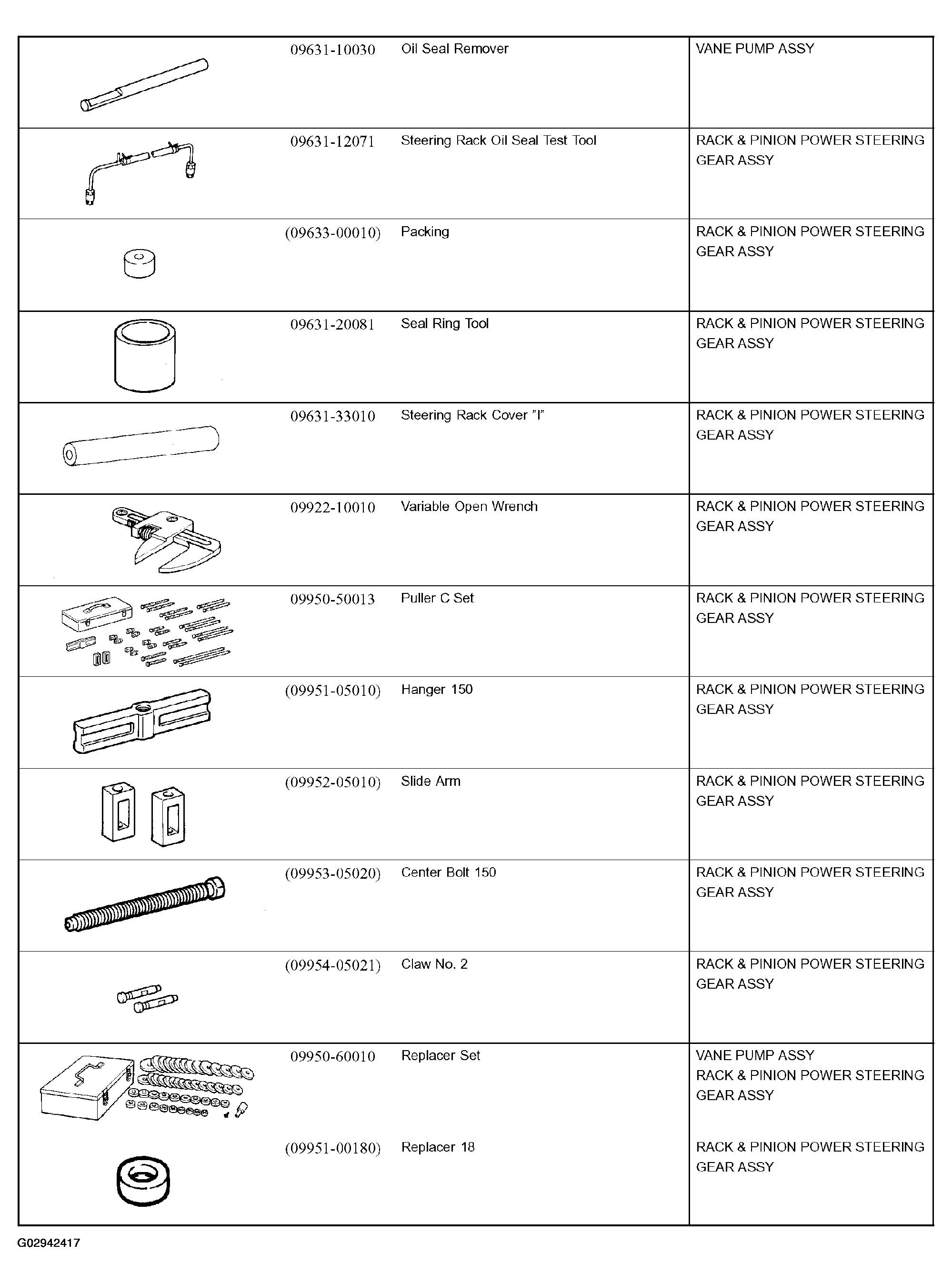

Fig 2: Power Steering System SST Chart (2 Of 3)
G02942417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

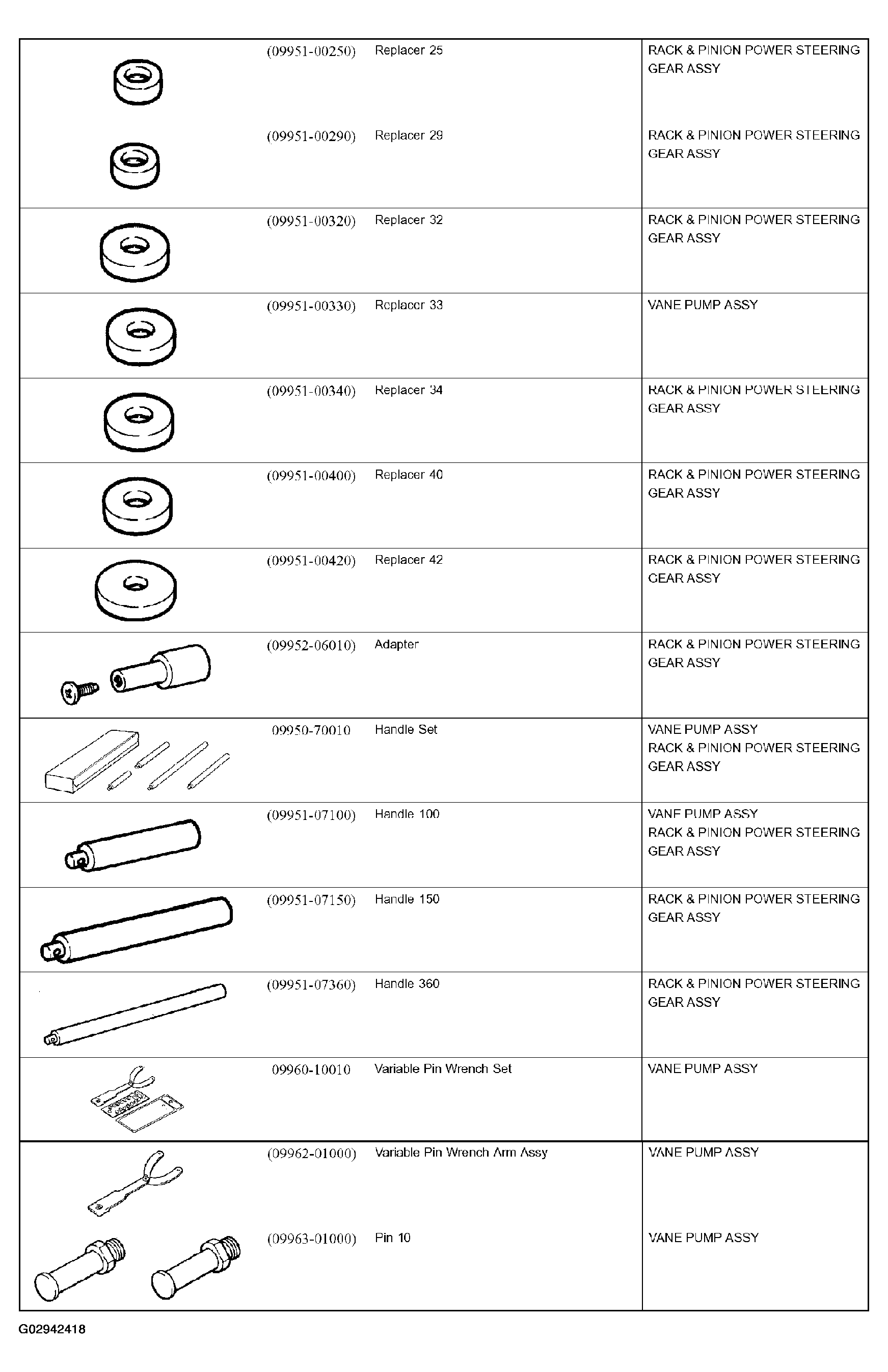

Fig 3: Power Steering System SST Chart (3 Of 3)
G02942418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

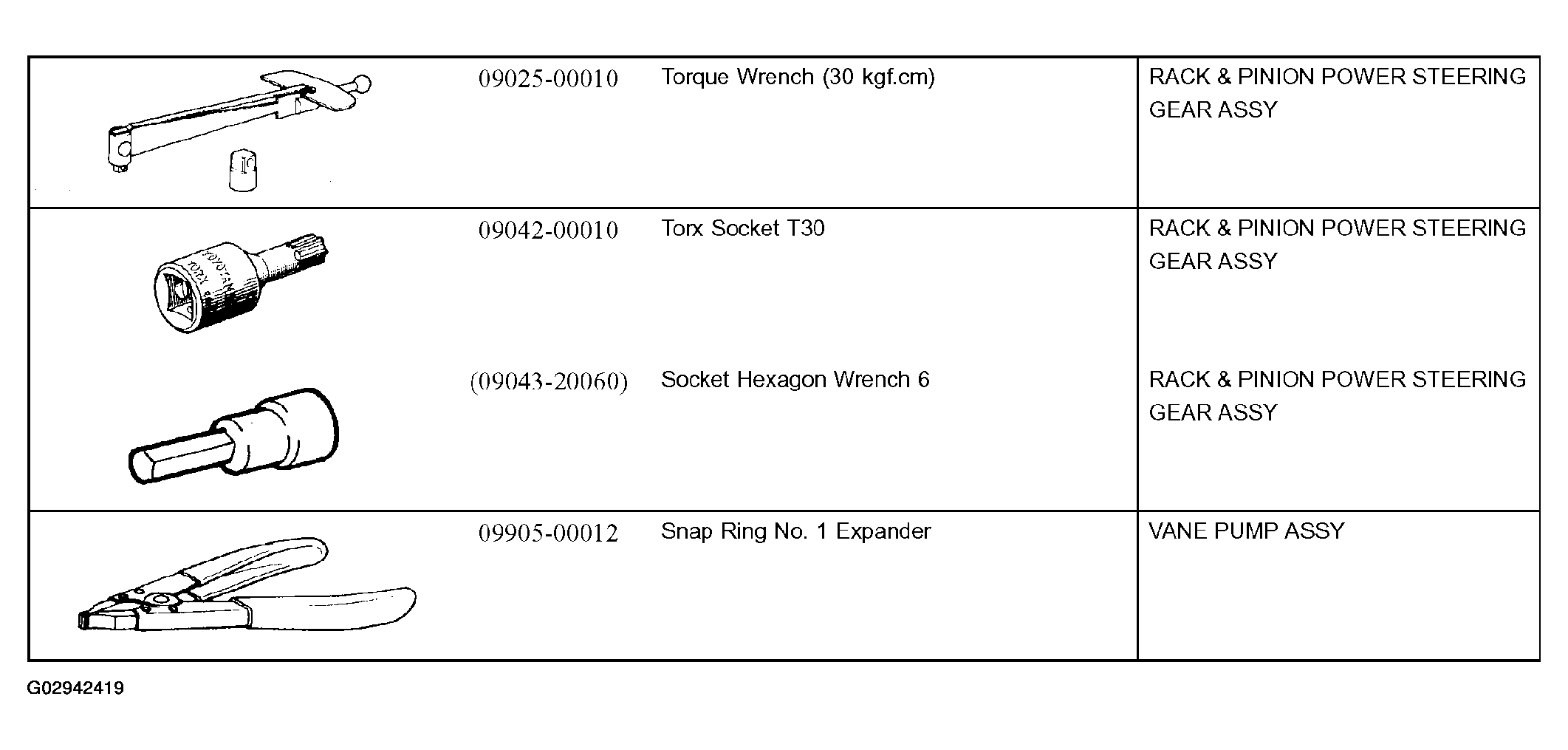

Fig 4: Power Steering System Recommended Tools Chart
G02942419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

POWER STEERING SYSTEM LUBRICANT

Caliper gauge Vane pump assy
Belt tension gauge Vane pump assy
Vernier calipers Vane pump assy
Dial indicator Steering gear assy
Feeler gauge Vane pump assy
Micrometer Vane pump assy
Torque wrench

Lubricant

POWER STEERING SYSTEM LUBRICANT

Item Capacity Classification
Power steering fluid (Total) 1.0 liters (1.1 US qts, 0.9 lmp.qts) ATF DEXRON® II or III

SSM

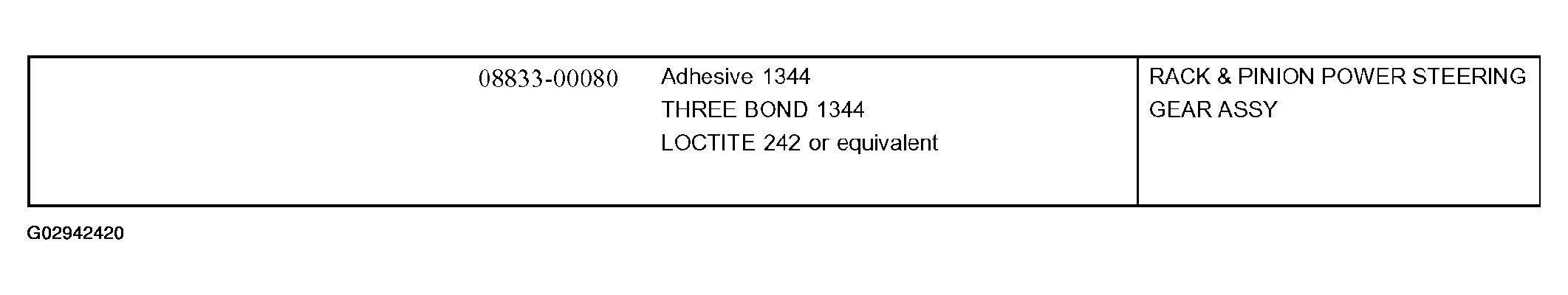

Fig 5: Power Steering System SSM Table
