Cruise Control: Replacement

HINT:

Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  OVERHAUL  )
3. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  OVERHAUL  )
4. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
5. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
   1. Disconnect the connector.
   2. Remove the 2 screws.

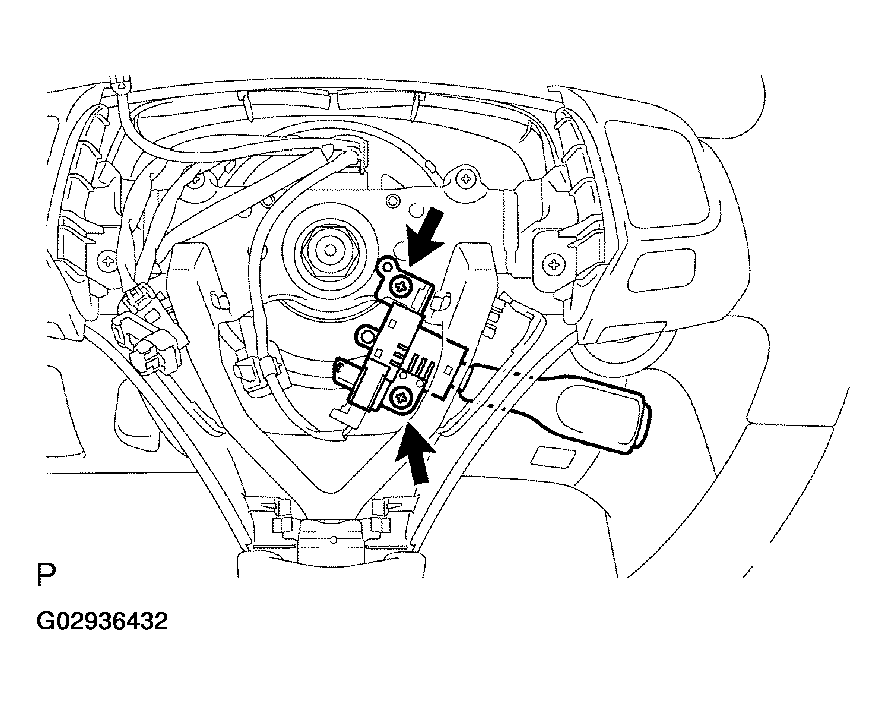

      Fig 1: Removing Cruise Control Main Switch Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Pull out the cruise control main switch assy in the direction shown by the arrow in the illustration.

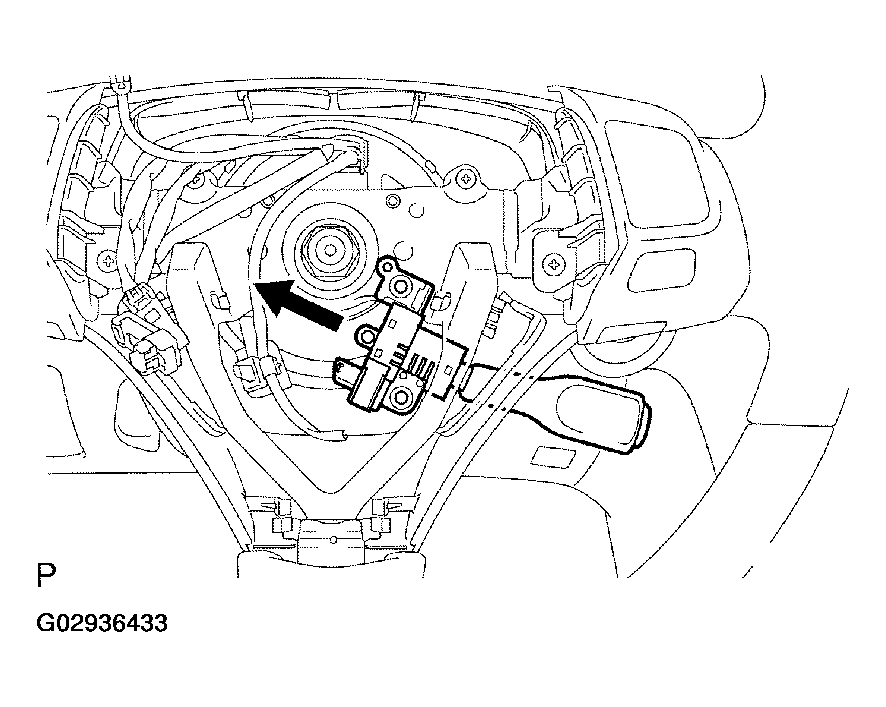

      Fig 2: Removing Cruise Control Main Switch Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL CRUISE CONTROL MAIN SWITCH ASSY
   1. Install the cruise control main switch assy with the 2 screws.
      1. Torque: 2.35 N.m (24 kgf.cm, 21 in..lbf)
   2. Connect the connector.
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
9. CONNECT BATTERY NEGATIVE TERMINAL
10. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
