Terminals Of Ecu

CHECK OUTER MIRROR CONTROL ECU ASSY

Check the voltage and continuity between each terminal of the wire harness side connector.

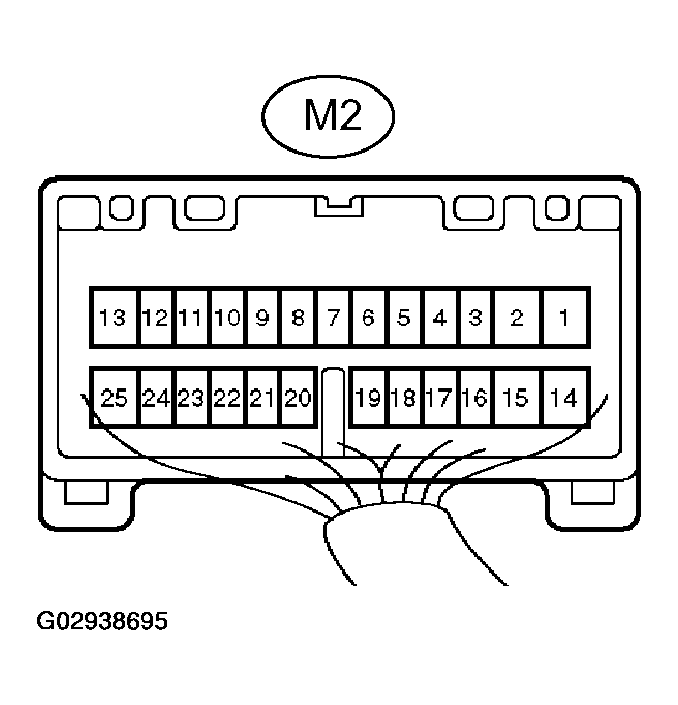

Fig 1: Identifying Outlet Mirror Control ECU Assy Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

IDENTIFYING TERMINAL SPECIFICATION

Symbols (Terminal No.)	Wiring Color	Condition	Specified condition
GND <=> Body ground (M2-14 <=> Body ground)	W-B <=> Body ground	Constant	Continuity
GND <=> B (M2-14 <=> M2-1)	W-B <=> W-R	Constant	10-14V
ACC<=>GND (M2-2 <=> M2-14)	GR <=> W-B	Ignition switch OFF --> ACC	0V --> 10-14V

HINT:

If the value is not as specified, a malfunction exists in the wire harness side.

Connect the M2 connector, and check the voltage between each terminal of the connector.

IDENTIFYING TERMINAL SPECIFICATION

Symbols (Terminal No.)	Wiring Color	Condition	Specified condition
M+L <=> GND (M2-10 <=> M2-14)	Y-G <=> W-B	Left side mirror switch NORMAL <=> RIGHT or DOWN	0V <=> 10 - 14 V
MHL <=> GND (M2-11 <=> M2-14)	B-R <=> W-B	Left side mirror switch NORMAL <=> LEFT	0V --> 10 - 14 V
MVL <=> GND (M2-12 <=> M2-14)	L-B <=> W-B	Left side mirror switch NORMAL <=> UP	0V 10 - 14 V
M+R <=> GND (M2-22 <=> M2-14)	Y-G <=> W-B	Right side mirror switch NORMAL --> RIGHT or DOWN	0V 10 --> 14 V
MHR <=> GND (M2-23 <=> M2-14)	LG-R <=> W-B	Right side mirror switch NORMAL --> LEFT	0V --> 10 - 14 V
MVR <=> GND (M2-24 <=> M2-14)	G-R <=> W-B	Right side mirror switch NORMAL --> UP	0V --> 10 - 14 V

HINT:

If the value is not as specified, a malfunction exists in the outer mirror control ECU assy.
