Inspection Procedure
- CHECK WIRE HARNESS (LIMIT SWITCH CIRCUIT)

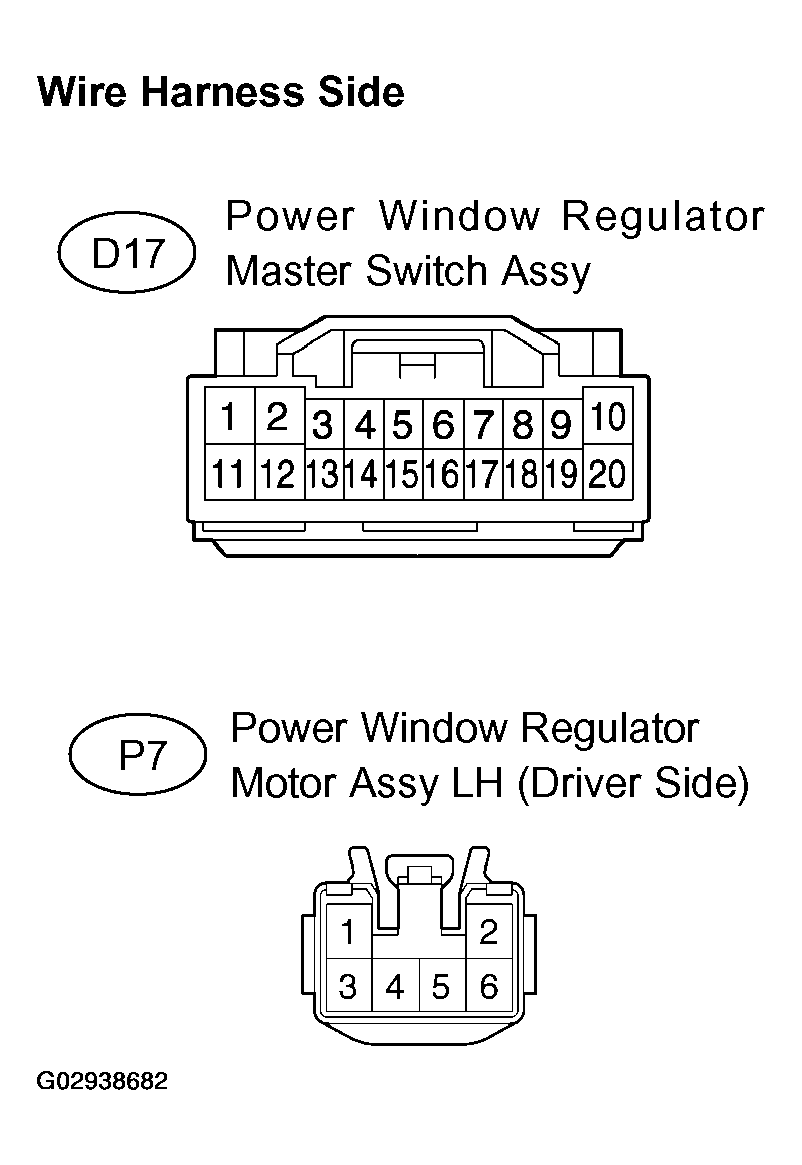

- Disconnect the D17 power window regulator master switch and P7 power window regulator motor assy LH connectors.
- Check the continuity between the disconnected connectors.
Standard:
TERMINAL SPECIFIED CONDITIONSymbols (Terminal No.) (Switch <=> Motor) Specified condition LMT <=> LMT (D17-5 <=> P7-2) Continuity SGND <=> E (D17-13 <=> P7-3) Continuity NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
OK: Go To Next Step.
- CHECK WIRE HARNESS (PULSE SENSOR CIRCUIT)
- Disconnect the D17 power window regulator master switch and P7 power window regulator motor assy LH connectors.
- Check the continuity between the disconnected connectors.
Standard:
TERMINAL SPECIFIED CONDITIONSymbols (Terminal No.) (Switch <=> Motor) Specified condition PLS <=> PLS (D17-15 <=> P7-6) Continuity SGND <=> E (D17-13 <=> P7-3) Continuity NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
OK: Go To Next Step.
- REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH
- Replace the power window regulator motor assy LH.
- Check the power window operation.
OK: END
NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
