Starting System (3MZ-FE): Inspection

INSPECT STARTER ASSY
NOTE: These tests must be performed within 3 to 5 seconds to prevent burnout of the coil.
1. Perform the pull-in test.
  1. Remove the nut, then disconnect the lead wire from terminal C.

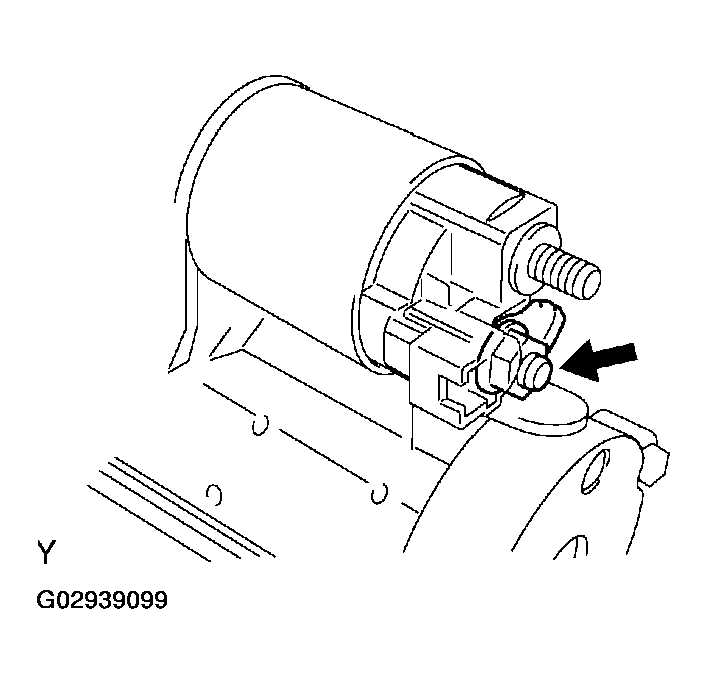

    Fig 1: Identifying Terminal C Lead Wire Nut
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Connect the battery to the repair service starter kit as shown in the illustration. Check that the clutch pinion gear is extended.
  If the clutch pinion gear does not move, replace the starter magnetic switch.

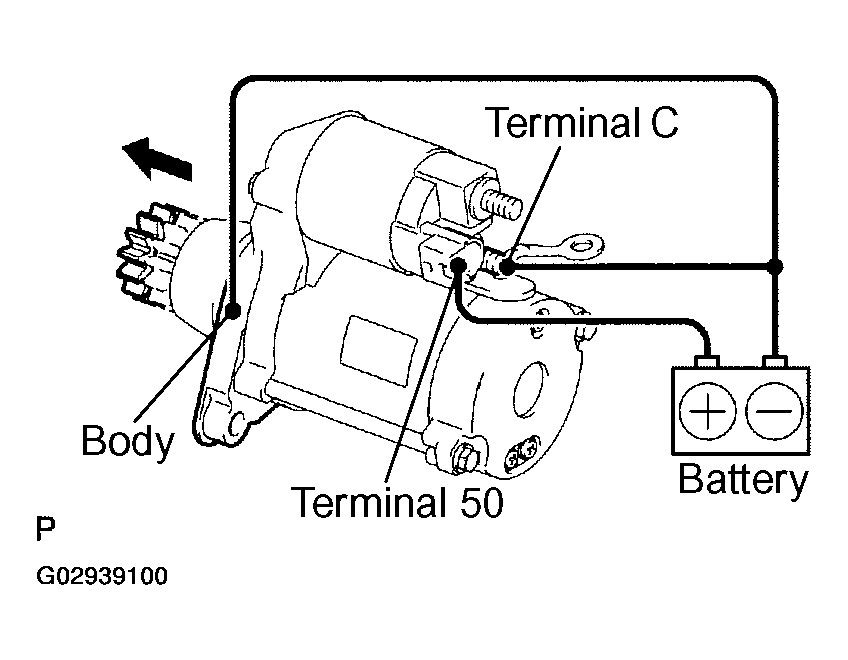

  Fig 2: Connecting Battery To Repair Service Starter Kit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform the hold-in test.
  1. Disconnect the negative (-) lead from terminal C with the lead wire disconnected from terminal C. Check that the clutch pinion gear remains extended.
    If the clutch pinion gear returns inward, replace the starter magnetic switch.

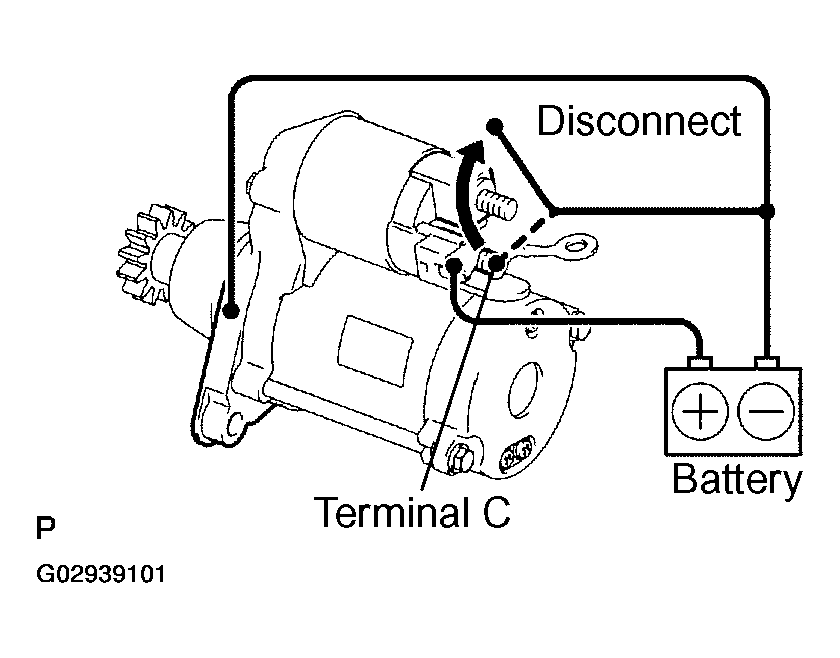

    Fig 3: Disconnecting Negative (-) Lead From Terminal C
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the operation.
  1. Disconnect the negative (-) lead from the switch body. Check that the clutch pinion gear returns.
    If the clutch pinion gear does not return inward, replace the starter magnetic switch.

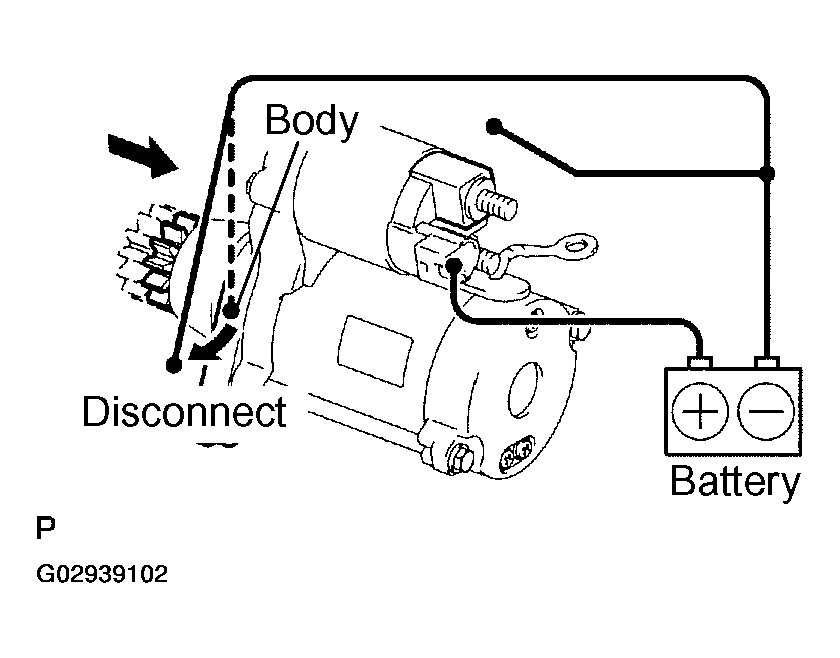

    Fig 4: Disconnecting Negative (-) Lead From Switch Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Perform the no-load performance test.
  1. Connect the lead wire to terminal C. Make sure that the lead is not grounded.
    1. Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

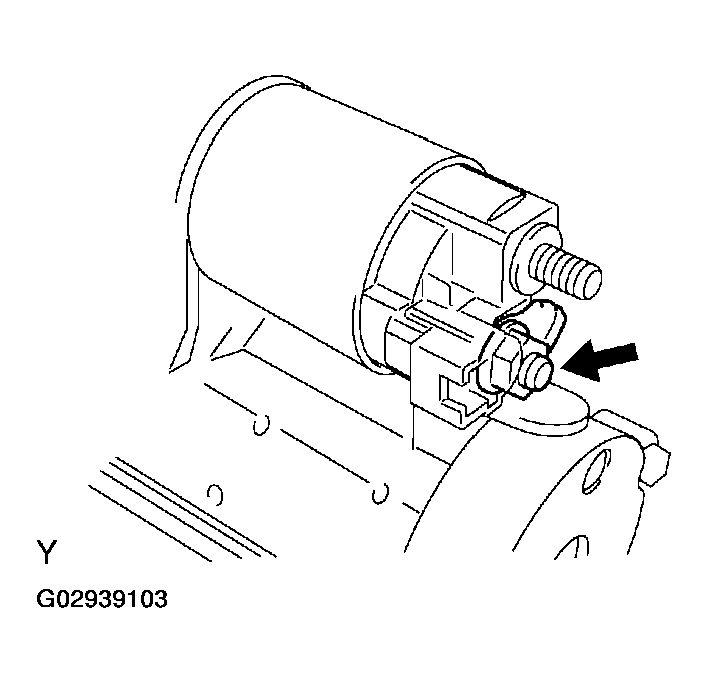

    Fig 5: Identifying Terminal C Lead Wire Nut
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Clamp the starter in a vise.
  3. Connect the battery and an ammeter to the starter as shown in the illustration.
  4. Check that the starter rotates smoothly and steadily with the clutch pinion gear extended. Check that the ammeter reads the specified current.
  Specified current: 90 A or less at 11.5 V

  If the current is not as specified, replace the starter.

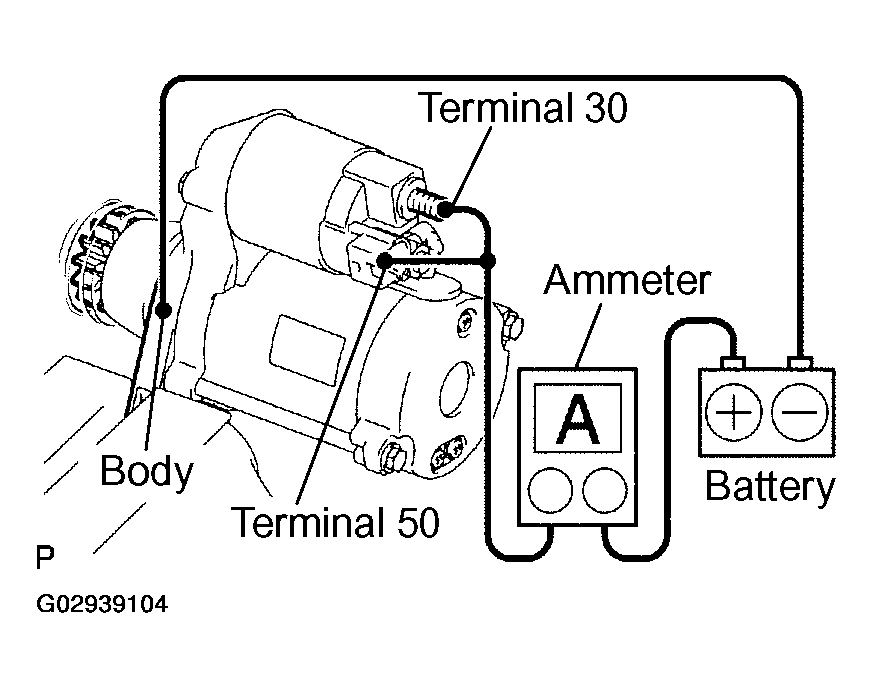

  Fig 6: Inspecting Starter Smooth And Steady Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT STARTER RELAY ASSY

Inspect the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard:

TESTER CONNECTION AND TERMINALS SPECIFIED CONDITION

Tester Connection	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1Ω (Apply battery voltage to terminals 1 and 2

If the result is not as specified, replace the starter relay.

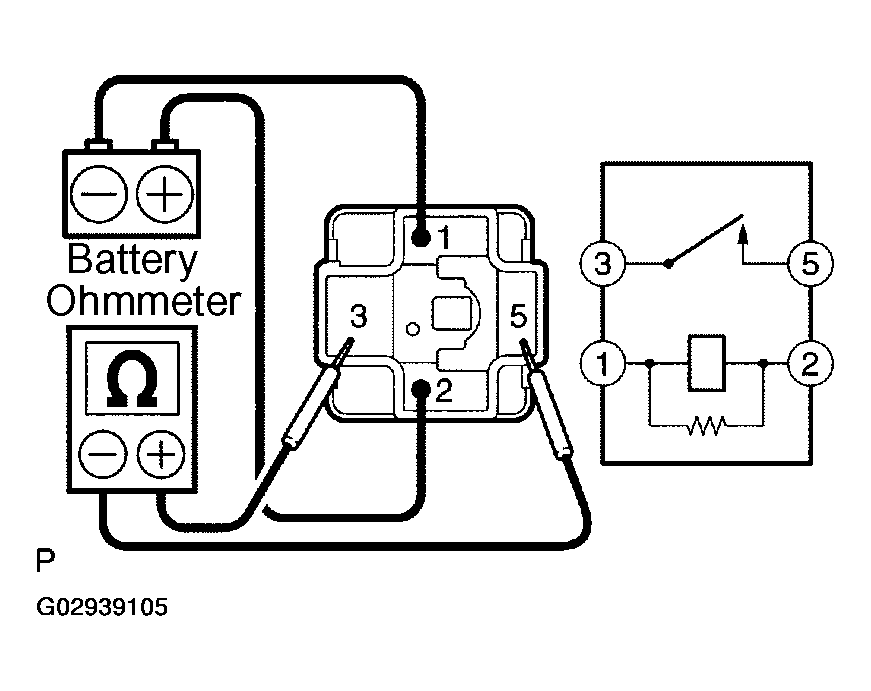

Fig 7: Inspecting Starter Relay Assy
