Clock ASSY: Replacement

HINT:

COMPONENTS

1. SHIP MODE SETTING (W/ CD CHANGER) (See  RADIO RECEIVER ASSY  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  PRECAUTION  )
3. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT   )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT   )
5. REMOVE CLOCK ASSY
   1. Disengage the 4 claws and remove the clock assy.

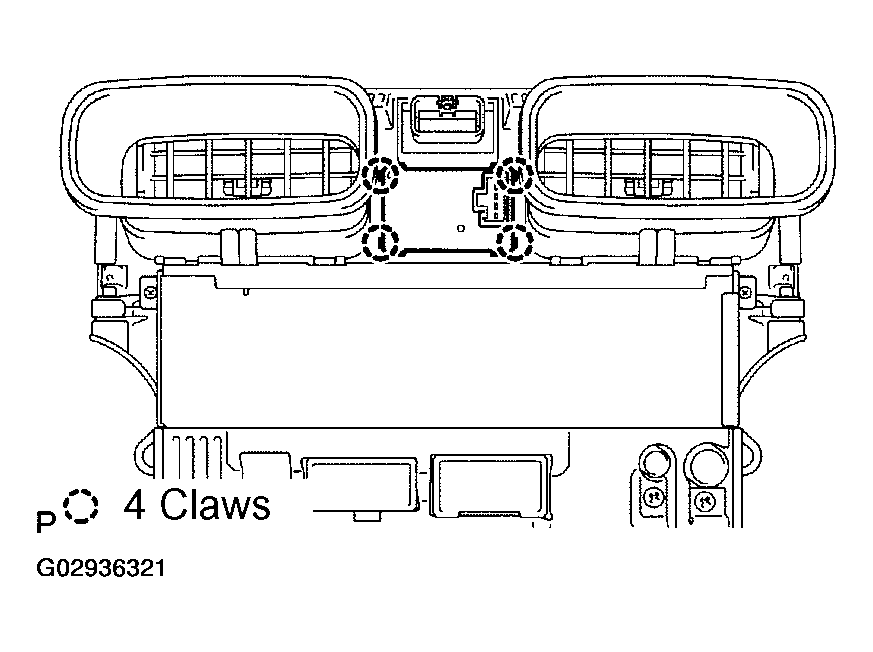

   Fig 1: Removing Clock Assy From 4 Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. SHIP MODE CONFIRMATION (W/ CD CHANGER) (See  RADIO RECEIVER ASSY  )
