DTC P2111, P2112: Throttle Actuator Control System - Stuck Open/Closed
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

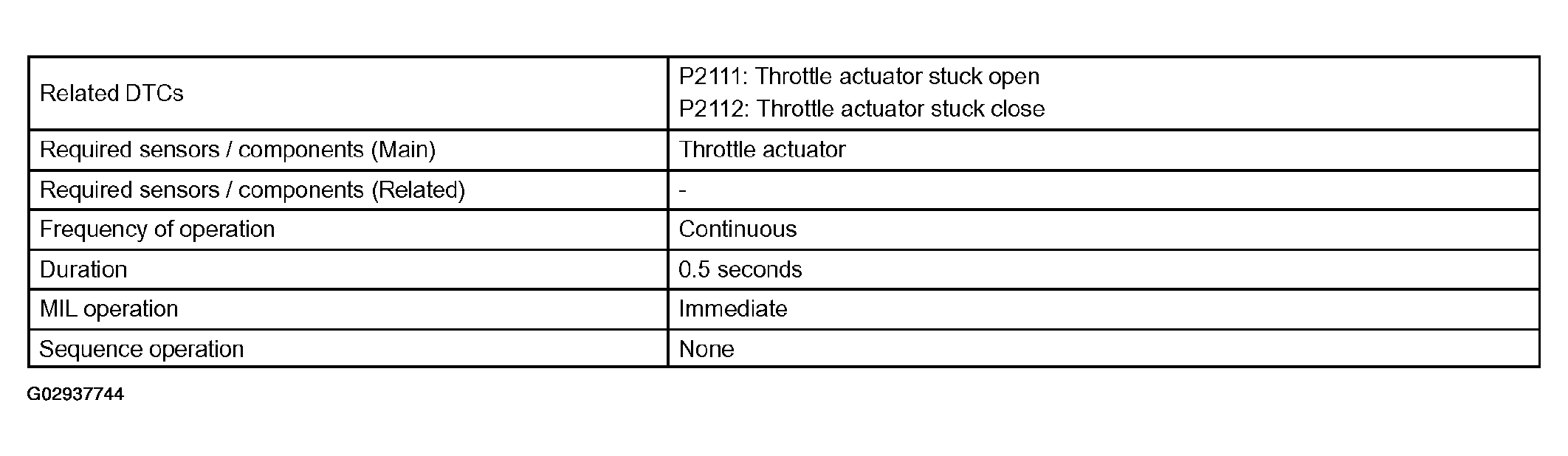

Fig 1: Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
