DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance
>>
Circuit Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Description
Refer to
DTC P2120
.

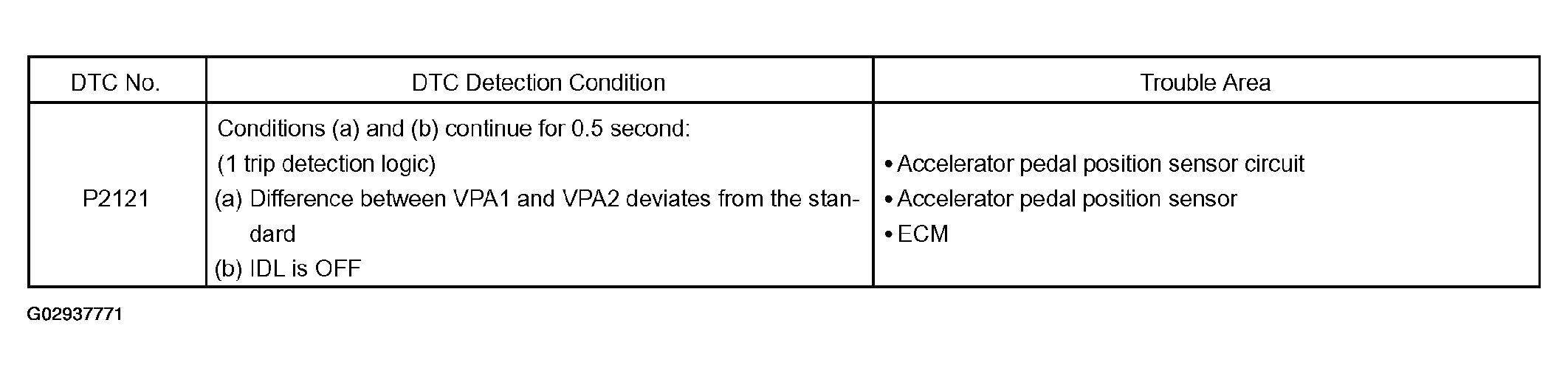

Fig 1: DTC Trouble Detection Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
