Testing & Diagnosis: Preparation: Brake: Preparation

SST

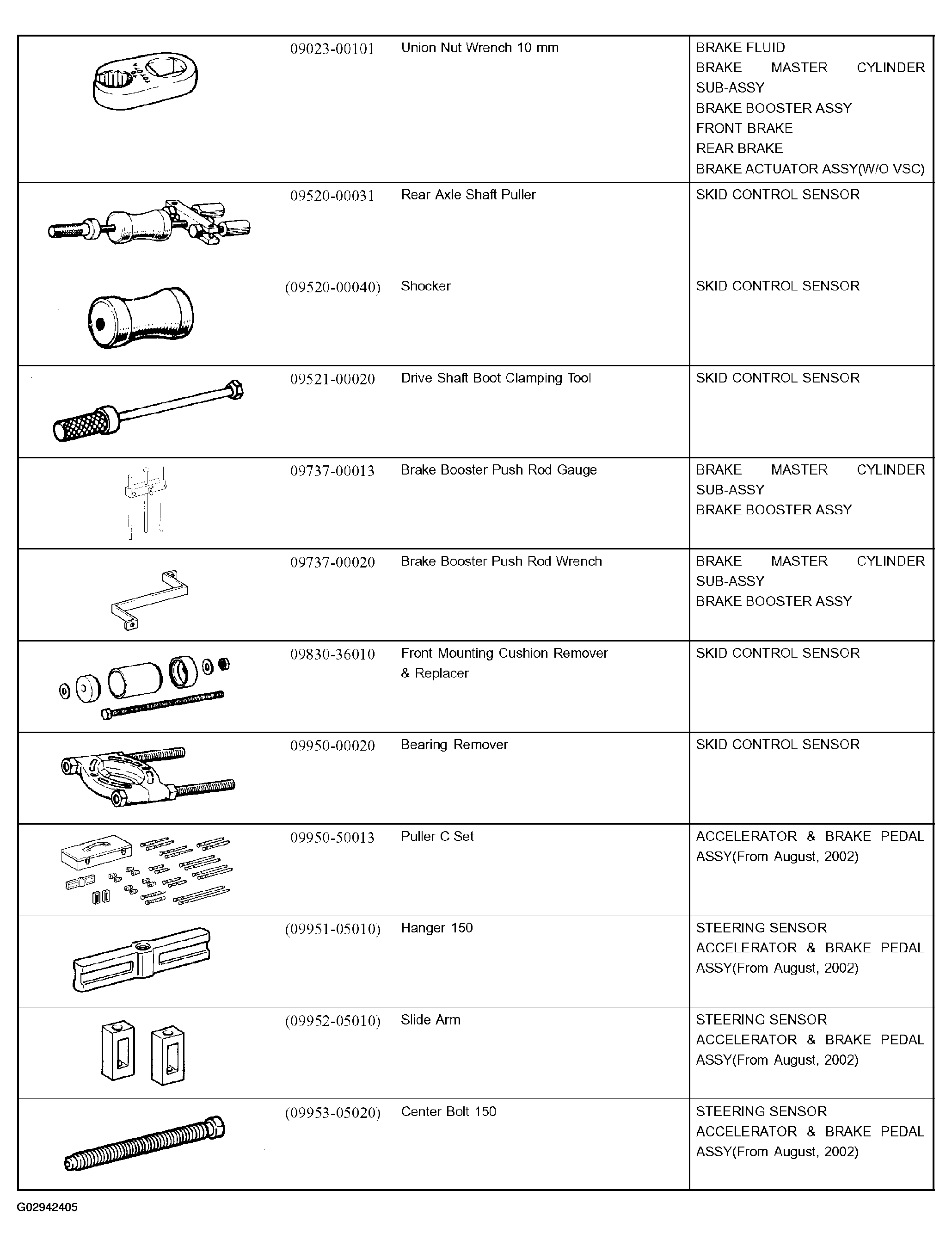

Fig 1: Brake System SST Chart
G02942405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

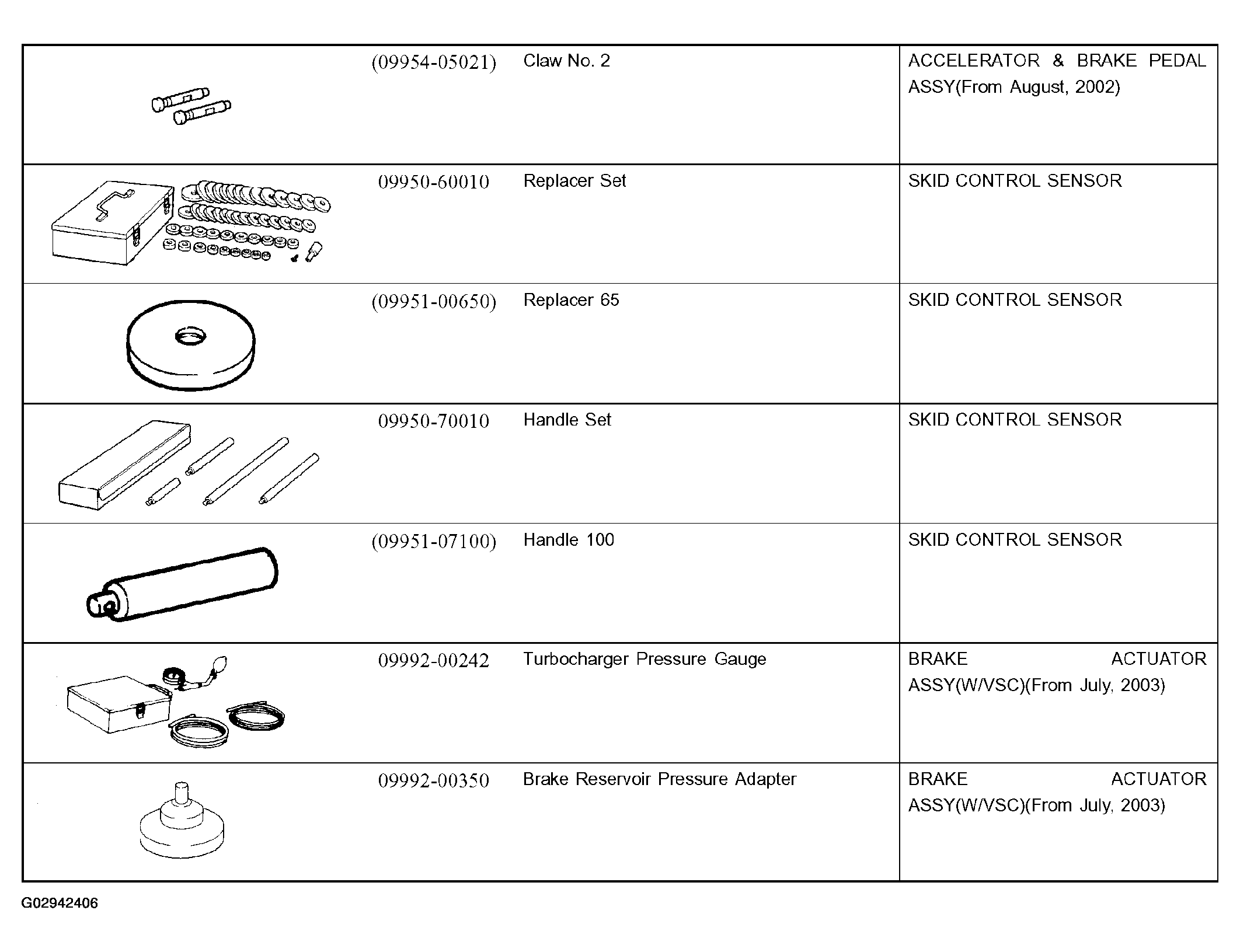

Fig 2: Brake System SST Chart
G02942406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

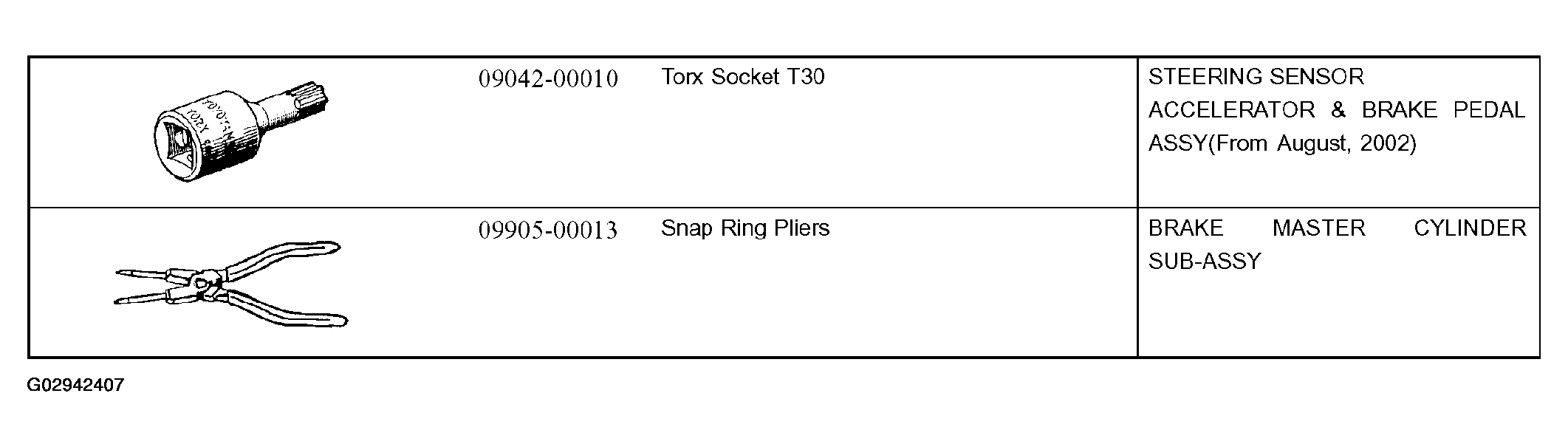

Fig 3: Brake System Recommended Tools Chart
G02942407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

BRAKE SYSTEM EQUIPMENT

Vernier calipers
Dial indicator
Torque wrench
Brake drum gauge
Hexagon wrench (8 mm)

Lubricant

BRAKE SYSTEM LUBRICANT

Item Capacity Classification
Brake fluid - SAE J1703 or FMVSS No. 116 DOT3
