Vehicle Lift And Support Locations

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

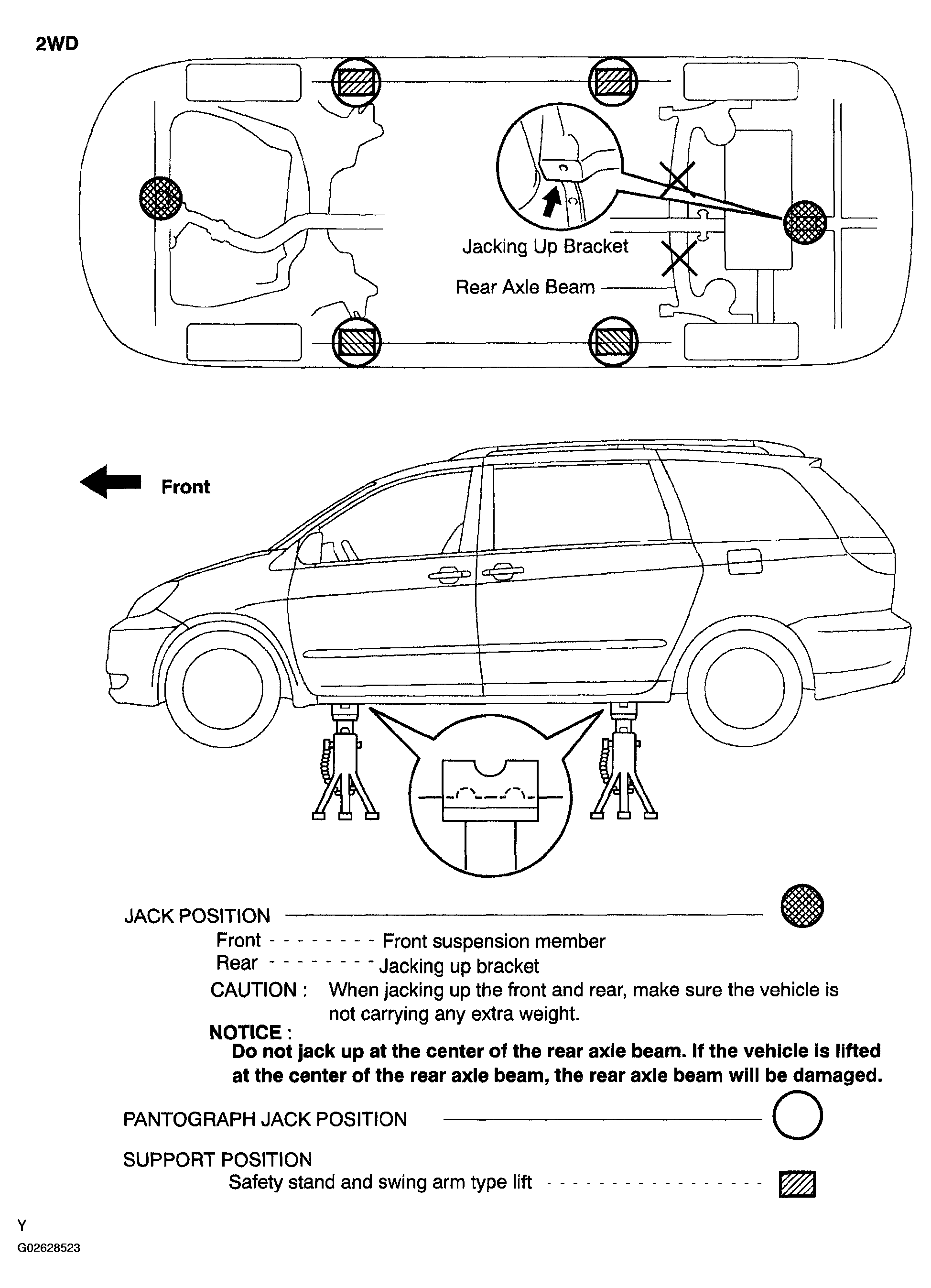

Fig 1: Identifying Locations Vehicle Lift & Support (2WD)
G02628523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

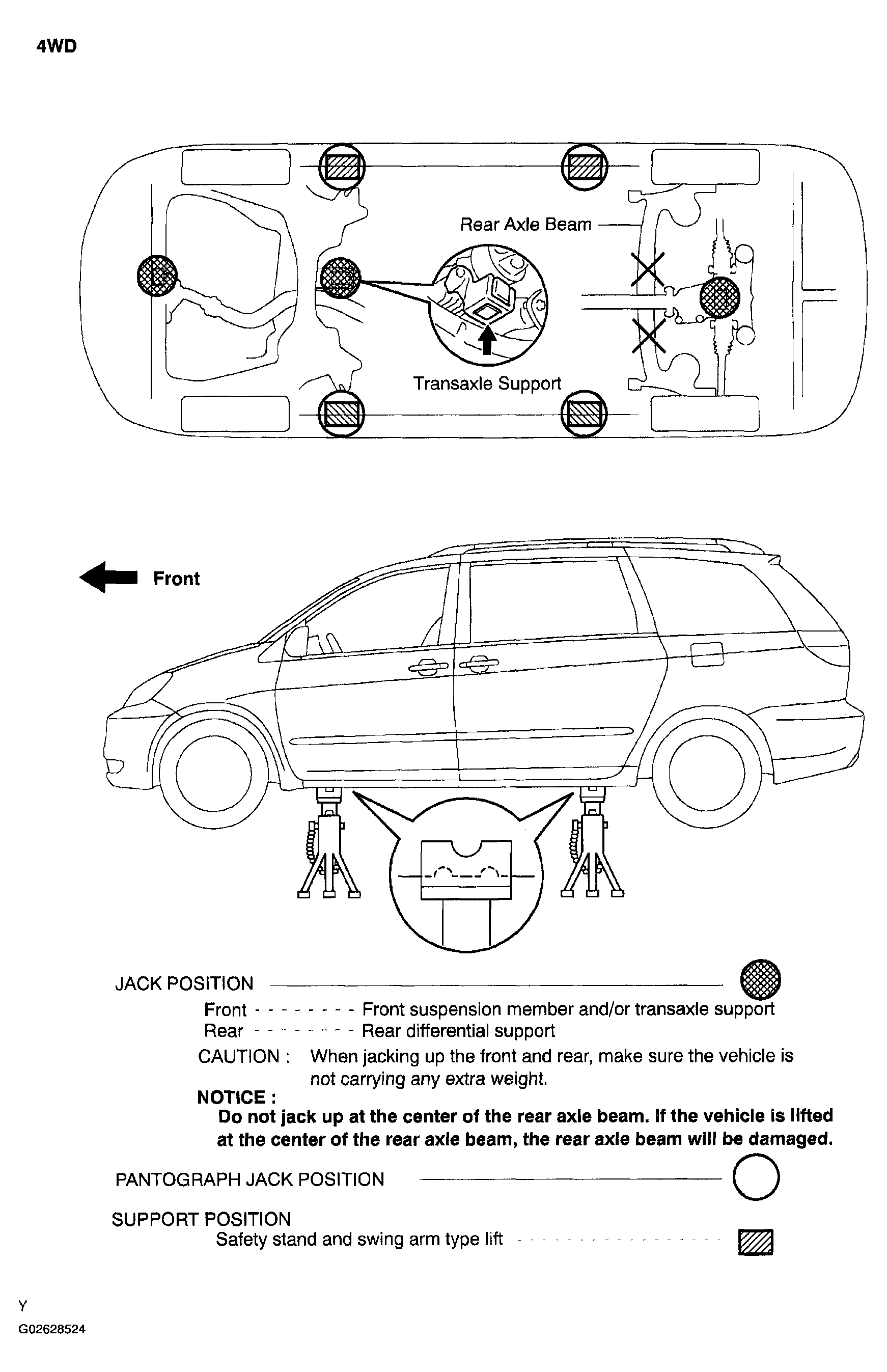

Fig 2: Identifying Locations Vehicle Lift & Support (4WD)
G02628524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

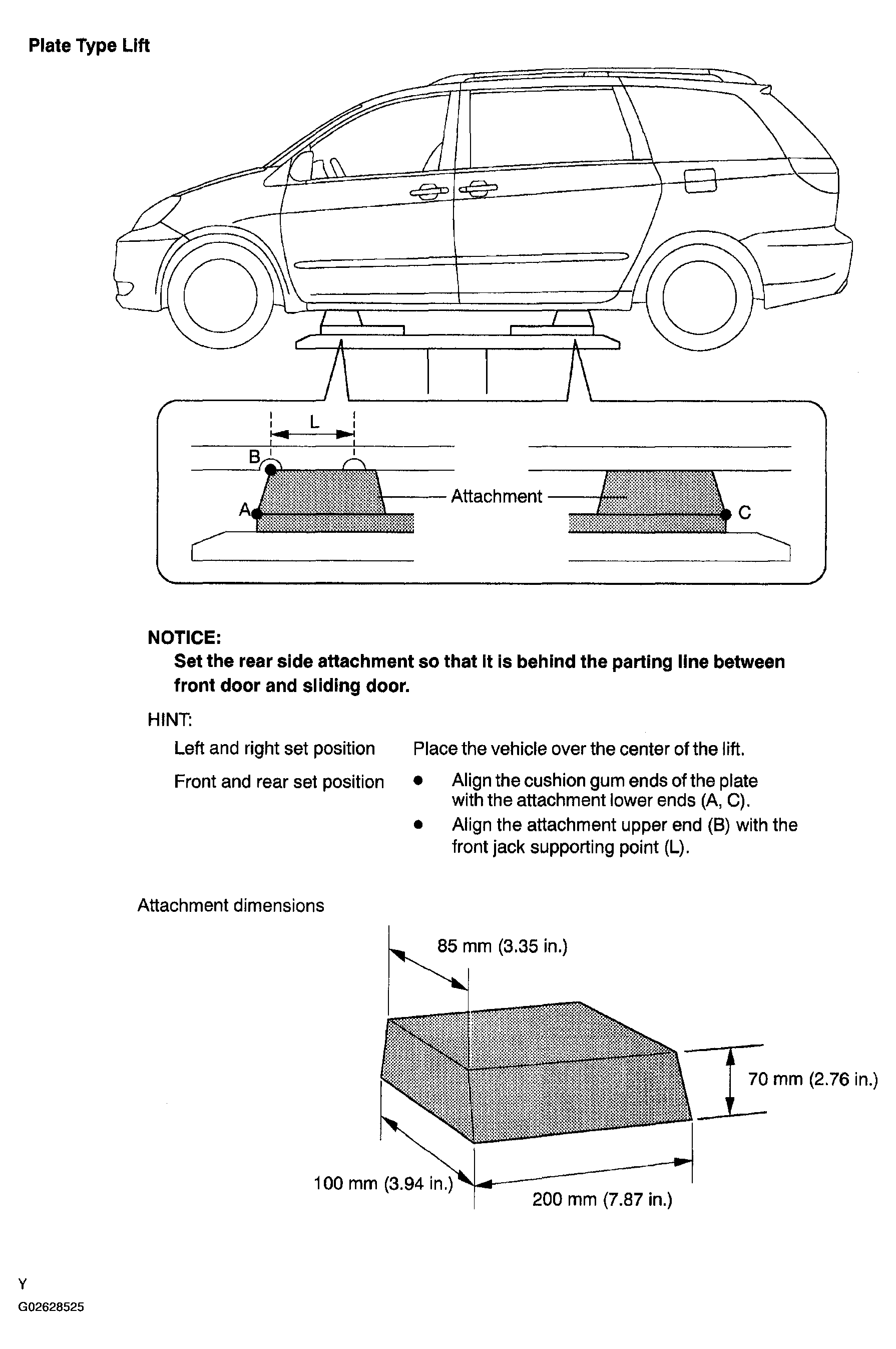

Fig 3: Identifying Locations Vehicle Lift & Support (Plate Type Lift)
G02628525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
