Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUSE (PWR, ECU-IG, AM1)
    1. Remove the fuses from the instrument panel J/B.
    2. Check the resistance.

      Standard: Below 1 Ω

    1. NG: REPLACE FUSE
    2. OK: GO TO NEXT STEP
  2. INSPECT RELAY (IG1, PWR)
    1. Remove the relay from the instrument panel J/B.
    2. Check the resistance of the relay.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      3 - 5 10 KΩ or higher
      Below 1 Ω
      (When battery voltage is applied to terminals 1 and 2)

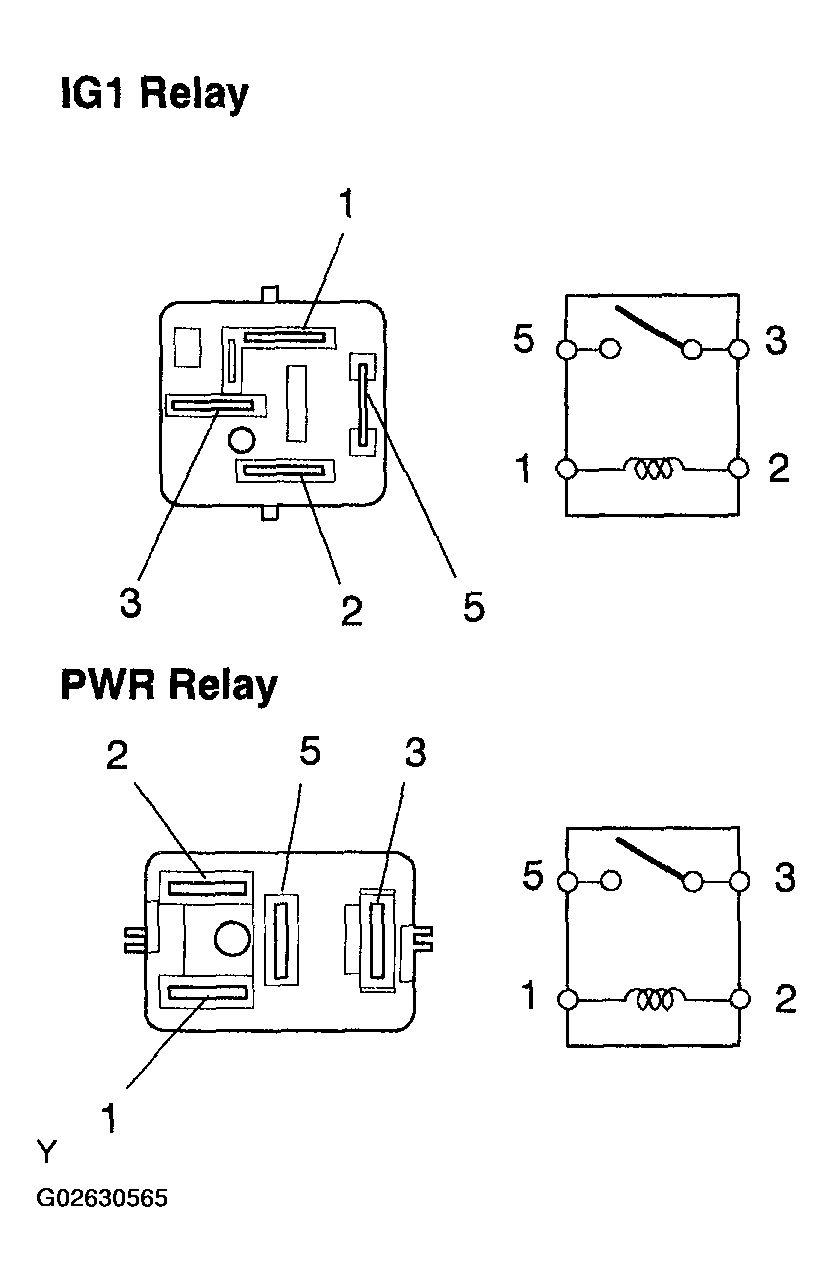

    Fig 1: Identifying 1GI & PWR Relay
    G02630565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE RELAY
    2. OK: GO TO NEXT STEP
  3. CHECK WIRE HARNESS (TO INSTRUMENT JUNCTION BLOCK ASSY)
    1. Disconnect the 1A, 1H and 1L J/B connectors.
    2. Check the voltage and resistance between each terminal of the wire harness side connector and the body ground.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Condition Specified Condition
      1A-1 - Body ground Constant 10 to 14 V
      1L-16 - Body ground Constant Below 1 Ω
      1H-10 - 1H-29 Ignition switch ON Below 1 Ω

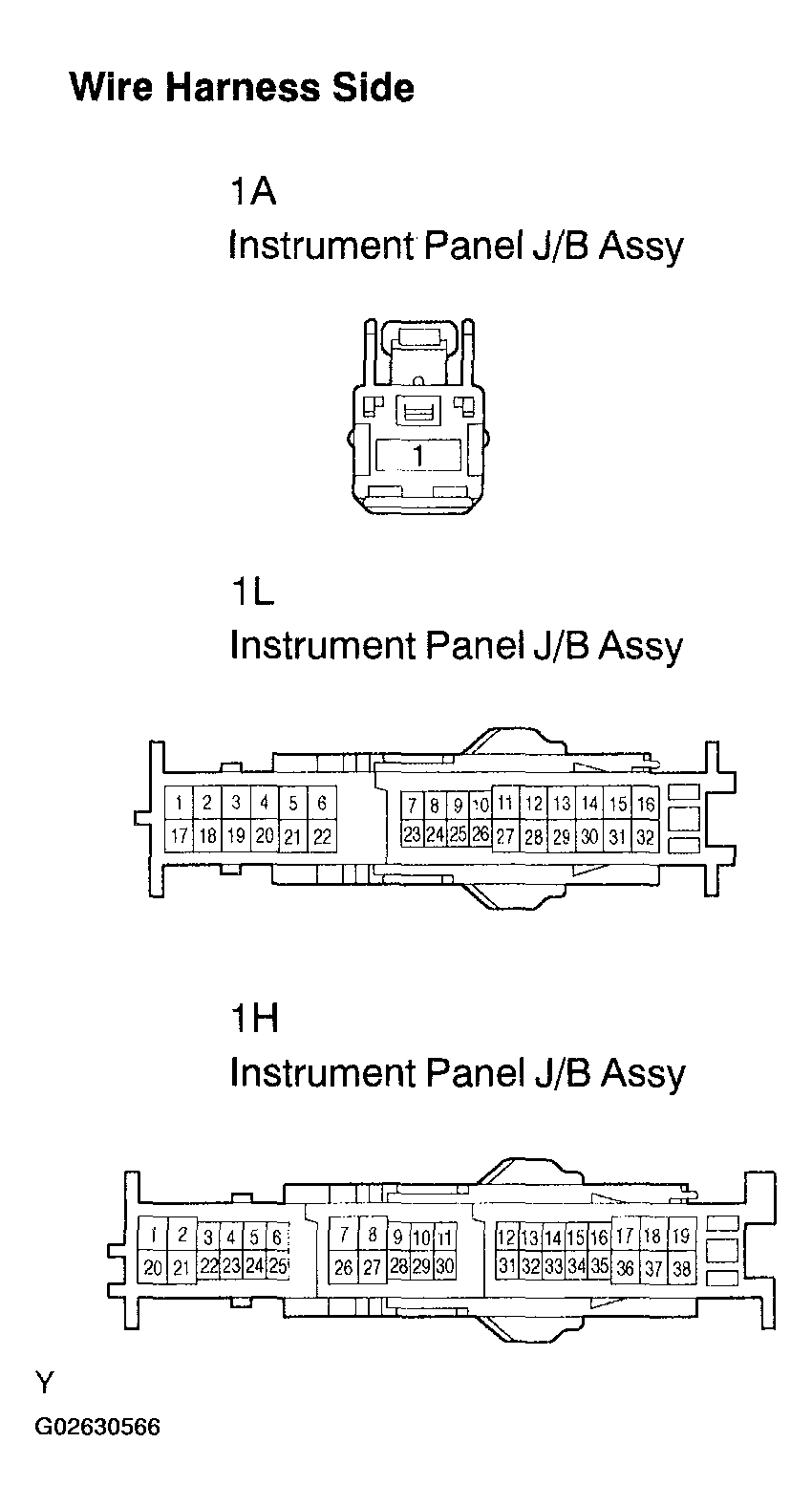

    Fig 2: Identifying Connector Terminal
    G02630566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  4. CHECK WIRE HARNESS (TO POWER WINDOW REGULATOR MASTER SWITCH)
    1. Disconnect the D9 master switch connector.
    2. Check the voltage or resistance between each terminal of the wire harness side connector and the body ground.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Condition Specified Condition
      D9-6 (B) - Body ground Ignition switch ON 10 to 14 V
      D9-11 (IG) - Body ground 10
      D9-1 (E) - Body ground Constant Below 1 Ω

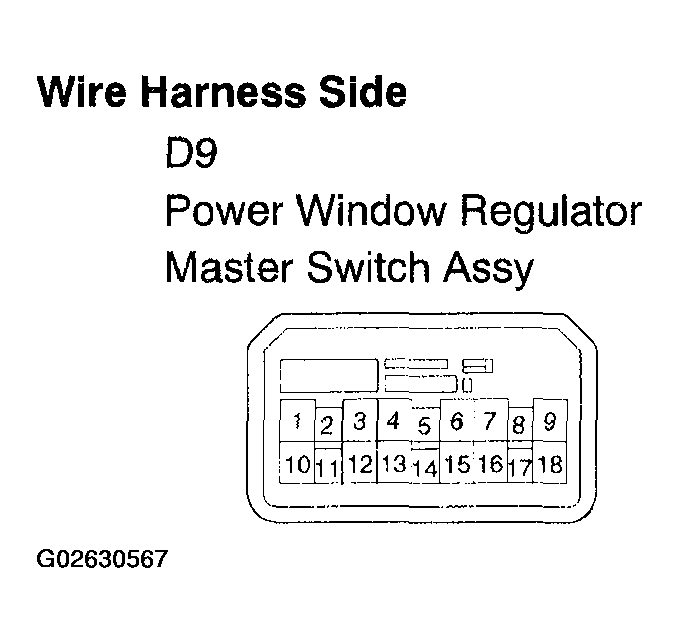

    Fig 3: Identifying D9 Master Switch Connector Terminal
    G02630567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
    2. NG: GO TO NEXT STEP
  5. CHECK WIRE HARNESS (INSTRUMENT JUNCTION BLOCK ASSY - POWER WINDOW MASTER SWITCH)
    1. Disconnect the 1L and 1K J/B connectors.
    2. Disconnect the D9 master switch connector.
    3. Check the resistance between the wire harness side connectors.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      1K-20 - D9-6 (B) Below 1 Ω
      1L-23 - D9-11 (IG)

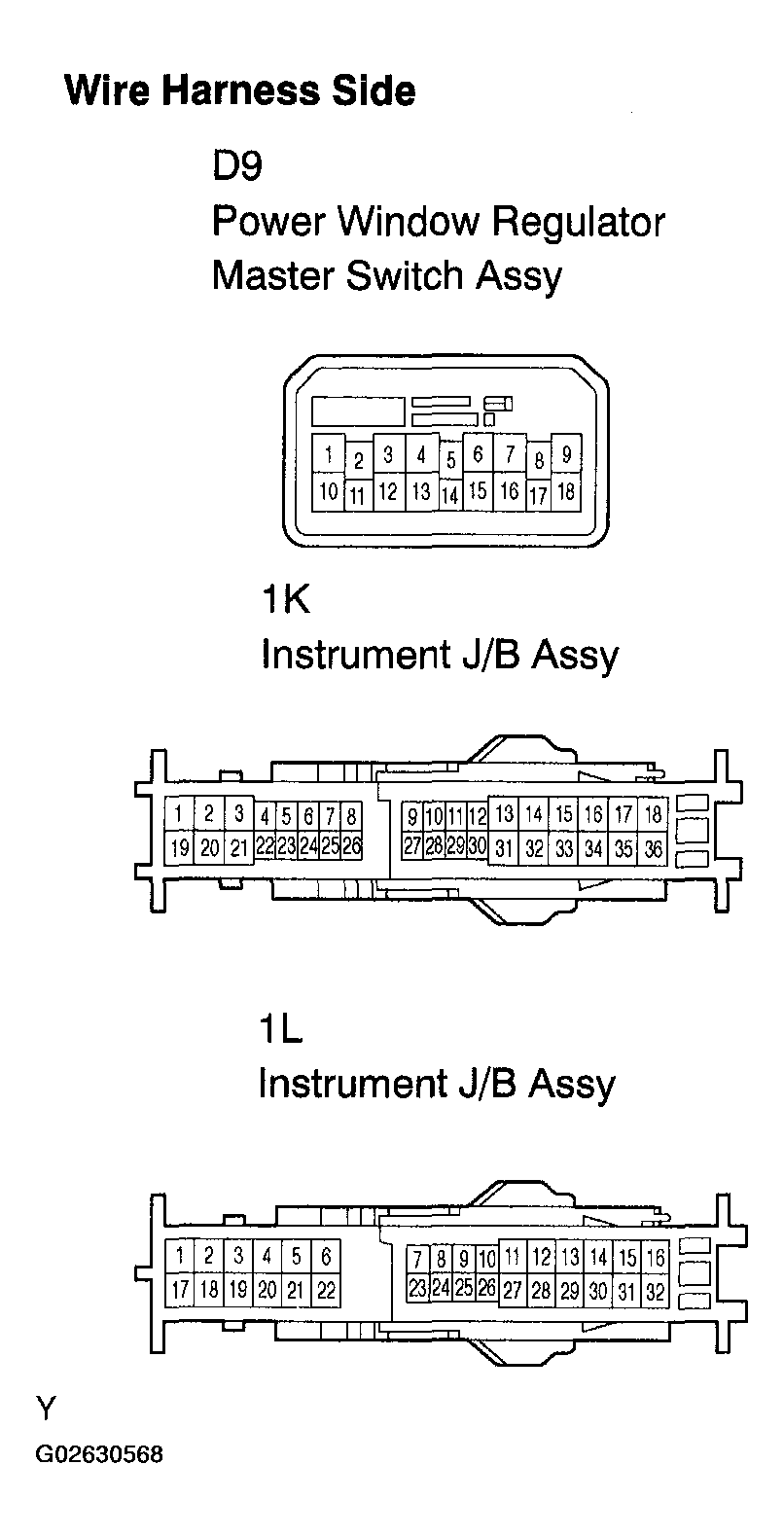

    Fig 4: Identifying 1L & 1K J/B Connectors Terminal
    G02630568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
