Water Pump ASSY: Components
WARNING:
This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

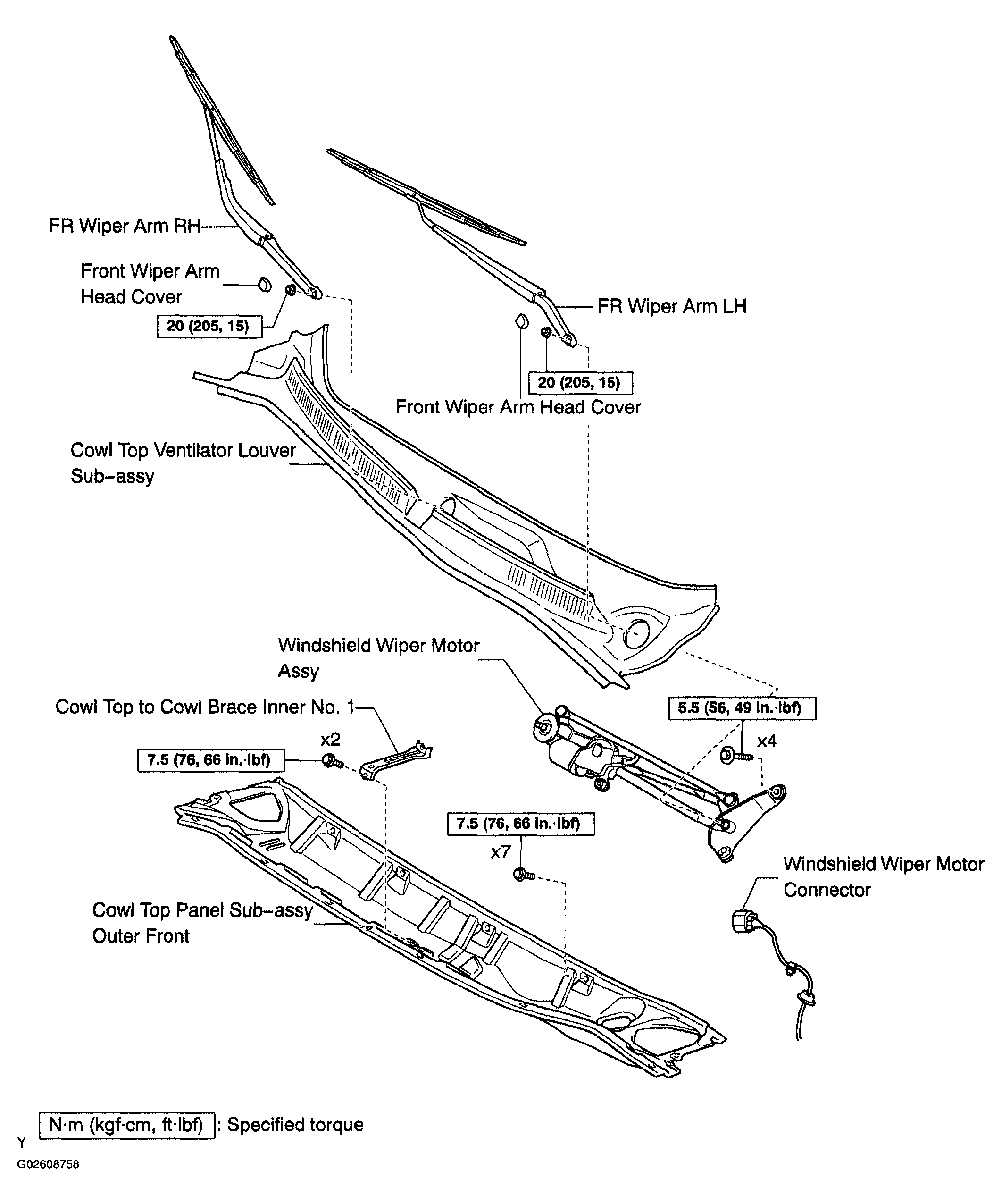

Fig 1: Identifying Water Pump Assy Replacement Components With Torque Specifications (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

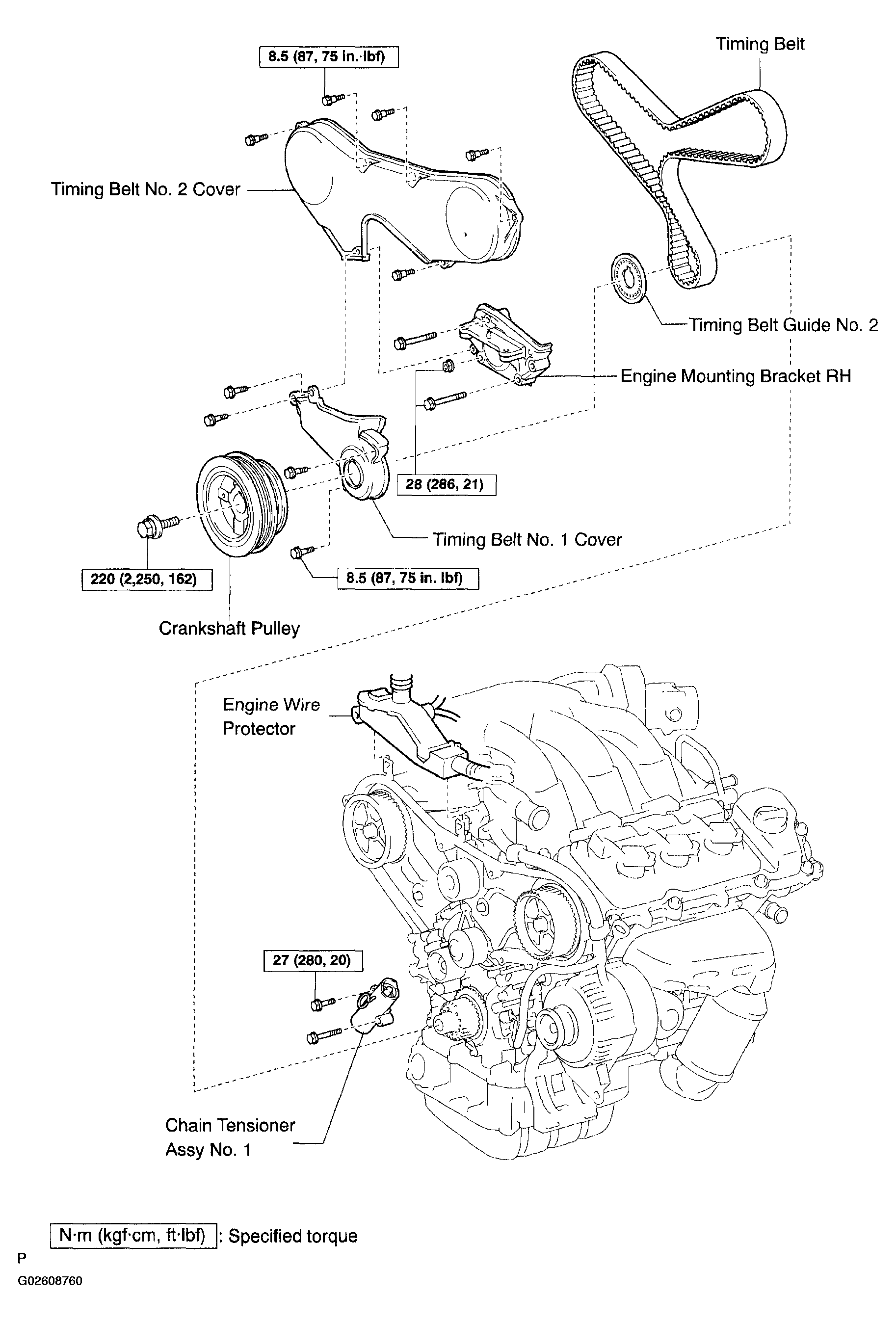

Fig 2: Identifying Water Pump Assy Replacement Components With Torque Specifications (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

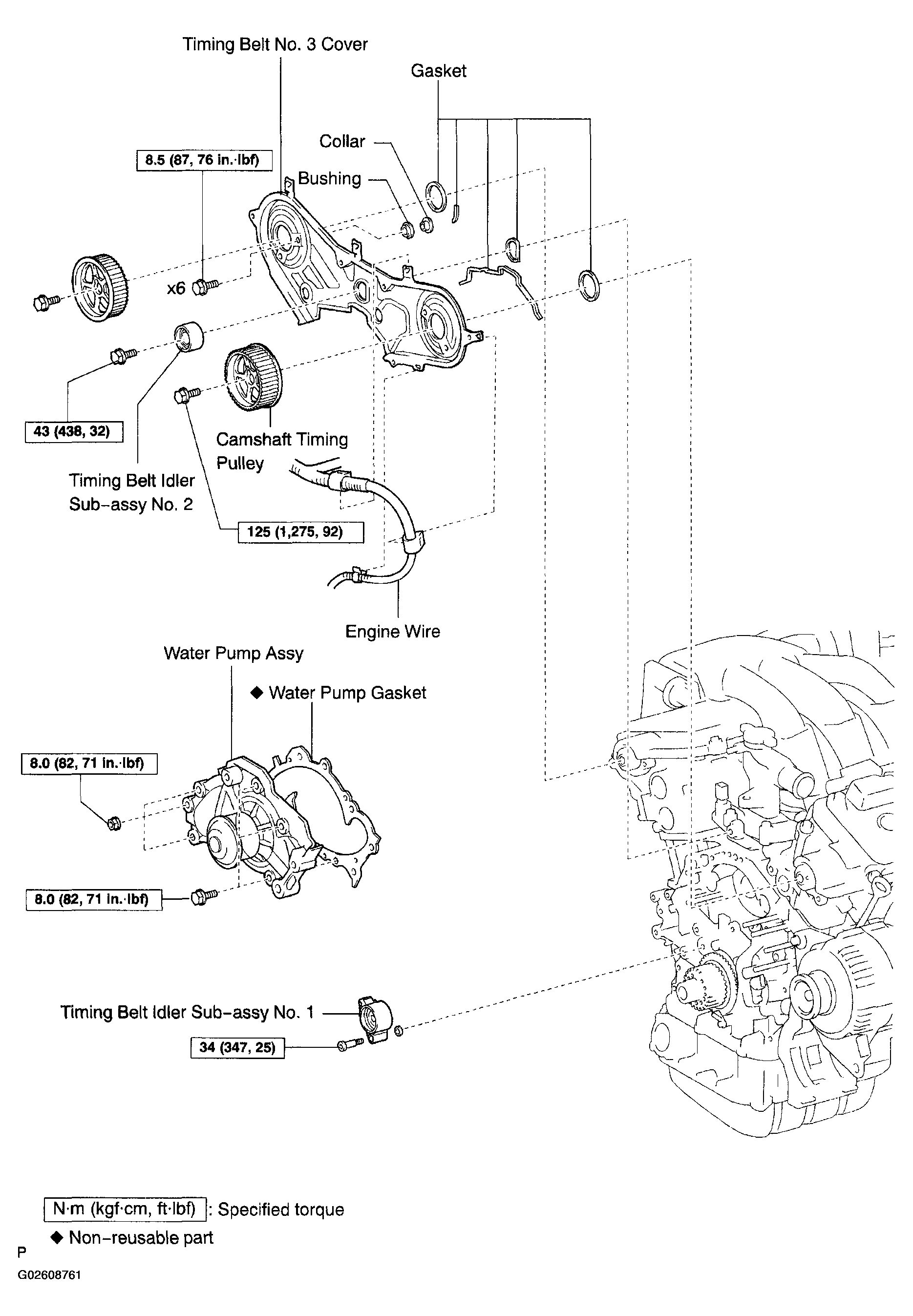

Fig 3: Identifying Water Pump Assy Replacement Components With Torque Specifications (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Water Pump Assy Replacement Components With Torque Specifications (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
