Transfer (4WD): Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

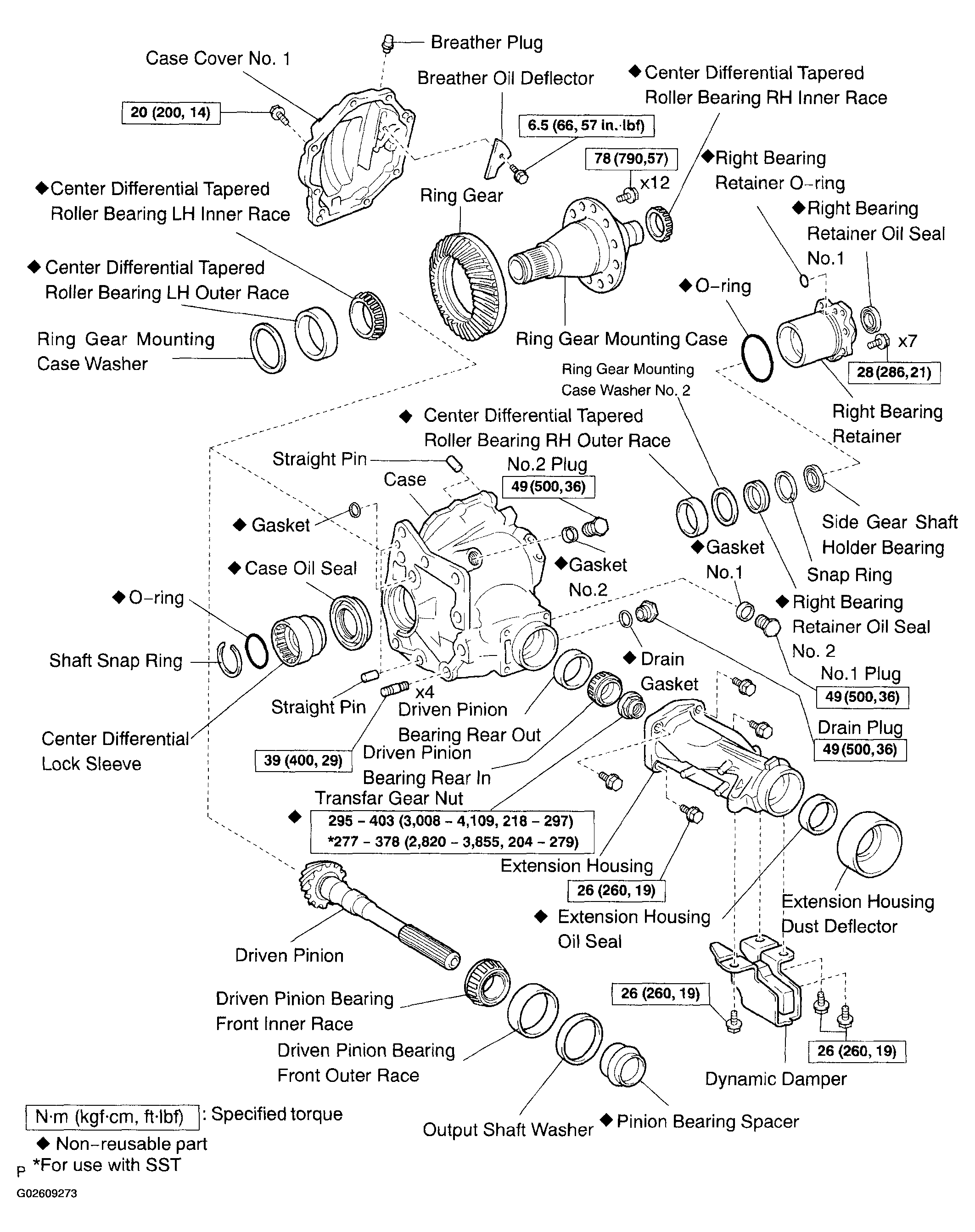

Fig 1: Exploded View Of Transfer Components (4WD) With Torque Specifications
G02609273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
