INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

Check the resistance between the terminals of the switch when the switch is operated.

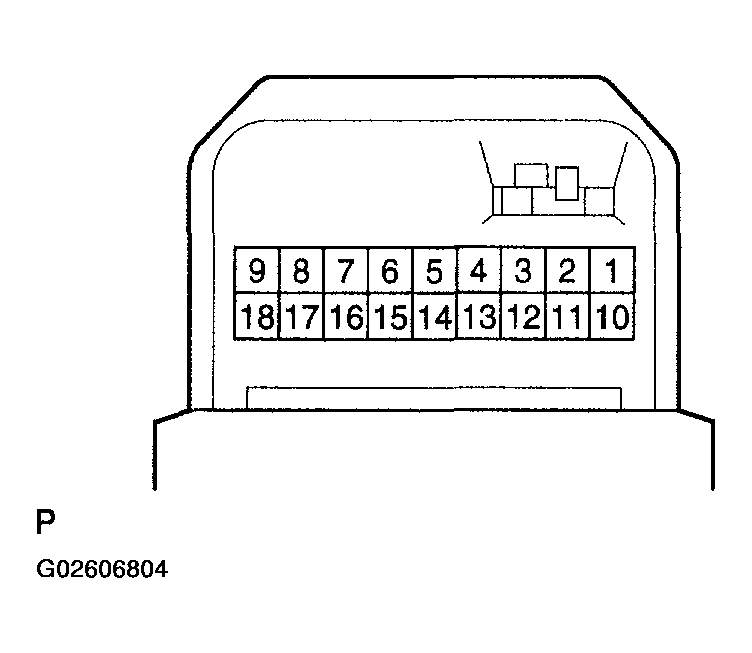

Fig 1: Inspecting Power Window Regulator Master Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

AUTO (driver side) switch

POWER WINDOW REGULATOR MASTER SWITCH ASSY (AUTO (DRIVER SIDE) SWITCH)

Window Lock Switch	Power Window Switch	Terminal No.	Specified Condition
-	UP	1 - 9, 4 - 6	Below 1 Ω
	OFF	1-4-9
	DOWN	1 - 4, 6 - 9

Passenger side switch

POWER WINDOW REGULATOR MASTER SWITCH ASSY (PASSENGER SIDE SWITCH)

Window Lock Switch	Power Window Switch	Terminal No.	Specified Condition
OFF (Normal)	UP	1-15,6-18	Below 1 Ω
	OFF	1-15-18
	DOWN	1-18,6-15
ON (Lock)	UP	6-18
	OFF	15-18
	DOWN	6-15

Rear LH switch

POWER WINDOW REGULATOR MASTER SWITCH ASSY (REAR LH SWITCH)

Window Lock Switch	Power Window Switch	Terminal No.	Specified Condition
OFF (Normal)	UP	1-13,6-12	Below 1 Ω
	OFF	1-12-13
	DOWN	1-12,6-13
ON (Lock)	UP	6-12
	OFF	12-13
	DOWN	6-12

Rear RH switch

POWER WINDOW REGULATOR MASTER SWITCH ASSY (REAR RH SWITCH)

Window Lock Switch	Power Window Switch	Terminal No.	Specified Condition
OFF (Normal)	UP	1-16,6-10	Below 1 Ω
	OFF	1-10-16
	DOWN	1-10,6-16
ON (Lock)	UP	6-10
	OFF	10-16
	DOWN	6-16

If the result is not as specified, replace the switch assy.

INSPECT POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER)

Check the resistance between the switch terminals when the switch is operated.

Standard:

POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER)

Terminal No.	Regulator Switch	Specified Condition
1-2, 3-4	UP	Below 1 Ω
1-2, 3-5	OFF
1-4, 3-5	DOWN

If the result is not as specified, replace the switch assy.

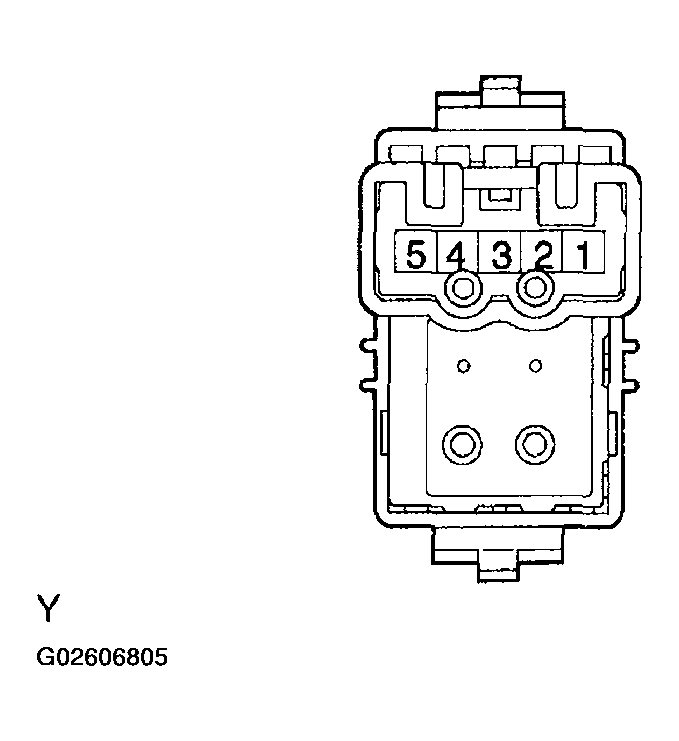

Fig 2: Inspecting Power Window Regulator Switch Assy (Passenger)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR

Check the resistance between the switch terminals when the switch is operated.

Standard:

POWER WINDOW REGULATOR SWITCH ASSY REAR

Terminal No.	Regulator Switch	Specified Condition
1-2, 3-4	UP	Below 1 Ω
1-2, 4-5	OFF
2-3, 4-5	DOWN

If the result is not as specified, replace the switch assy.

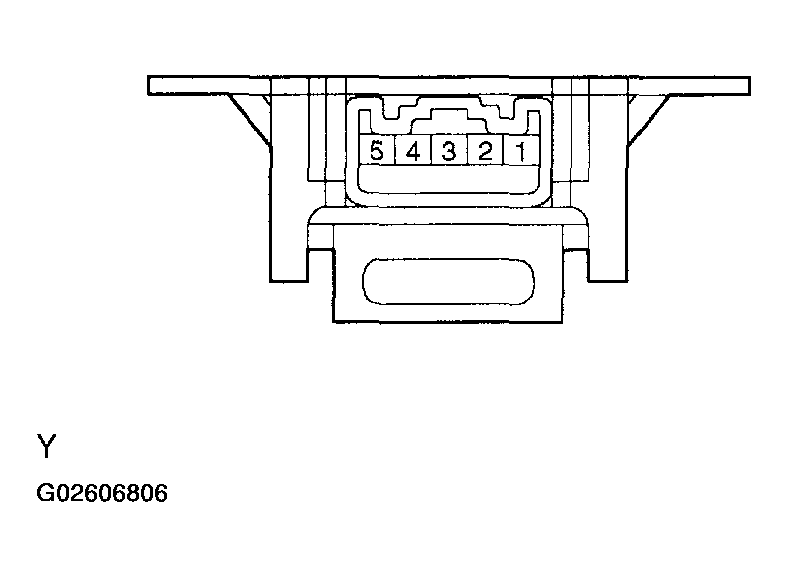

Fig 3: Inspecting Power Window Regulator Switch Assy Rear

INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (FRONT)
1. Apply battery voltage to terminals 1 and 2.
2. Check that the motor smoothly rotates.

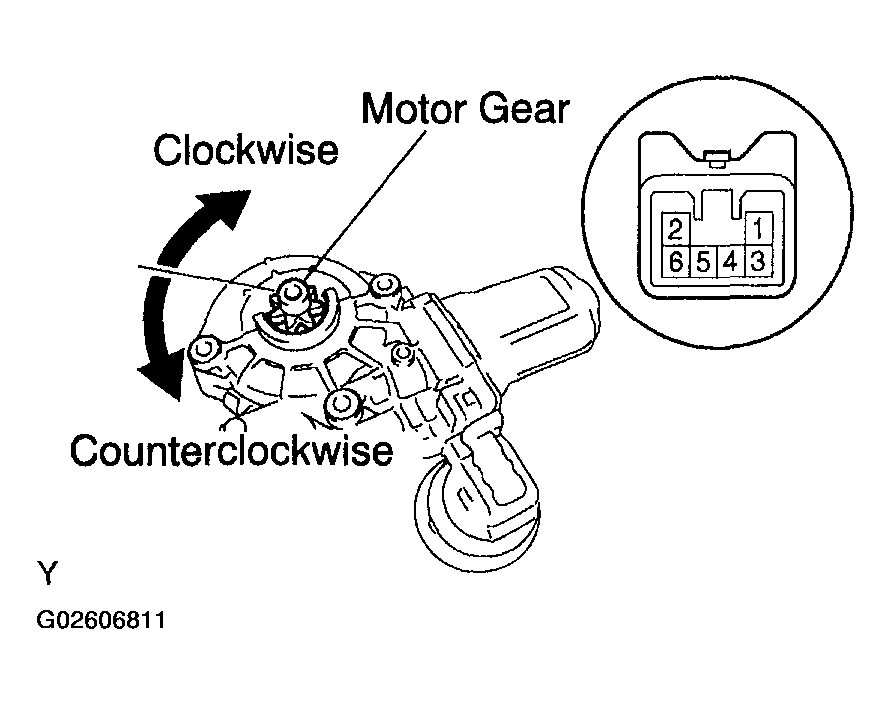

  Fig 4: Checking Motor Rotates Smoothly (LH - Front)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:

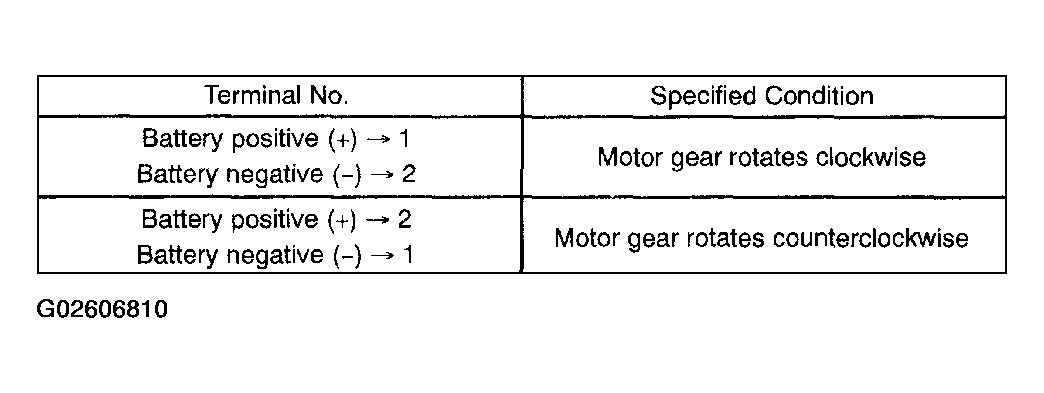

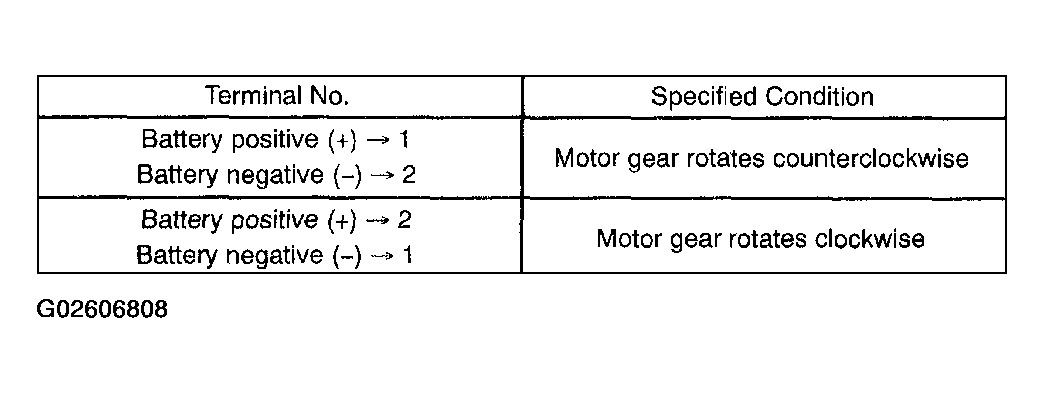

Fig 5: Inspecting Power Window Regulator Motor Assy LH (Front) Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the motor assy.
INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR)
1. Apply battery voltage to terminals 1 and 2.
2. Check that the motor smoothly rotates.

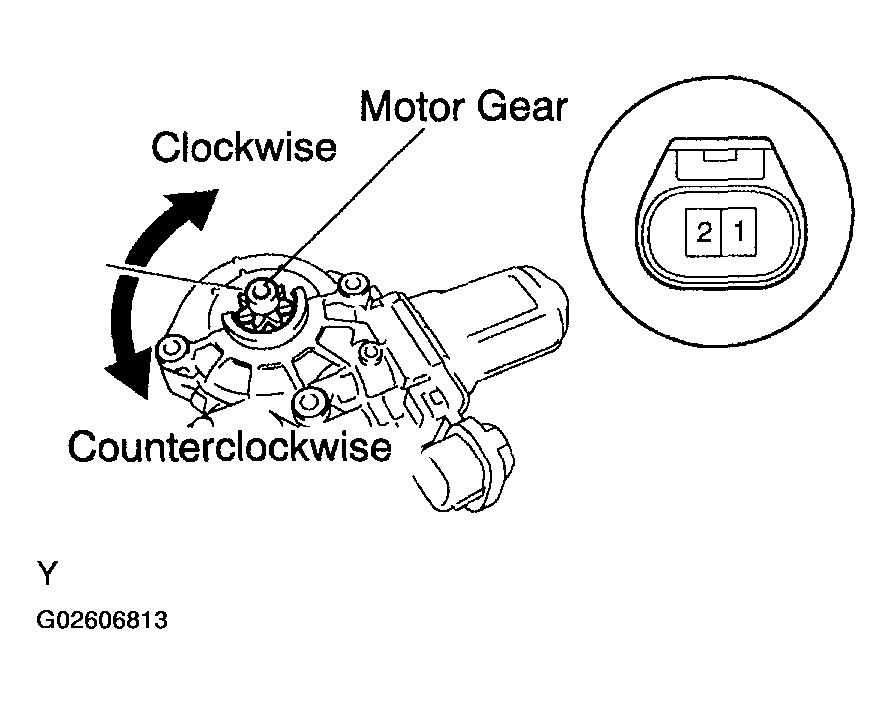

  Fig 6: Checking Motor Rotates Smoothly (LH - Rear)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

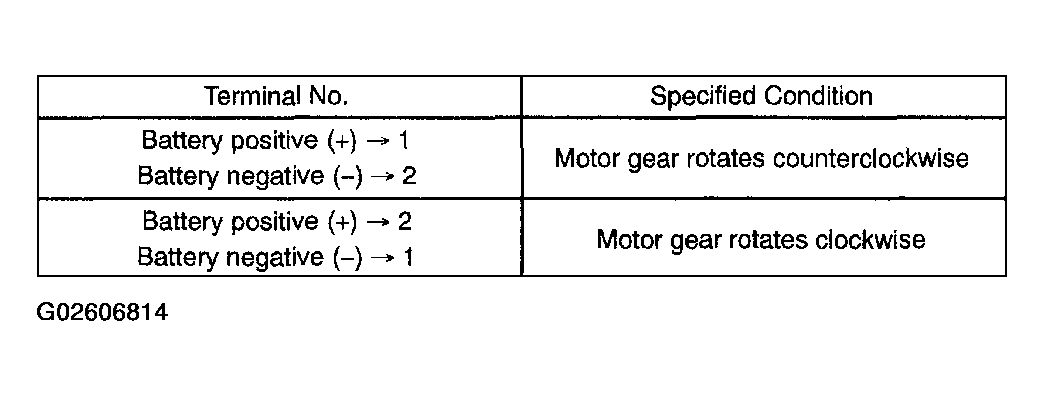

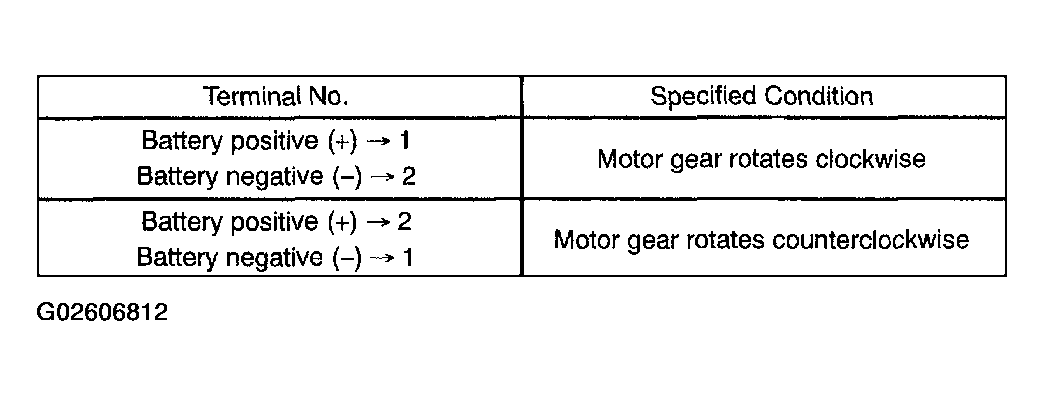

Fig 7: Inspecting Power Window Regulator Motor Assy LH (Rear) Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the motor assy.
INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (FRONT)
1. Apply battery voltage to terminals 1 and 2.
2. Check that the motor smoothly rotates.

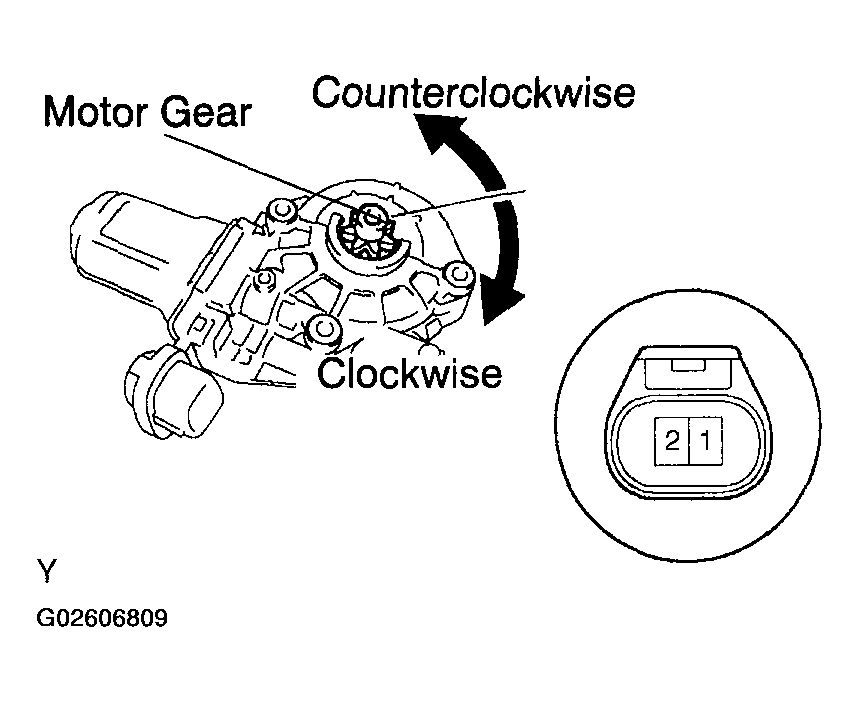

  Fig 8: Checking Power Window Regulator Motor Rotates Smoothly (RH - Front)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:

Fig 9: Inspecting Power Window Regulator Motor Assy RH (Front) Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the motor assy.
INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (REAR)
1. Apply battery voltage to terminals 1 and 2.
2. Check that the motor smoothly rotates.

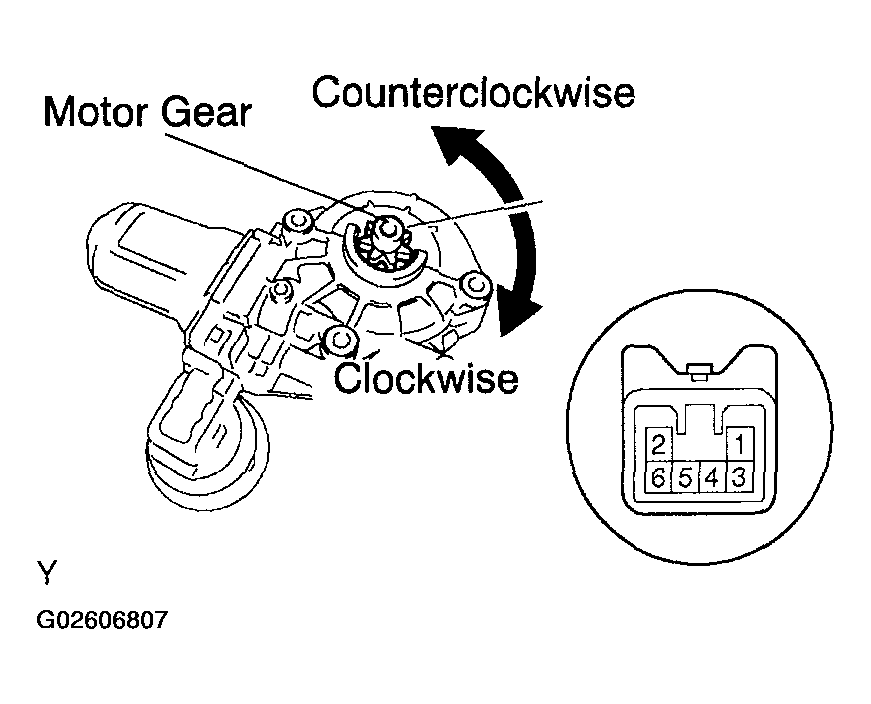

  Fig 10: Checking Power Window Regulator Motor Assy Rotates Smoothly (RH - Rear)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

Fig 11: Inspecting Power Window Regulator Motor Assy RH (Rear) Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the motor assy.

INSPECT POWER WINDOW RELAY (Marking: PWR)

Remove the relay from the instrument panel J/B.
Check the resistance of the relay.

Fig 12: Inspecting Power Window Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

POWER WINDOW RELAY

Terminal No.	Specified Condition
3-5	10 kΩ or higher
3-5	Below 1 Ω (When battery voltage is applied to terminals 1 and 2)

If the result is not as specified, replace the relay.

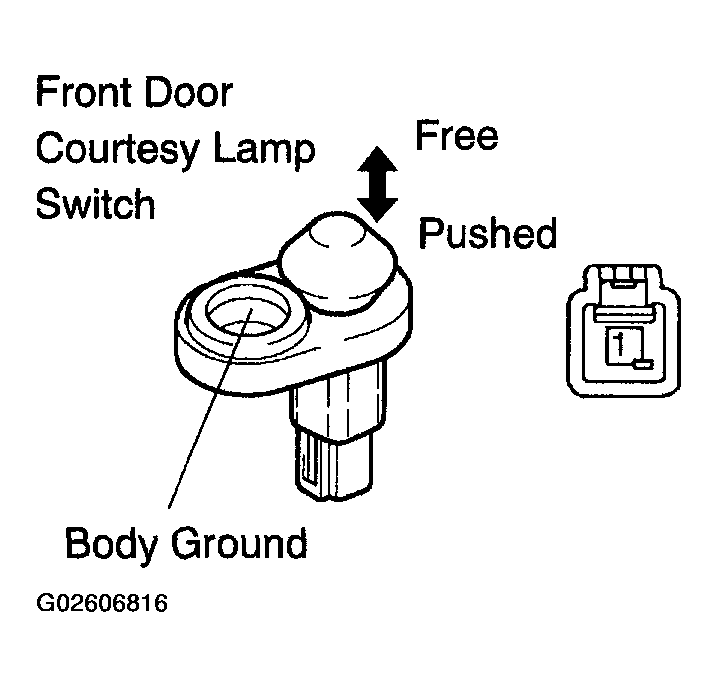

INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY

Check the switch resistance.

Standard:

FRONT DOOR COURTESY LAMP SWITCH

Terminal No.	Condition	Specified Condition
1- Body ground	Switch pushed	10 kΩ or higher
1- Body ground	Switch free	Below 1 Ω

If the result is not as specified, replace the switch assy.
