Inner Rear View Mirror ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation is in the reverse order of the removal.

REMOVE INNER REAR VIEW MIRROR ASSY
1. w/ EC mirror:
  Remove the inner rear view mirror cover.
2. w/ EC mirror:
  Disconnect the connector.
3. Remove the screw.
4. Remove the inner rear view mirror assy as shown in Fig 1.

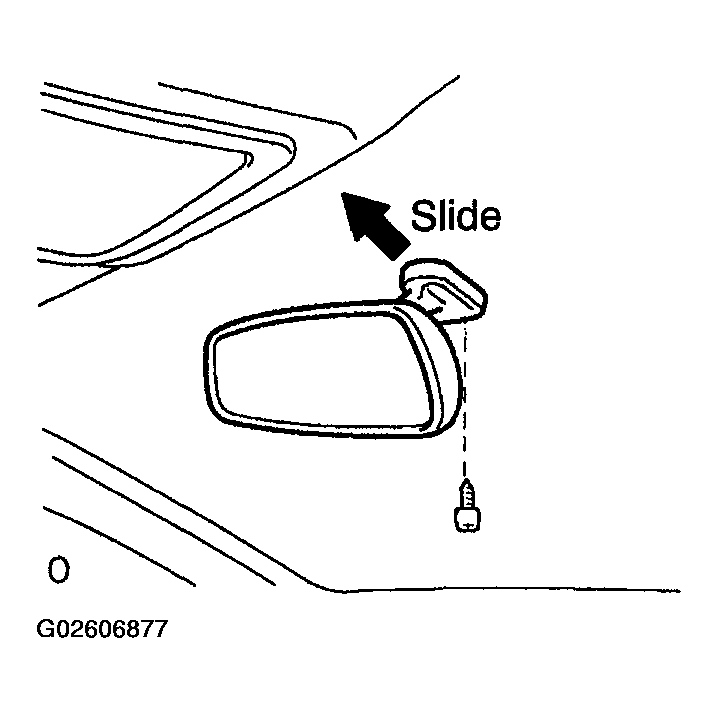

Fig 1: Removing Inner Rear View Mirror Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
