On-Vehicle Inspection

1. Check that the passenger side power window and slide door power windows operation is disabled when the window lock switch of the power window master switch is pressed.
2. Check that the passenger side power window and slide door power windows can be operated when the window lock switch is pressed again.

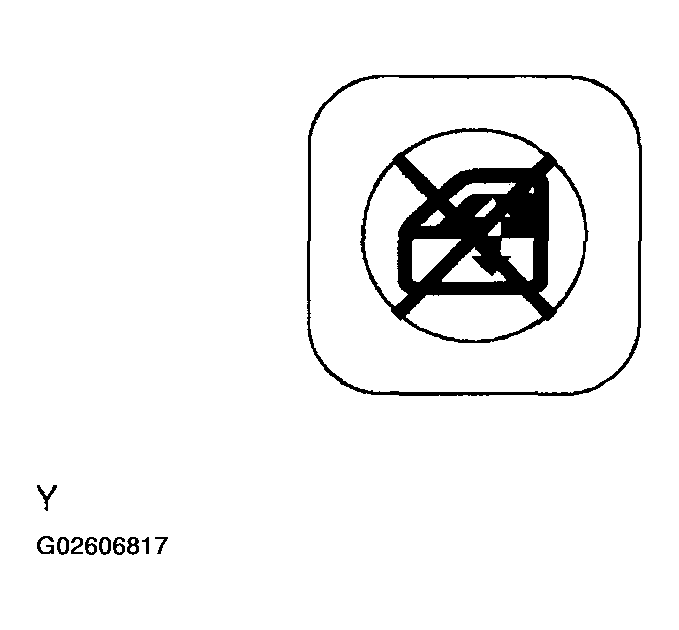

Fig 1: Identifying Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:

   Standard:

   AUTO (DRIVER SIDE) SWITCH OF POWER WINDOW MASTER SWITCH



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	AUTO (driver side)	Pull halfway up	UP (Closed)
   		Push halfway down	DOWN (Open)

2. Check that the passenger side power window and slide door power windows can be operated using each power window regulator switch as follows:

   Standard:

   Fig 2: Checking Passenger Side Power Window And Slide Door Power Windows Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:

Standard:

1. Check that the passenger side power window and slide door power window can be operated using each switch of the power window master switch as follows:

Standard:

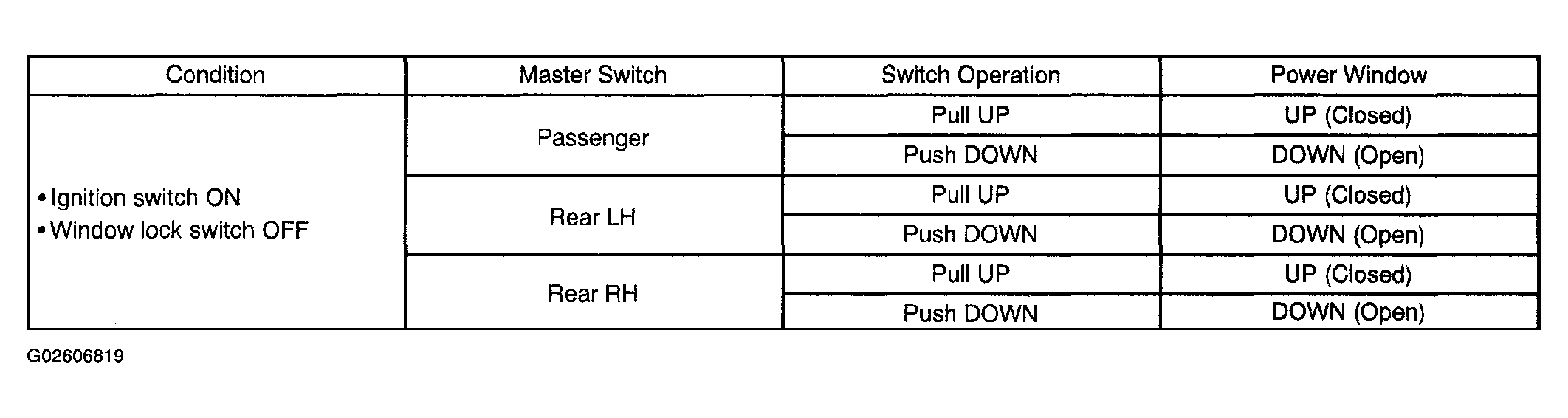

Fig 3: Checking Passenger Side Power Window And Sliding Door Power Window Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front power windows and slide power windows operate as follows when operating the transmitter.

Standard:

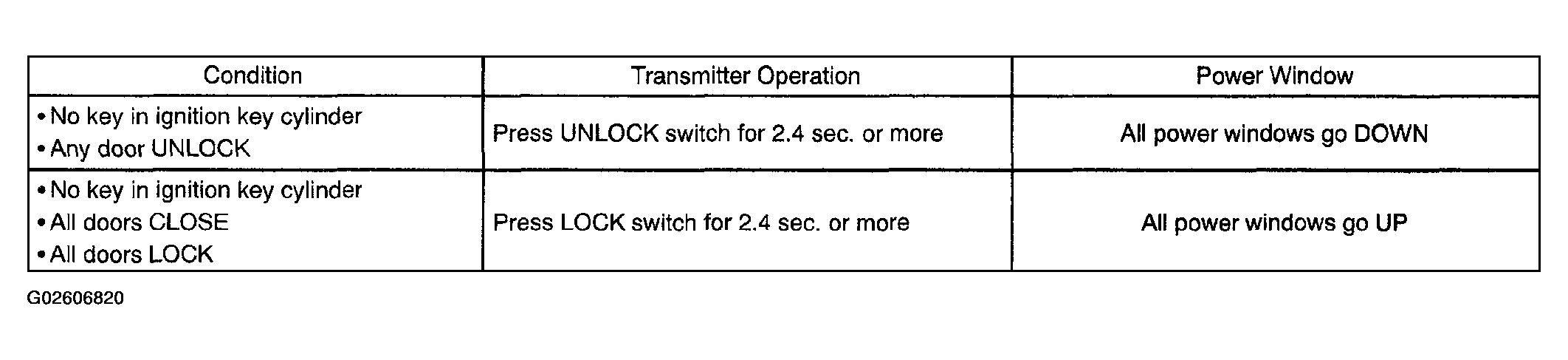

Fig 4: Checking Front Power Window And Sliding Power Windows Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

For a sign to start operation, the wireless door lock buzzer sounds once (answer-back).

1. When both of the following conditions are fulfilled, check that the power windows can be operated even after the ignition switch is turned OFF.
   • Within 45 seconds after the ignition switch is turned OFF
   • The front doors are closed

HINT:

The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

1. Check that the door glass goes down by approximately 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass keeps going down until the opening reaches 200 mm (7.87 in.) and stops there.

Operative conditions:

• AUTO UP
• AUTO UP operation after the ignition switch OFF
• MANUAL UP operation after the ignition switch OFF

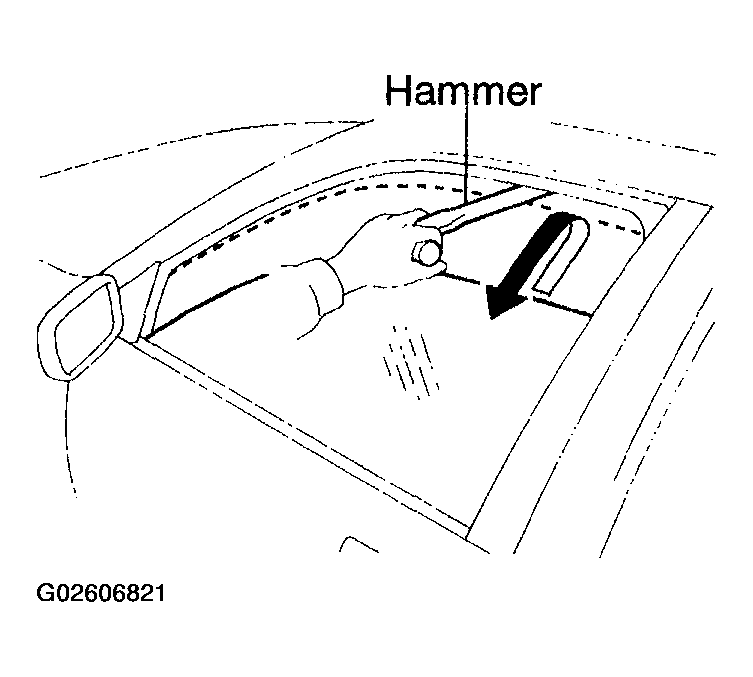

Fig 5: Checking Jam Protection Function (Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. If there is a malfunction in the pulse sensor of the power window motor, the power window function will be restricted to partial operation.
