On-Vehicle Inspection

1. Check that the passenger side power window and slide door power windows operation is disabled when the window lock switch of the power window master switch is pressed.
2. Check that the passenger side power window and slide door power windows can be operated when the window lock switch is pressed again.

Fig 1: Checking Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:

   Standard:

   AUTO (DRIVER SIDE) SWITCH OF POWER WINDOW MASTER SWITCH



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	AUTO (driver side)	Pull up	UP (Closed)
   		Push halfway down	DOWN (Open)

2. Check that the passenger side power window and slide door power windows can be operated using each power window regulator switch as follows:

   Standard:

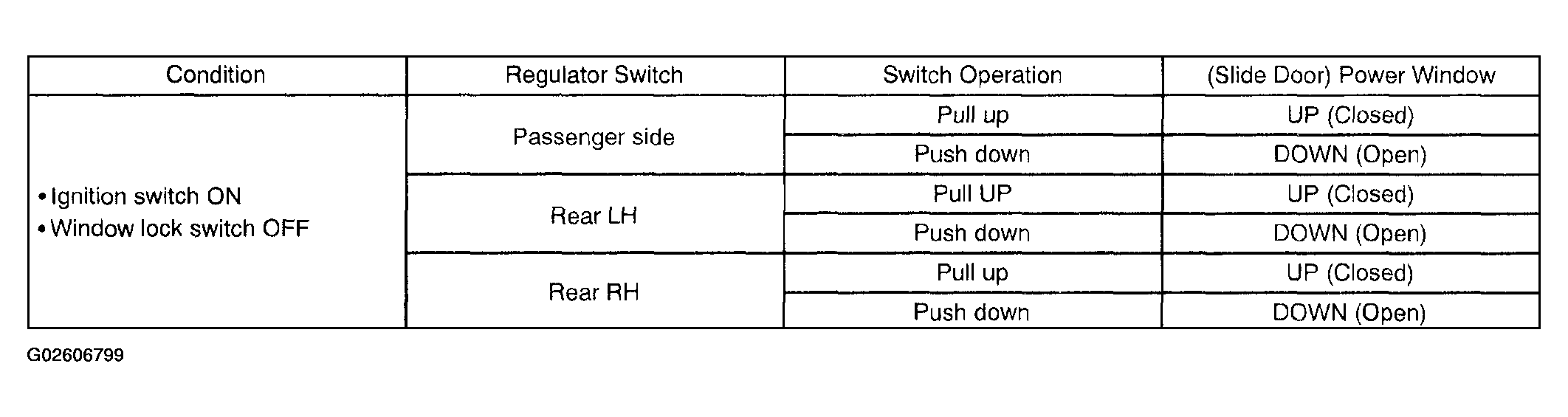

   Fig 2: Checking Passenger Side Power Window And Slide Door Power Windows Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:

Standard:

1. Check that the passenger side power window and slide door power window can be operated using each switch of the power window master switch as follows:

Standard:

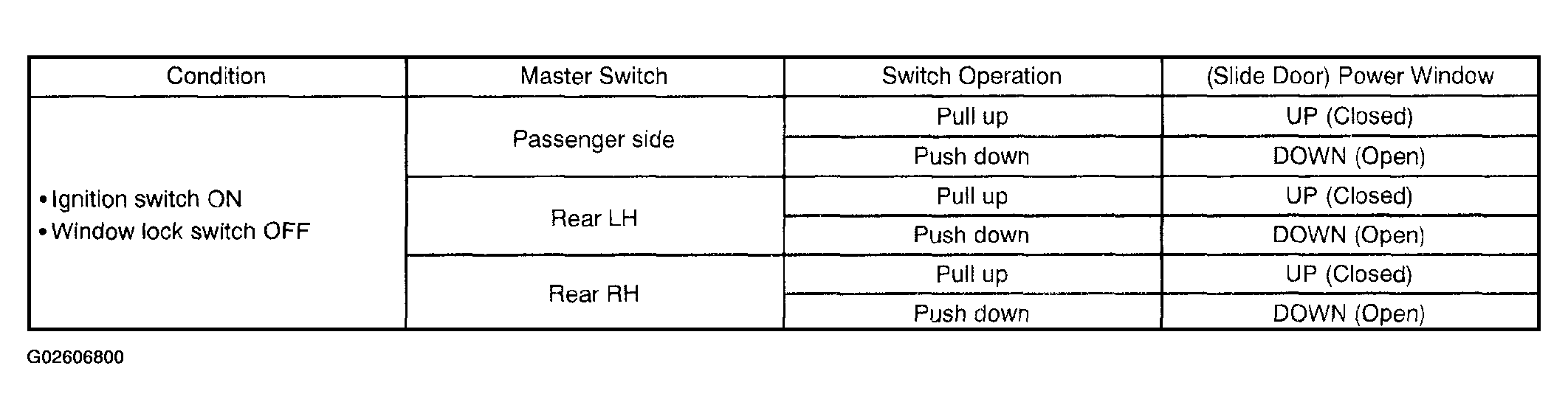

Fig 3: Checking Remote Up/Down Function Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front power windows and slide door power windows operate as follows when operating the transmitter.

Standard:

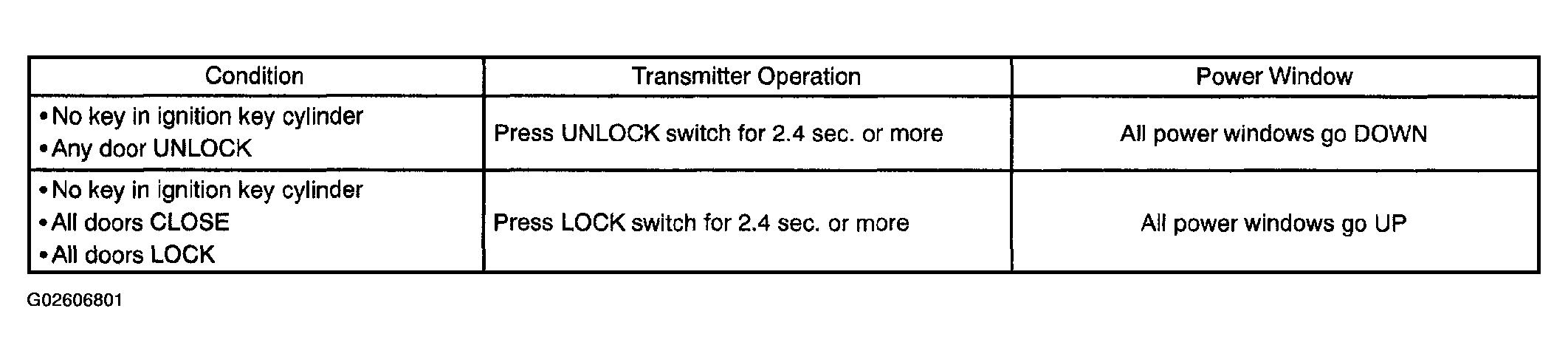

Fig 4: Checking Manual Up/Down Function Via Transmitter Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• If the vehicle falls out of the conditions listed above while the power windows are operating, they will immediately stop operation.
• For a sign to start operation, the wireless door lock buzzer sounds once (answer-back).

1. When both of the following conditions are fulfilled, check that the power windows can be operated even after the ignition switch is turned OFF:
   • Within 45 seconds after the ignition switch is turned OFF
   • The front doors are closed
