Instrument Panel Safety Pad Sub-ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

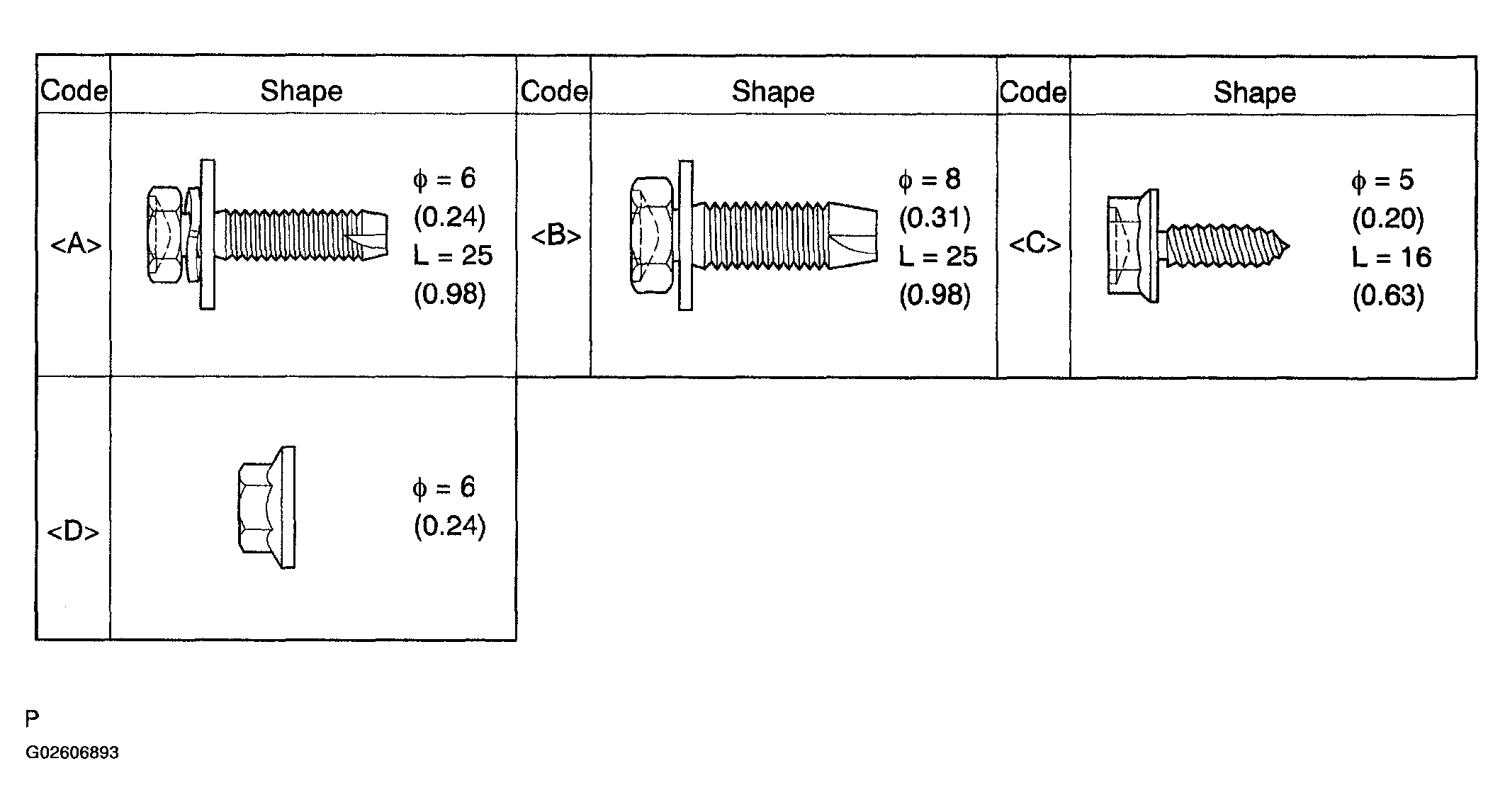

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    The bolts, the screws and the nuts, which are necessary for installation and removal of the instrument panel, are shown in Fig 1 with alphabets.

    Fig 1: Bolts, Screws & Nuts Table
    G02606893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
  3. REMOVE STEERING WHEEL COVER LOWER NO. 2
  4. REMOVE STEERING WHEEL COVER LOWER NO. 3
  5. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
  6. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  7. REMOVE STEERING COLUMN COVER (See  REPLACEMENT  )
  8. REMOVE HEADLAMP DIMMER SWITCH ASSY (See  REPLACEMENT  )
  9. REMOVE WINDSHIELD WIPER SWITCH ASSY (See  REPLACEMENT  )

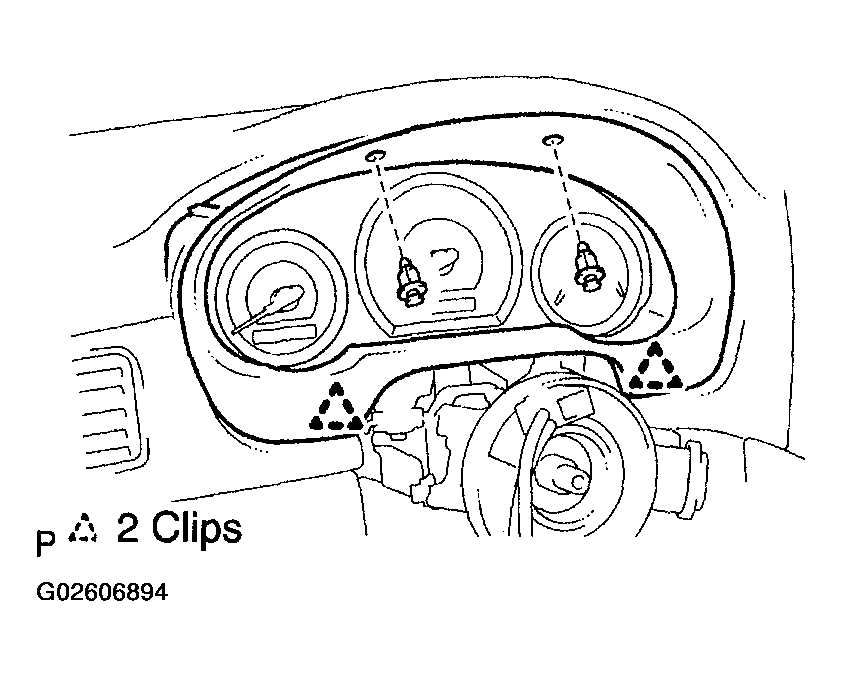

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
    1. Remove the 2 clips.
    2. Pull the instrument cluster finish panel sub-assy rearward to remove it.
    Fig 2: Removing Clips
    G02606894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

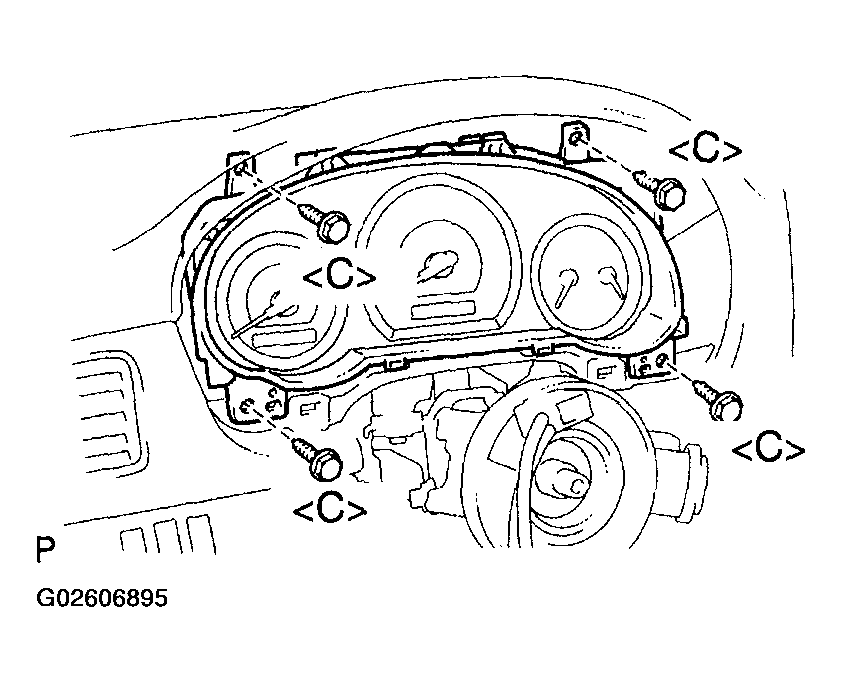

  11. REMOVE COMBINATION METER ASSY
    1. Remove the 4 screws < C >.
    2. Pull out the combination meter assy, then disconnect the connectors.
    Fig 3: Removing Screws & Combination Meter
    G02606895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  13. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  14. REMOVE COWL SIDE TRIM BOARD LH (See  REPLACEMENT  )
  15. REMOVE COWL SIDE TRIM BOARD RH (See  REPLACEMENT  )

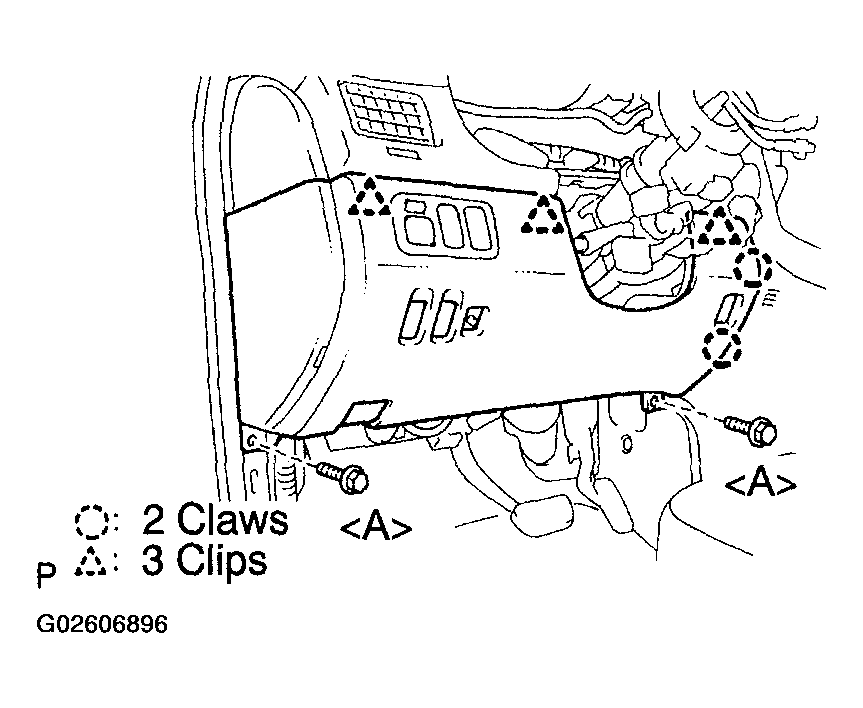

  16. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER LH
    1. Remove the 2 bolts < A >.
    2. Disconnect the hood lock control cable assy.
    3. Disengage the 2 claws and 3 clips, and then remove the instrument panel finish panel sub-assy lower LH.
    4. Disconnect the connectors.
    Fig 4: Removing Instrument Panel Finish Panel Sub-Assy Lower LH
    G02606896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

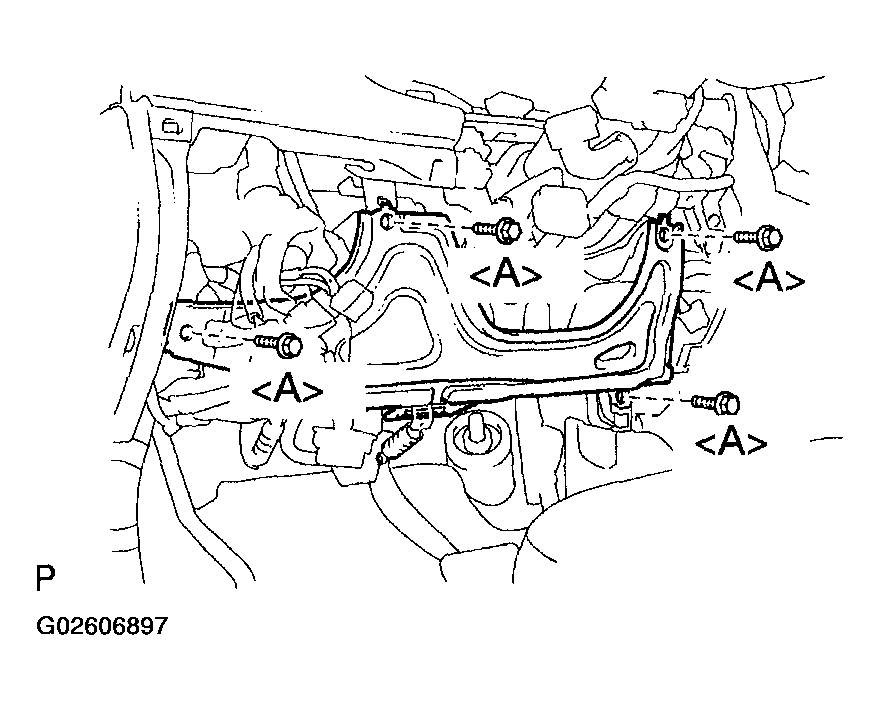

  17. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSY NO. 1
    1. Remove the 4 bolts < A > and instrument panel safety pad insert sub-assy No. 1.
    2. Disconnect the connector.
    Fig 5: Removing Bolts & Instrument Panel
    G02606897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY
    1. Disengage the claw, and remove the glove compartment door stopper sub-assy.

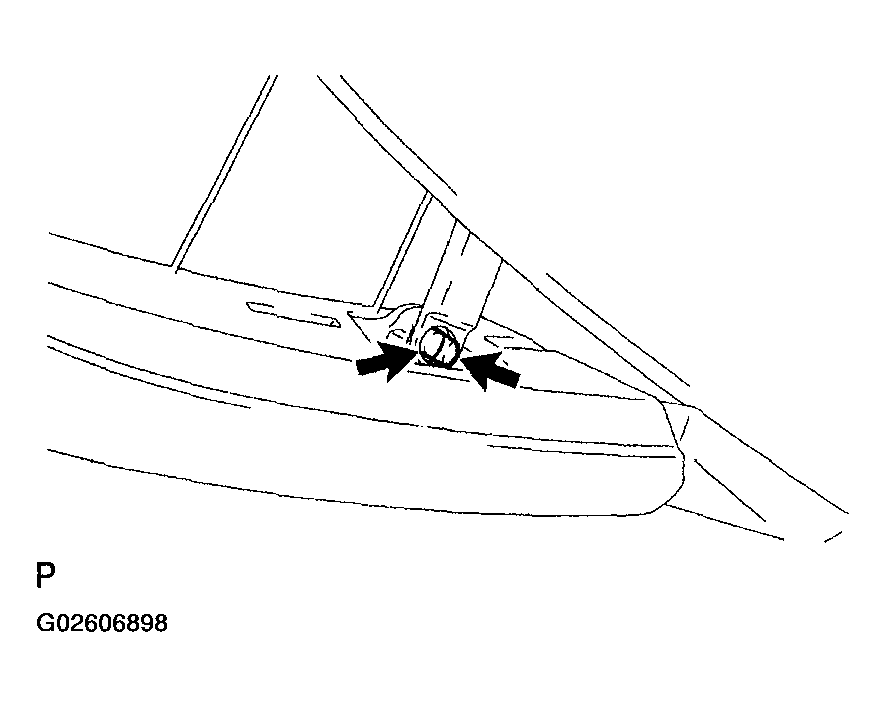

    Fig 6: Removing Glove Compartment Door Stopper Sub-Assy
    G02606898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Push the right side wall and then push the left wall to release the stoppers.

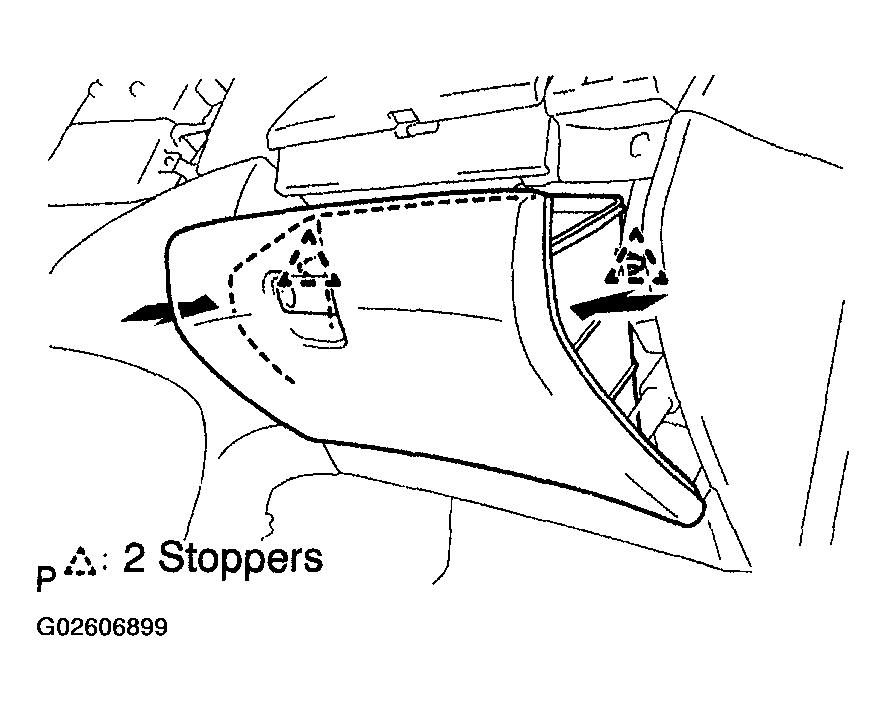

      Fig 7: Removing Glove Compartment Door
      G02606899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the glove compartment door sub-assy rearward to remove it.

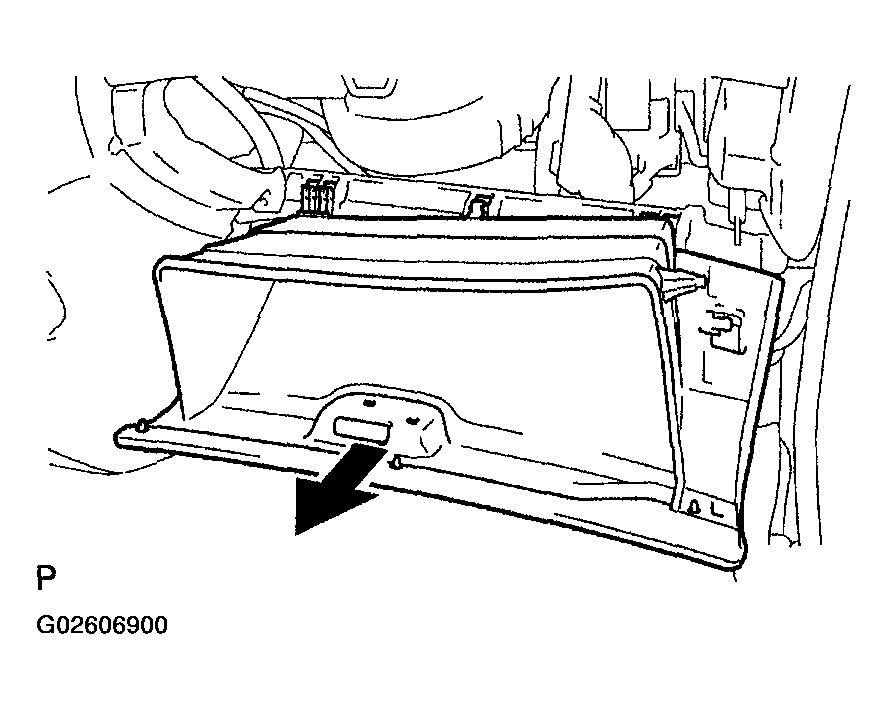

    Fig 8: Pulling Glove Compartment Door Sub-Assy
    G02606900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INSTRUMENT PANEL BOX NO. 2
    1. Disengage the 2 claws and the 4 clips, and remove the instrument panel box No. 2.

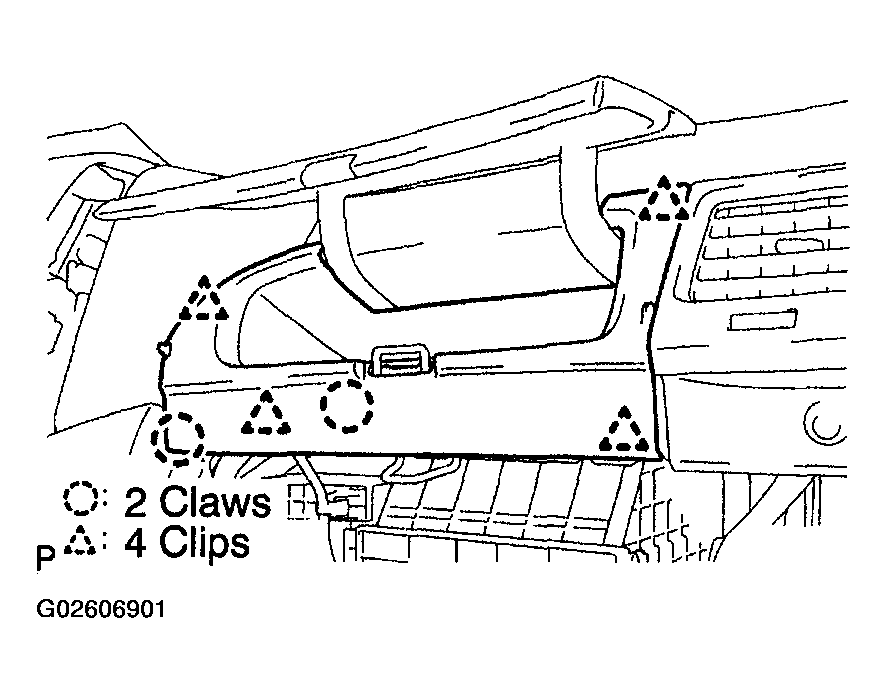

    Fig 9: Removing Instrument Panel Box No. 2
    G02606901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

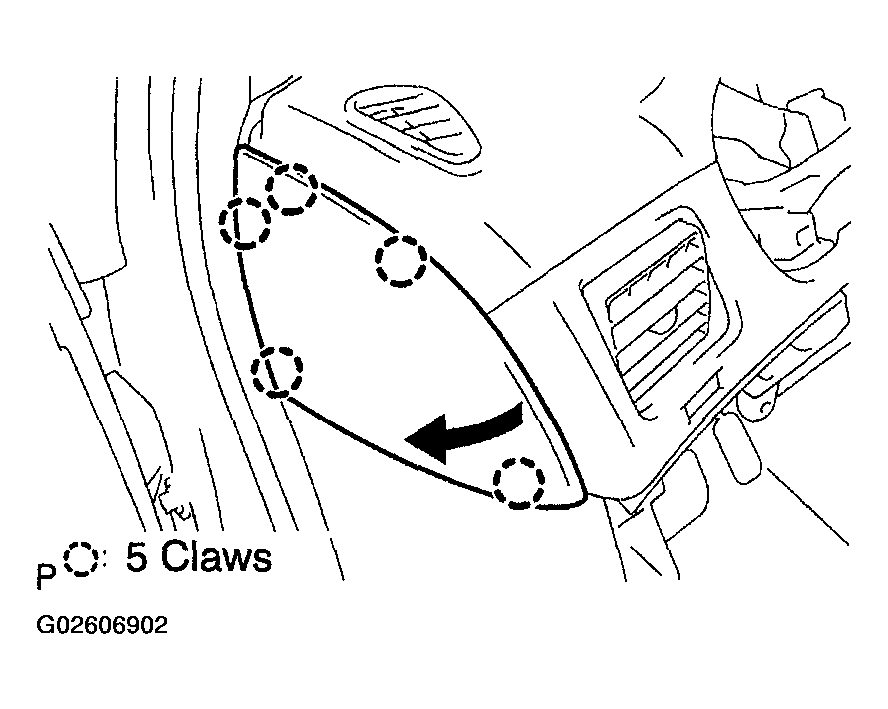

  21. REMOVE INSTRUMENT SIDE PANEL LH
    1. Disengage the 5 claws by pulling up the edge of the instrument side panel LH from the rear of the vehicle.
    2. Remove the instrument side panel LH.
    Fig 10: Removing Instrument Side Panel LH
    G02606902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE INSTRUMENT SIDE PANEL RH

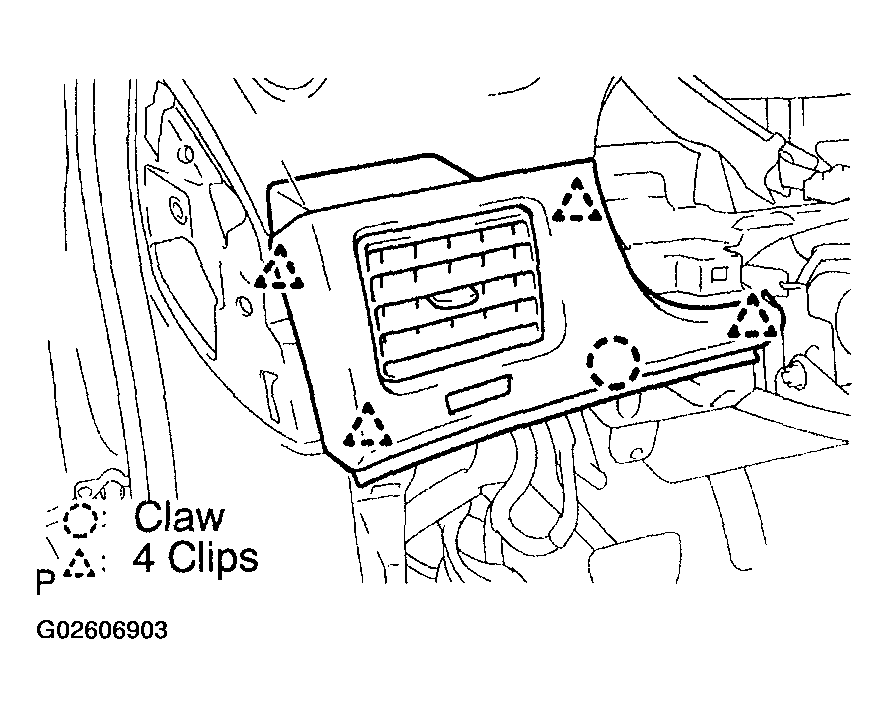

  23. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1
    1. Disengage the claw and 4 clips, and then remove the instrument panel register assy No. 1.
    Fig 11: Removing Instrument Panel Register Assy No. 1
    G02606903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 3

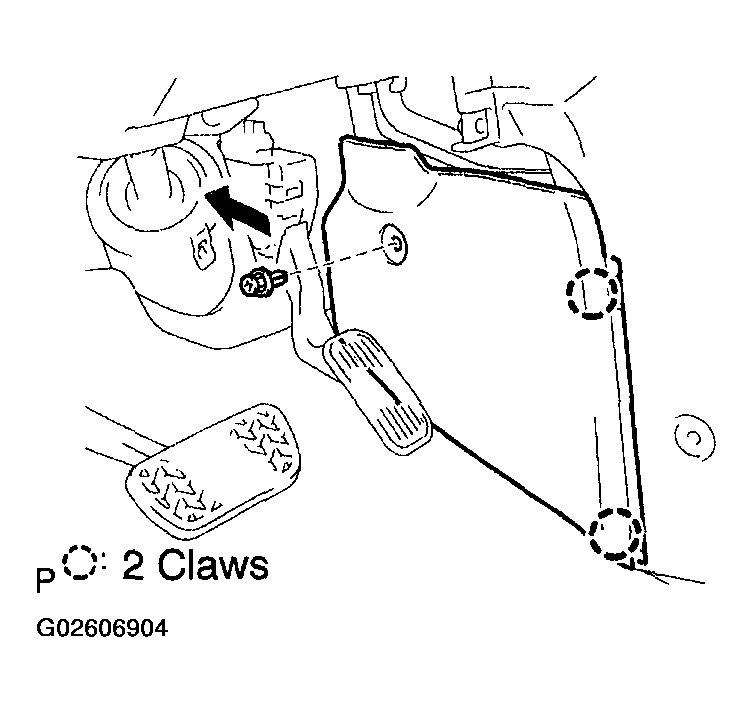

    Fig 12: Removing Clip On Floor Carpet Cover Center LH
    G02606904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FLOOR CARPET COVER CENTER LH
    1. Remove the clip on the floor carpet cover center LH.
    2. Depress the edge of the floor carpet cover center LH around the claws to disengage the two claws under beneath of the floor carpet cover center LH.
    3. Slightly sliding the floor carpet cover center LH to the front of the vehicle, detach the two claws from the instrument cluster finish panel sub-assy lower center at the floor carpet cover center LH.
    4. Remove the floor carpet cover center LH.
  26. REMOVE FLOOR CARPET COVER CENTER RH

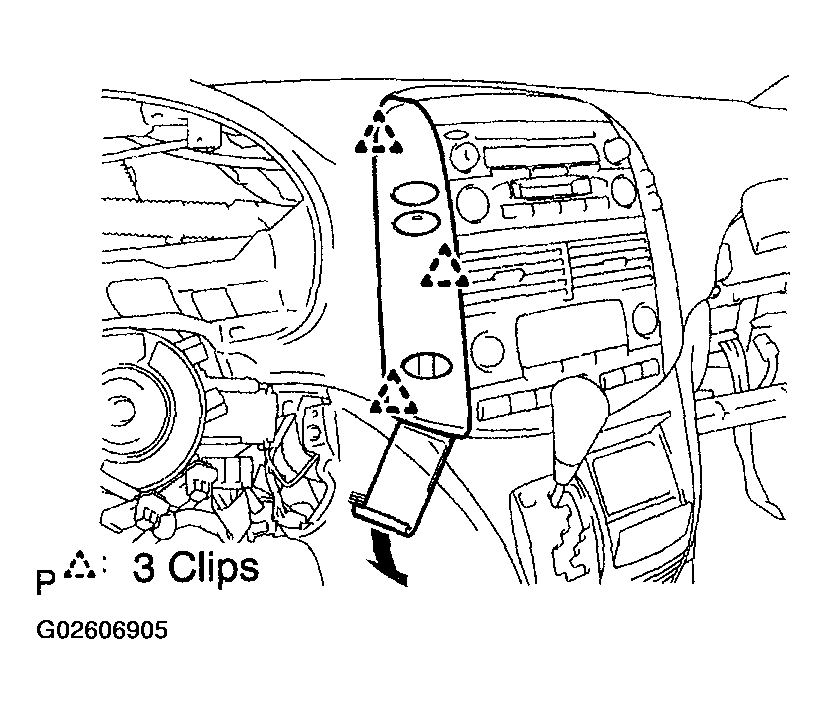

  27. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1
    1. Using a molding remover, disengage the 3 clips as shown.
    2. Disconnect the connector and remove the instrument cluster finish panel center No. 1.
    Fig 13: Removing Instrument Cluster Finish Panel Center No. 1
    G02606905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2
  29. REMOVE SHIFT LEVER KNOB SUB-ASSY
    1. Remove the floor shift lever knob sub-assy.

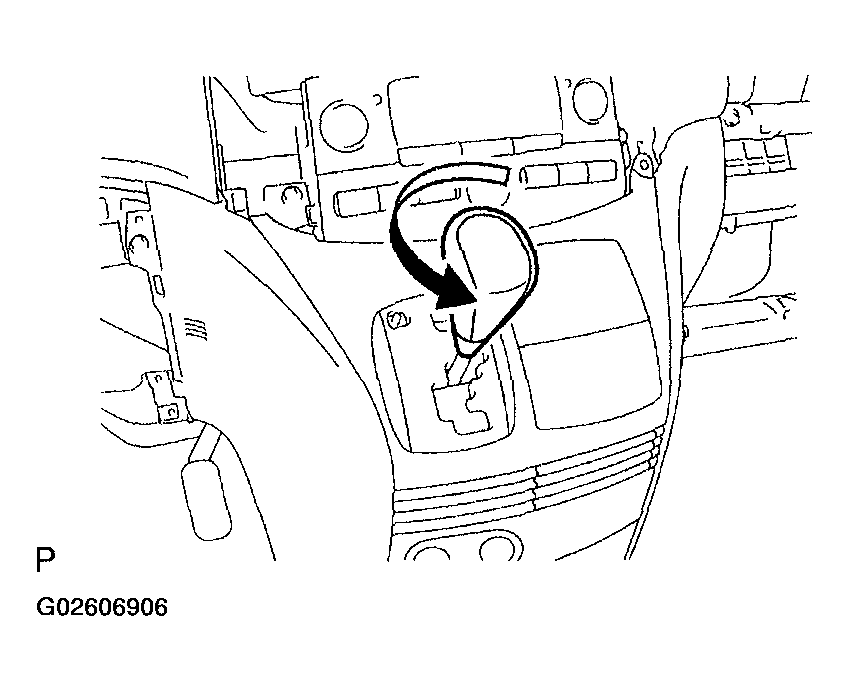

    Fig 14: Removing Shift Lever Knob Sub-Assy
    G02606906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING ASSY
    1. Disengage the 4 claws, and remove the floor shift position indicator housing assy.

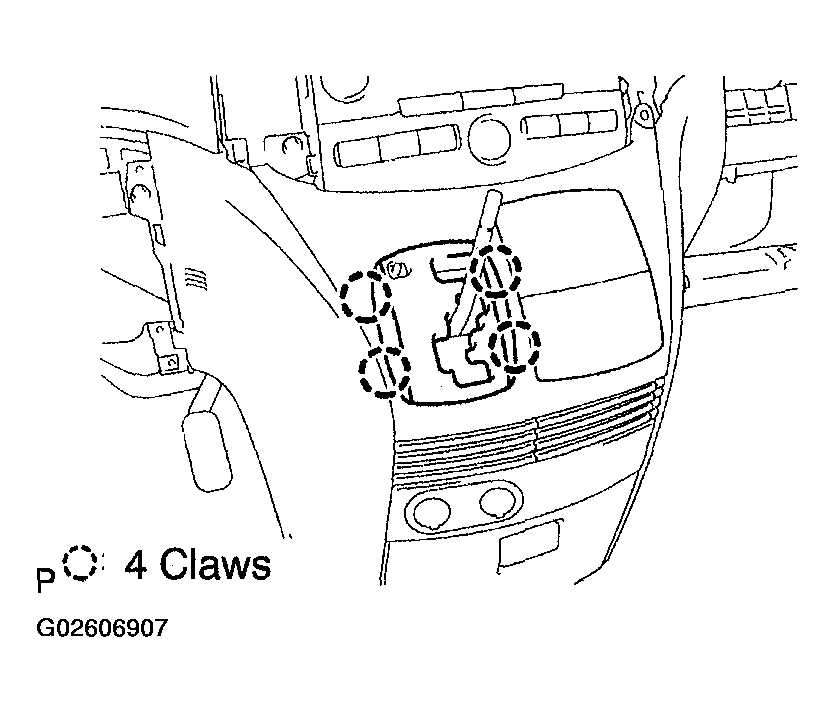

    Fig 15: Removing Floor Shift Position Indicator Housing Assy
    G02606907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

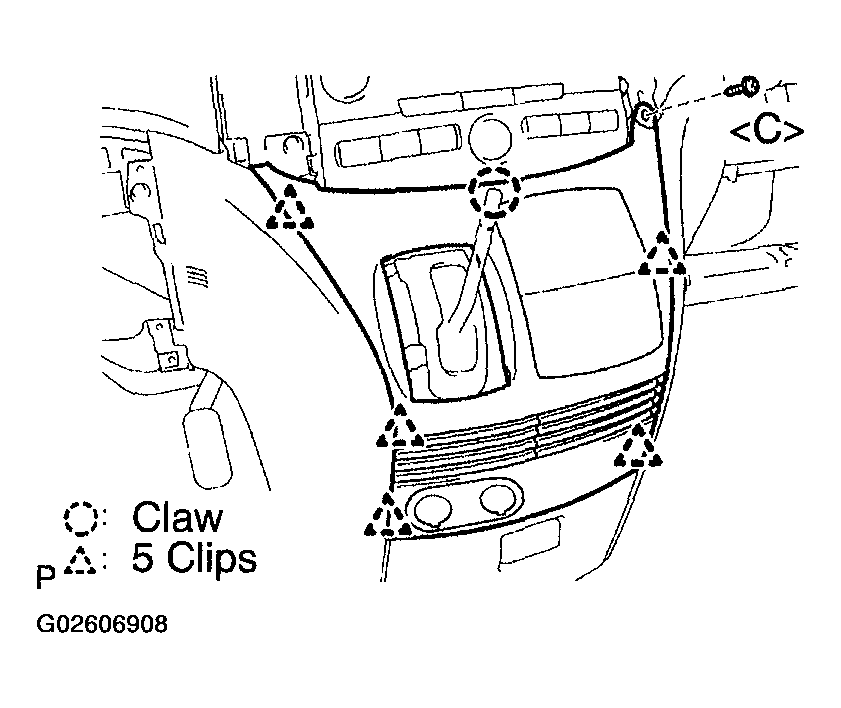

  31. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
    1. Remove the screw < C >.
    2. Disengage the 5 clips and the claw from the lowest part on the instrument cluster finish panel assy center in order.
    3. Disconnect the connectors at the instrument cluster finish panel sub-assy lower center, and then remove the instrument cluster finish panel assy center.
    Fig 16: Removing Screw & Instrument Cluster Finish Panel Assy Center
    G02606908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
    1. Remove the 2 clips on both sides.
    2. Remove the 3 screws < C > and 3 bolts < A >.
    3. Pull the instrument cluster finish panel sub-assy lower center rearward to remove it.
    4. Disconnect the connector.

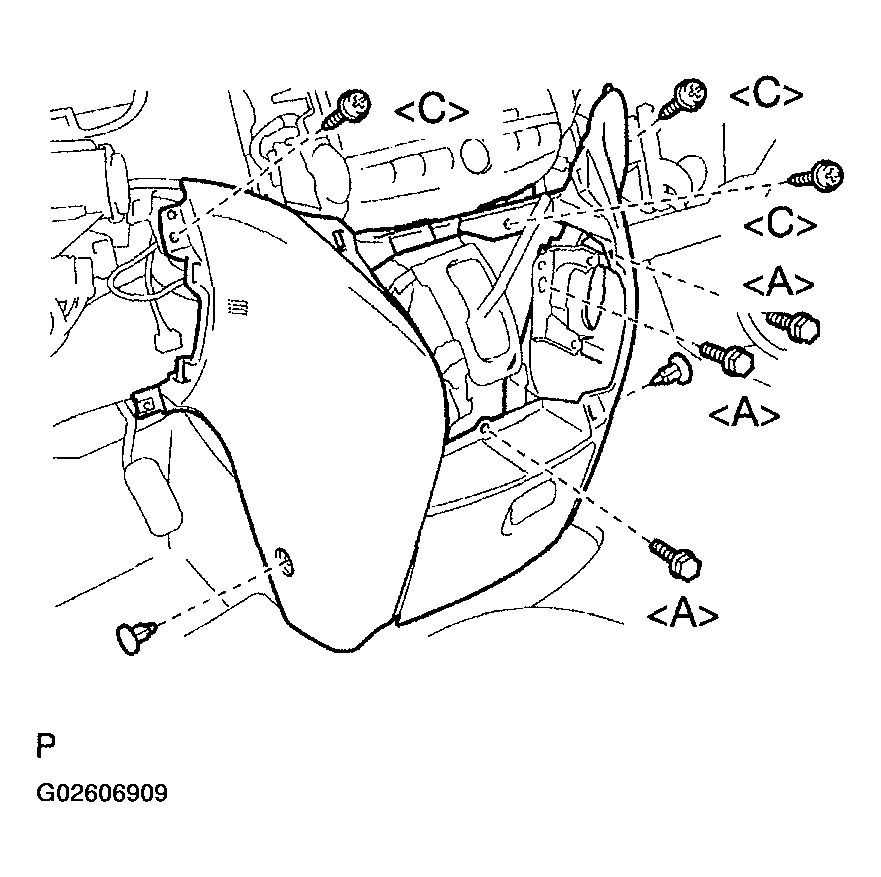

    Fig 17: Removing Screws & Bolts
    G02606909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

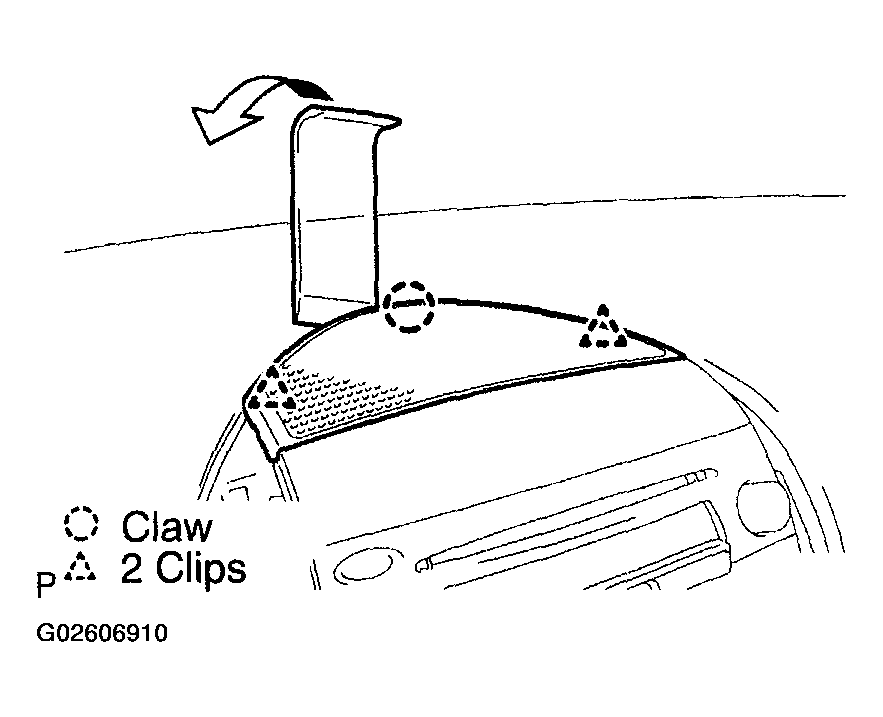

  33. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Insert the edge of a molding remover between the instrument cluster finish panel garnish and the radio receiver from the top center, and then lean the molding remover toward the front of the vehicle to raise the instrument cluster finish panel garnish.
    2. Disengage the claw on the top of the instrument cluster finish panel garnish and the two clips from the radio receiver.
      Fig 18: Removing Instrument Cluster Finish Panel Garnish
      G02606910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

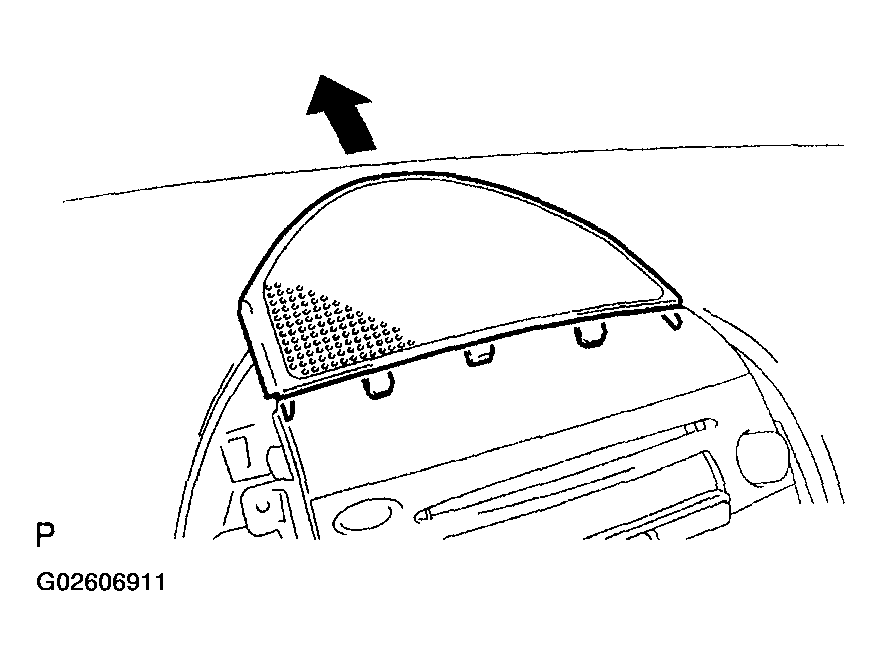

    3. Pull up the instrument cluster finish panel garnish to the front of the vehicle to disengage the 5 claws at the bottom of the instrument cluster finish panel garnish.
    4. Remove the instrument cluster finish panel garnish.
    Fig 19: Pulling Up Instrument Cluster Finish Panel Garnish
    G02606911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

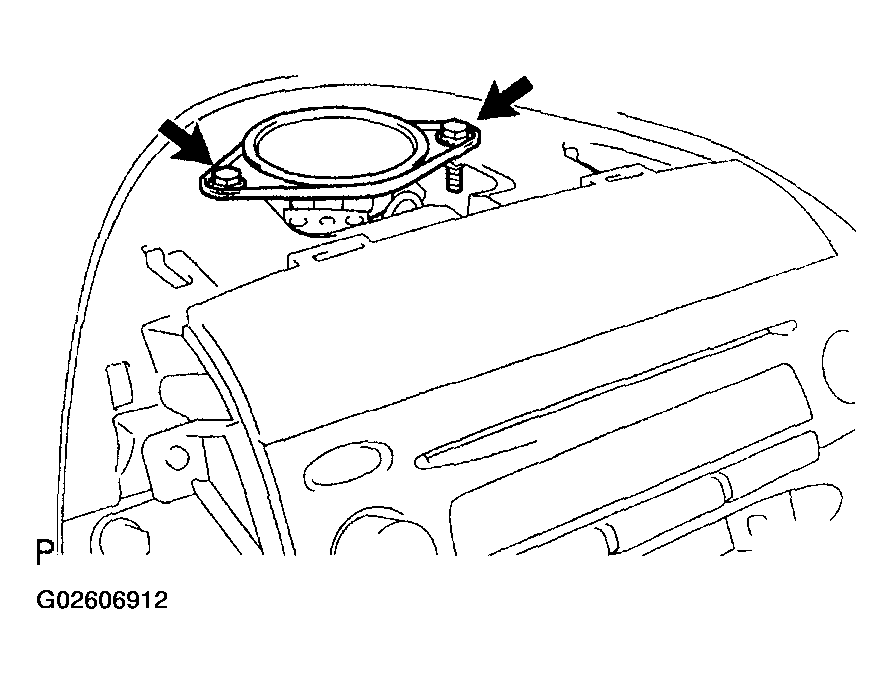

  34. REMOVE STEREO COMPONENT SPEAKER ASSY
    1. Remove the 2 screws and stereo component speaker assy.
    2. Disconnect the connector.
    Fig 20: Removing Screws & Stereo Component Speaker Assy
    G02606912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See  REPLACEMENT  )
  36. REMOVE INTEGRATION CONTROL & PANEL ASSY (See  OVERHAUL  )
  37. REMOVE FRONT PILLAR GARNISH LH (See  REPLACEMENT  )
  38. REMOVE FRONT PILLAR GARNISH RH (See  REPLACEMENT  )

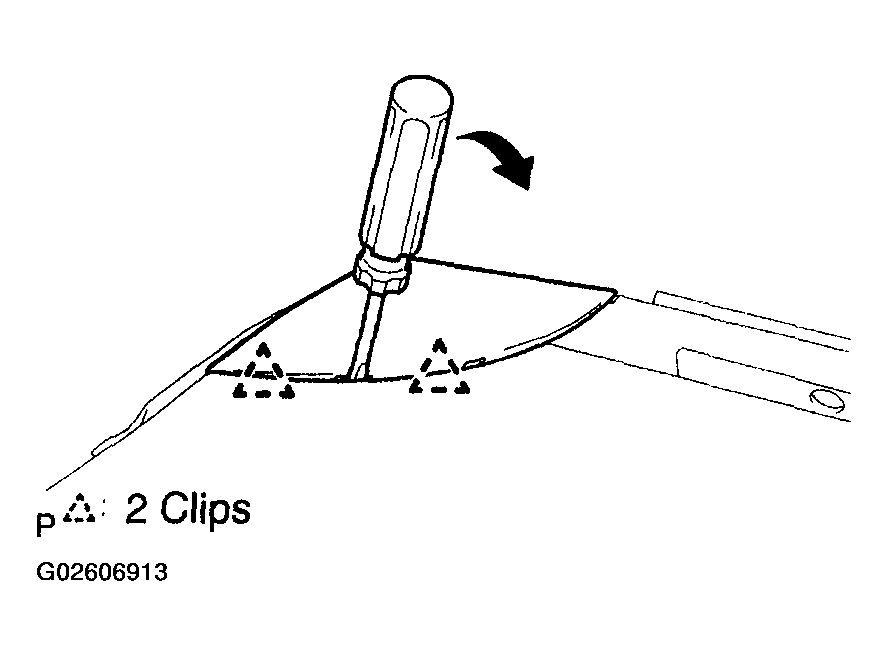

  39. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY
    1. Using a screwdriver, disengage the 2 clips and remove the instrument panel speaker panel sub-assy.
    Fig 21: Removing Instrument Panel Speaker Panel Sub-Assy Using Screwdriver
    G02606913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO. 2
  41. REMOVE FRONT NO. 1 SPEAKER ASSY
    1. Remove the 2 screws and front No. 1 speaker assy.
    2. Disconnect the connector.

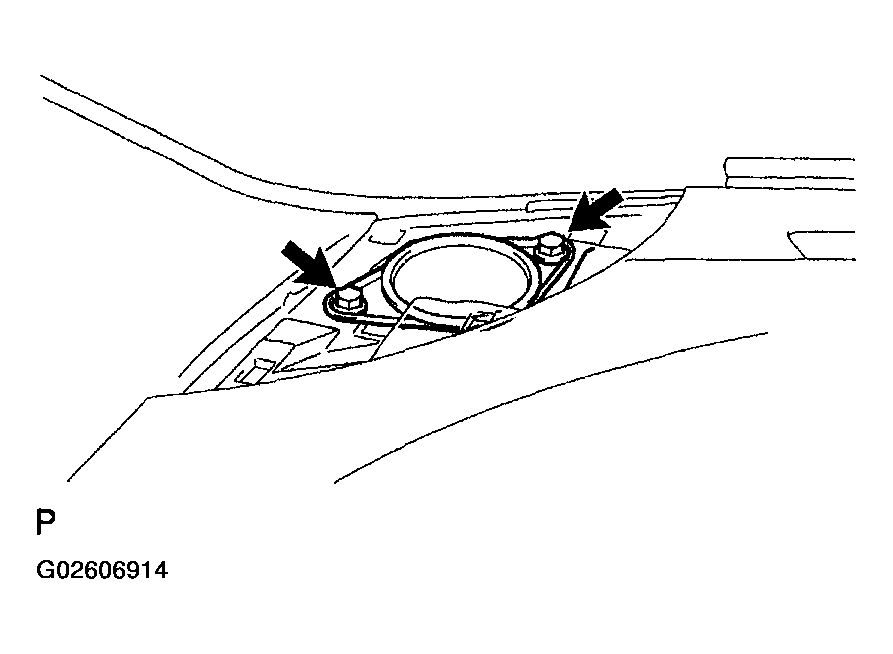

    Fig 22: Removing Screws & Front No. 1 Speaker
    G02606914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE FRONT NO. 2 SPEAKER ASSY

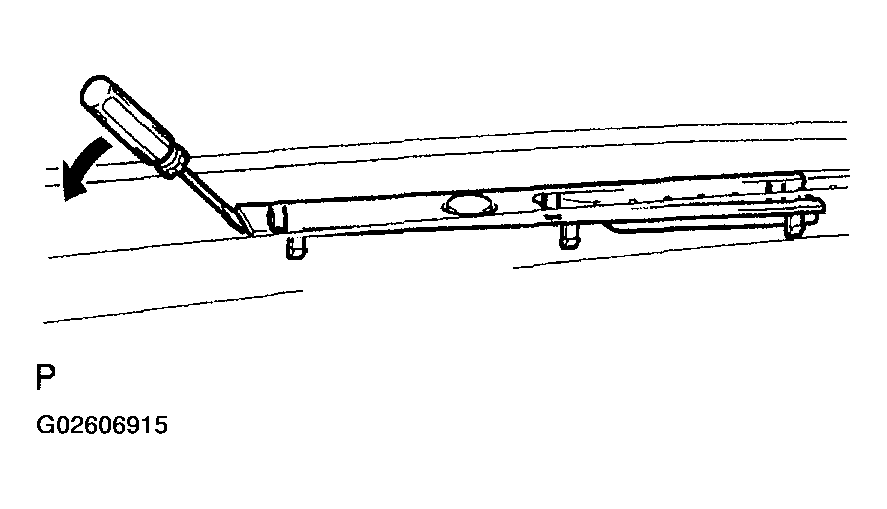

  43. REMOVE DEFROSTER NOZZLE OPENING PLATE NO. 1
    1. Using a screwdriver, disengage the 6 claws and remove the defroster nozzle opening plate No. 1.
    2. Disconnect the connector.
    Fig 23: Removing Defroster Nozzle Opening Plate No. 1 Using Screwdriver
    G02606915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

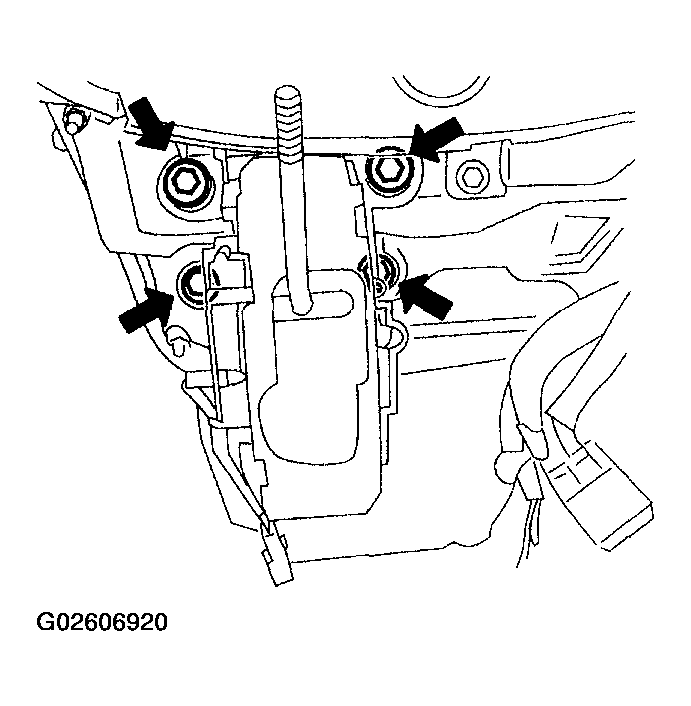

  44. SEPARATE SHIFT LEVER ASSY
    1. Remove the 4 bolts and separate the shift lever assy.

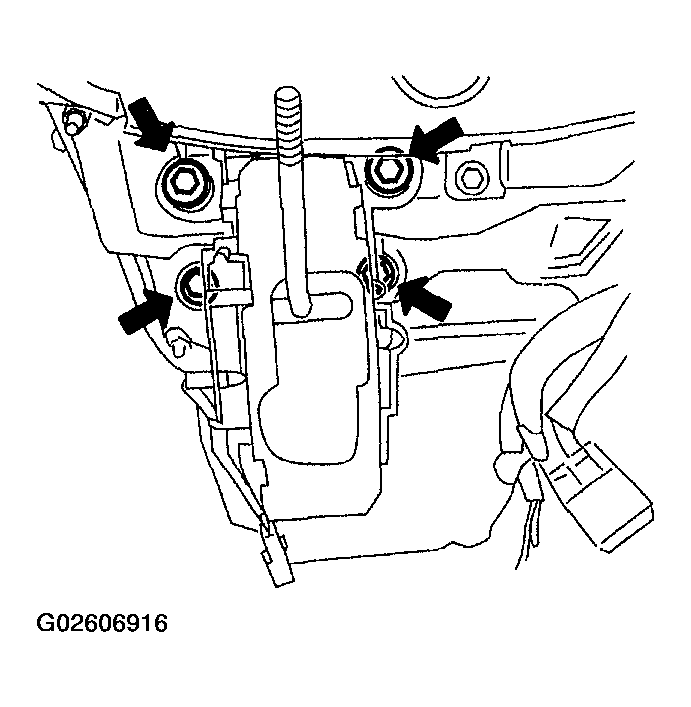

    Fig 24: Removing Bolts & Separate Shift Lever Assy
    G02606916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Remove the 4 bolts < A > and 2 screws < C > and a nut < E >.
    2. Disconnect the connectors.
    3. Remove the instrument panel sub-assy w/ passenger airbag assy.

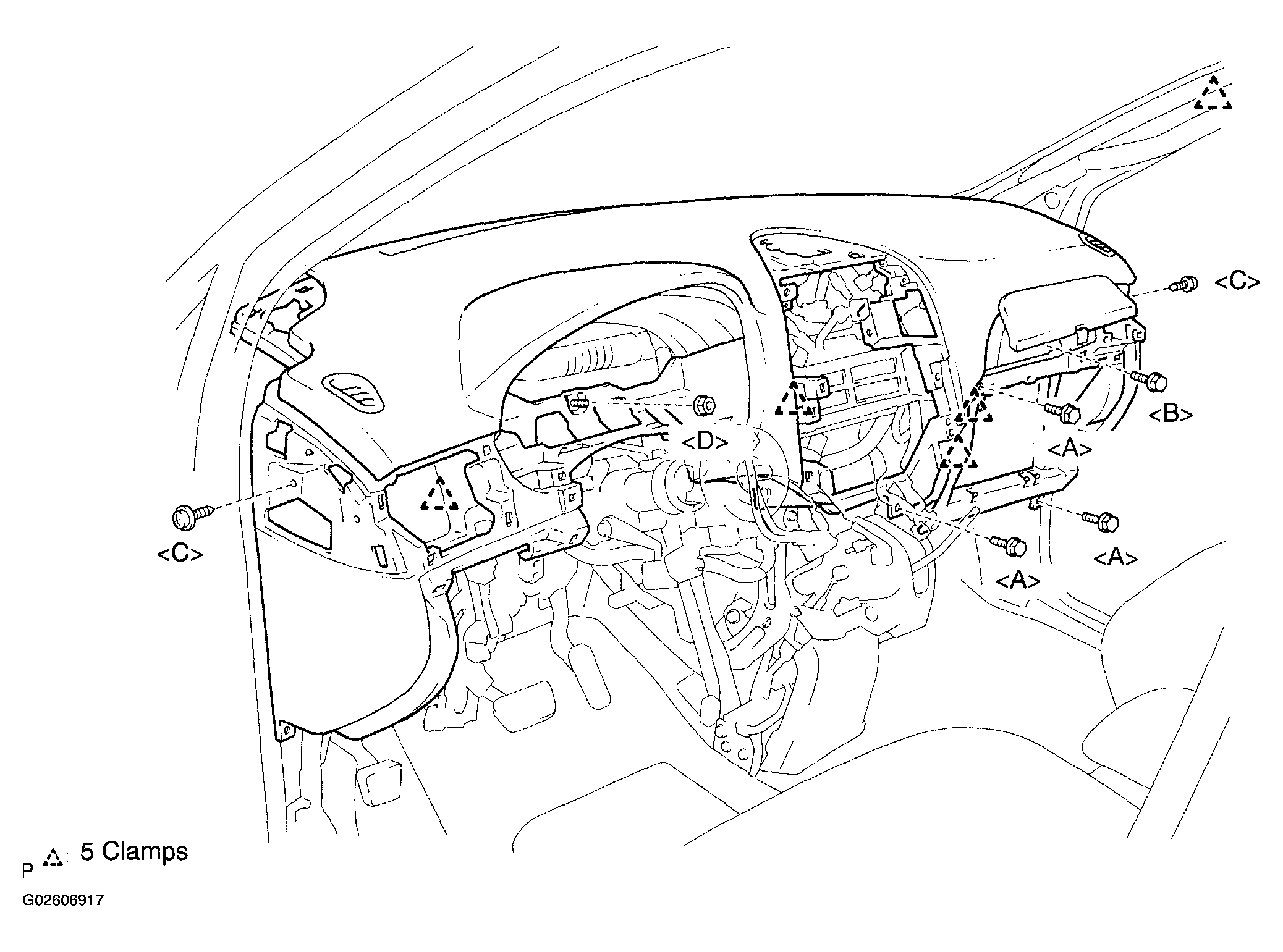

    Fig 25: Removing Instrument Panel Sub-Assy With Passenger Airbag Assy
    G02606917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE SIDE DEFROSTER NOZZLE DUCT NO. 1
    1. Remove the 2 screws < C > and defroster nozzle duct No. 1.
  47. REMOVE SIDE DEFROSTER NOZZLE DUCT NO. 2
    1. Remove the 2 screws < C > and defroster nozzle duct No. 2.
  48. REMOVE DEFROSTER NOZZLE ASSY
    1. Remove the 4 screws < C > and defroster nozzle assy.
  49. REMOVE HEATER TO REGISTER DUCT NO. 1
    1. Remove the 3 screws < C > and heater to register duct No. 1.
  50. REMOVE HEATER TO REGISTER DUCT NO. 2
    1. Remove the 3 screws < C > and heater to register duct No. 2.
  51. REMOVE HEATER TO REGISTER DUCT NO. 3
    1. Remove the 2 screws < C > and heater to register duct No. 3.
  52. REMOVE SIDE DEFROSTER NOZZLE LH
  53. REMOVE SIDE DEFROSTER NOZZLE RH
  54. REMOVE INSTRUMENT PANEL FINISH PANEL RETAINER LOWER NO. 3
    1. Remove the 2 screws < C > and instrument panel finish panel retainer lower No. 3.
  55. REMOVE INSTRUMENT CLUSTER FINISH PANEL REINFORCEMENT
    1. Remove the screw < C > and instrument cluster finish panel reinforcement.
  56. REMOVE DEFROSTER DUCT BRACKET NO. 1
    1. Remove the screw < C > and defroster duct bracket No. 1.
  57. REMOVE INSTRUMENT FINISH PANEL RETAINER LOWER
    1. Remove the screw < C > and instrument finish panel retainer lower.
  58. REMOVE INSTRUMENT FINISH PANEL RETAINER LOWER NO. 2
    1. Remove the screw < C > and instrument finish panel retainer lower No. 2.
  59. REMOVE INSTRUMENT PANEL FINISH PANEL RETAINER NO. 1
    1. Remove the 2 screws < C > and instrument panel finish panel retainer No. 1.
  60. REMOVE INSTRUMENT PANEL BOX DOOR SUB-ASSY NO. 2
  61. REMOVE ANTENNA CORD SUB-ASSY (See  REPLACEMENT  )
  62. REMOVE NAVIGATION ANTENNA ASSY (W/ EMV & NAVIGATION SYSTEM) (See  REPLACEMENT  )
  63. REMOVE INSTRUMENT PANEL WIRE NO. 2
    1. Remove the 2 screws < C >.
    2. Disengage the 7 clamps and remove the instrument panel wire No. 2.

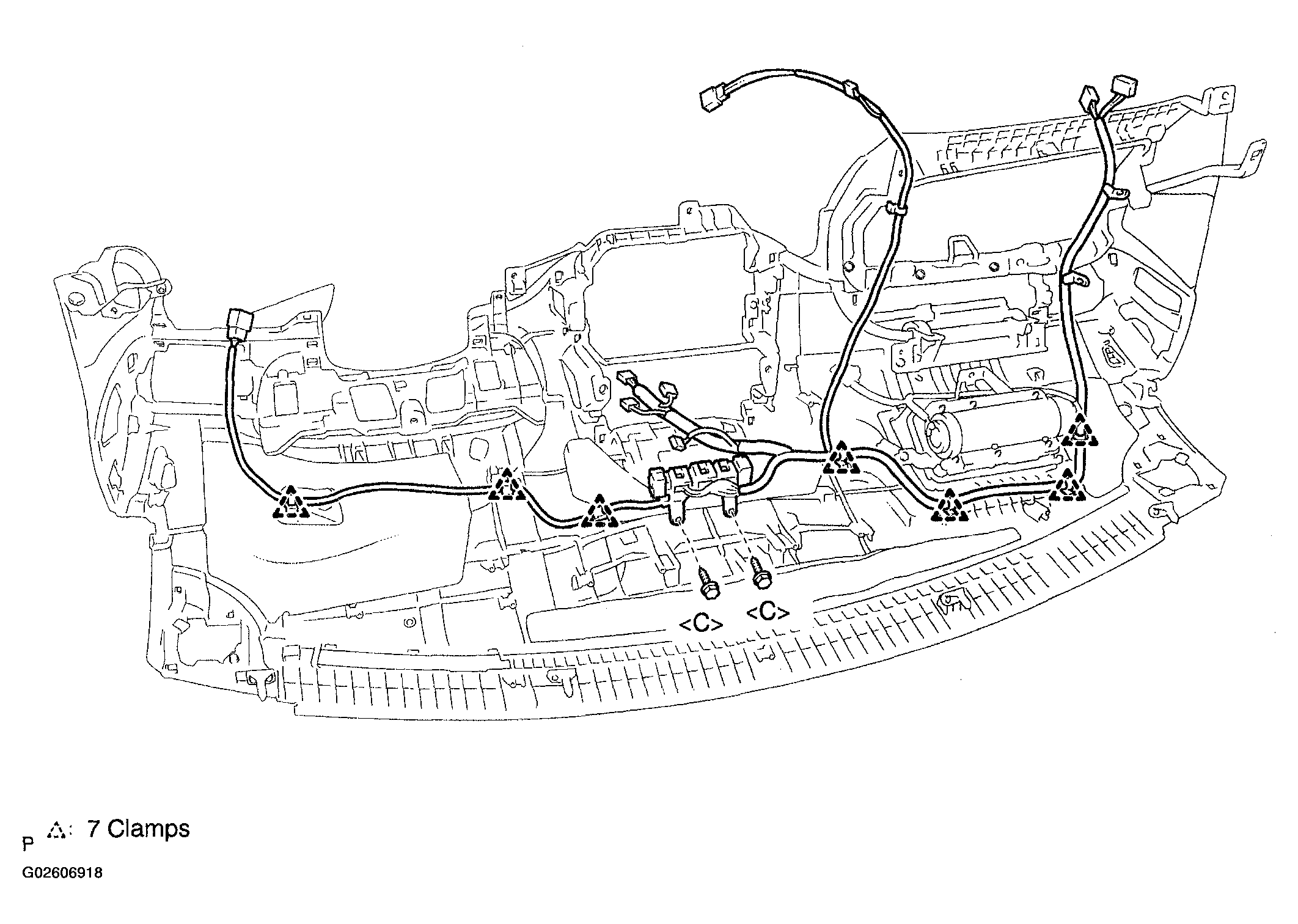

    Fig 26: Removing Instrument Panel Wire
    G02606918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY (See  REPLACEMENT  )
  65. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
  66. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Using a torque wrench, install the bolt.

      Torque: 20 N.m (204 kgf.cm, 14 ft.lbf)

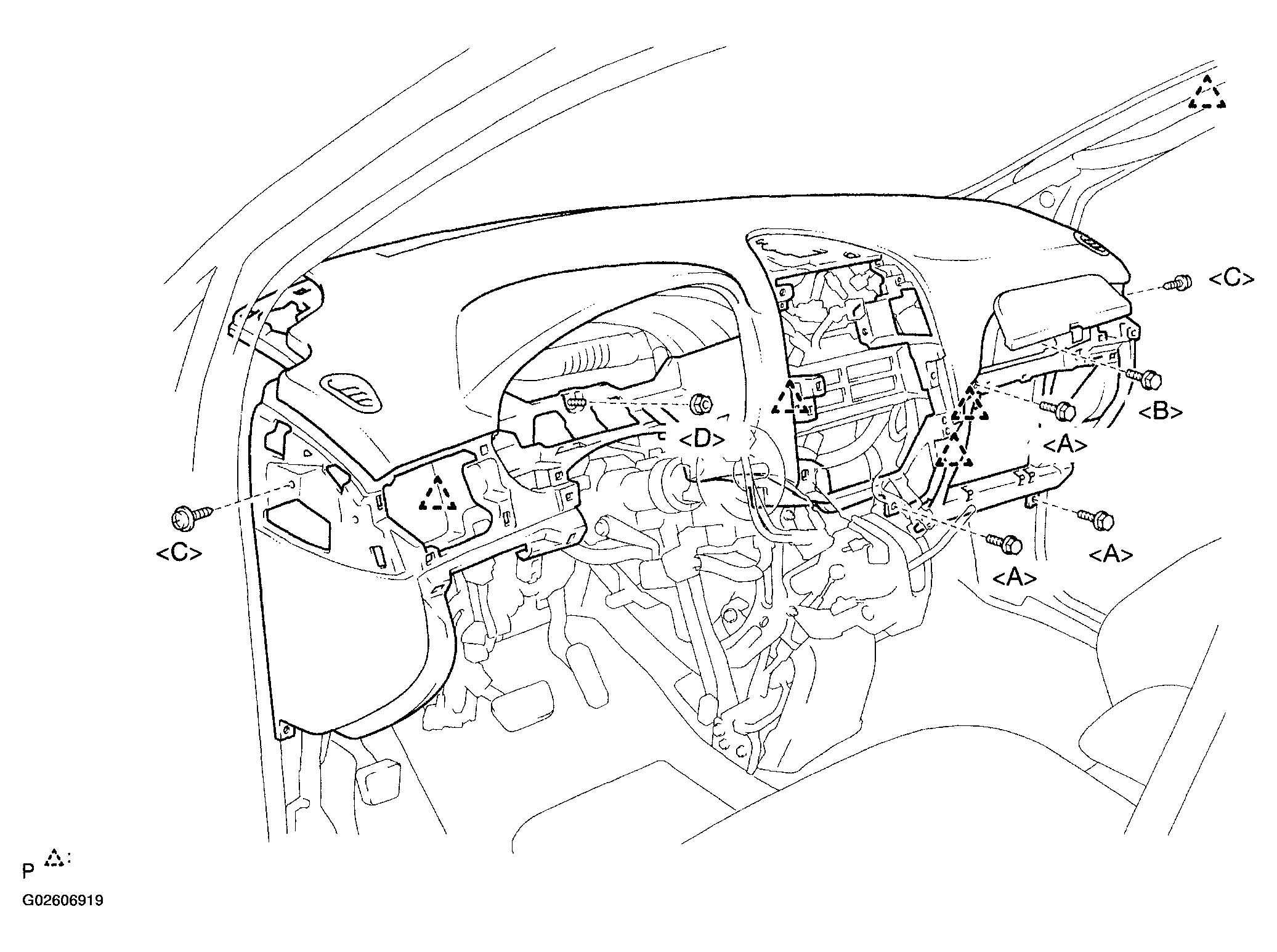

    Fig 27: Installing Instrument Panel Sub-Assy With Passenger Airbag Assy
    G02606919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. INSTALL SHIFT LEVER ASSY
    1. Using a torque wrench, install the 4 bolts.

      Torque: 21 N.m (214 kgf.cm, 12.6 ft.lbf)

    Fig 28: Installing Shift Lever Assy & Bolts
    G02606920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. ADJUST  SPIRAL CABLE SUB-ASSY
  69. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  70. INSTALL HORN BUTTON ASSY (See  REPLACEMENT  )
  71. INSPECT HORN BUTTON ASSY (See  ON-VEHICLE INSPECTION  )
  72. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
