Cruise Control Main Switch: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM )
REMOVE STEERING WHEEL COVER LOWER NO.2
REMOVE STEERING WHEEL COVER LOWER NO.3
REMOVE HORN BUTTON ASSY (See REPLACEMENT )
REMOVE CRUISE CONTROL MAIN SWITCH
1. Disconnect the connectors.
2. Remove the 2 screws and cruise control main switch.

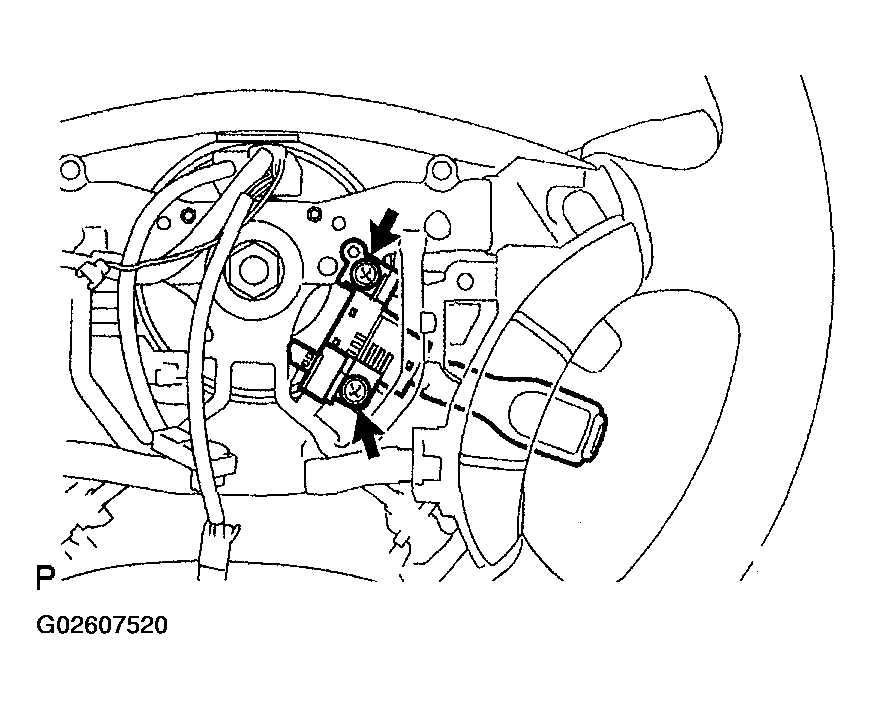

Fig 1: Removing Cruise Control Main Switch (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

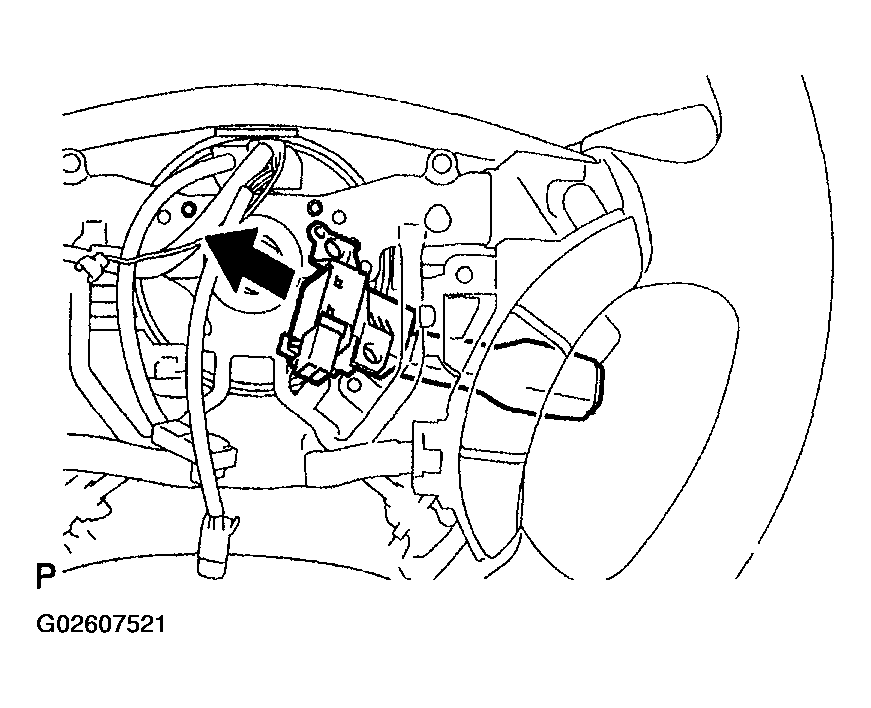

Fig 2: Removing Cruise Control Main Switch (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (See REPLACEMENT )
INSPECT HORN BUTTON ASSY (See ON-VEHICLE INSPECTION )
INSPECT SRS WARNING LIGHT (See DIAGNOSIS SYSTEM )
