Distance Control Ecu ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See  REPLACEMENT  )
  2. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  3. REMOVE STEREO COMPONENT AMPLIFIER ASSY (W/ STEREO COMPONENT AMPLIFIER) (See  STEREO COMPONENT AMPLIFIER ASSY  )
  4. REMOVE DISTANCE CONTROL ECU ASSY
    1. Remove the bolt.
    2. Disengage the clip and remove the distance control ECU assy.

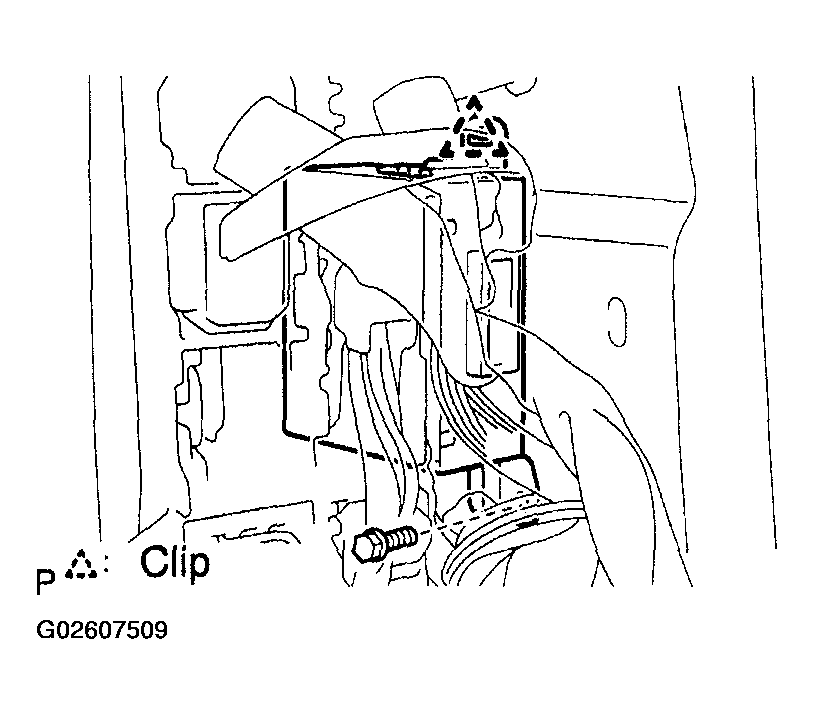

    Fig 1: Removing Distance Control ECU Assembly
    G02607509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL DISTANCE CONTROL ECU ASSY
    1. Using a torque wrench, install the bolt.

      Torque: 5 N.m (51 kgf.cm, 44 in.lbf)

    NOTE: Do not install the dropped or shocked distance control ECU assy.
