On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WINDOW LOCK SWITCH
1. Check that the passenger side power window and slide door power windows operation is disabled when the window lock switch of the power window master switch is pressed.
2. Check that the passenger side power window and slide door power windows can be operated when the window lock switch is pressed again.
Fig 1: Checking Window Lock Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK MANUAL UP/DOWN FUNCTION

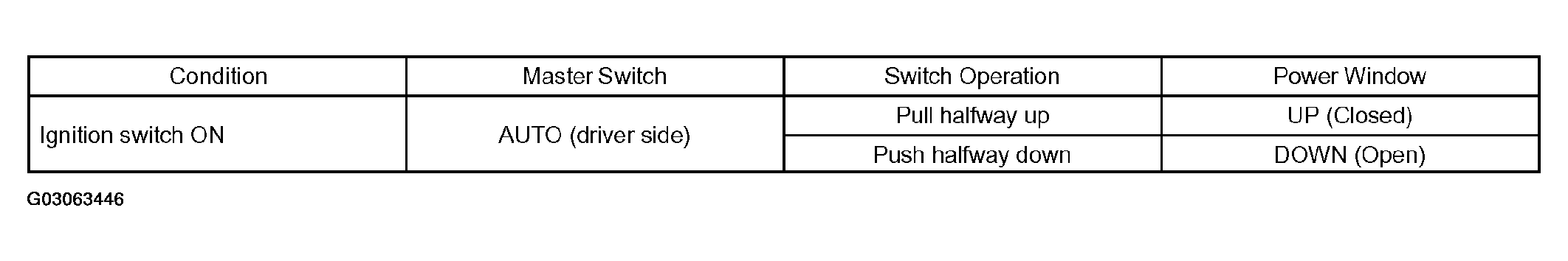

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:
  Standard:

  Fig 2: Master Switch Operation Power Window Standard Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

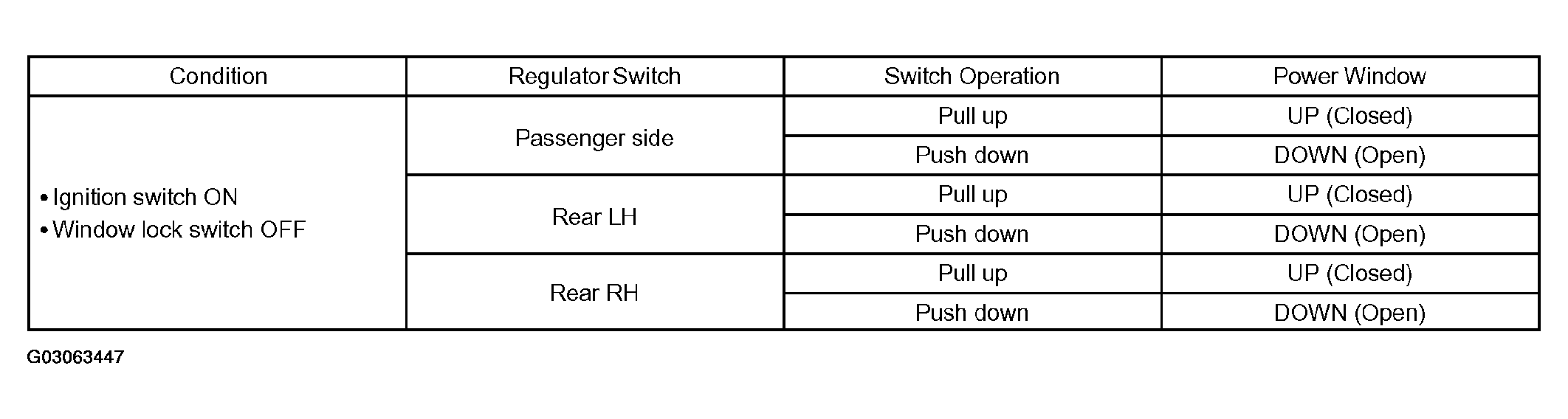

2. Check that the passenger side power window and slide door power window can be operated using each power window regulator switch as follows:
  Standard:
Fig 3: Regulator Switch Operation Power Window Standard Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK AUTO UP/DOWN FUNCTION

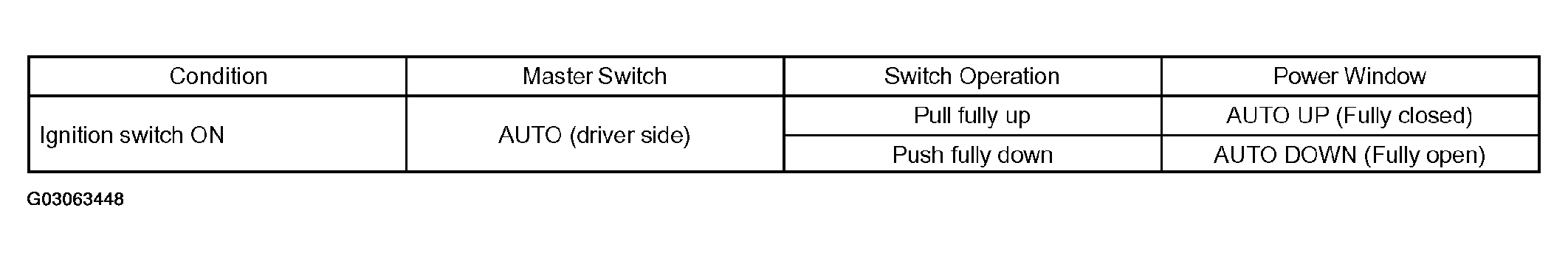

1. Check that the driver side power window can be operated using the AUTO (driver side) switch of the power window master switch as follows:
  Standard:
Fig 4: Master Switch Operation Power Window Standard Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK REMOTE UP/DOWN FUNCTION

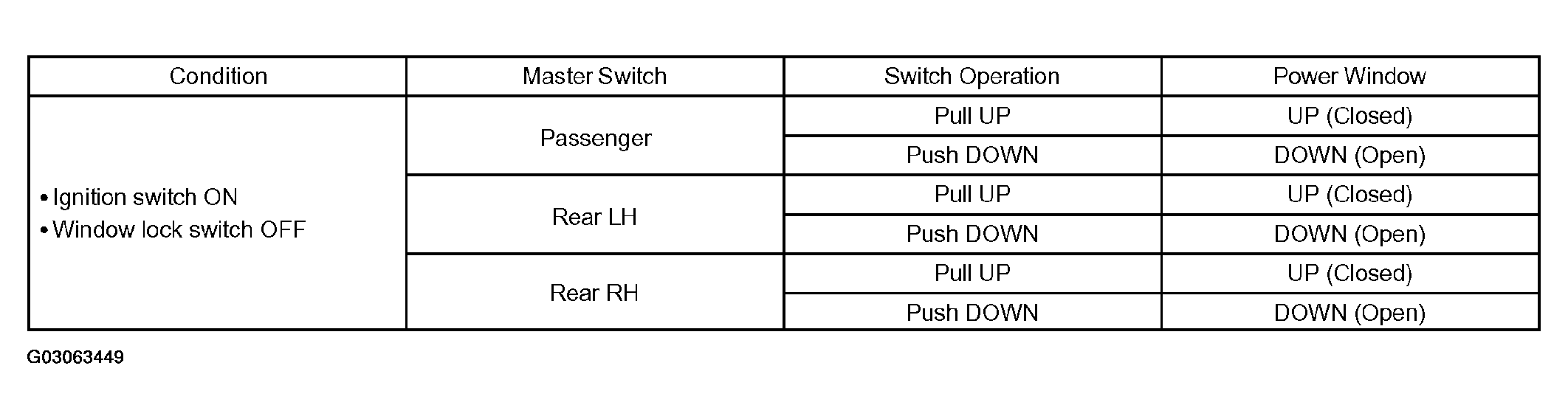

1. Check that the passenger side power window and slide door power window can be operated using each switch of the power window master switch as follows:
  Standard:
Fig 5: Master Switch Operation Power Window Standard Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK MANUAL UP/DOWN FUNCTION VIA TRANSMITTER

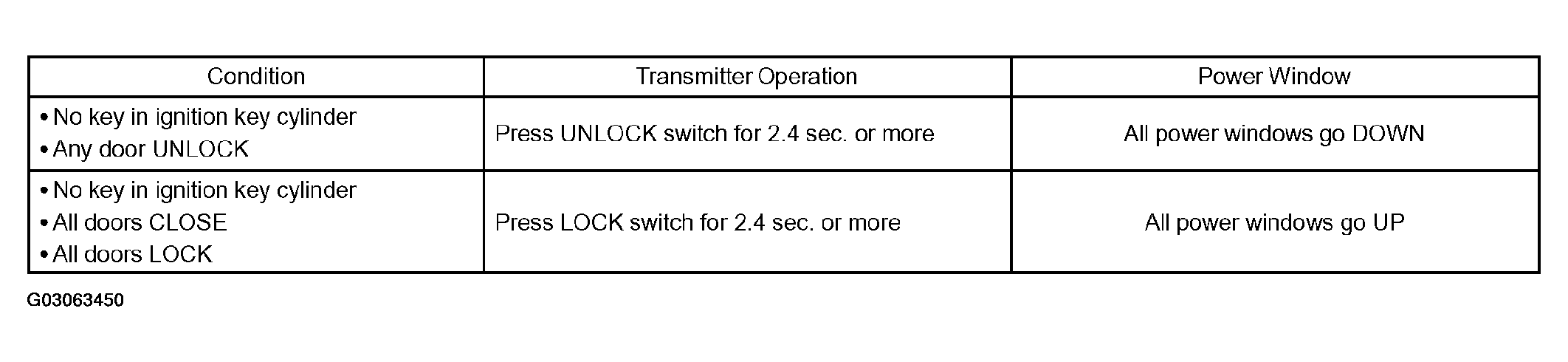

1. Check that the front power windows and slide power windows operate as follows when operating the transmitter.
  Standard:
Fig 6: Transmitter Operation Power Window Standard Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: For a sign to start operation, the wireless door lock buzzer sounds once (answer-back).
CHECK POWER WINDOW OPERATION FUNCTION AFTER IGNITION SWITCH OFF
1. When both of the following conditions are fulfilled, check that the power windows can be operated even after the ignition switch is turned OFF.
  - Within 45 seconds after the ignition switch is turned OFF
  - The front doors are closed

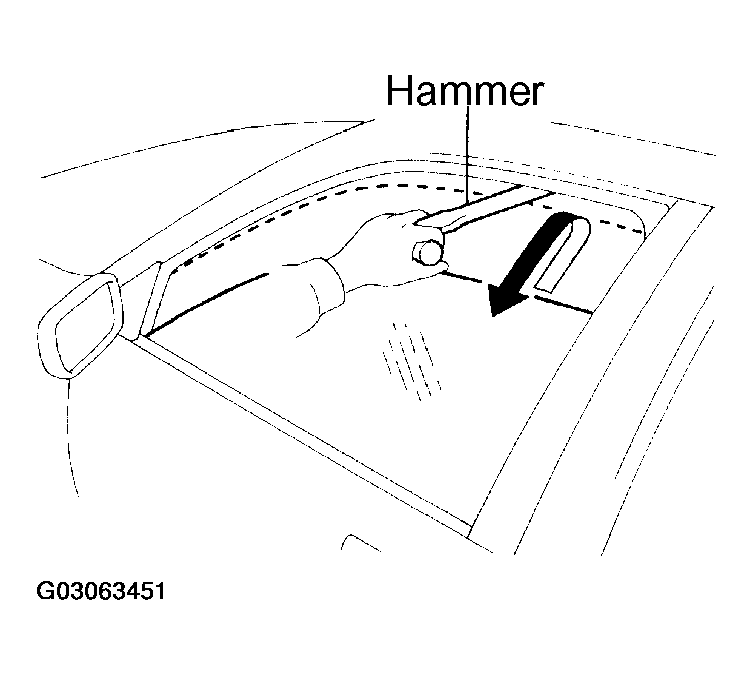

Fig 7: Checking Jam Protection Function (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK JAM PROTECTION FUNCTION (DRIVER SIDE)
NOTE: The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.
1. Check that the door glass goes down by approximately 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass keeps going down until the opening reaches 200 mm (7.87 in.) and stops there.
  Operative conditions:
  - AUTO UP
  - AUTO UP operation after the ignition switch OFF
  - MANUAL UP operation after the ignition switch OFF
CHECK POWER WINDOW FAIL-SAFE FUNCTION
1. If there is a malfunction in the pulse sensor of the power window motor, the power window function will be restricted to partial operation.

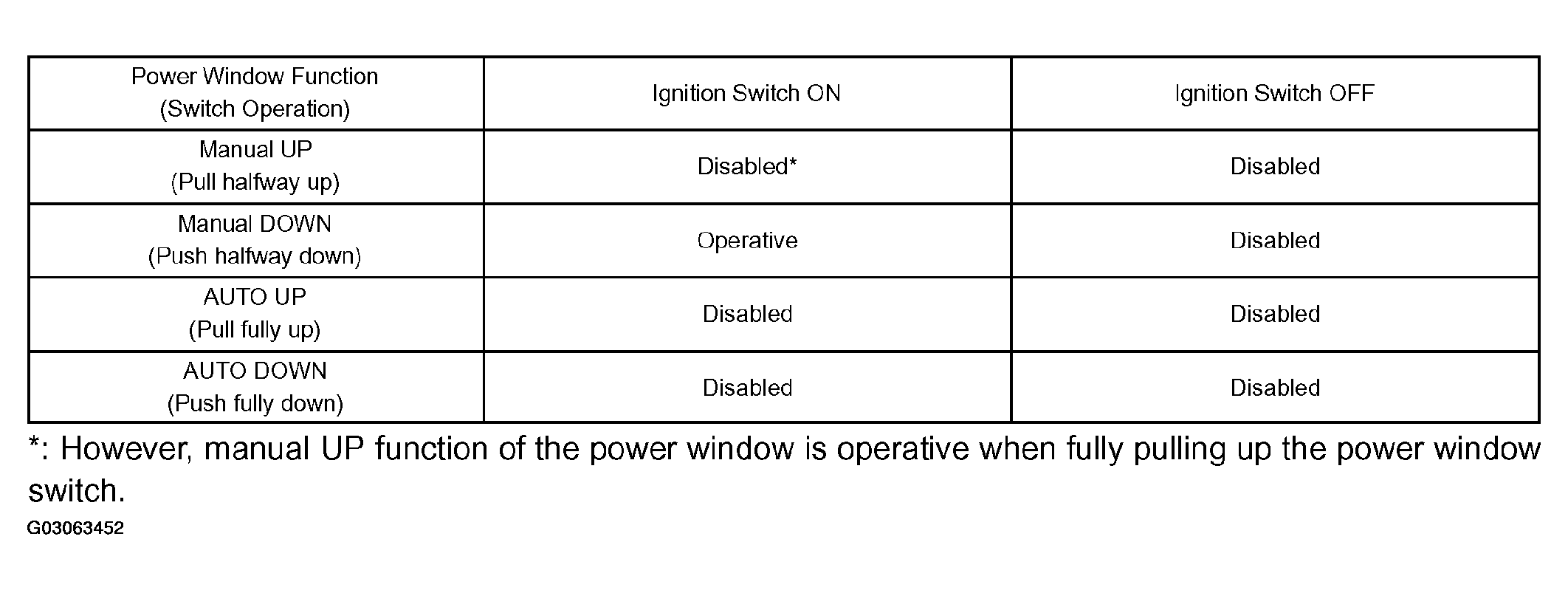

Fig 8: Power Window Fail-Safe Function Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
