Torque Specifications

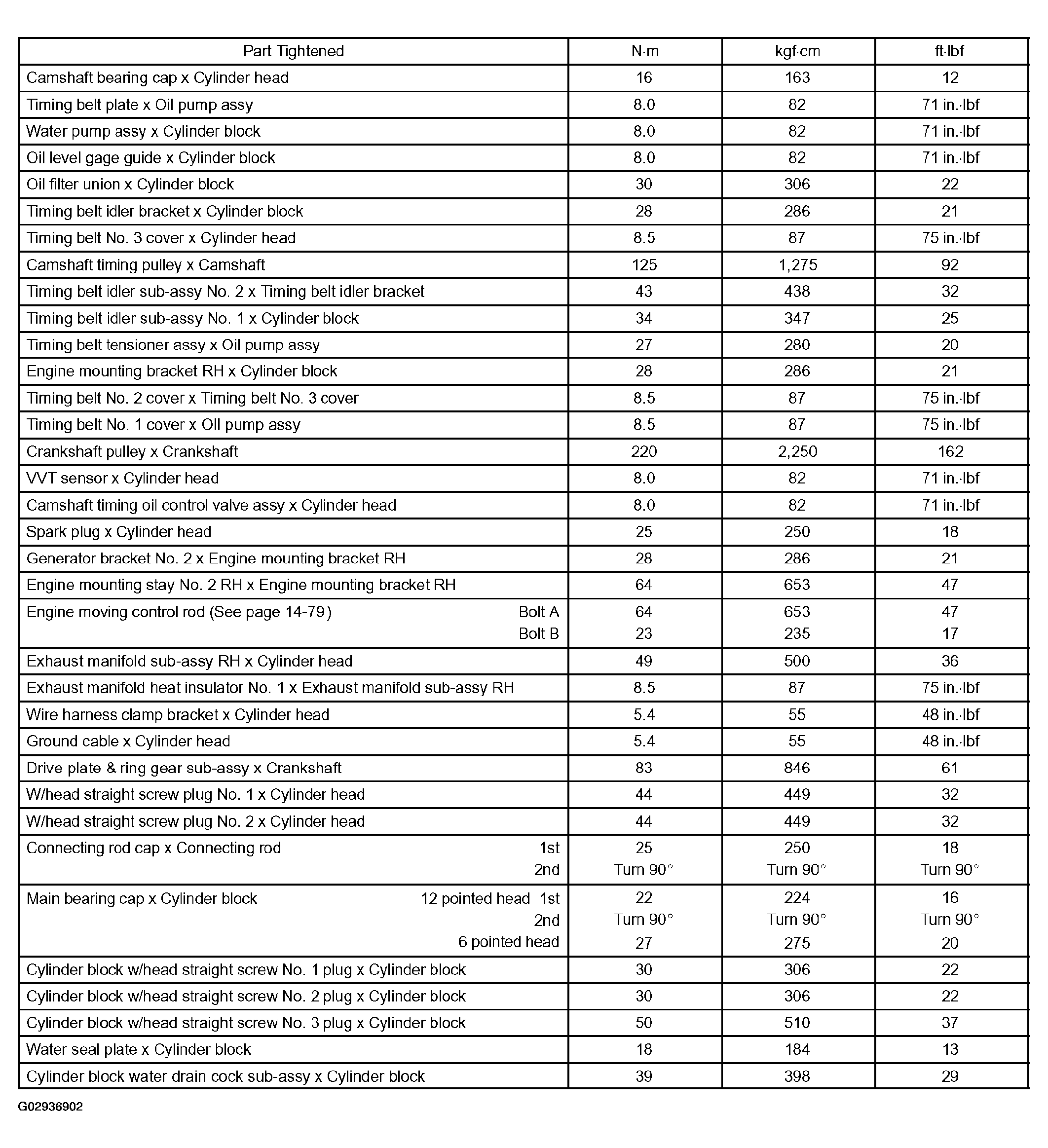

Fig 1: Engine Mechanical Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

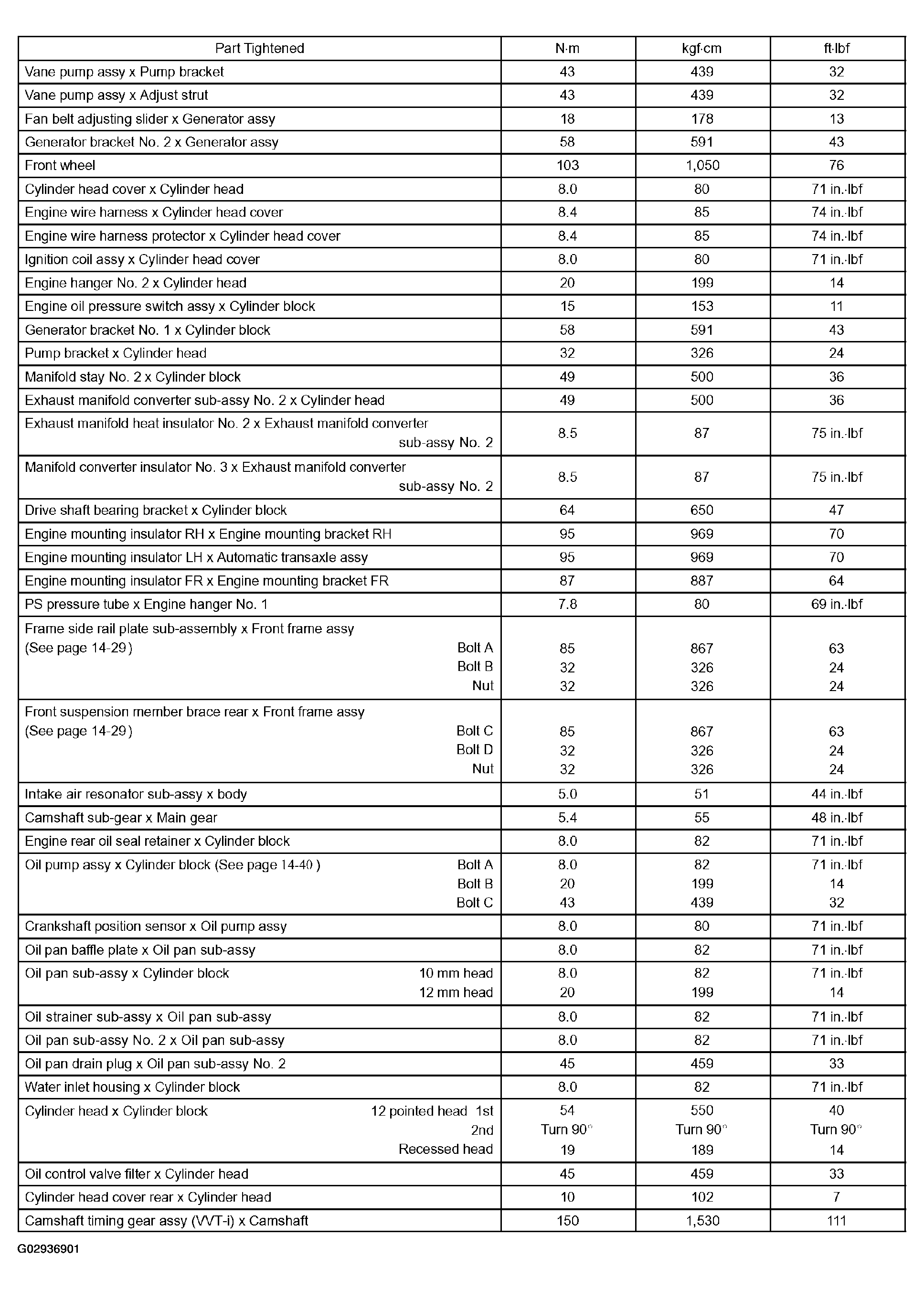

Fig 2: Engine Mechanical Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
