Emission Control: Preparation

SST

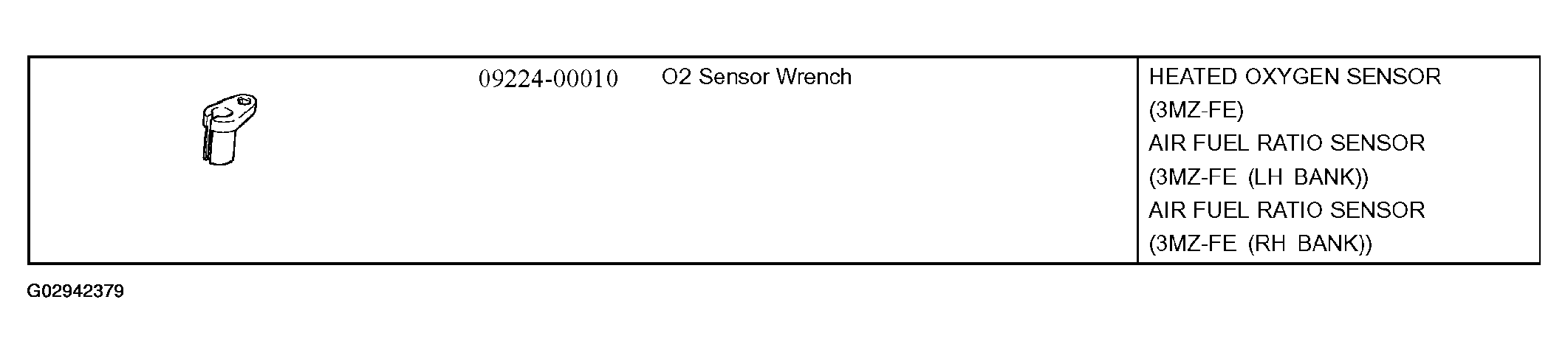

Fig 1: Emission Control SST Chart
G02942379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

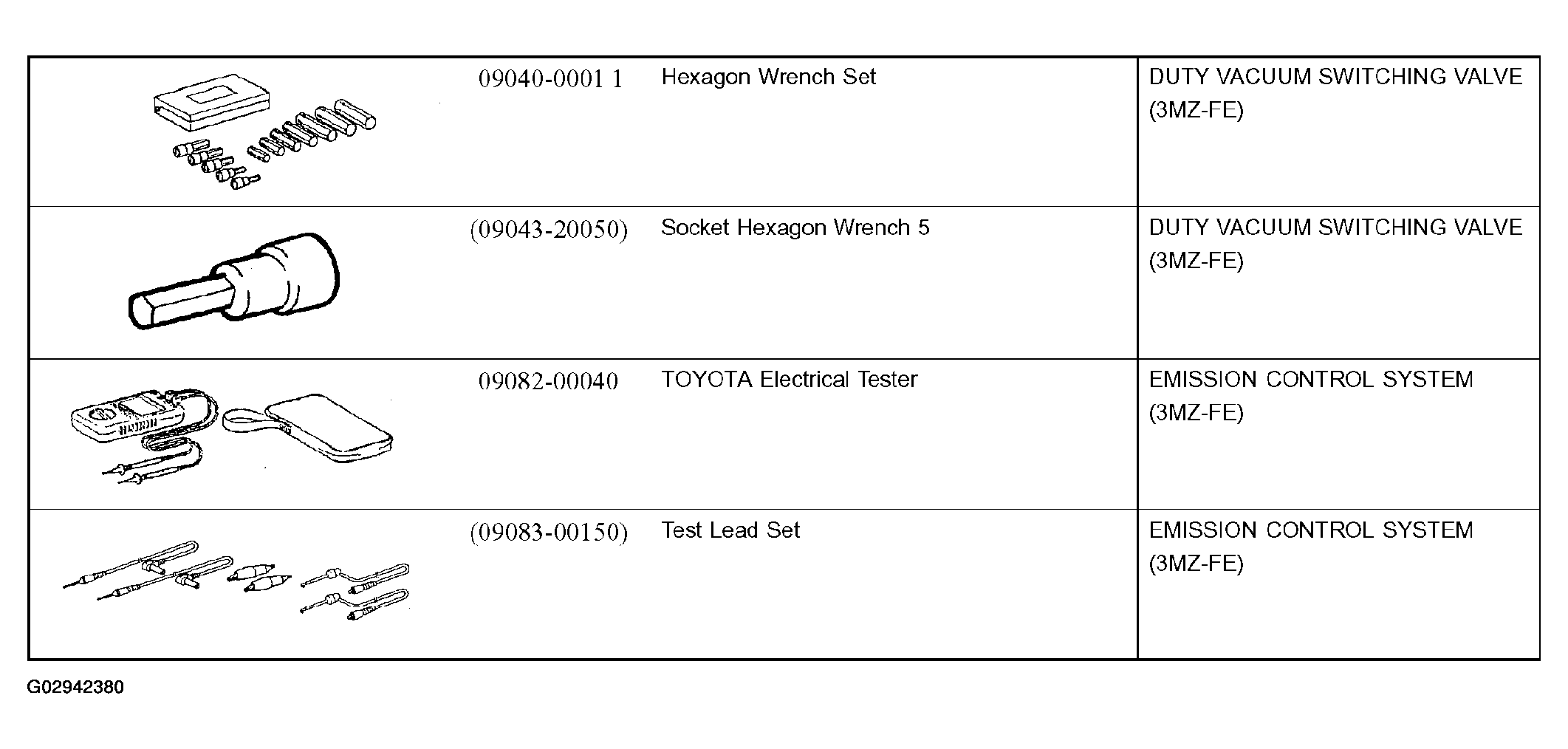

Fig 2: Emission Control Recommended Tools Chart
G02942380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EMISSION CONTROL EQUIPMENT

Hand-held vacuum pump
Ohmmeter
Torque wrench
