Engine Mechanical: Preparation

SST

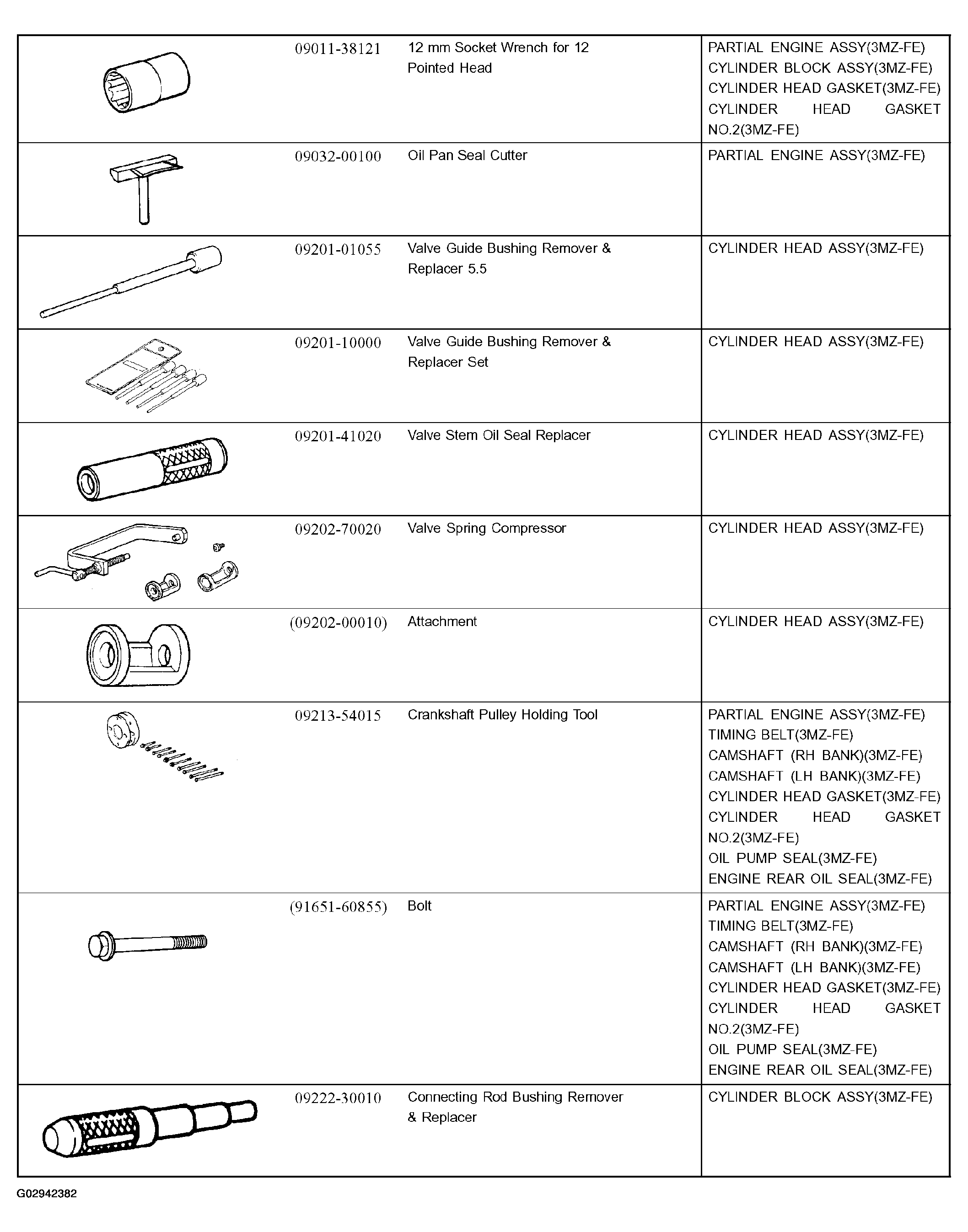

Fig 1: Engine Mechanical SST Chart (1 Of 4)
G02942382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

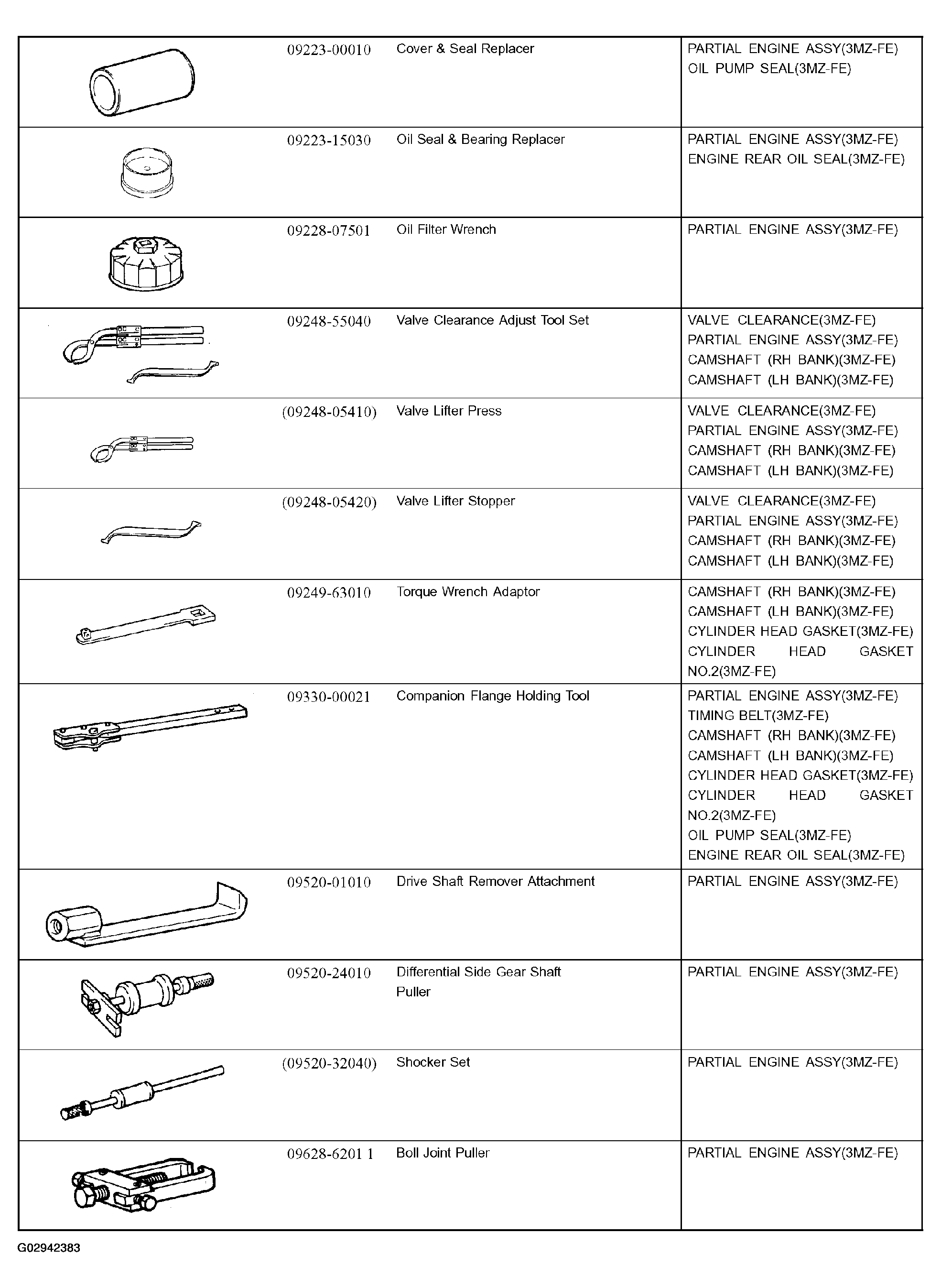

Fig 2: Engine Mechanical SST Chart (2 Of 4)
G02942383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

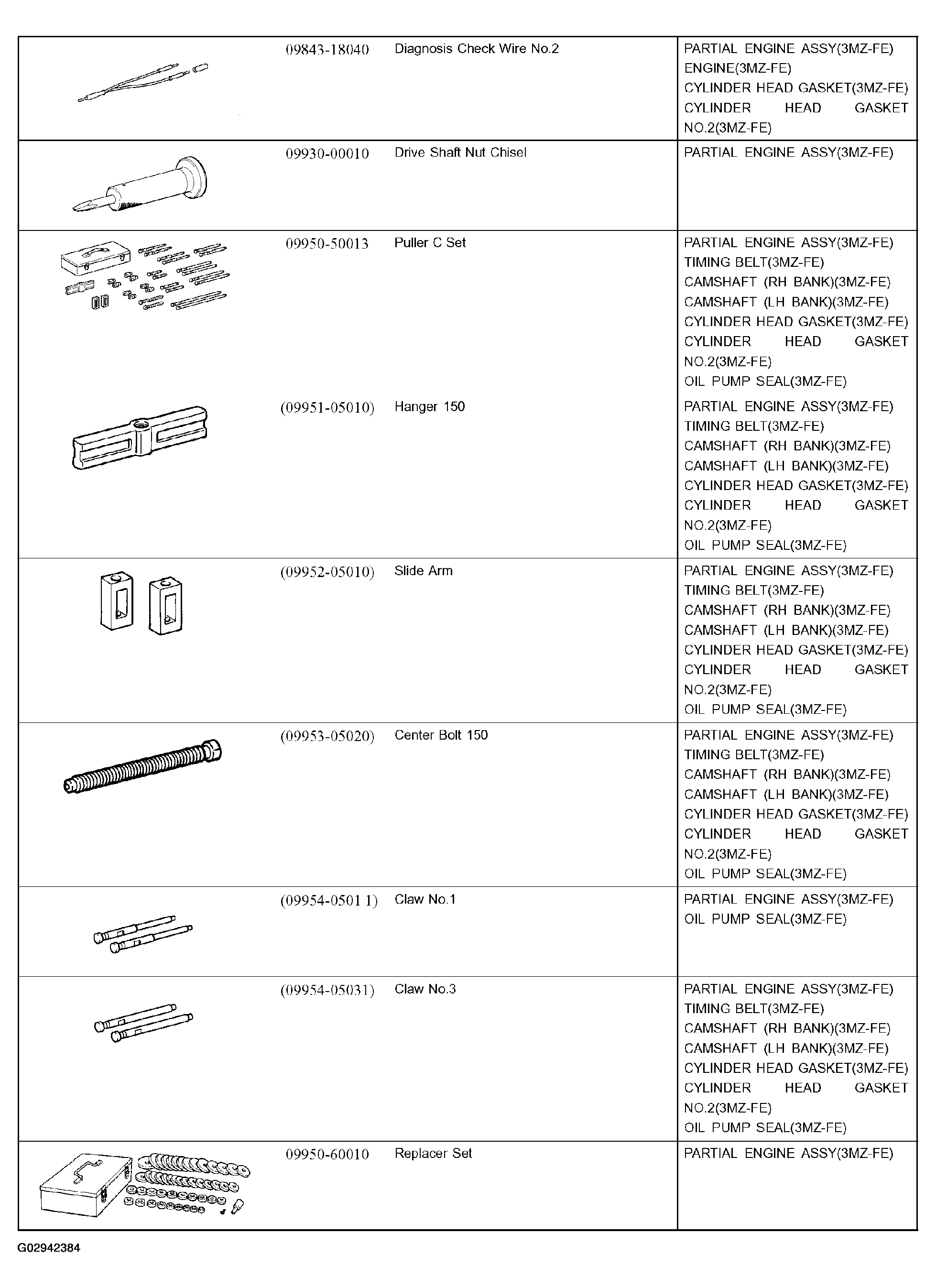

Fig 3: Engine Mechanical SST Chart (3 Of 4)
G02942384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Mechanical SST Chart (4 Of 4)
G02942385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

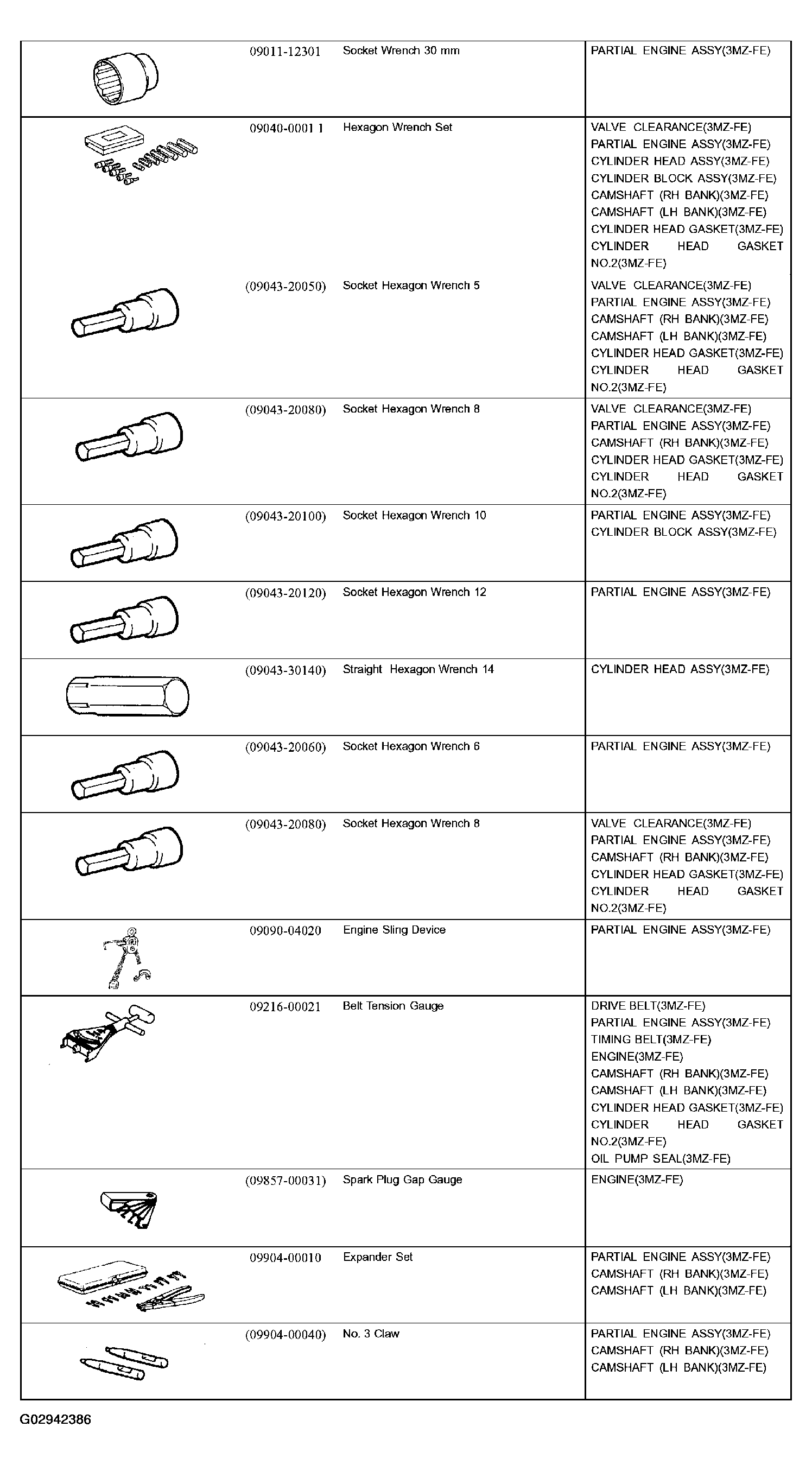

Fig 5: Engine Mechanical Recommended Tools Chart
G02942386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

ENGINE MECHANICAL EQUIPMENT

V-block
Piston ring compressor
Piston ring expander
Valve seat cutter
CO/HC meter
Connecting rod aligner
Cylinder gauge
Feeler gauge
Micrometer
Precision straight edge
Radiator cap tester
Steel square
Torque wrench
Vernier calipers
Dial indicator with magnetic base
Alignment tester
Toe-in gauge
Deep Socket Wrench 24 mm
Slide calipers
Chain Block
Spark plug cleaner
Spring tester
Plastigage
Angle gauge
Heater
Universal engine lifter
Timing light

SSM

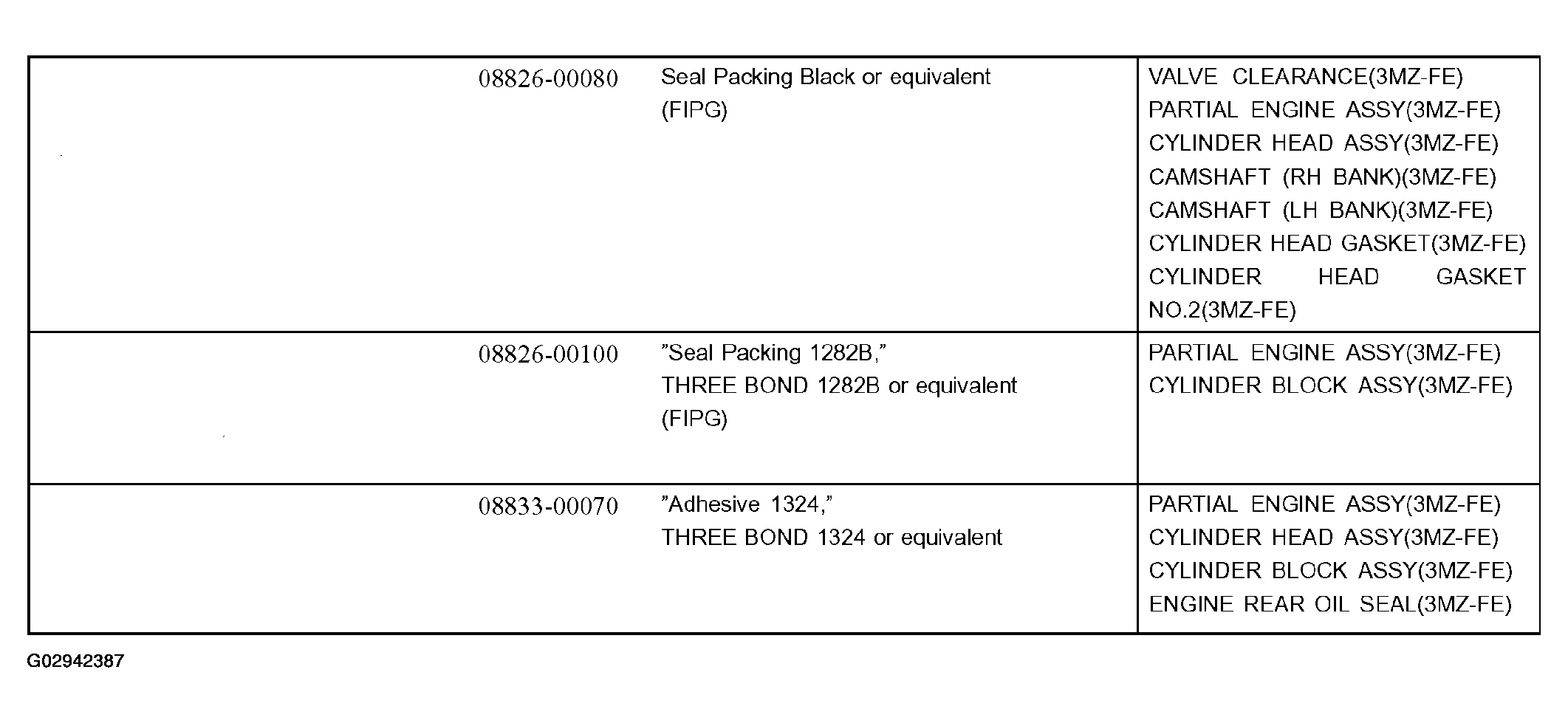

Fig 6: Engine Mechanical SSM Chart
