Crankshaft Position Sensor: Removal

  1. REMOVE GENERATOR (See  REMOVAL  )
  2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
    1. Disconnect the sensor connector.
    2. Remove the bolt holding the connector bracket to the water pump.
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Remove the bolt and crankshaft position sensor.

      Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

    2. Remove the connector bracket from the connector.

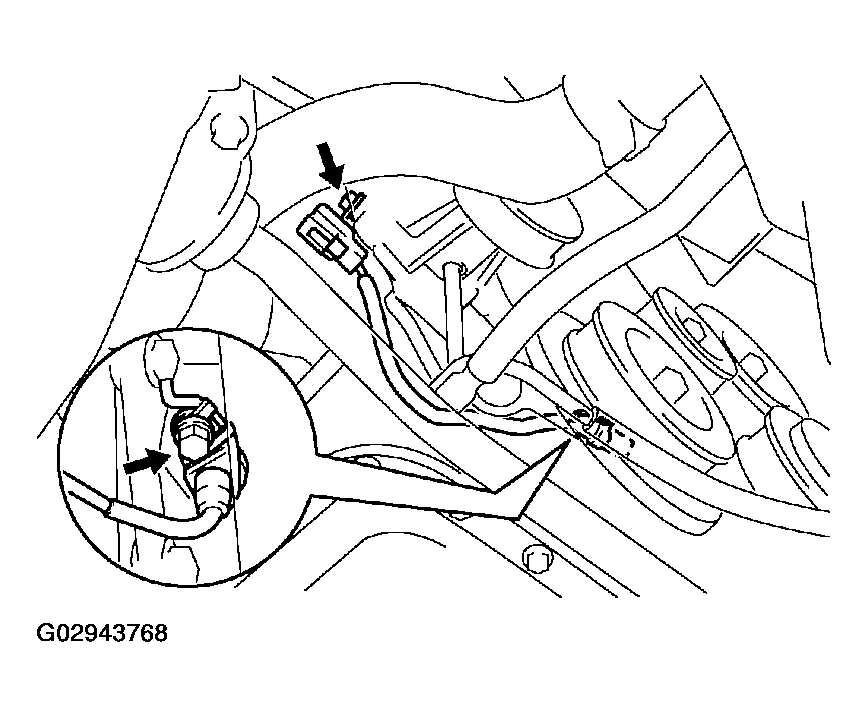

      Fig 1: Identifying Crankshaft Position Sensor & Harness Connector Bracket
      G02943768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
