Terminals Of ECM

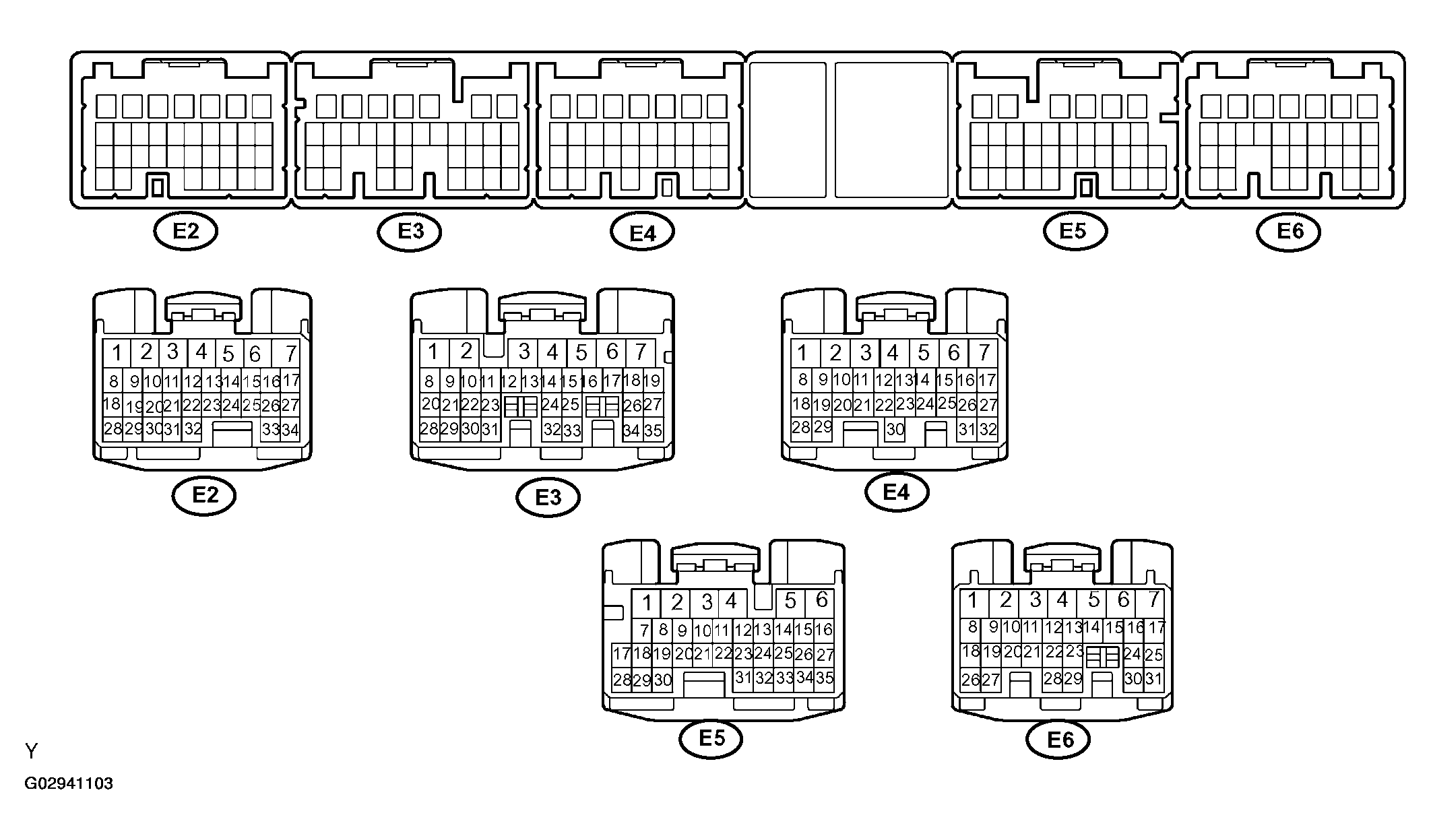

Fig 1: Identifying ECM Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminal's standard voltage is shown in the illustrations below. In the table, first follow the information under "Condition".

Look under "Symbols (Terminals No.)" for the terminals to be inspected.

The standard voltage between the terminals is shown under "STD Voltage".

Use Fig 1 as a reference for the ECM terminals.

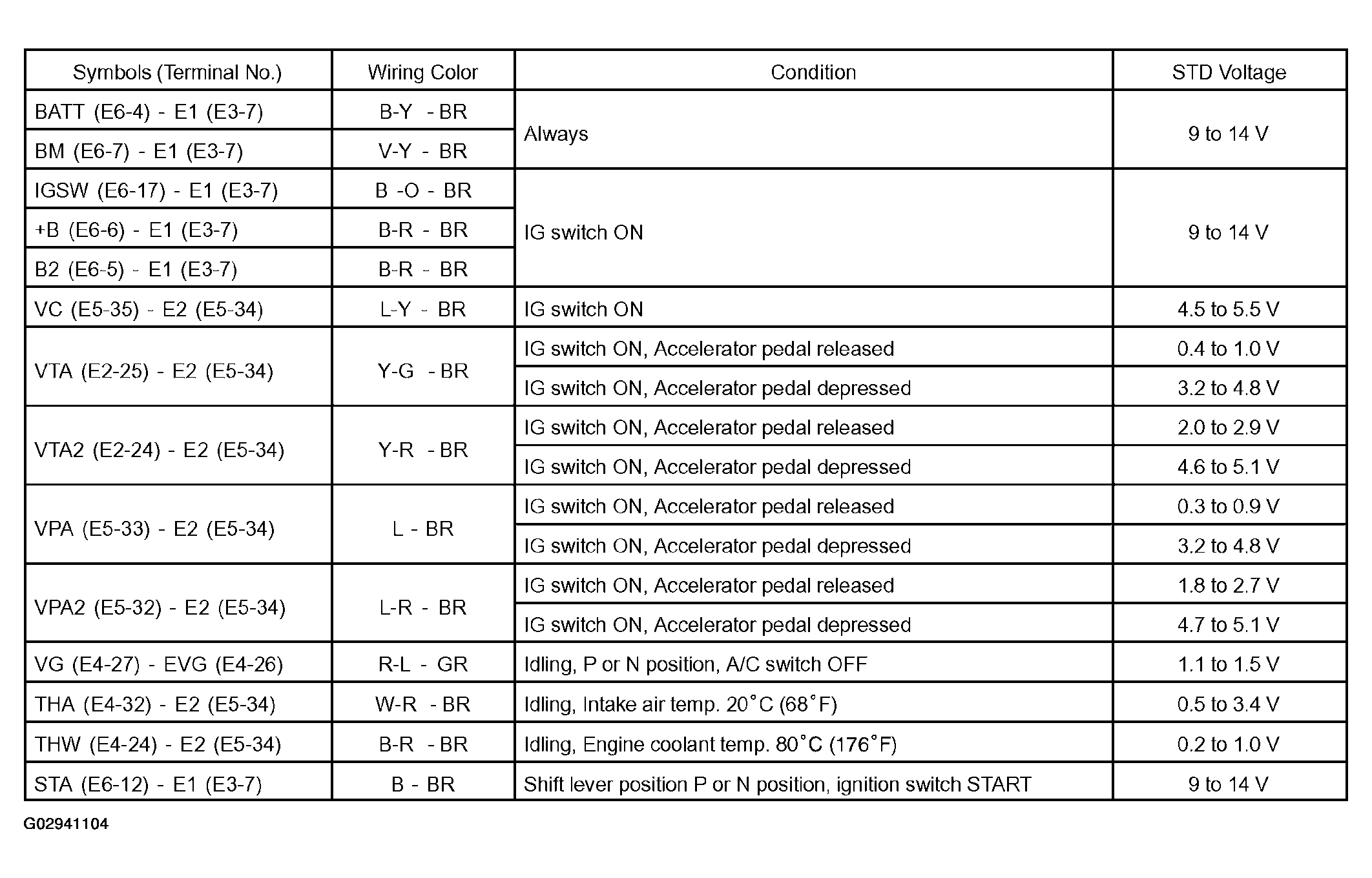

Fig 2: ECM Terminals Description Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

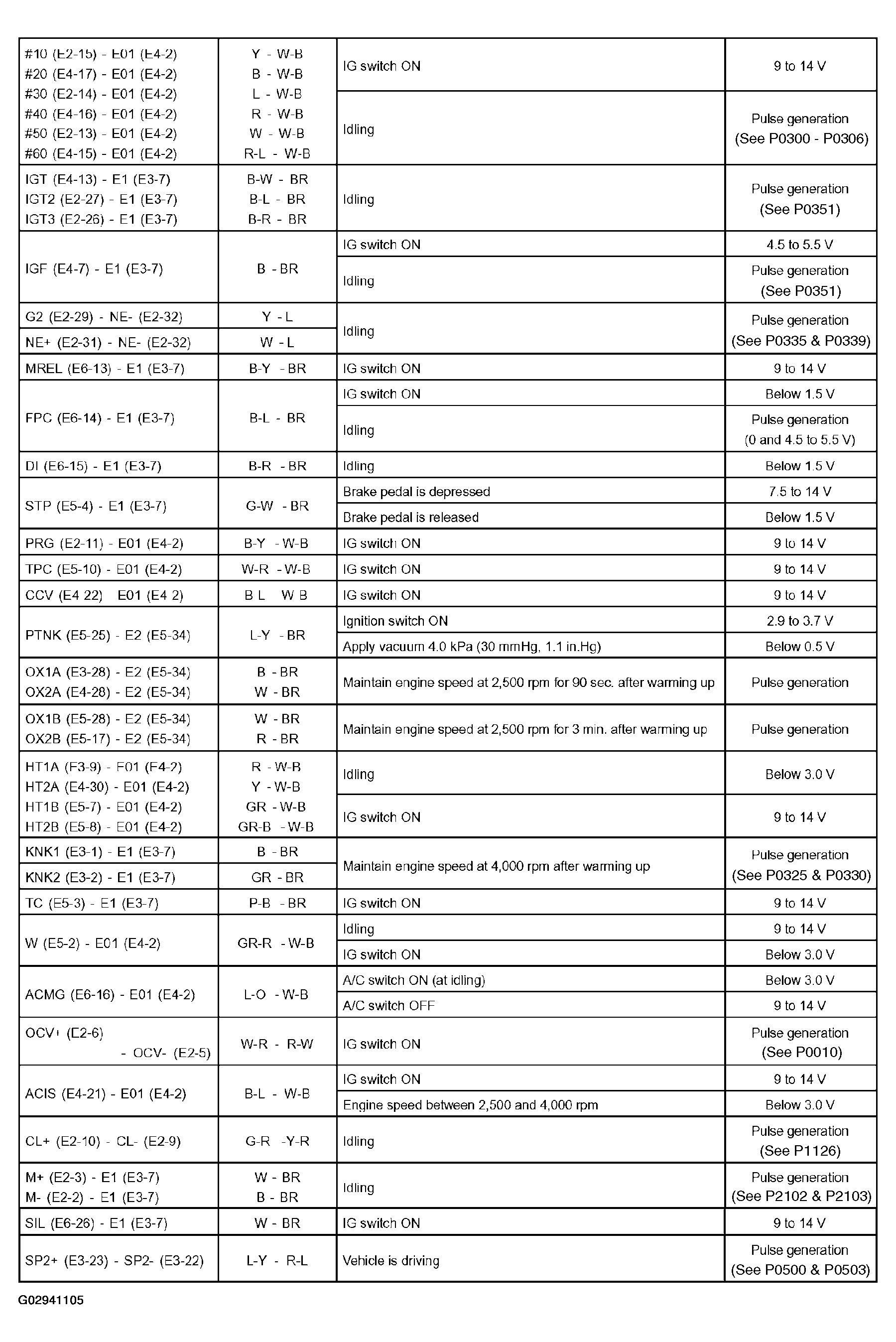

Fig 3: ECM Terminals Description Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
