Vehicle Lift And Support Locations

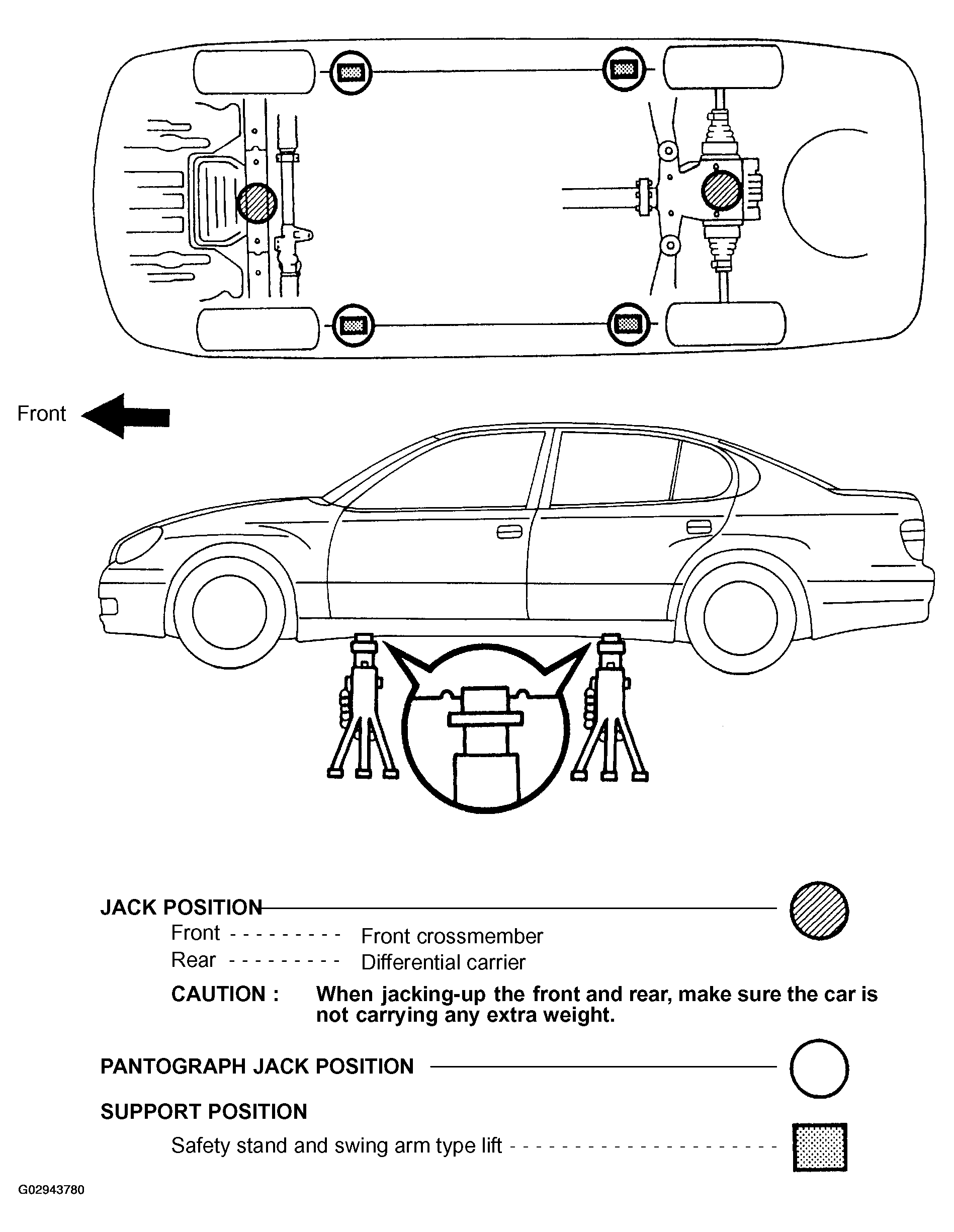

Fig 1: Locating Jack And Support Lifting Position
G02943780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

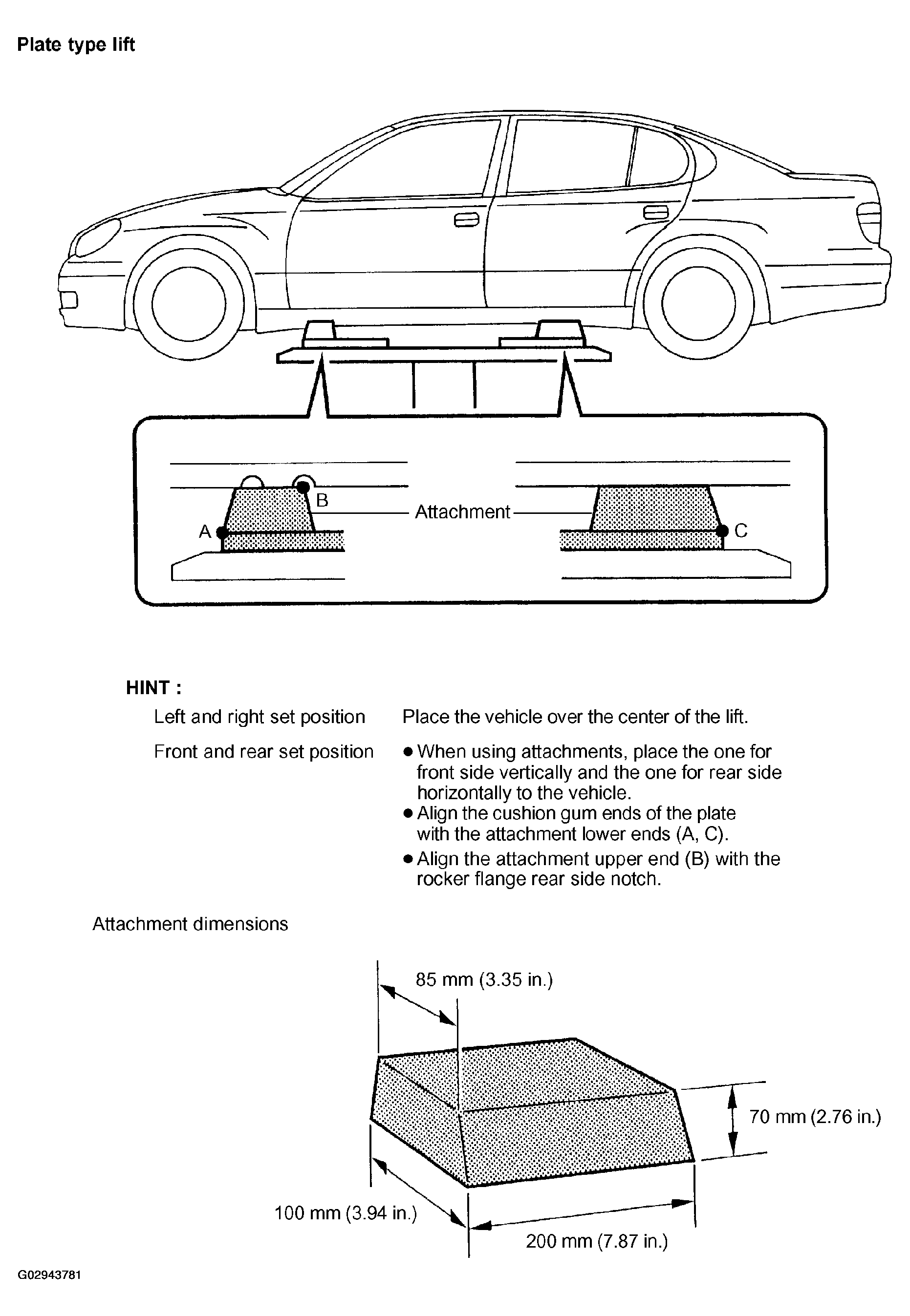

Fig 2: Lifting Vehicle With Plate Type Lift Using Cushion
G02943781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
