Service Specifications
ENGINE MECHANICAL
Part 1 Of 4:
Part 2 Of 4:
Part 3 Of 4:
Part 4 Of 4:

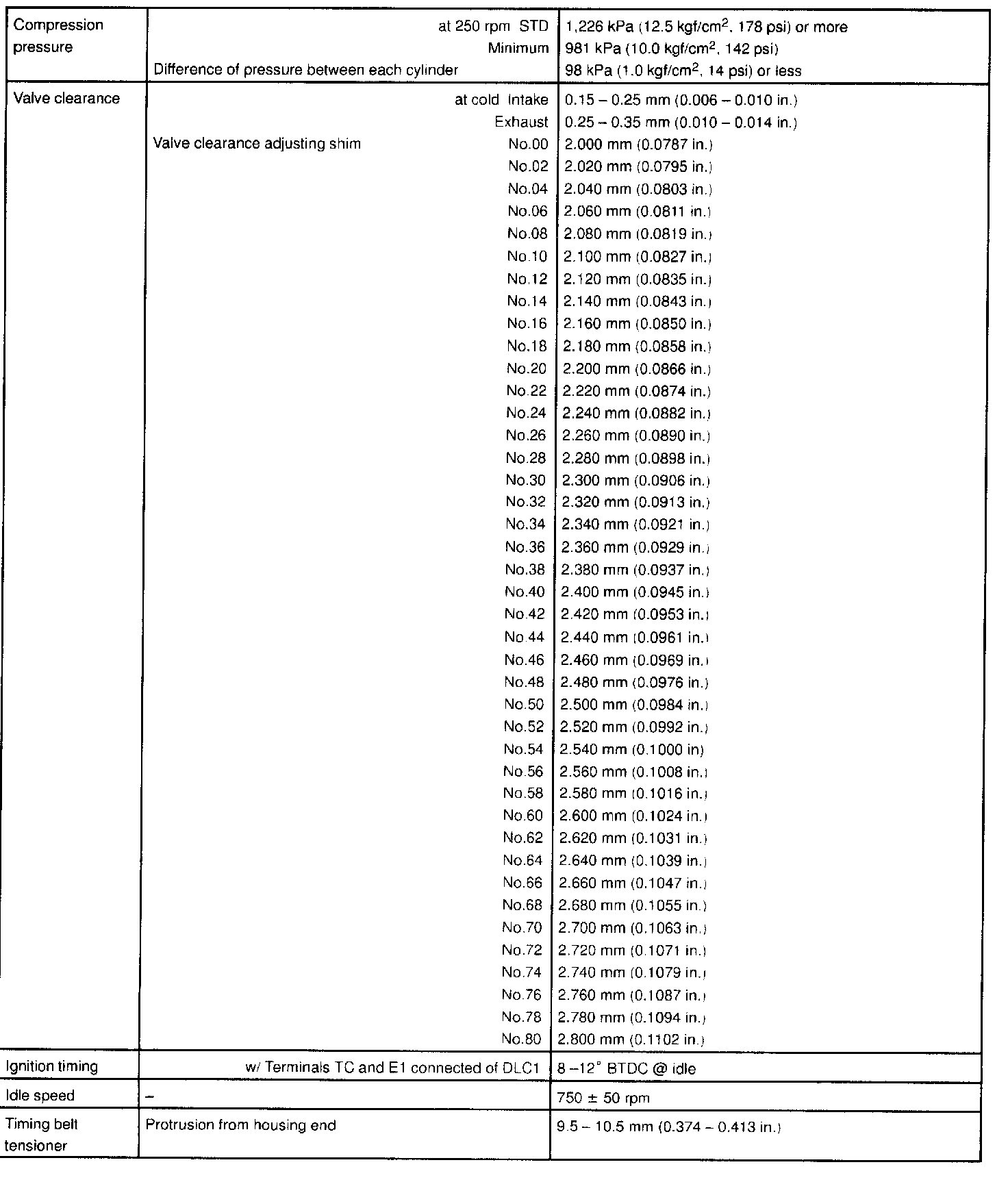

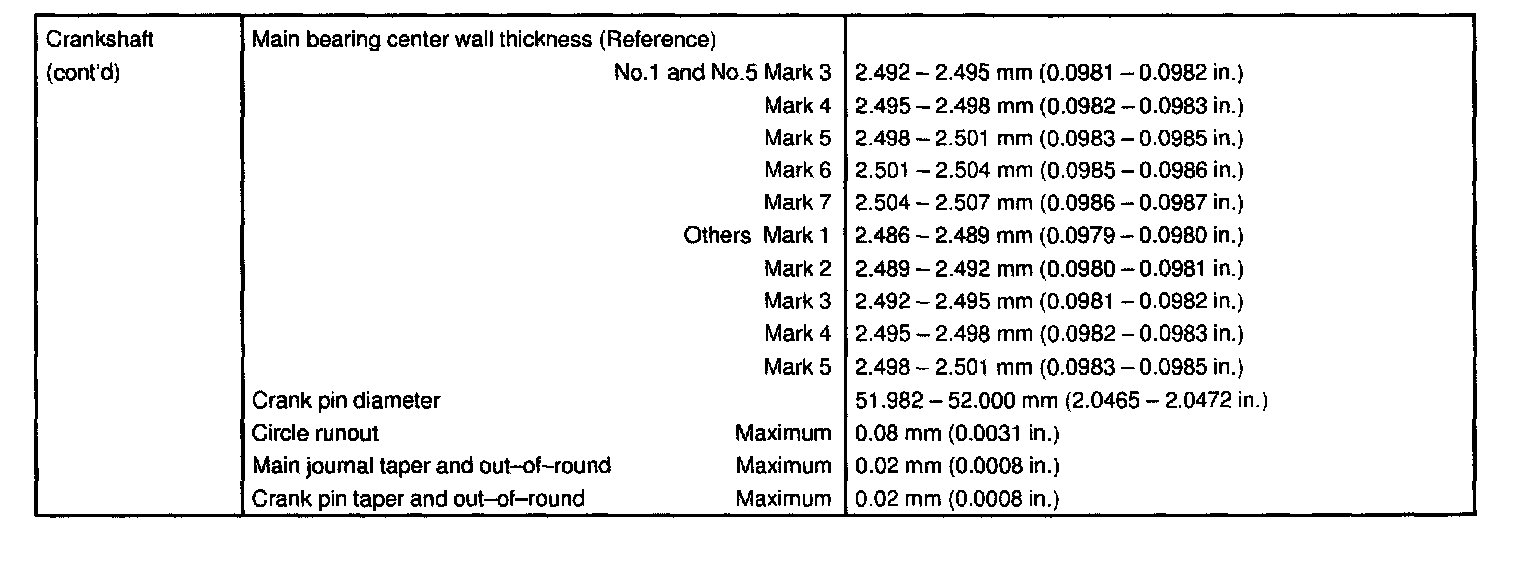

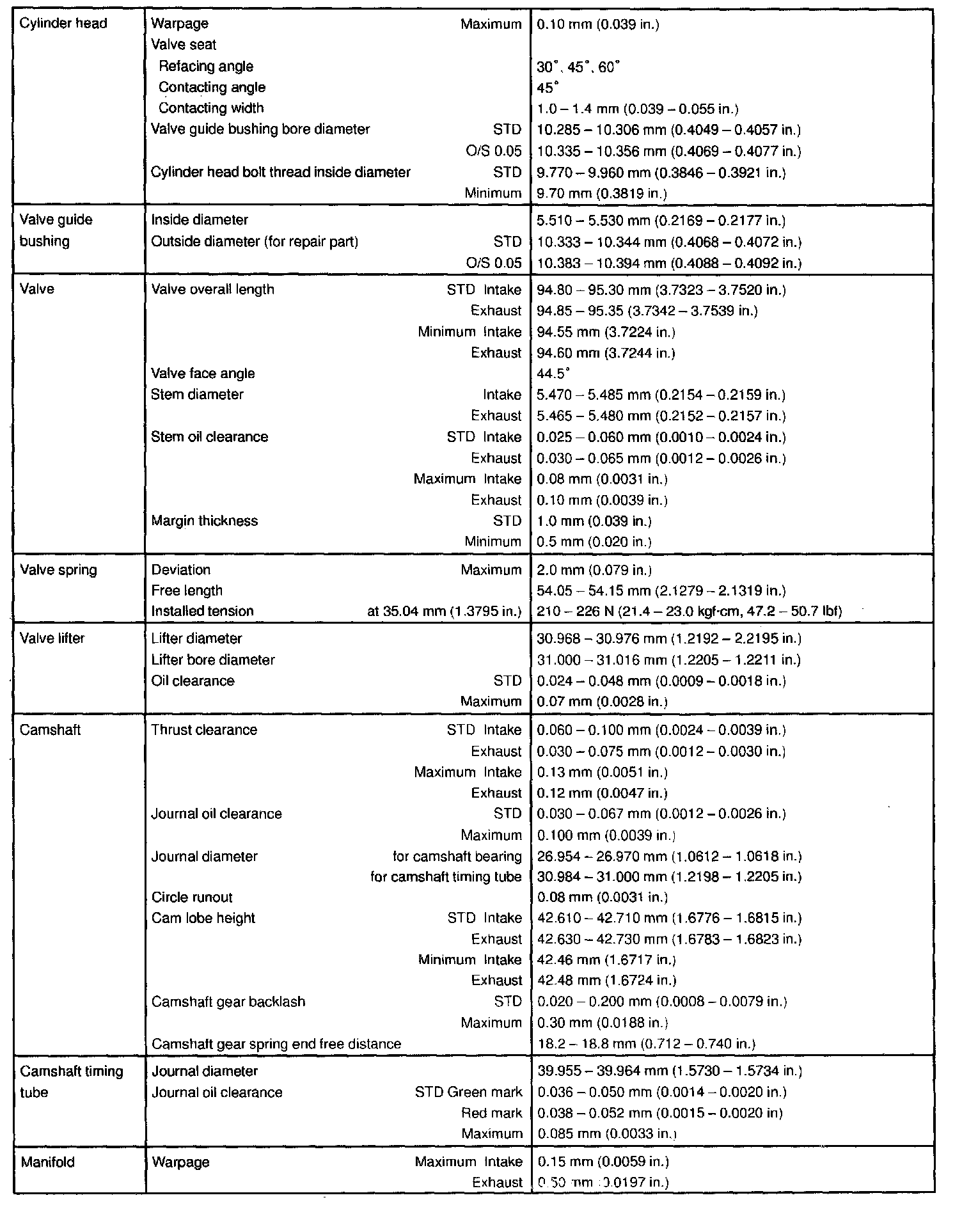

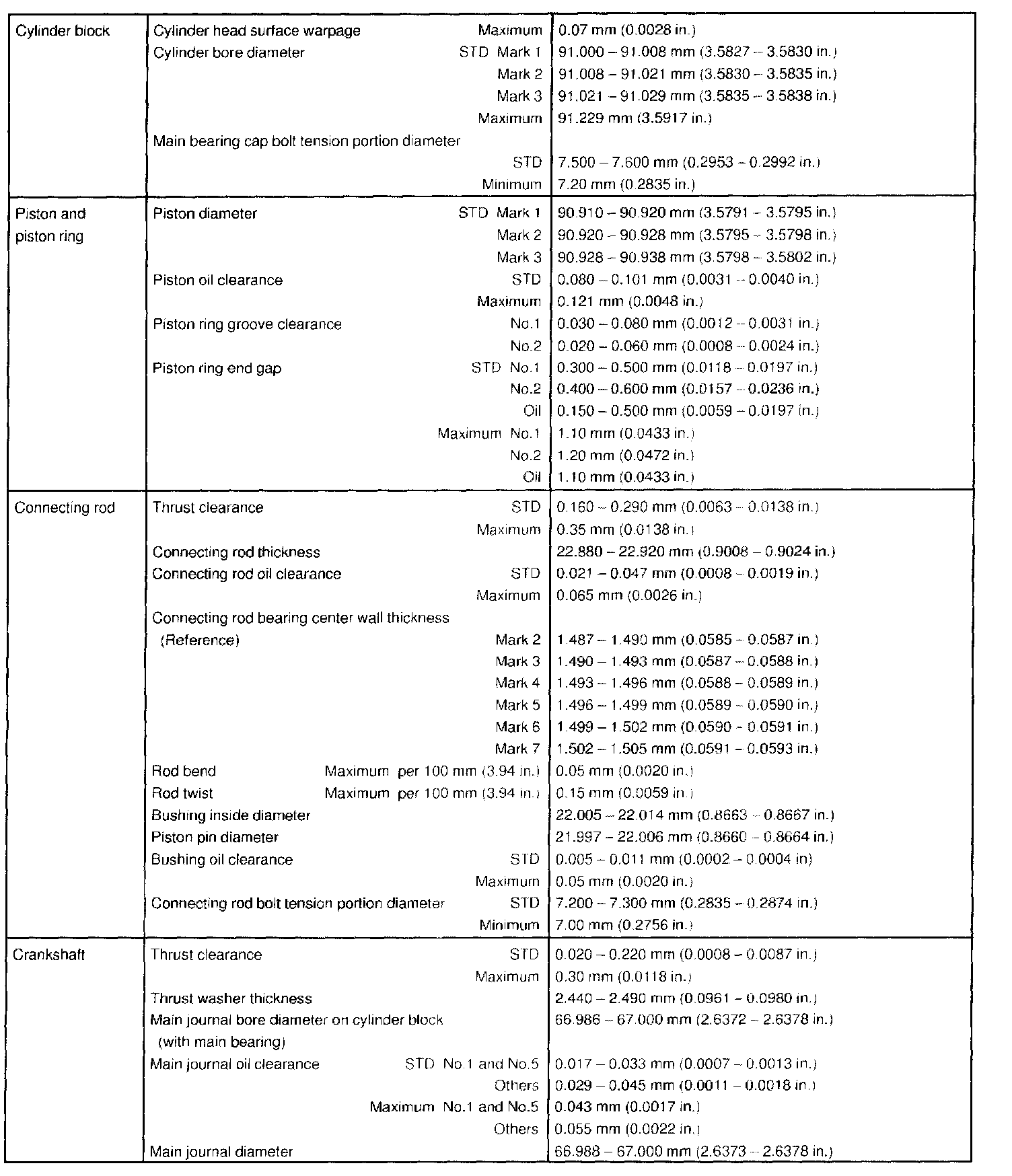

SERVICE DATA
