Driver Door Control System - Diagnostics
>>
Problem Symptoms Table
>>
Power Window Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window Control System

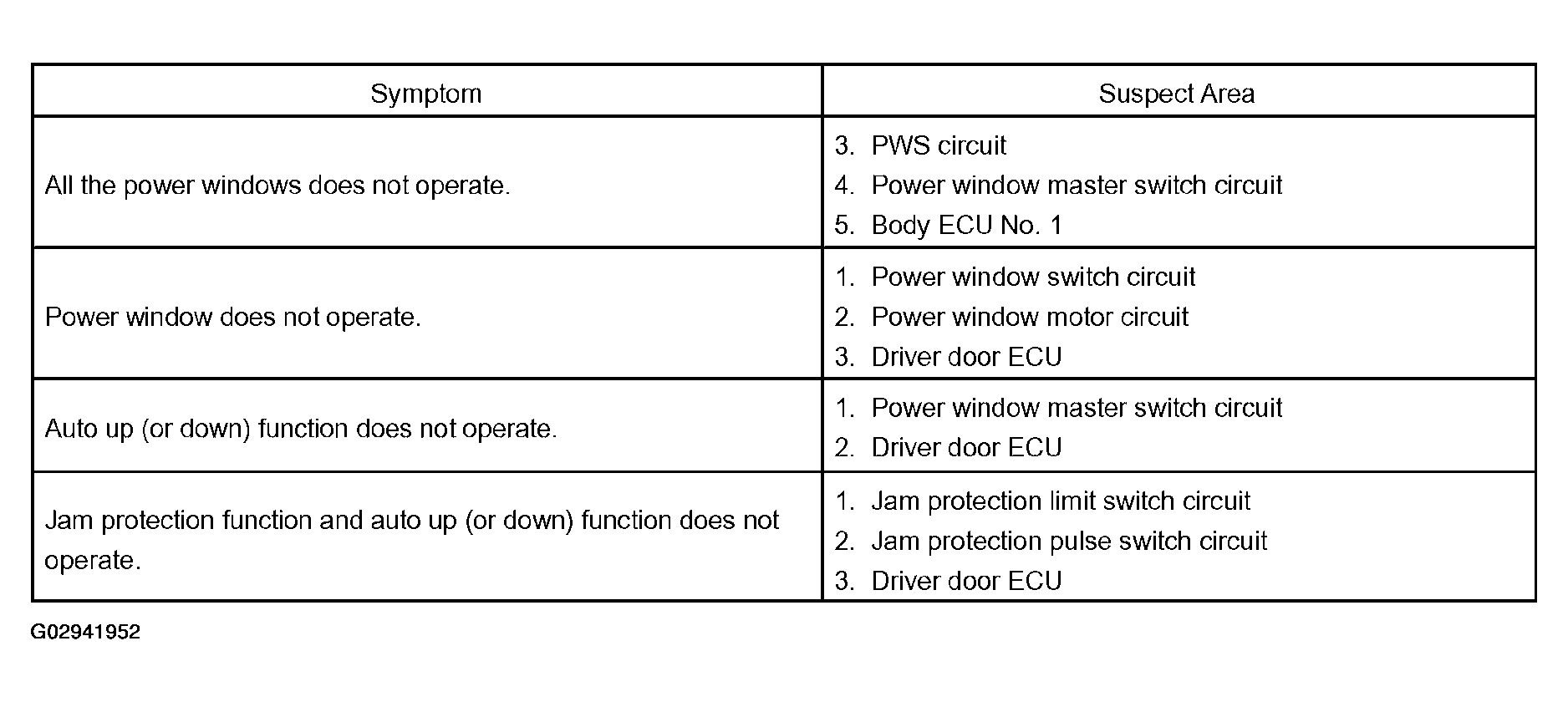

Fig 1: Power Window Control System Symptom Suspect Area Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
