Back Window Glass: Components

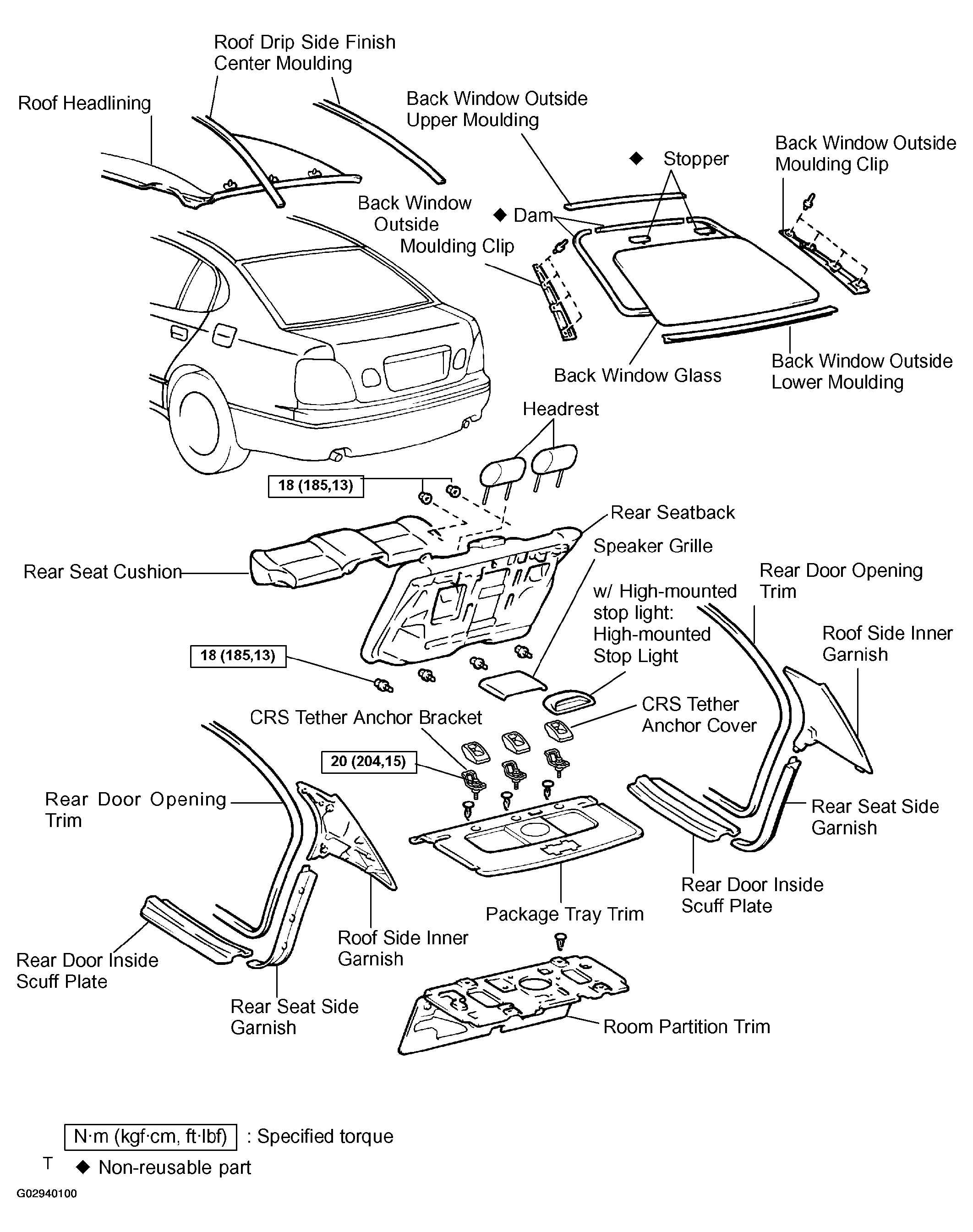

Fig 1: Removal And Installation Of Back Window Glass With Torque Specifications
G02940100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
