Front Door: Adjustment

HINT:

Since the centering bolt is used as the door side hinge bolt, the door hinge cannot be adjusted with it on. Substitute the bolt with the washer for the centering bolt.

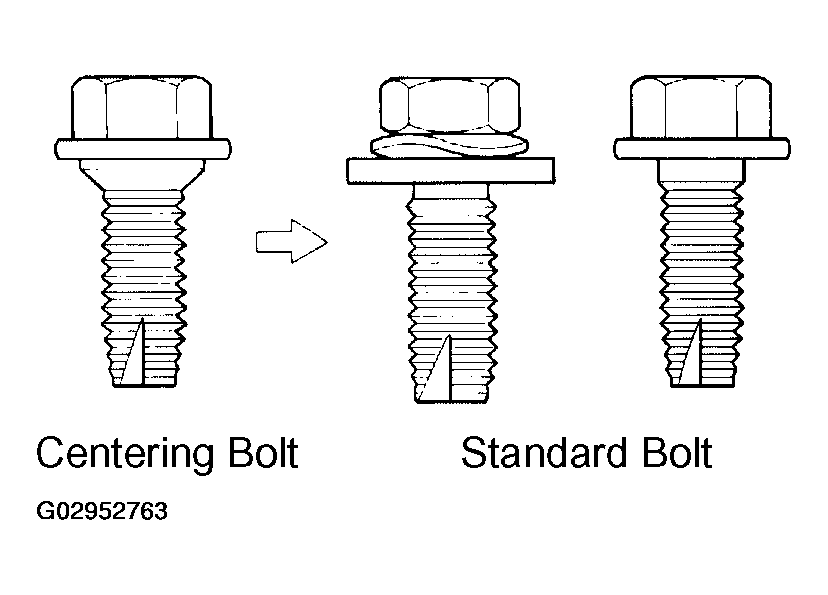

Fig 1: Identifying Centering Bolt And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. ADJUST FRONT DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS

   Using SST, adjust the door by loosening the body side hinge bolts.

   SST 09812-00010

   Torque: 32.5 N.m (331 kgf.cm, 24 ft.lbf)

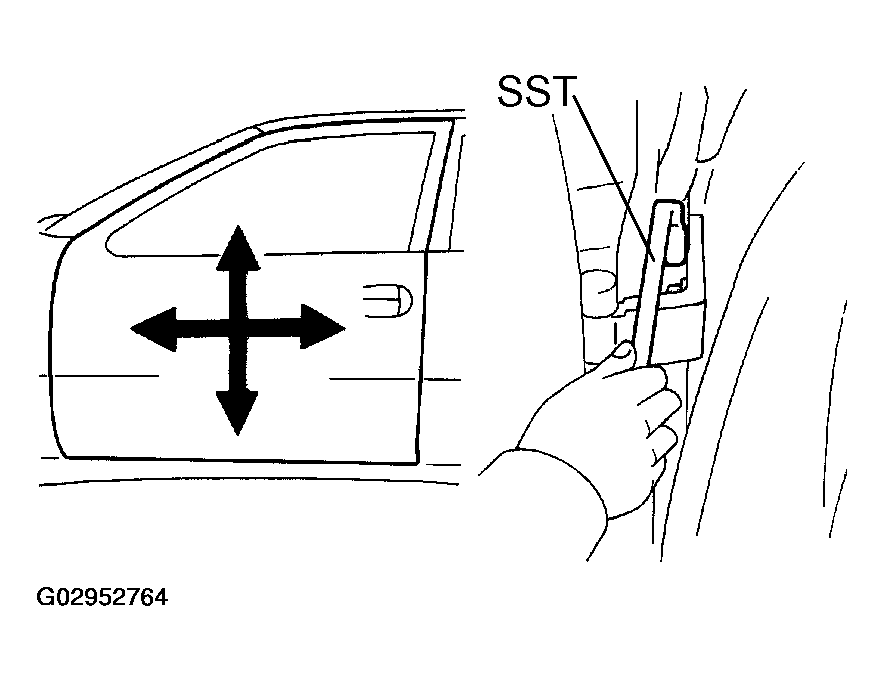

   Fig 2: Adjusting Front Door In Horizontal And Vertical Directions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. ADJUST FRONT DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS

   Loosen the door side hinge bolts to adjust.

   Torque: 32.5 N.m (331 kgf.cm, 24 ft.lbf)

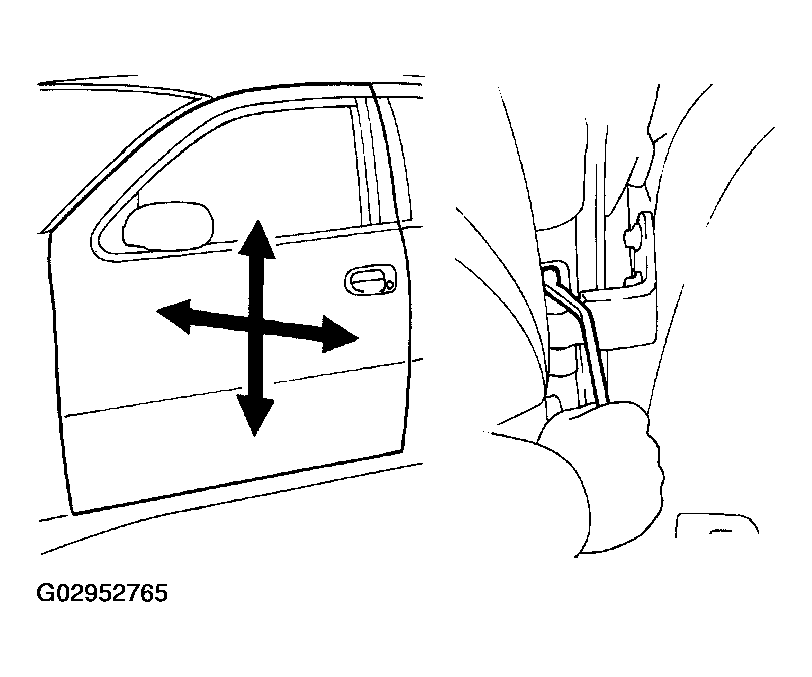

   Fig 3: Adjusting Front Door In Horizontal And Vertical Directions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. ADJUST FRONT DOOR LOCK STRIKER
   1. Check that the door fit and door lock linkages are adjusted correctly.
   2. Using a screwdriver, remove the striker cover.

      HINT:

      Tape the screwdriver tip before use.

   3. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer. Tighten the striker mounting screws again.

      Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

   4. Install the striker cover.

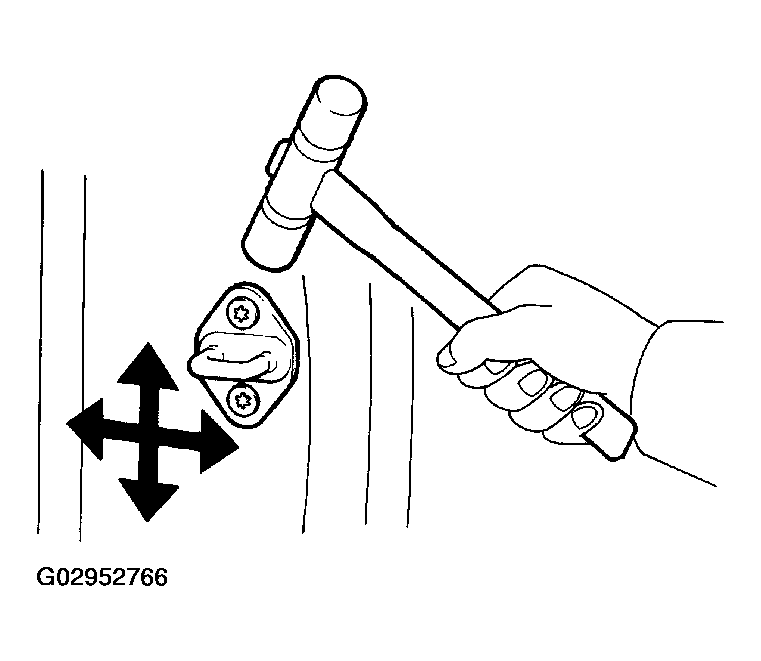

   Fig 4: Adjusting Front Door Lock Striker
