Power Mirror Control System

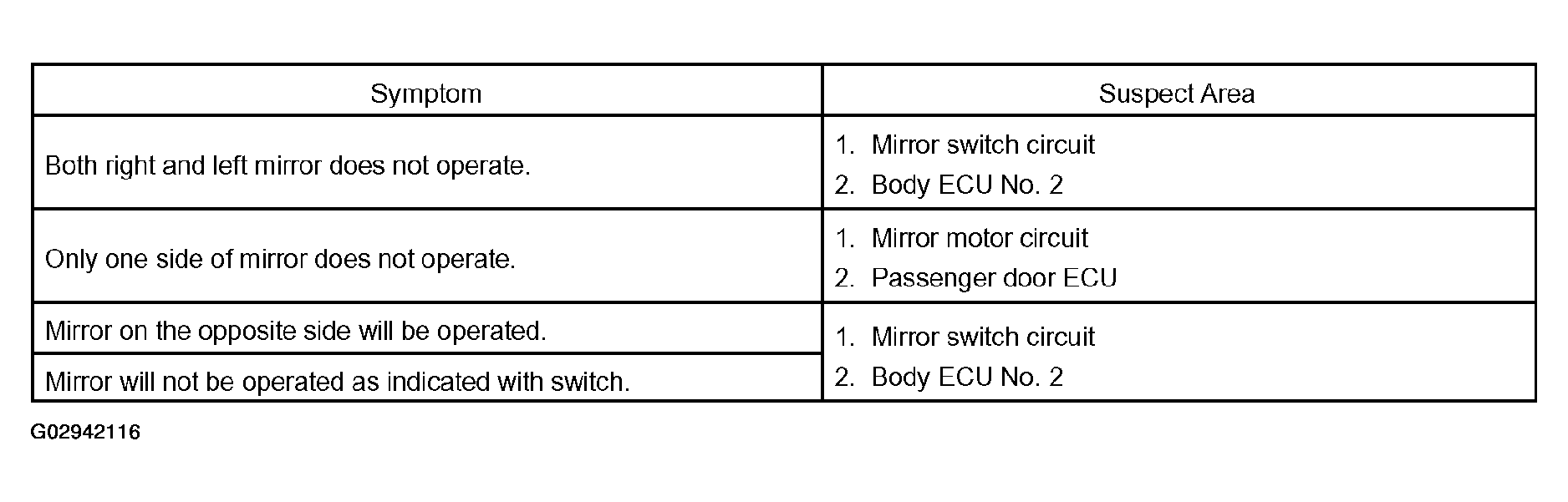

Fig 1: Power Mirror Control System - Problem Symptoms Chart
G02942116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
