Rear Door: Components

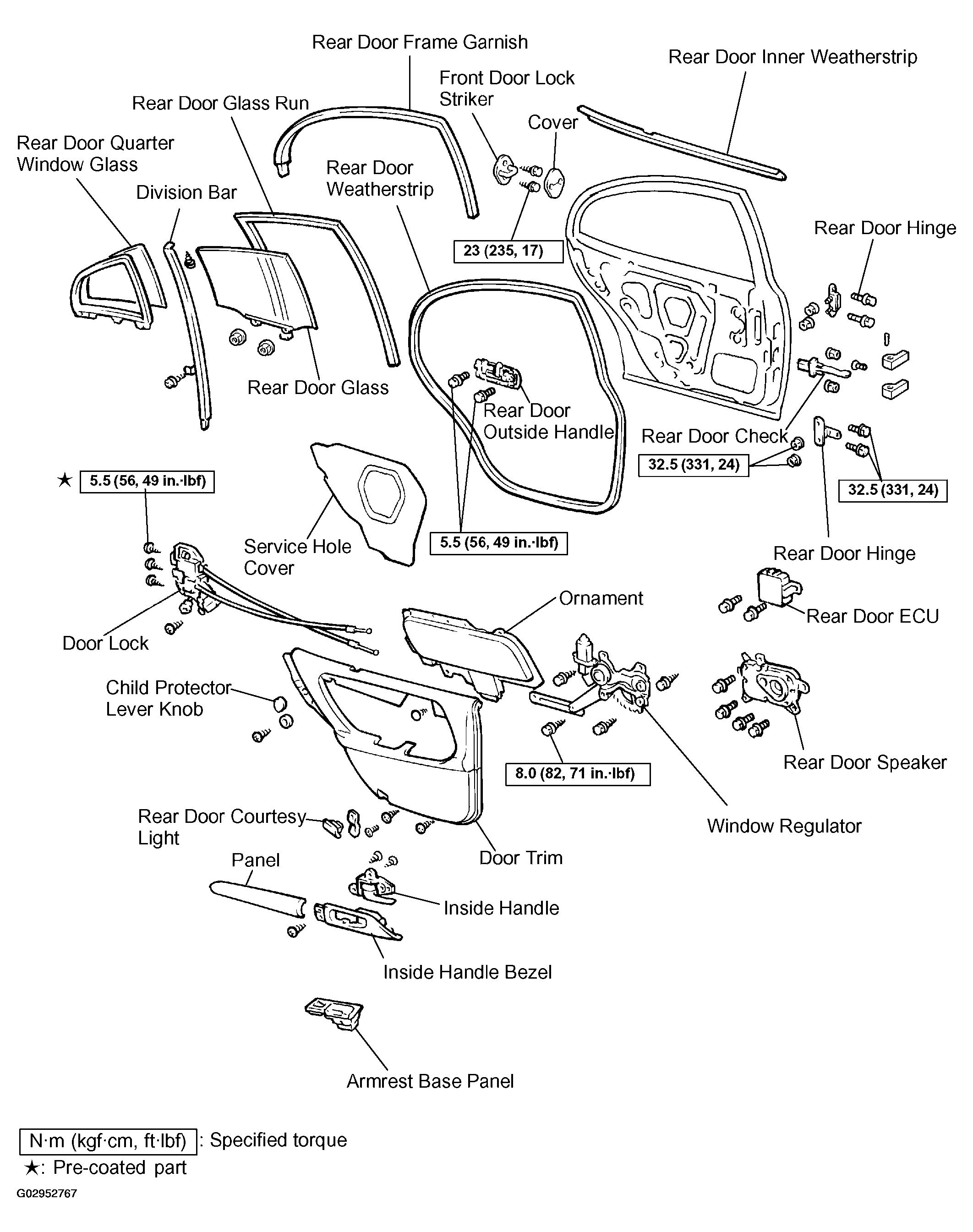

Fig 1: Identifying Components Of Rear Door

G02952767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
