Rear Door: Disassembly

REMOVE DOOR INSIDE HANDLE BEZEL
REMOVE ARMREST BASE PANEL
REMOVE REAR DOOR COURTESY LIGHT
REMOVE DOOR TRIM
1. Remove the 5 screws.
2. Insert a screwdriver between the panel and the trim and remove the clips.
  NOTE: Do not scratch the panel with the screwdriver.

  HINT:

  Tape the screwdriver tip before use.
3. Remove the trim by pulling all of the trim up.
4. Remove the 2 cables from the door inside handle.
REMOVE REAR DOOR SPEAKER
REAR DOOR FRAME GARNISH
REMOVE INSIDE HANDLE
REMOVE REAR DOOR ECU

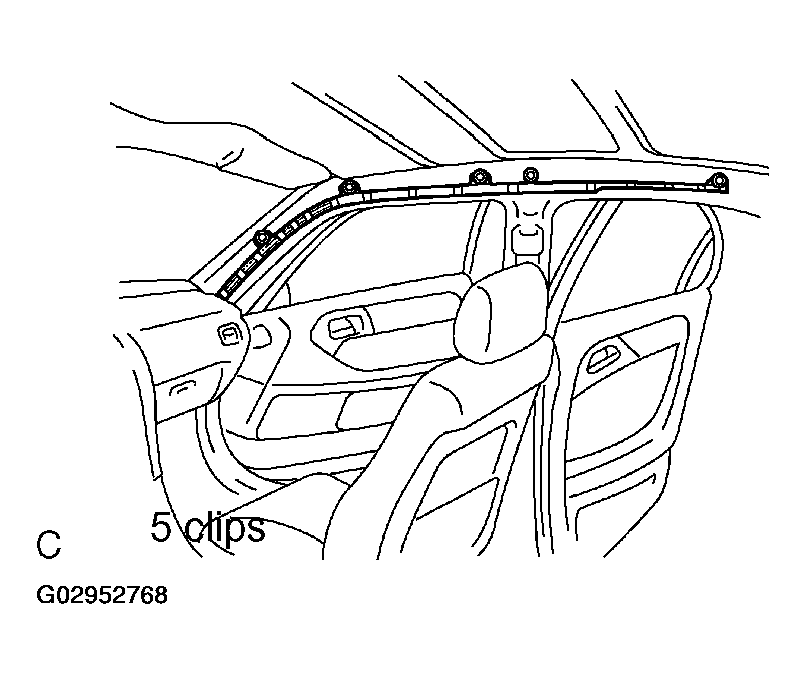

Fig 1: Removing Door Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DOOR INNER WEATHERSTRIP
Using a scraper, remove the inner weatherstrip.

HINT:

Tape the scraper tip before use.
REMOVE SERVICE HOLE COVER
REMOVE REAR DOOR GLASS RUN

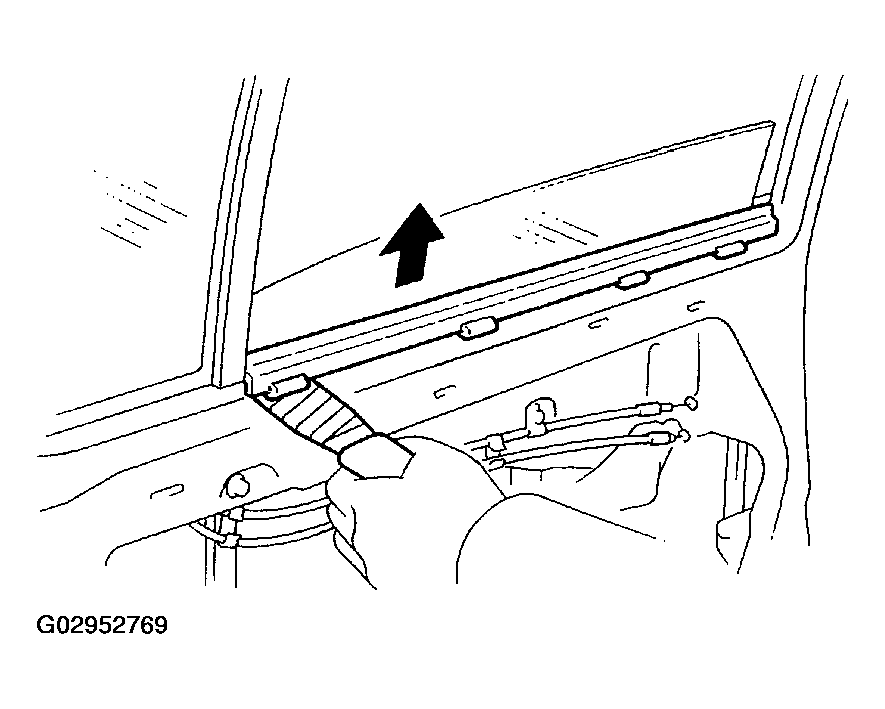

Fig 2: Removing Door Inner Weatherstrip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR GLASS
Remove the 2 nuts and the door glass.

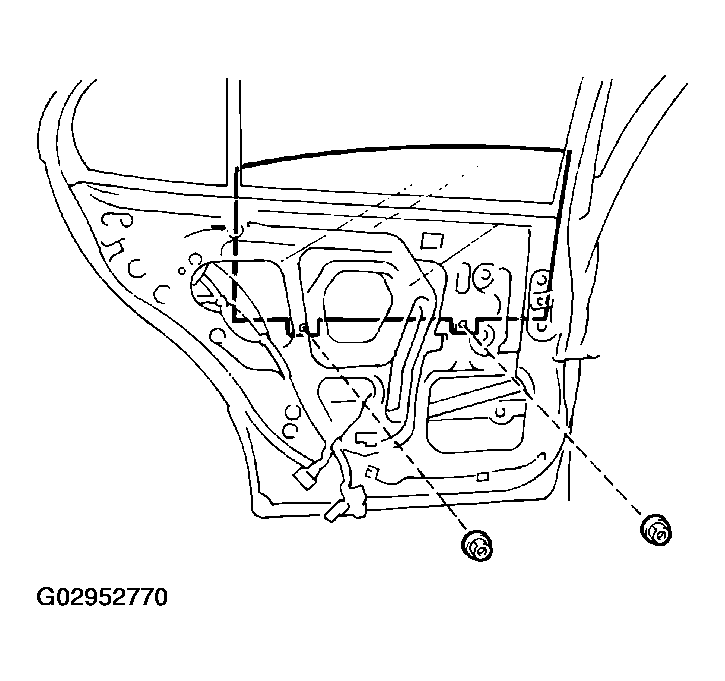

Fig 3: Removing Door Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DIVISION BAR
1. Remove the 2 bolts and screw.
2. Remove the division bar.

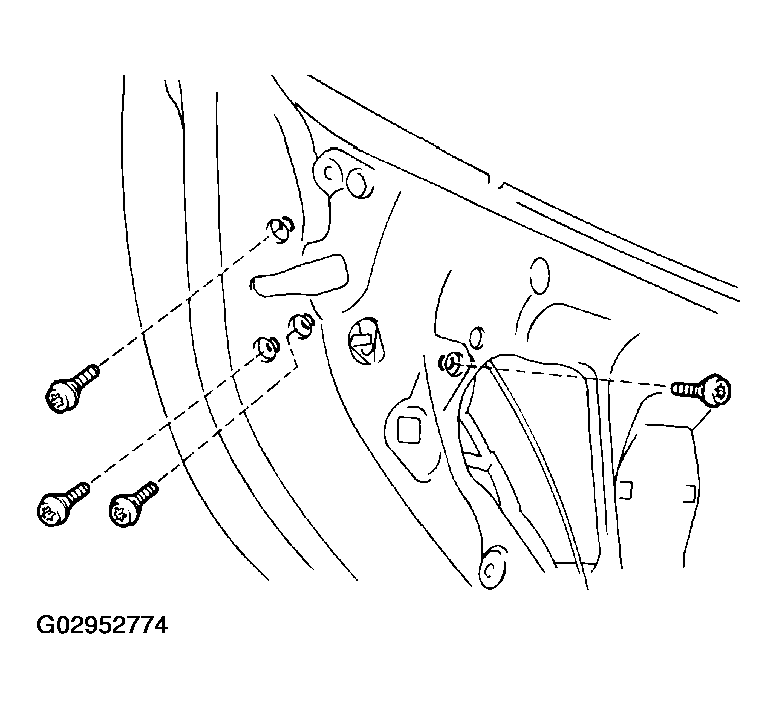

Fig 4: Removing Division Bar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVING REAR DOOR QUARTER WINDOW GLASS

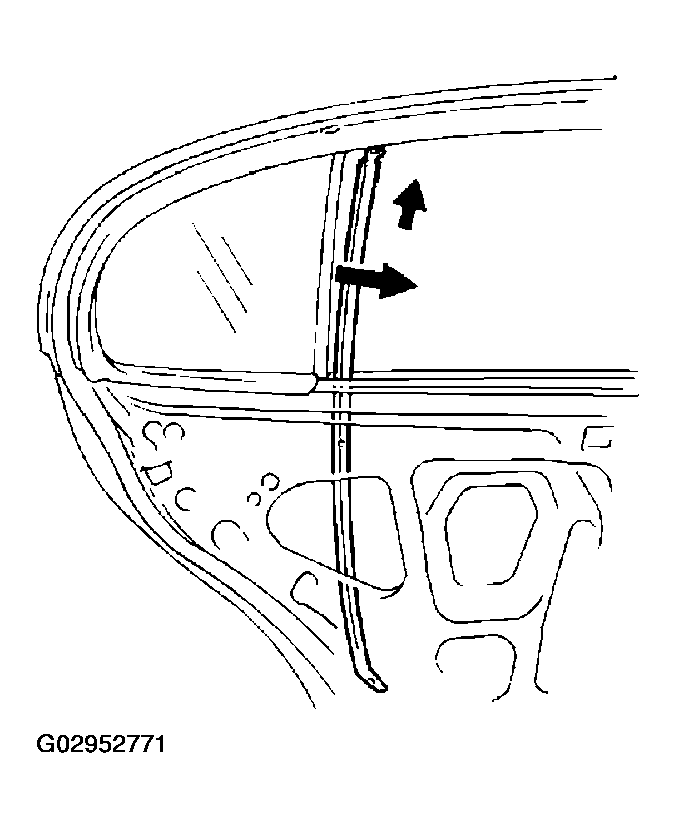

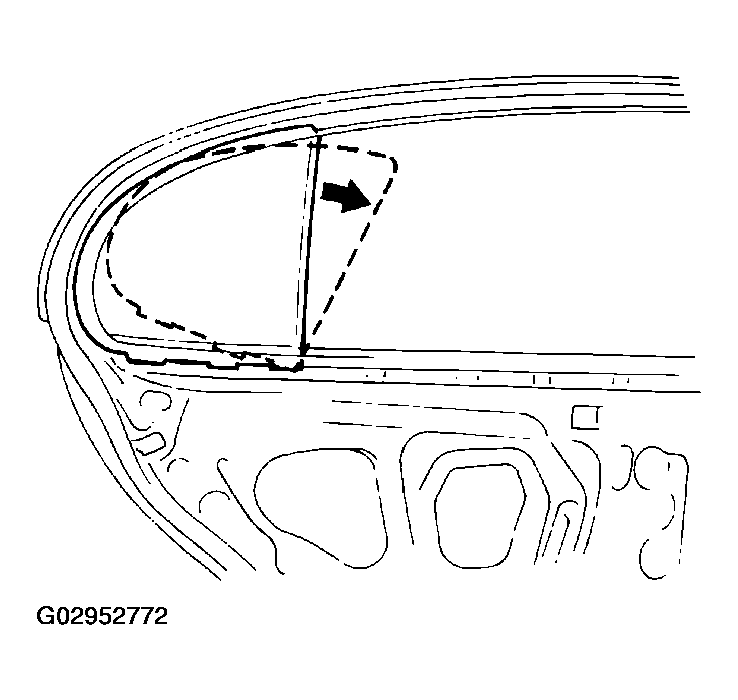

Fig 5: Removing Rear Door Quarter Window Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVING WINDOW REGULATOR
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

HINT:

At the time of reassembly, please refer to the following item.

Apply adhesive MP grease to window rollers.

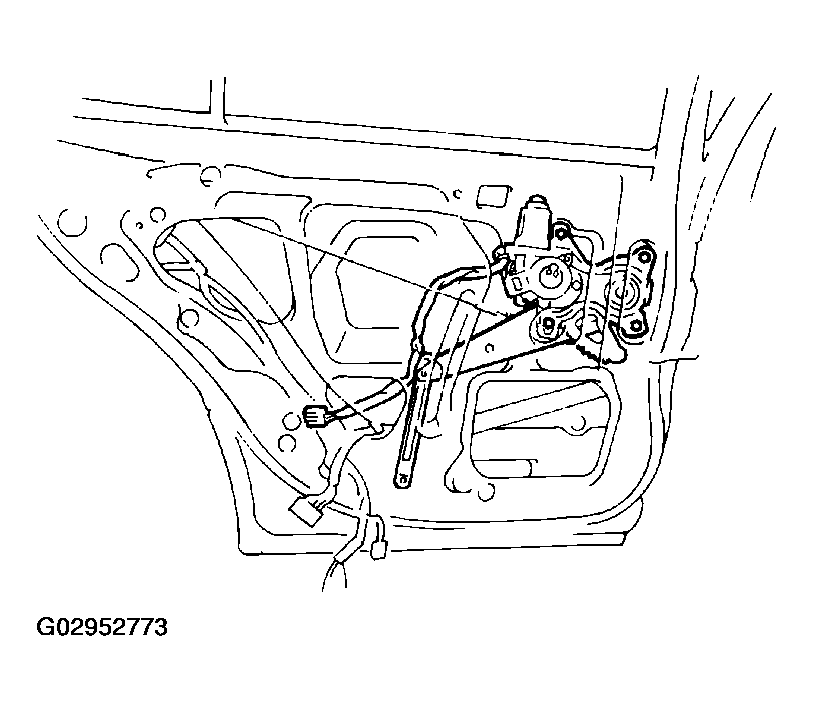

Fig 6: Removing Window Regulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVING DOOR LOCK
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

HINT:

At the time of reassembly, please refer to the following item. Apply adhesive to the screw.

Part No. 08833-00070 THREE BOND 1324 or equivalent
REMOVE REAR DOOR OUTSIDE HANDLE
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
REMOVE CHILD PROTECTOR LOCK LEVER KNOB
REMOVE REAR DOOR INSIDE HANDLE
REMOVE ORNAMENT
REMOVE PANEL

Fig 7: Removing Door Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
