Instrument Panel: Components

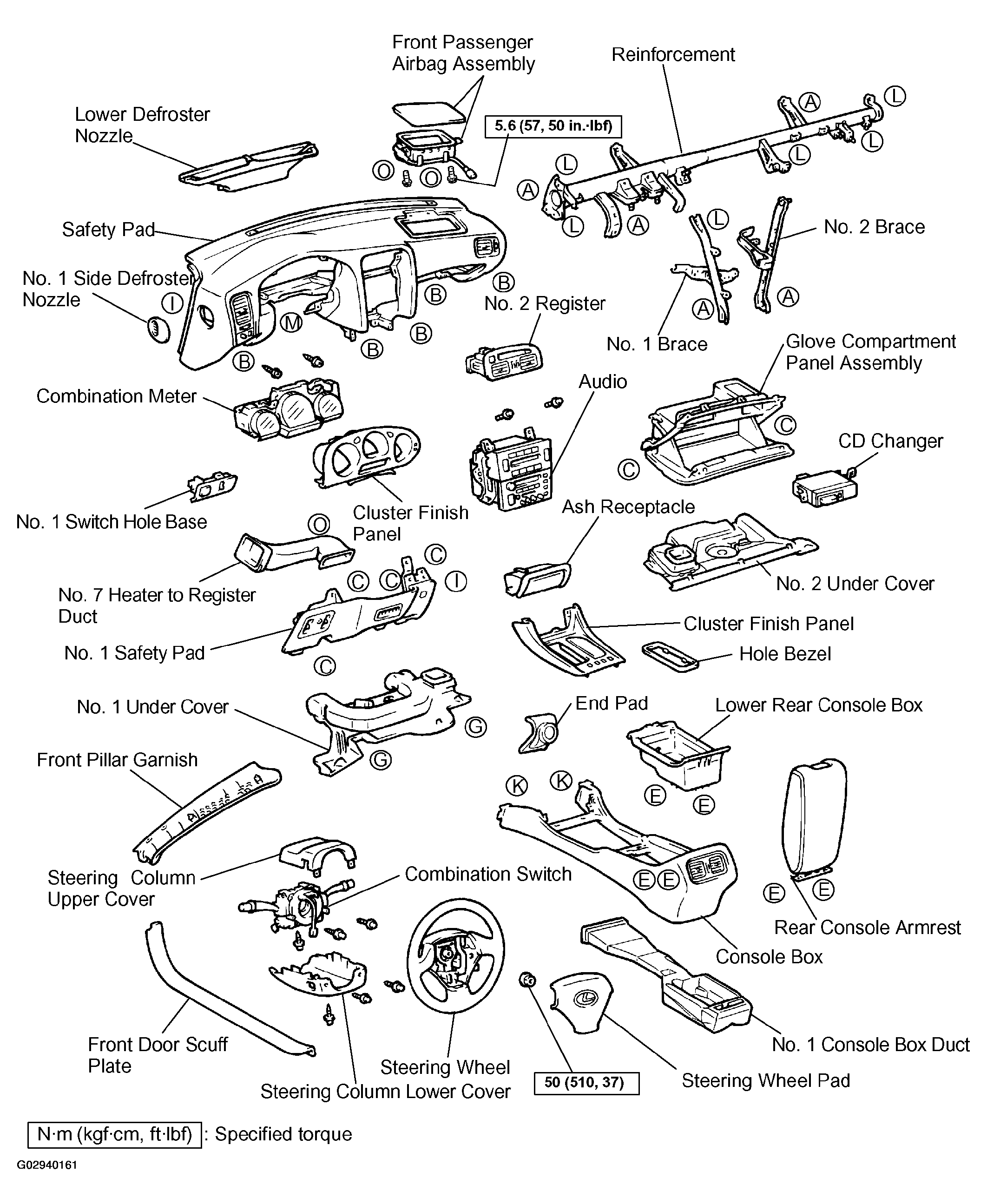

Fig 1: Exploded View Of Instrument Panel (With Specifications)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Instrument Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and size are indicated in Fig 3. The codes ("A"-"O") correspond to those indicated on Fig 1 and Fig 2.

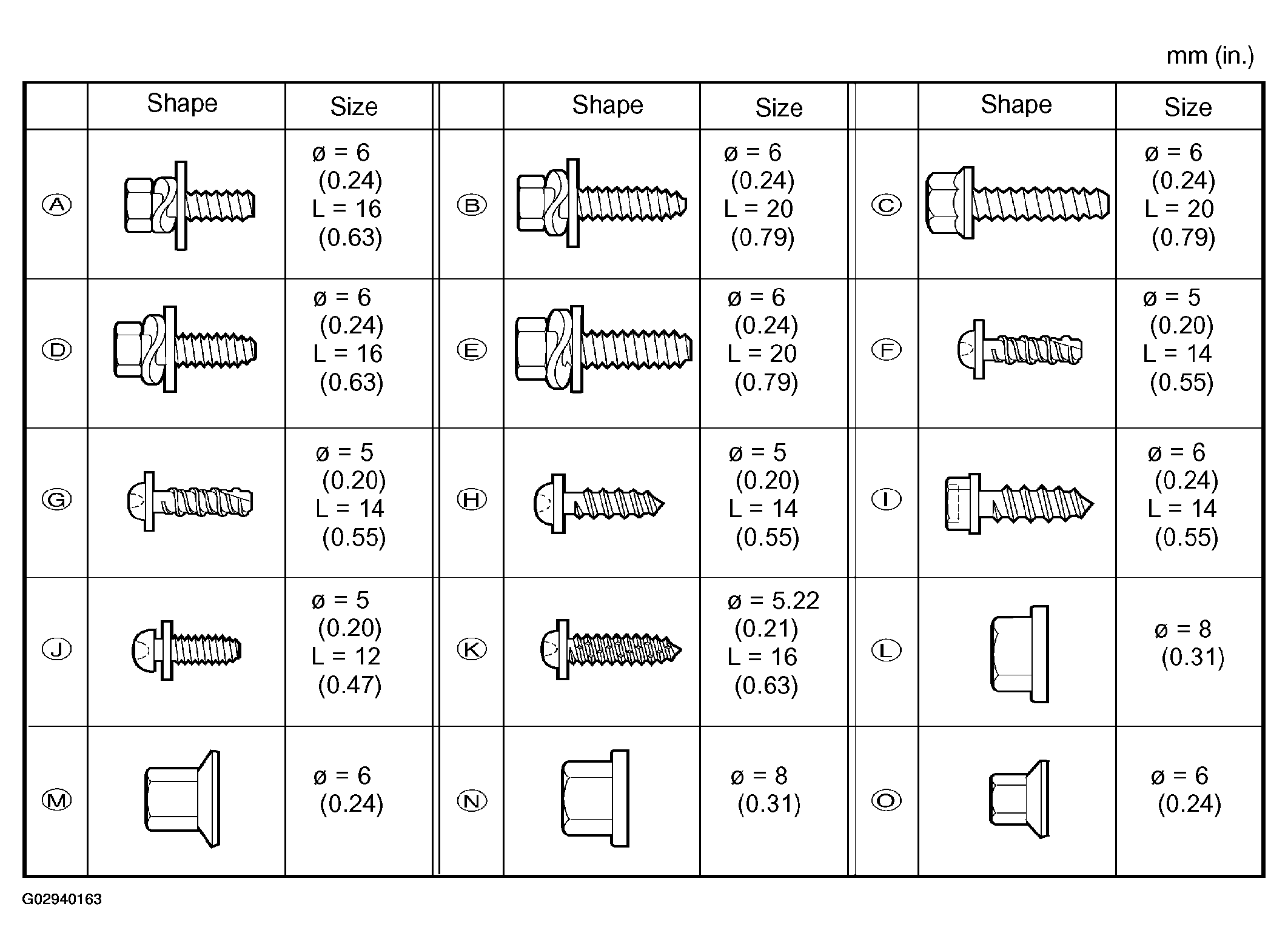

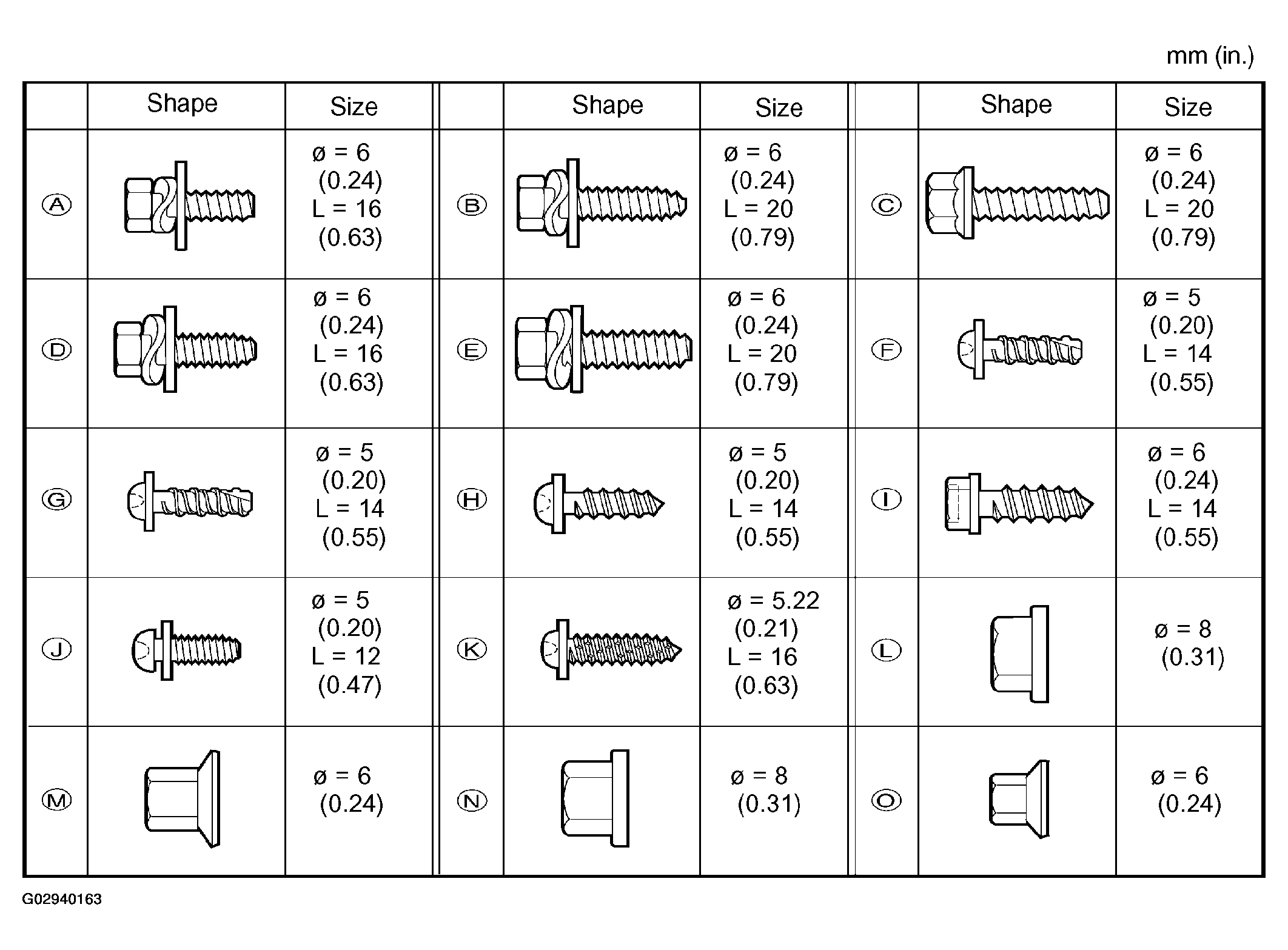

Fig 3: Identifying Nuts, Bolts & Screws Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
