SST (Special Service Tools)

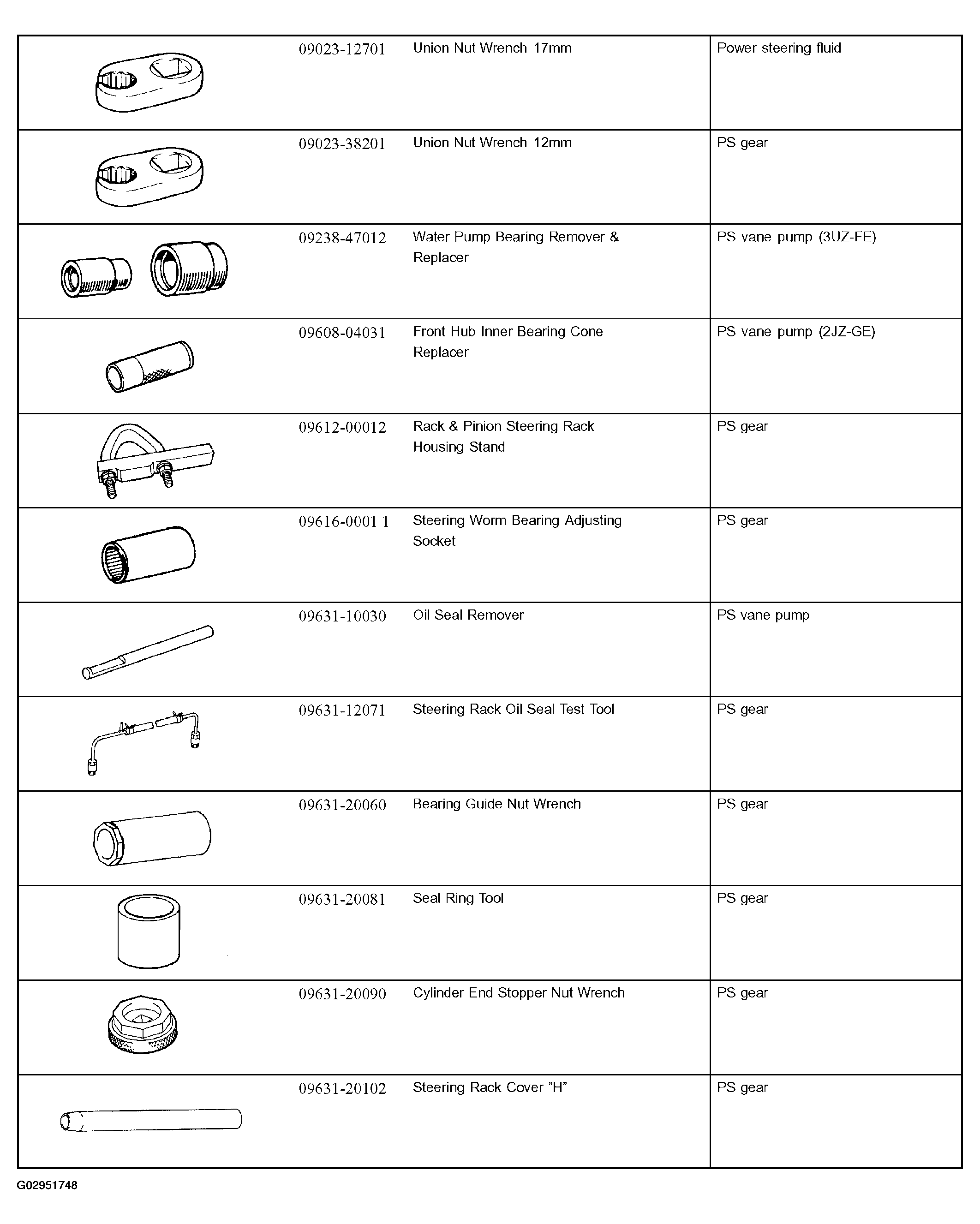

Fig 1: Identifying Steering System Special Tools (1 Of 3)
G02951748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Steering System Service Tools (2 Of 3)
G02951749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

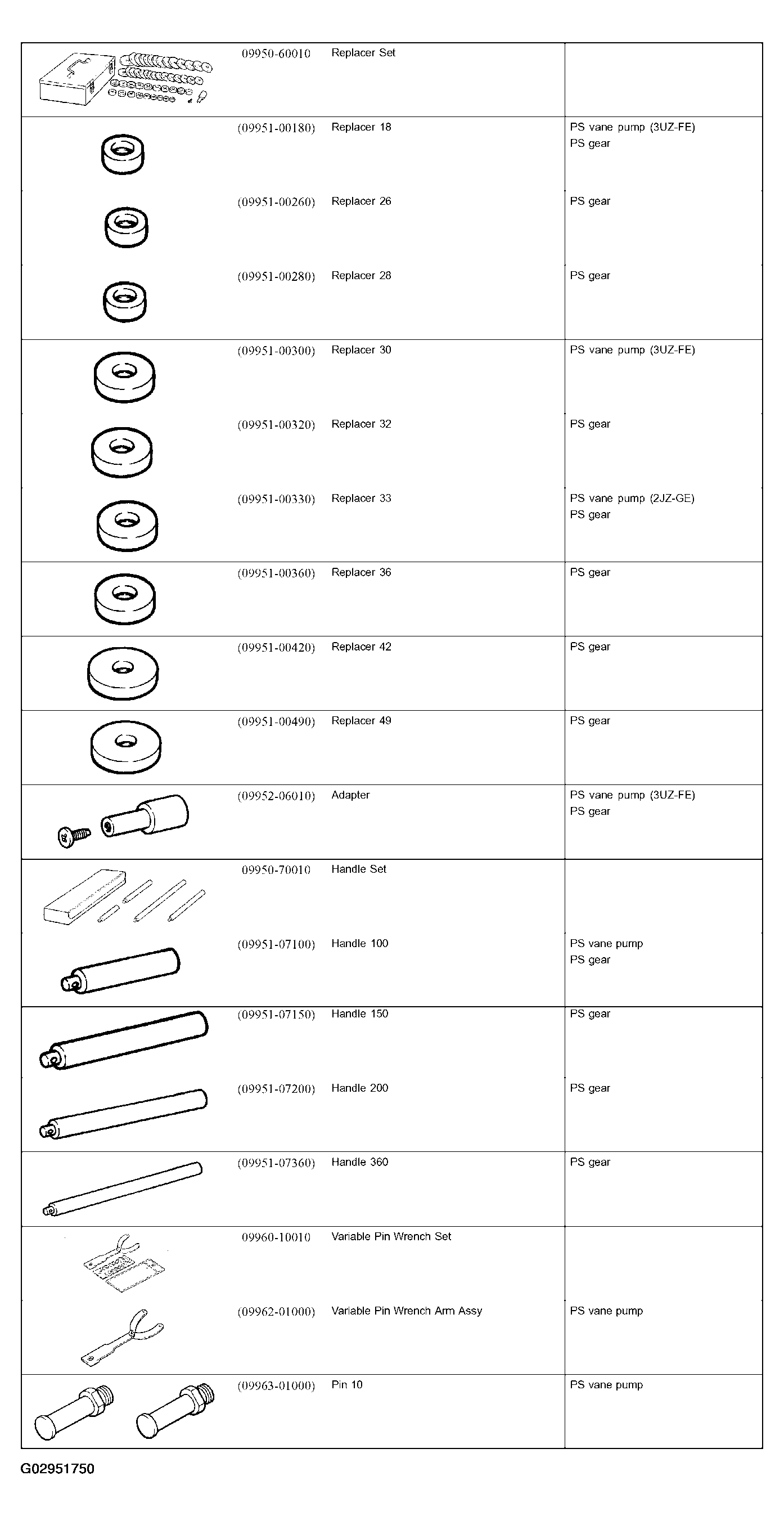

Fig 3: Identifying Steering System Service Tools (3 Of 3)
G02951750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
