Crankshaft Position Sensor: Replacement

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor
  3. REINSTALL NEW CRANKSHAFT POSITION SENSOR
    1. Install a new crankshaft position sensor with the bolt.
      1. Torque: 6.5 N.m (65 kgf.cm, 58 in..lbf)

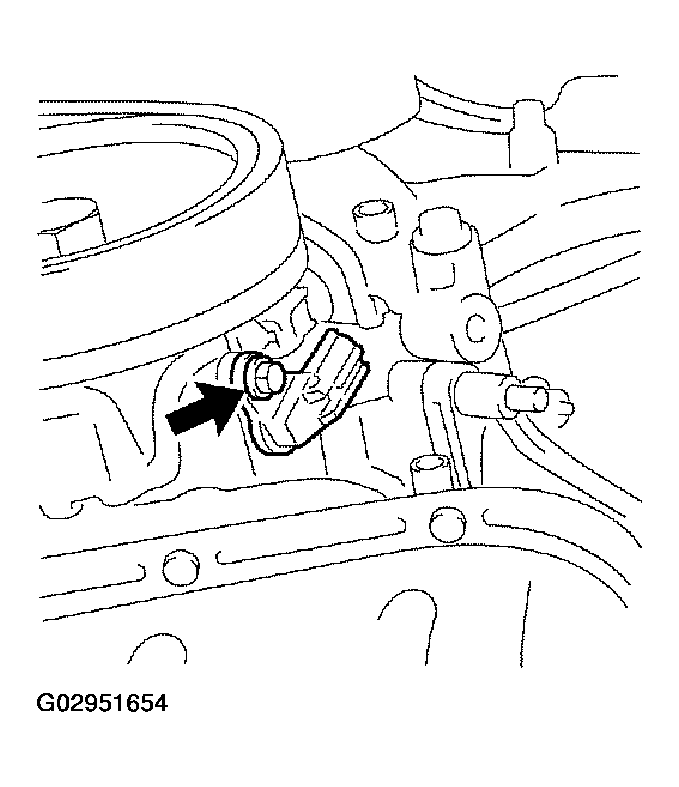

        Fig 1: Installing Crankshaft Position Sensor
        G02951654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the crankshaft position sensor connector.
  4. REINSTALL ENGINE UNDER COVER
