Ignition Coil: Replacement

  1. REMOVE V-BANK COVER
  2. REMOVE INTAKE AIR CONNECTOR PIPE
  3. REMOVE IGNITION COILS
    1. Disconnect the 8 ignition coil connectors.
    2. Remove the bolt, and pull out the ignition coil. Remove the 8 ignition coils.
  4. REINSTALL NEW IGNITION COILS
    1. Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 8 ignition coils.

      Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)

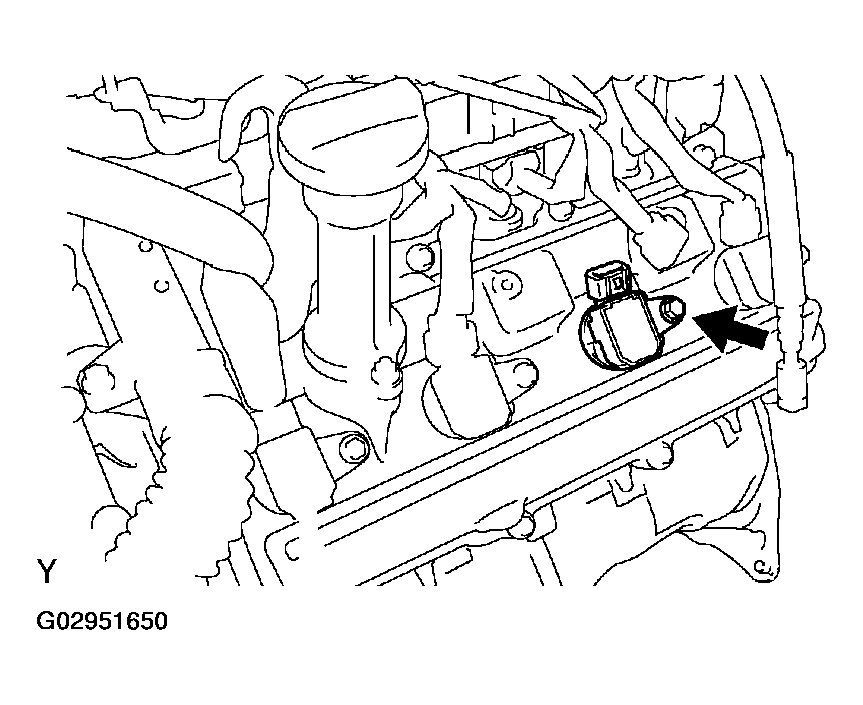

      Fig 1: Connecting Ignition Coil To Spark Plug & Attaching Ignition Coil To Cylinder Head Cover
      G02951650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 8 ignition coil connectors.
  5. REINSTALL INTAKE AIR CONNECTOR PIPE
  6. REINSTALL V-BANK COVER
