Glossary Of Sae And LEXUS Terms

This glossary lists all SAE-J1930 terms and abbreviations used in the GS300/GS430 articles are in compliance with SAE recommendations, as well as their LEXUS equivalents.

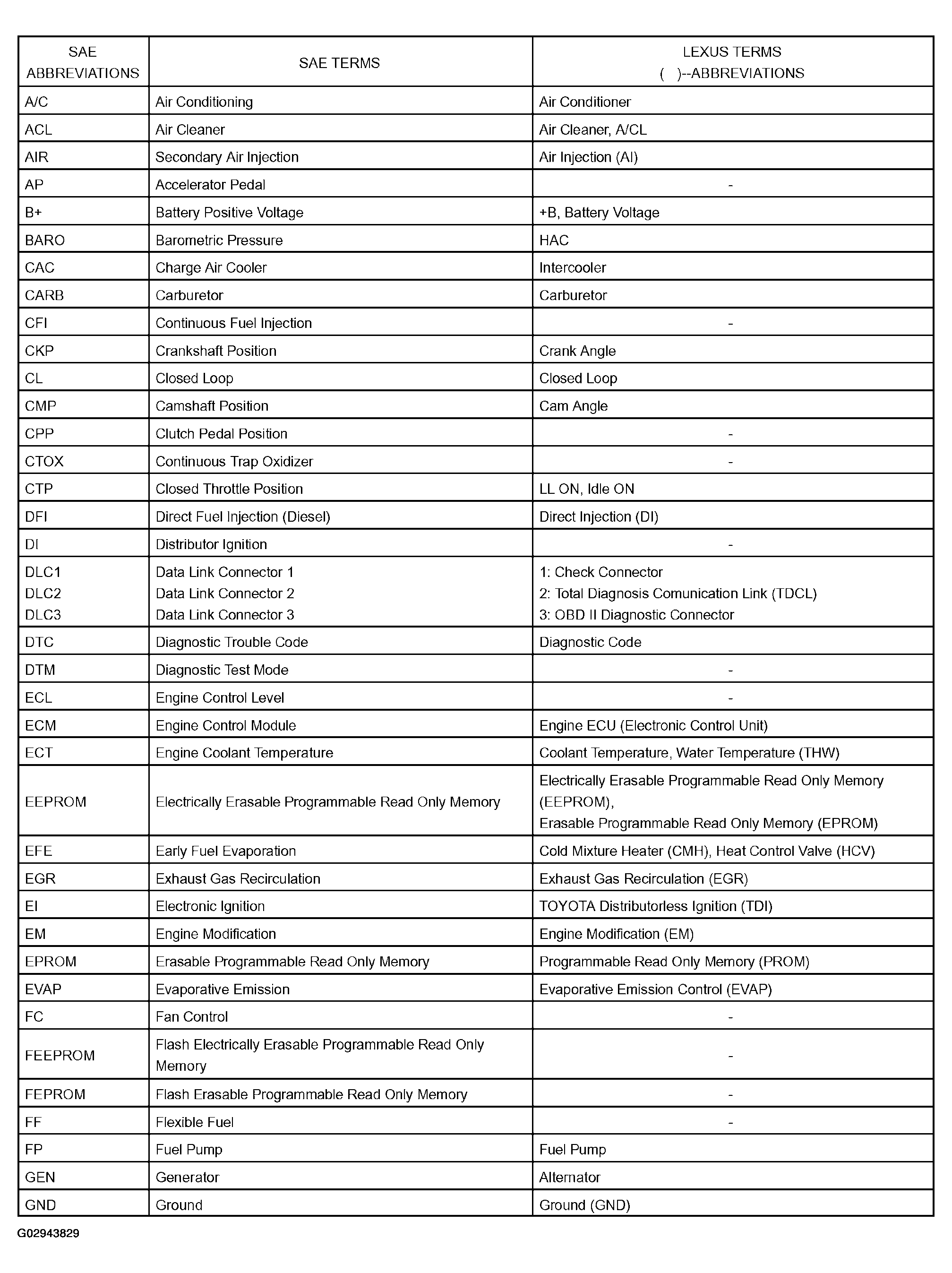

Fig 1: SAE And Lexus Terms Chart (1 Of 2)
G02943829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

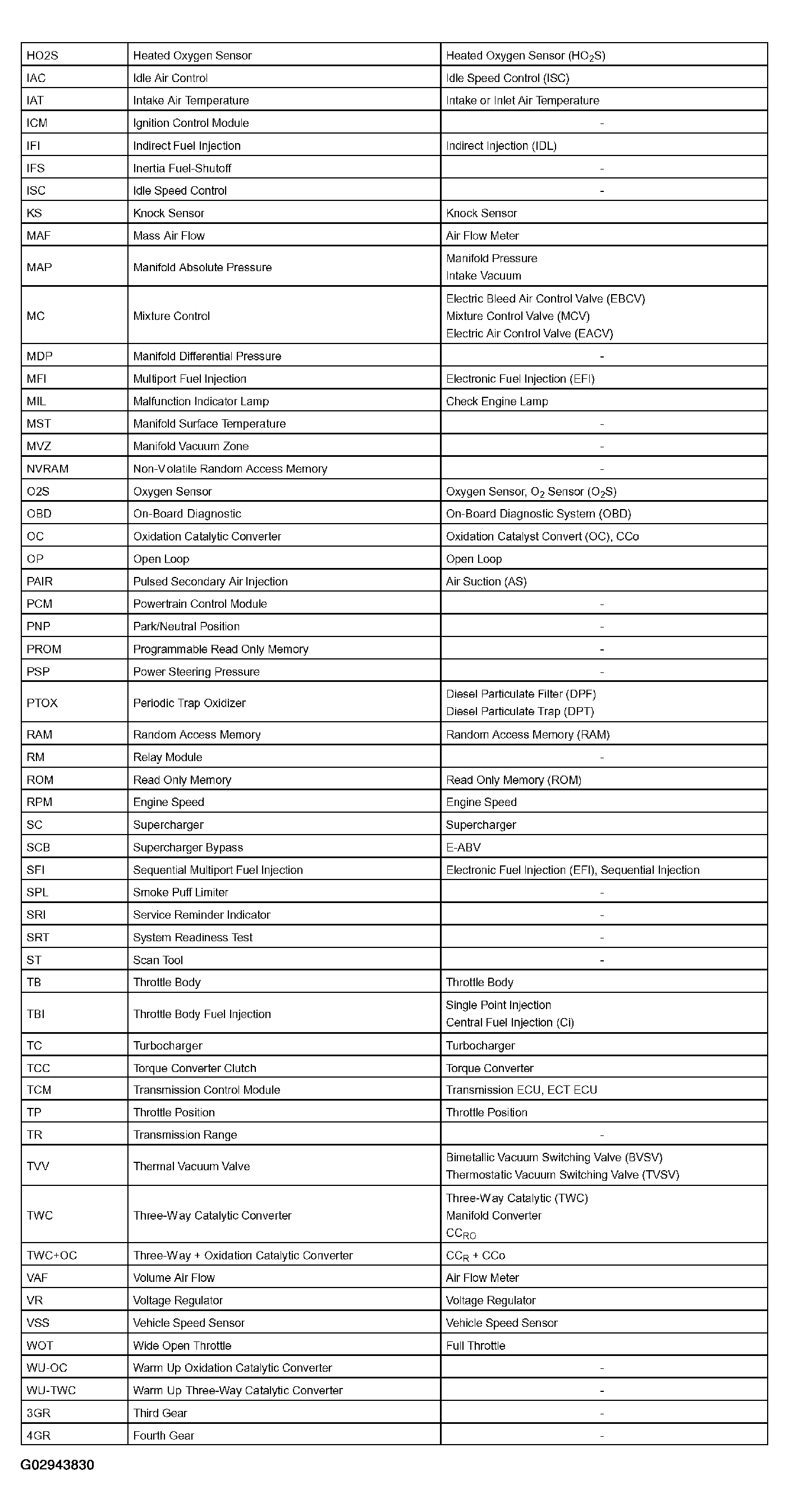

Fig 2: SAE And Lexus Terms Chart (2 Of 2)
G02943830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
