Service Data

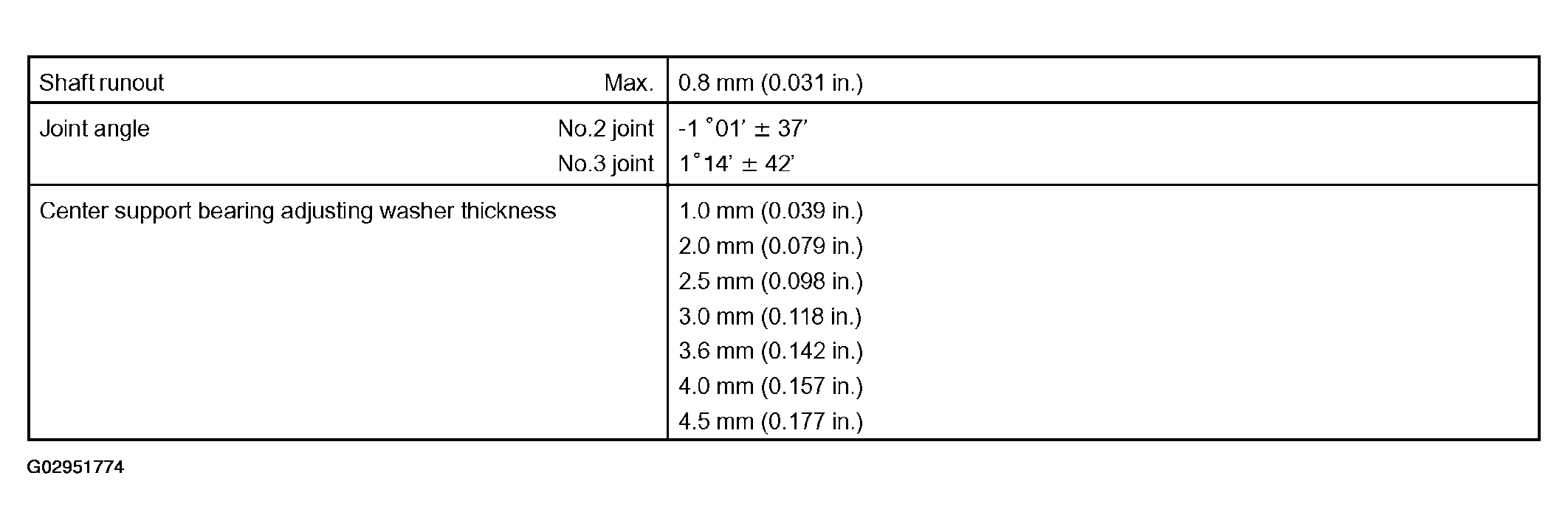

Fig 1: Propeller Shaft Service Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
