Engine Exhaust Assembly: Components: Notes

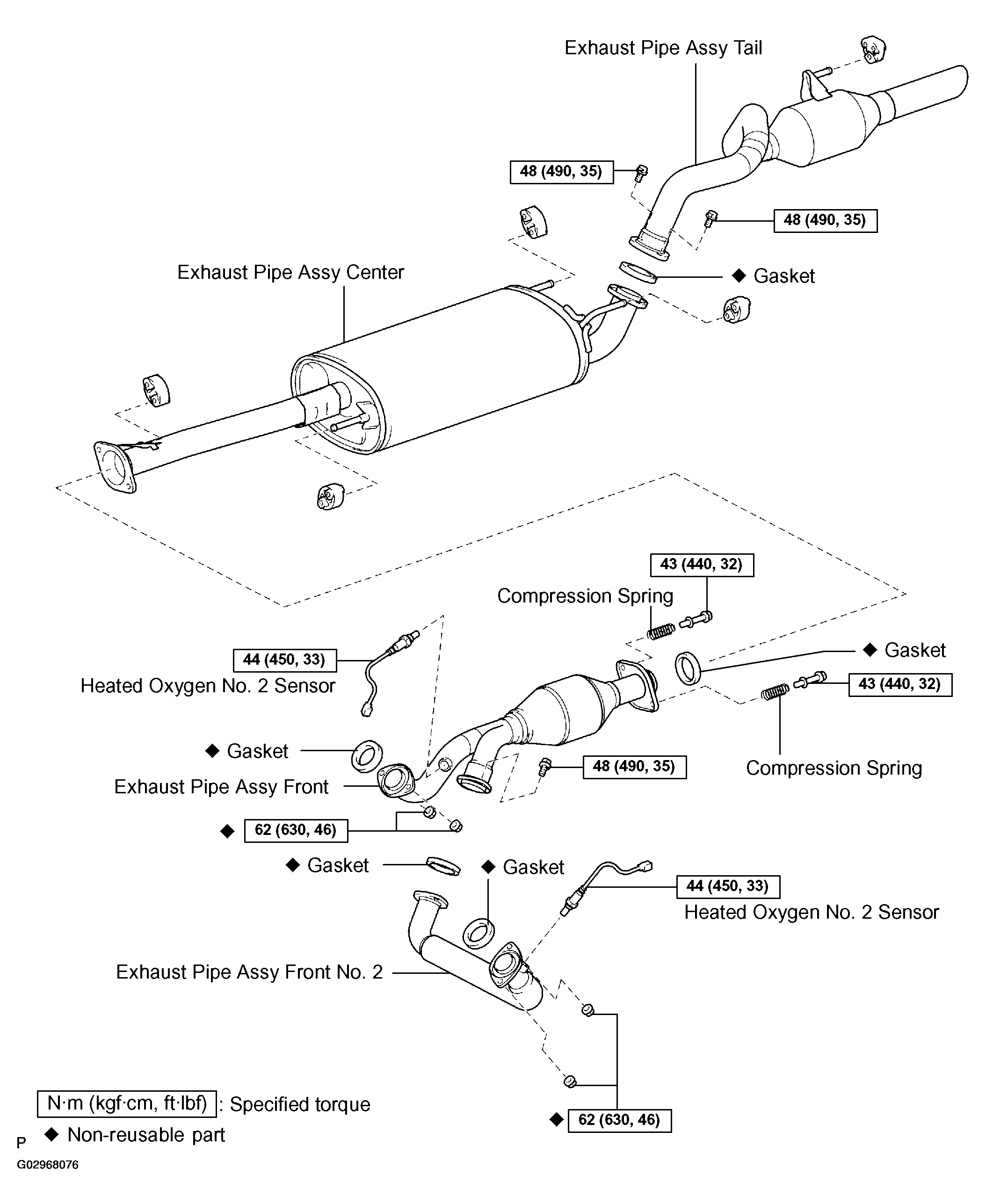

Fig 1: Identifying Exhaust Pipe Assy Components And Replacements (2UZ-FE)
G02968076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
