Engine Hood/Door: Preparation

SST

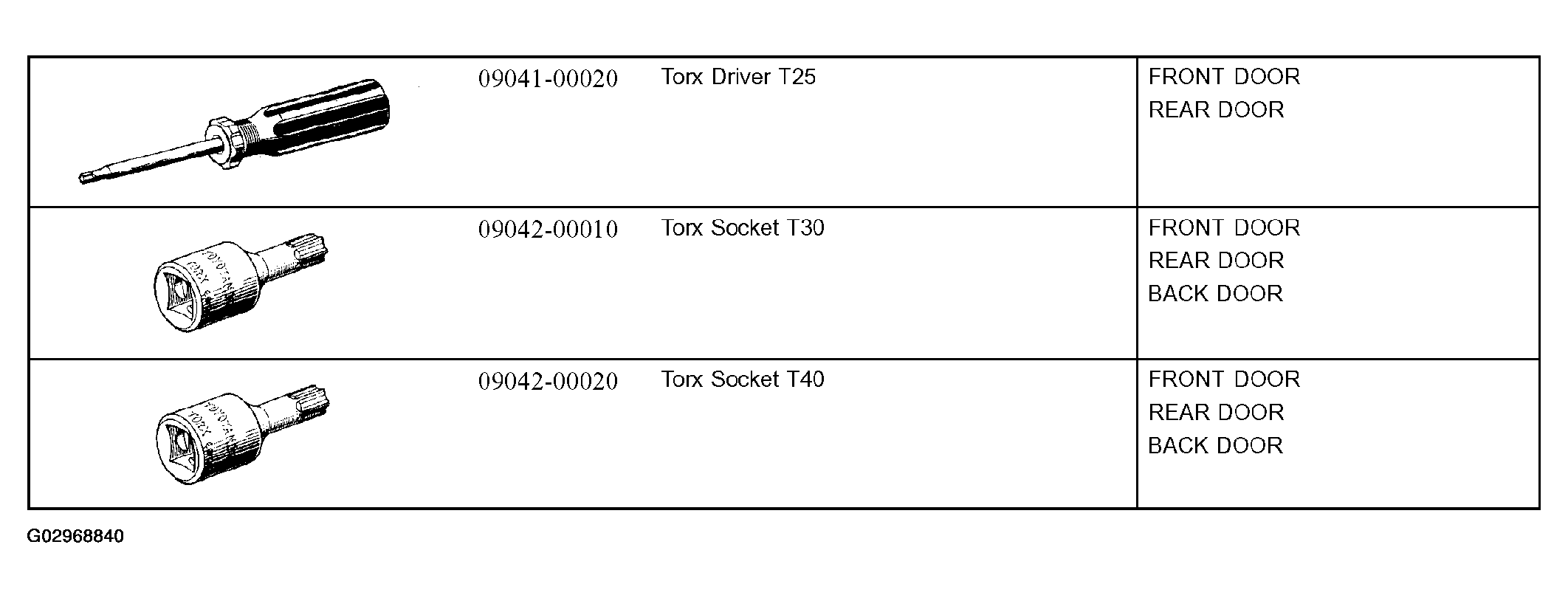

Fig 1: Service Special Tool Table - Engine Hood/Door

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

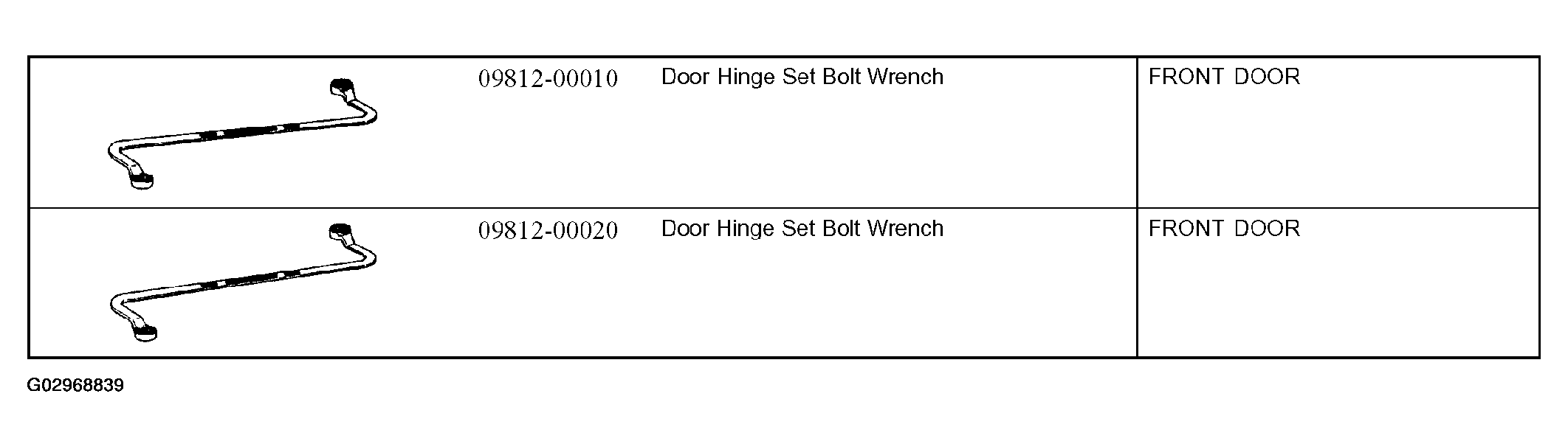

Fig 2: Recommended Tools Table - Engine Hood/Door

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

SSM

SSM SPECIFICATION

08833-00070 "Adhesive 1324," THREE BOND 1324 or equivalent	FRONT DOOR REAR DOOR BACK DOOR
08850-00065 Butyl Tape Set	FRONT DOOR REAR DOOR BACK DOOR

Equipment

ENGINE HOOD/DOOR EQUIPMENT SPECIFICATION
