Power Steering: Preparation

SST

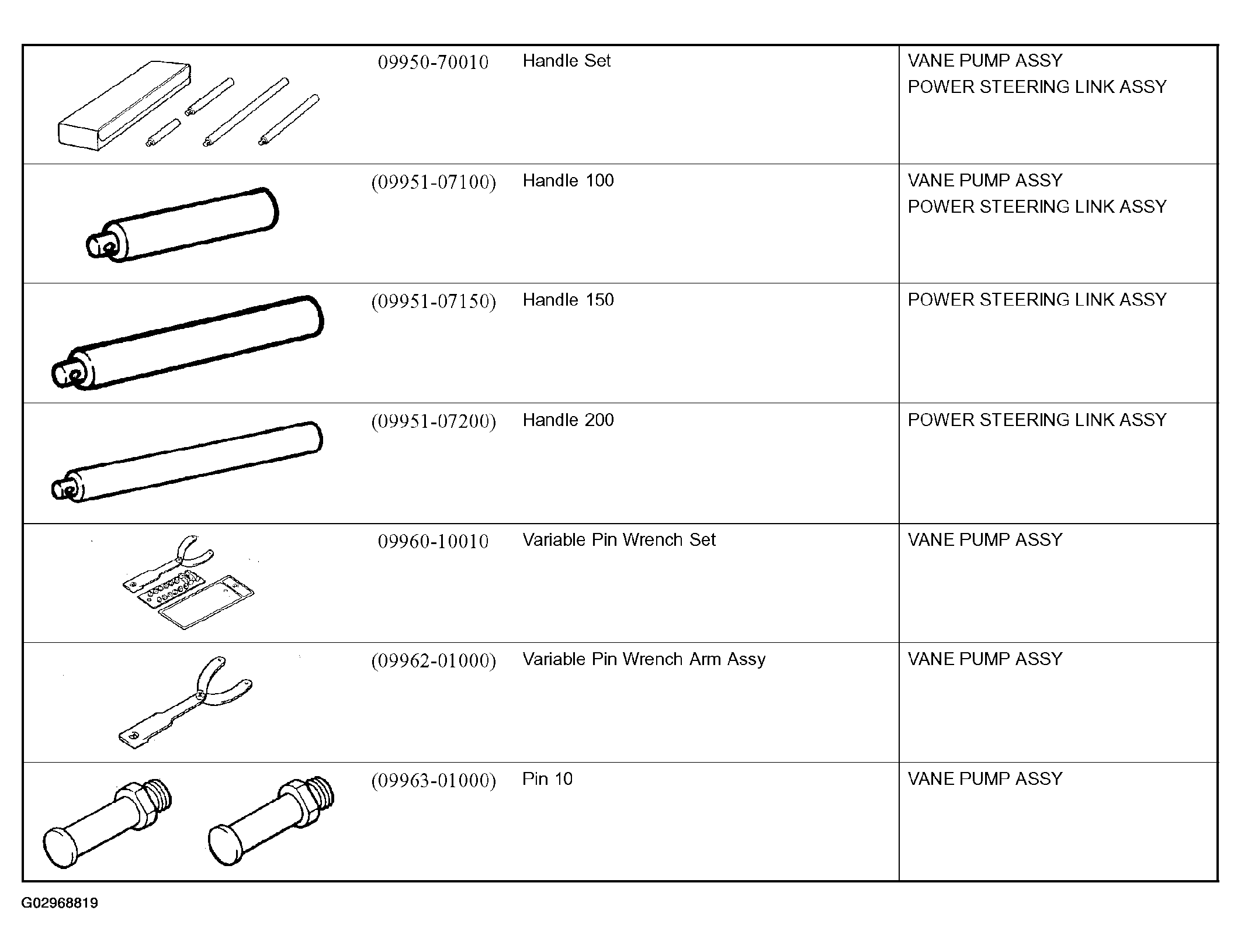

Fig 1: Service Special Tool Table - Power Steering (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

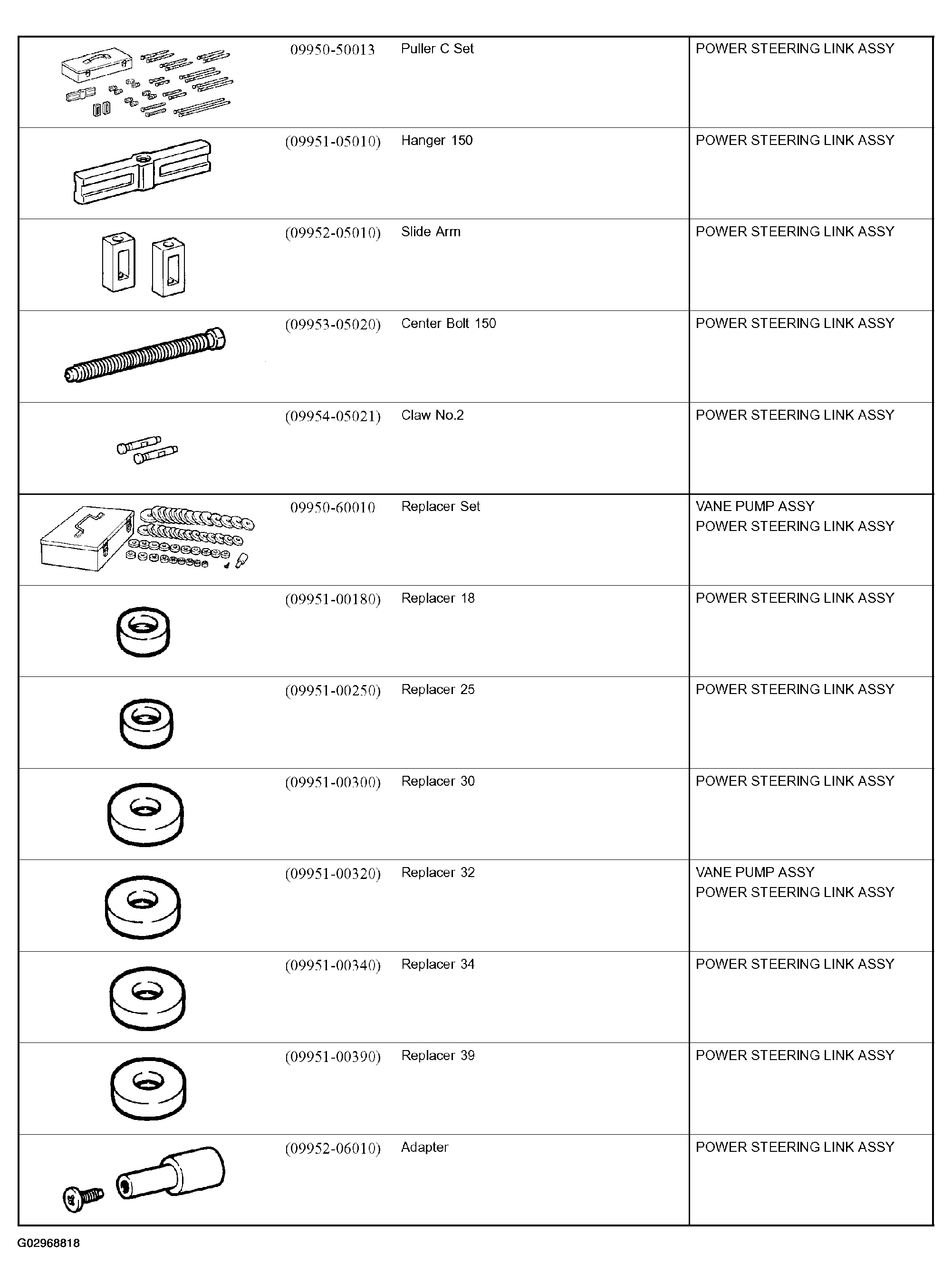

Fig 2: Service Special Tool Table - Power Steering (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

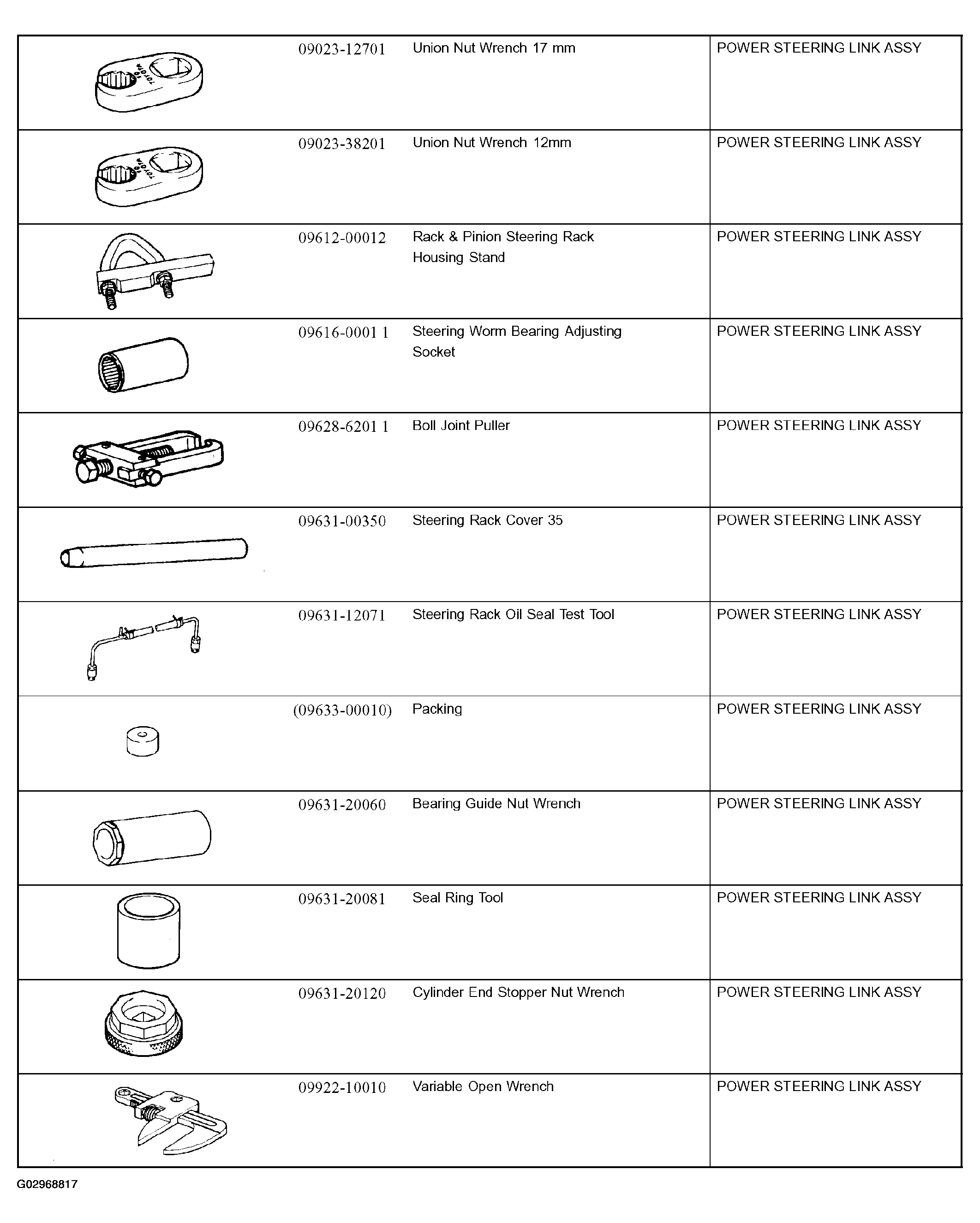

Fig 3: Service Special Tool Table - Power Steering (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

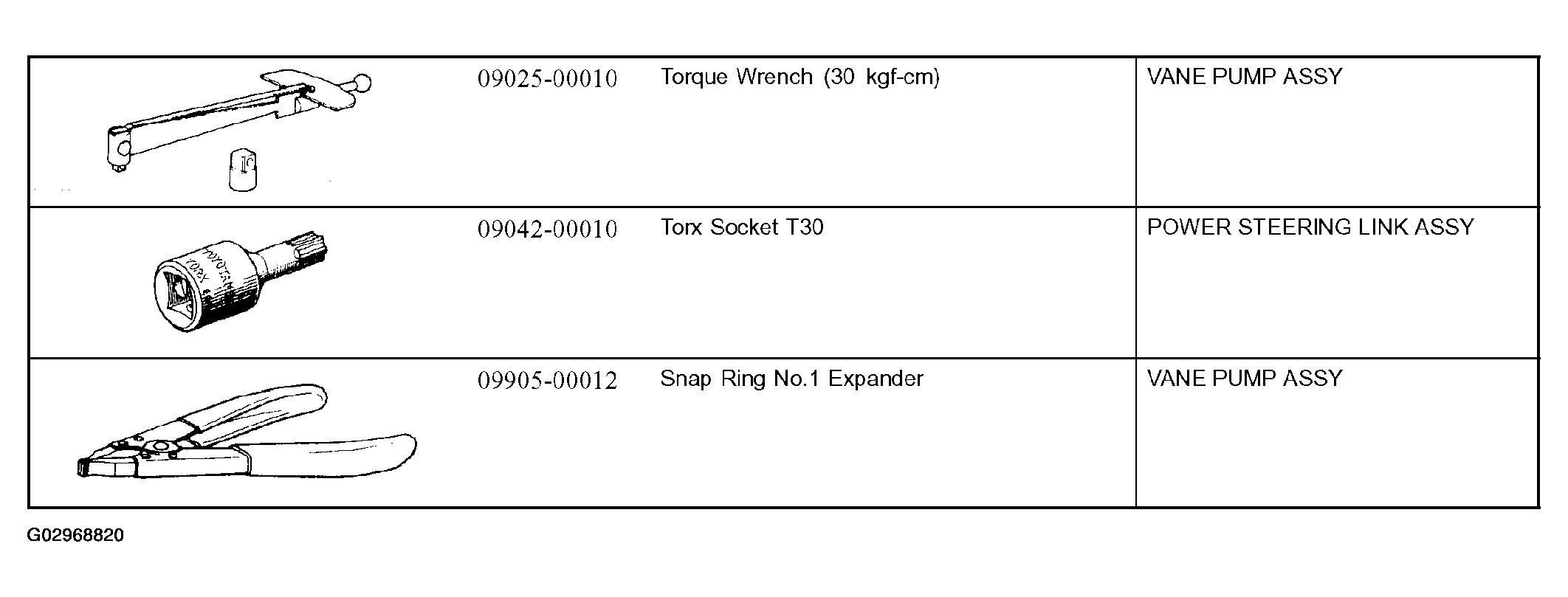

Fig 4: Recommended Tools Table - Power Steering

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

POWER STEERING EQUIPMENT SPECIFICATION

Lubricant

LUBRICANT SPECIFICATION

Item	Capacity	Classification
Power steering fluid (Total)	1.0 liters (1.0 US qts, 0.9 lmp.qts)	ATF DEXRON® II or III

SSM

SSM SPECIFICATION

08833-00080 Adhesive 1344 THREE BOND 1344 LOCTITE 242 or equivalent

POWER STEERING LINK ASSY
