Combination Meter: Inspection
- LIGHT CONTROL RHEOSTAT ASSY

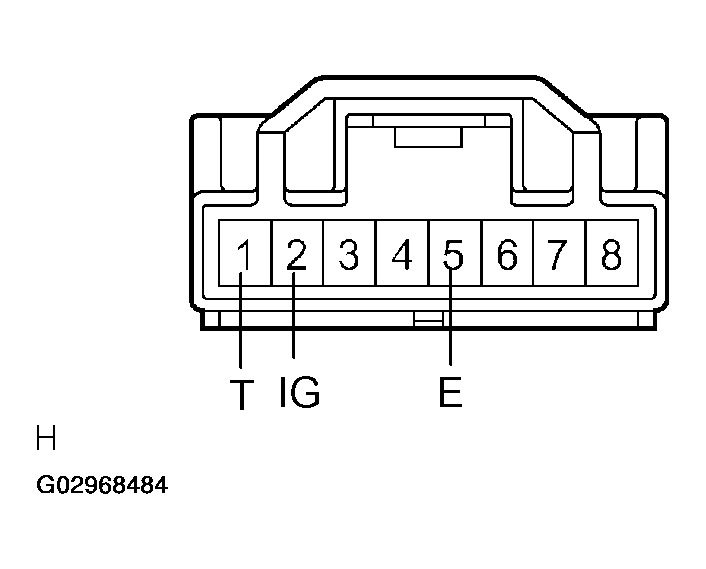

- Check the continuity of light control rheostat when the light control rheostat operates as shown in LIGHT CONTROL RHEOSTAT ASSY .
Standard:
LIGHT CONTROL RHEOSTAT ASSYTerminal (Symbol) Condition Specified condition 1 (T) - Body ground Ignition switch ON, Tail-light switch OFF -> ON Below 1 V- 10 to 14 V 2 (IG) - Body ground Ignition switch OFF -> ON Below 1 V- 10 to 14 V 5 (E) - Body ground Always Below 1 Ω - Check resistance.

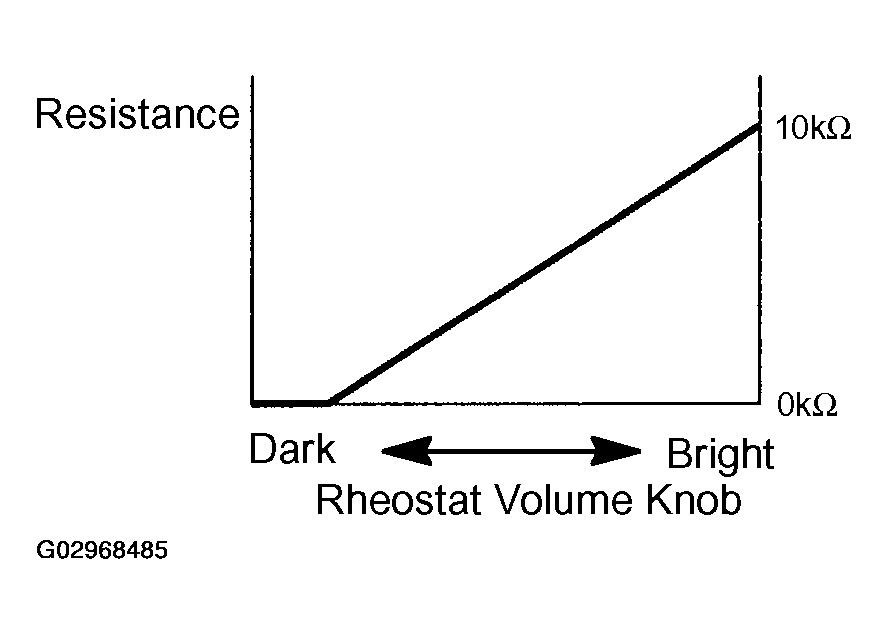

- Check the resistance between terminal 4 (RV) and terminal 3 (T) when operating the light control rheostat volume knob. Also, check that the resistance changes continuously.
Standard resistance:
- Turn the knob to maximum: Approx. 10 k Ω
- Turn the knob to minimum: Approx. 0 k Ω
- Check the resistance between terminal 4 (RV) and terminal 3 (T) when operating the light control rheostat volume knob. Also, check that the resistance changes continuously.
- Check the continuity of light control rheostat when the light control rheostat operates as shown in LIGHT CONTROL RHEOSTAT ASSY .
