On-Vehicle Inspection

Start the engine.
While the engine is idling, check that the actuator rod moves.

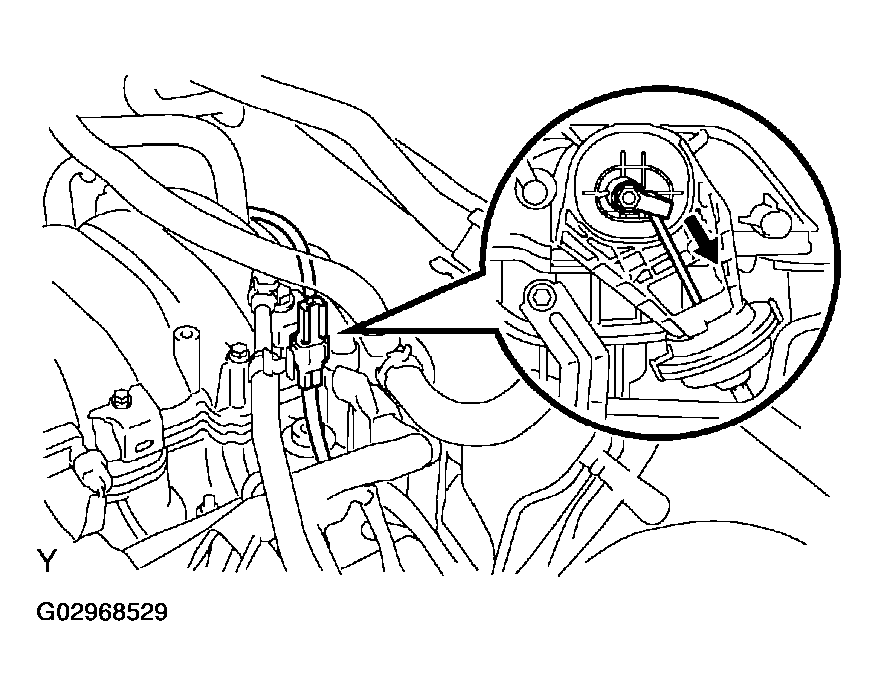

Fig 1: Checking Actuator Rod Moves
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the VSV connector, and check that the actuator rod returns.
If operation is not as specified, inspect the intake air control valve, VSV and ECM.

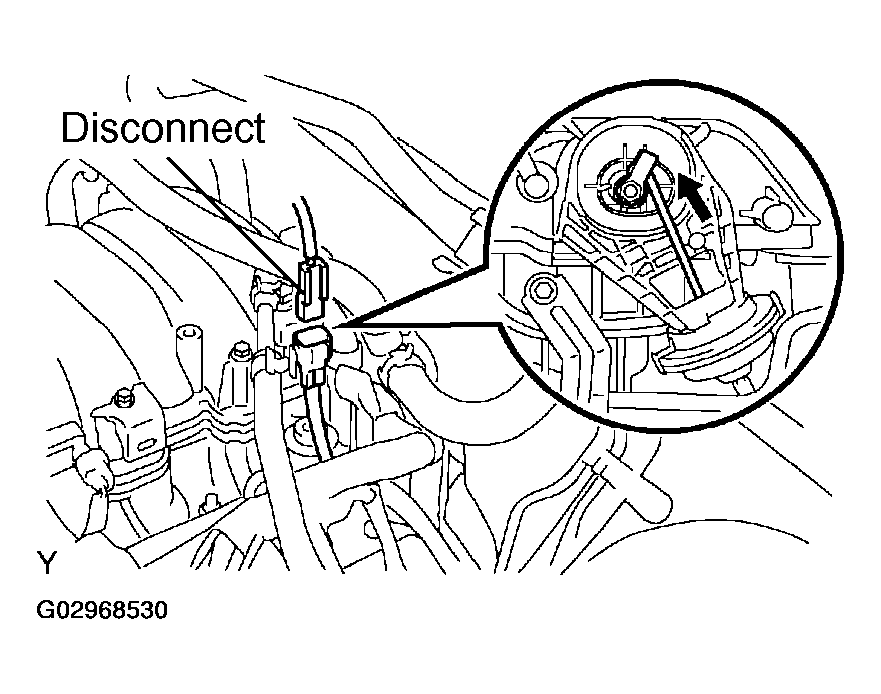

Fig 2: Checking Actuator Rod Returns
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
