Heater & Air Conditioner: Preparation

SST

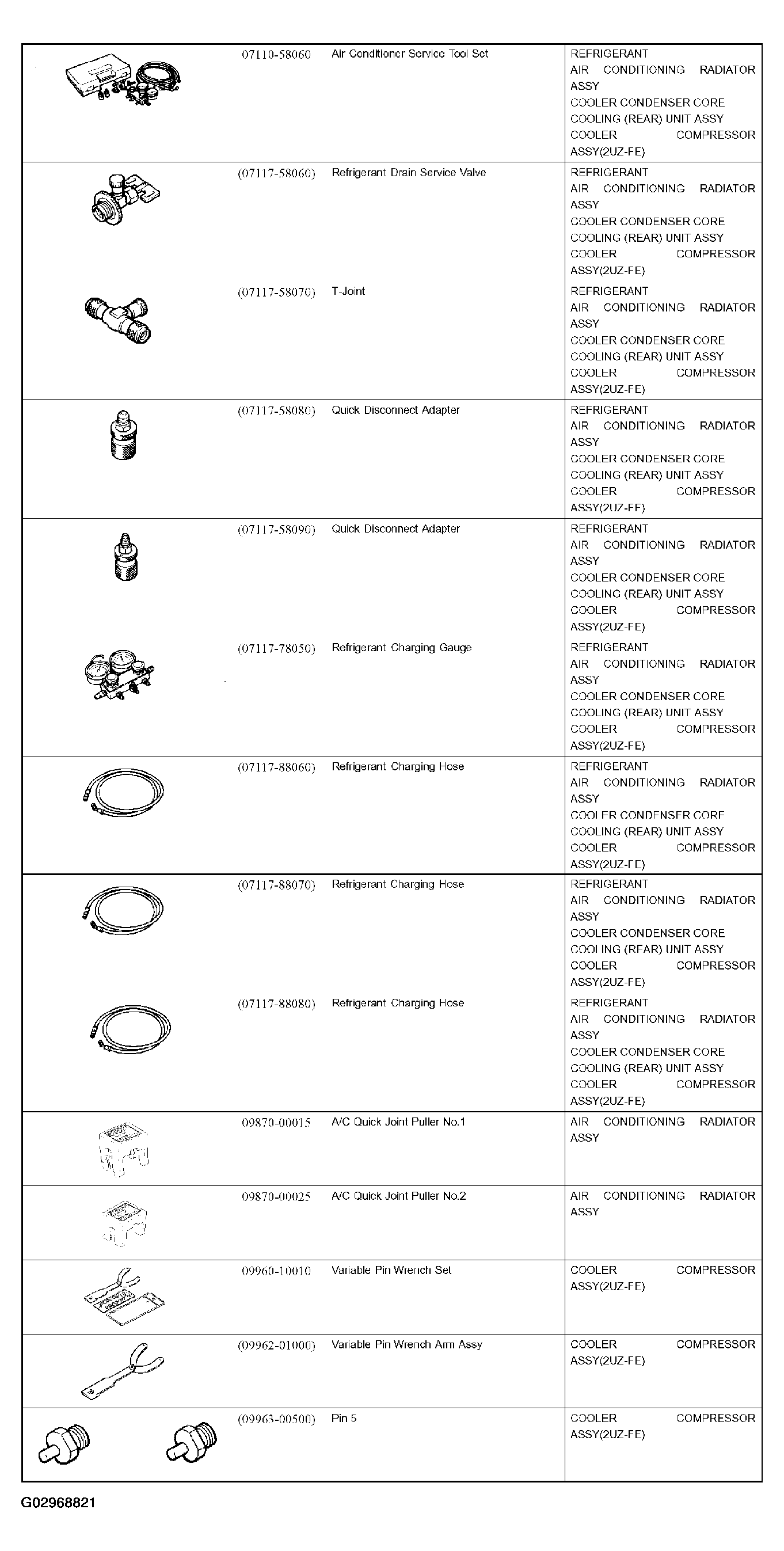

Fig 1: Service Special Tool Table - Heater & Air Conditioner
G02968821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

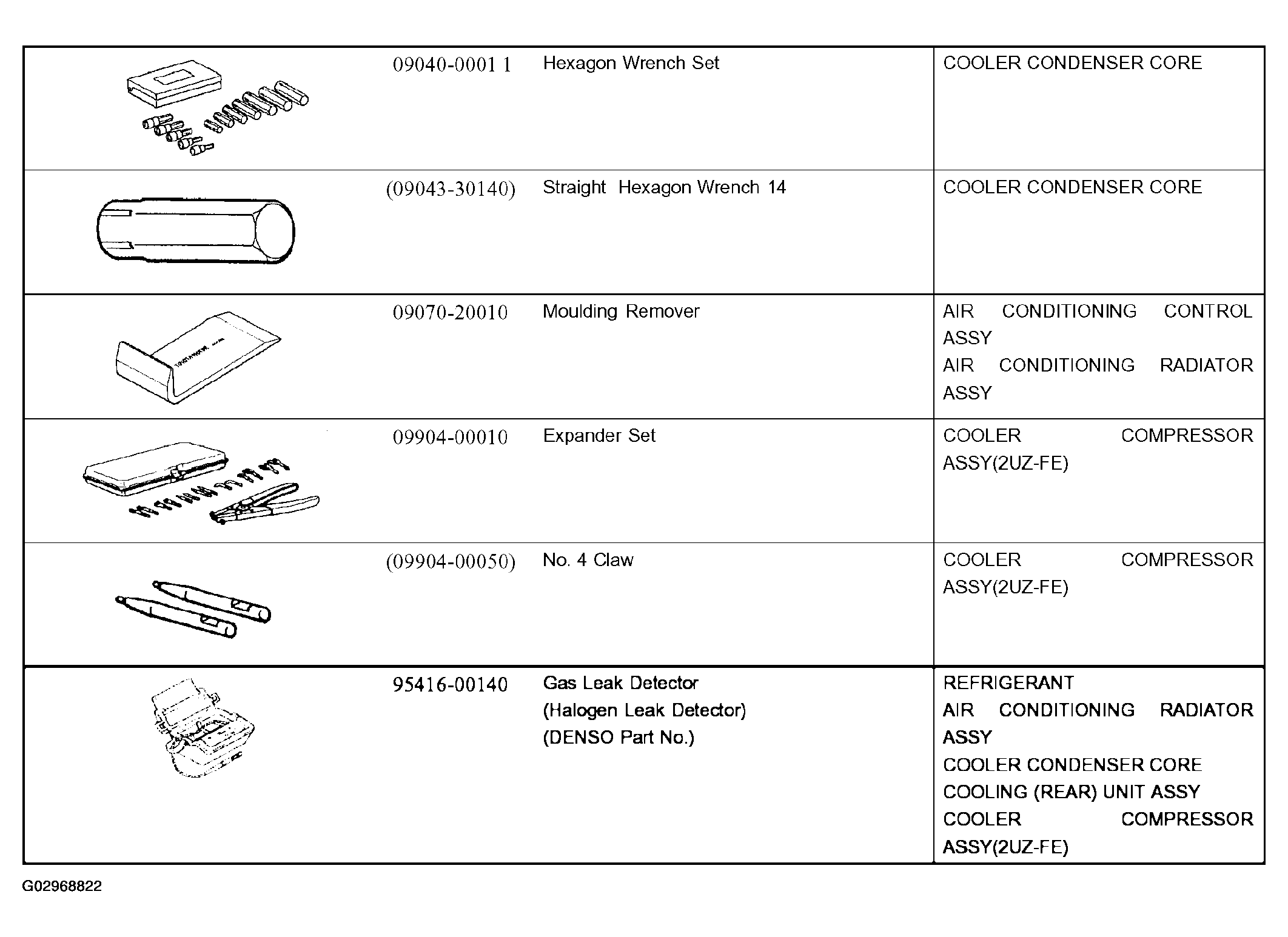

Fig 2: Recommended Tools Table - Heater & Air Conditioner
G02968822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

HEATER & AIR CONDITIONER EQUIPMENT SPECIFICATION

Voltmeter
Ammeter
Ohmmeter -
Vinyl tape
Hexagon wrench 4 mm (0.15 in.)
Hexagon wrench 14 mm (0.55 in.)
Gas leak detector
Dial indicator with magnetic base
Radiator cap tester
Torque wrench

Lubricant

LUBRICANT SPECIFICATION

Item Capacity Classification
Compressor oil - ND-OIL 8 or equivalent
